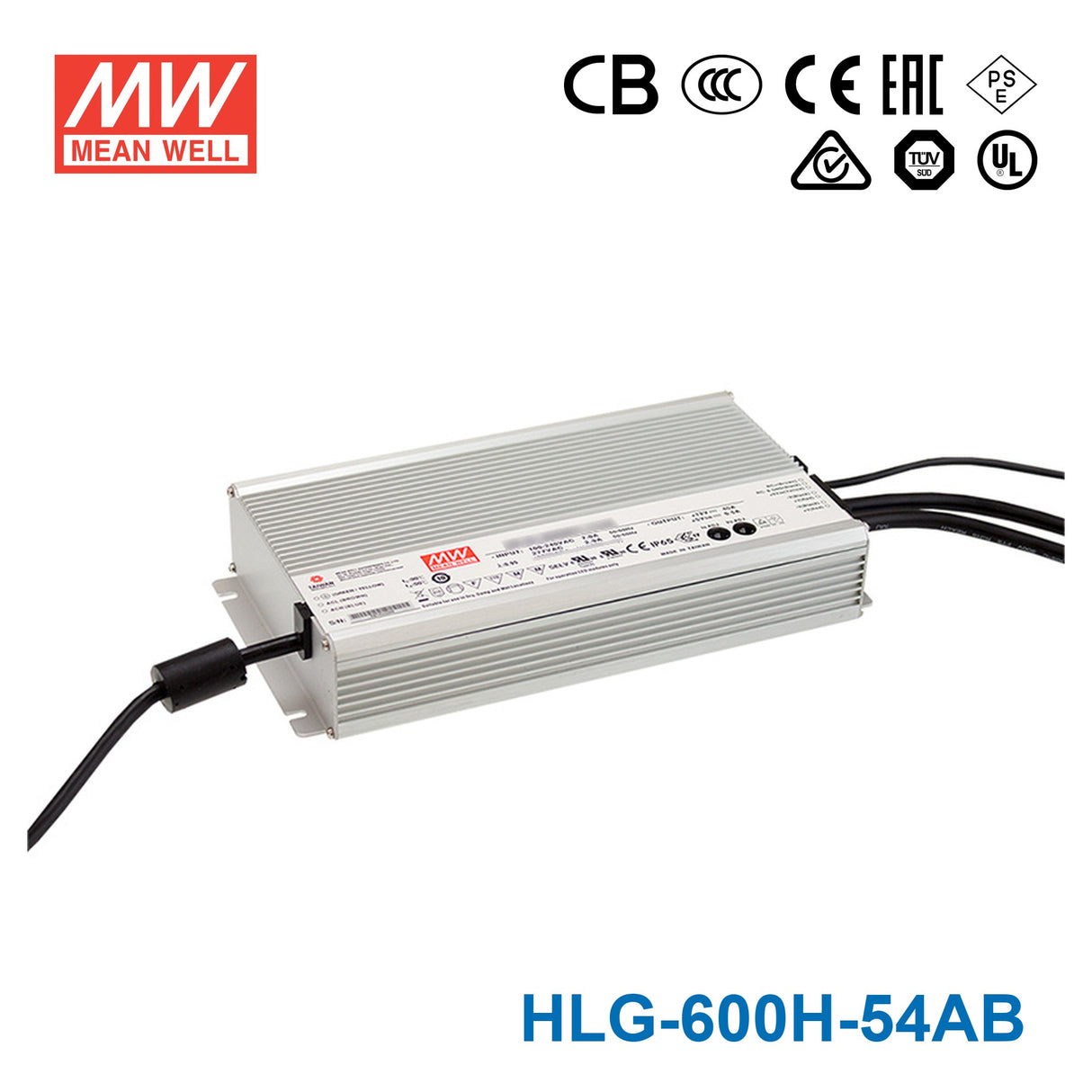

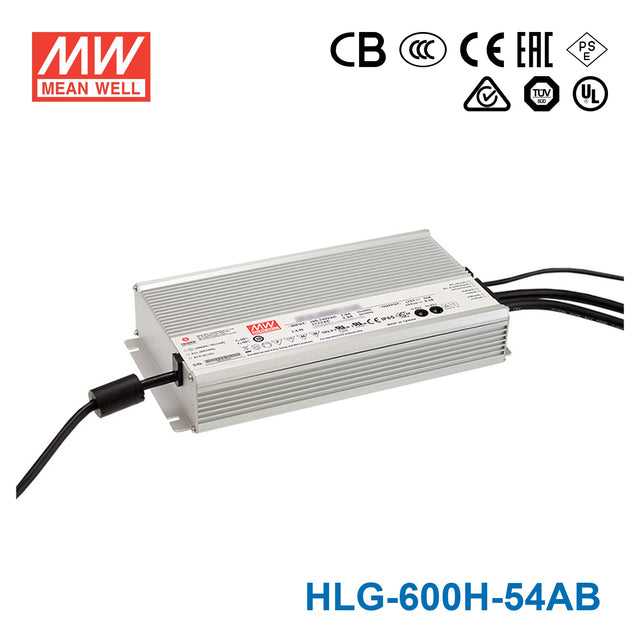

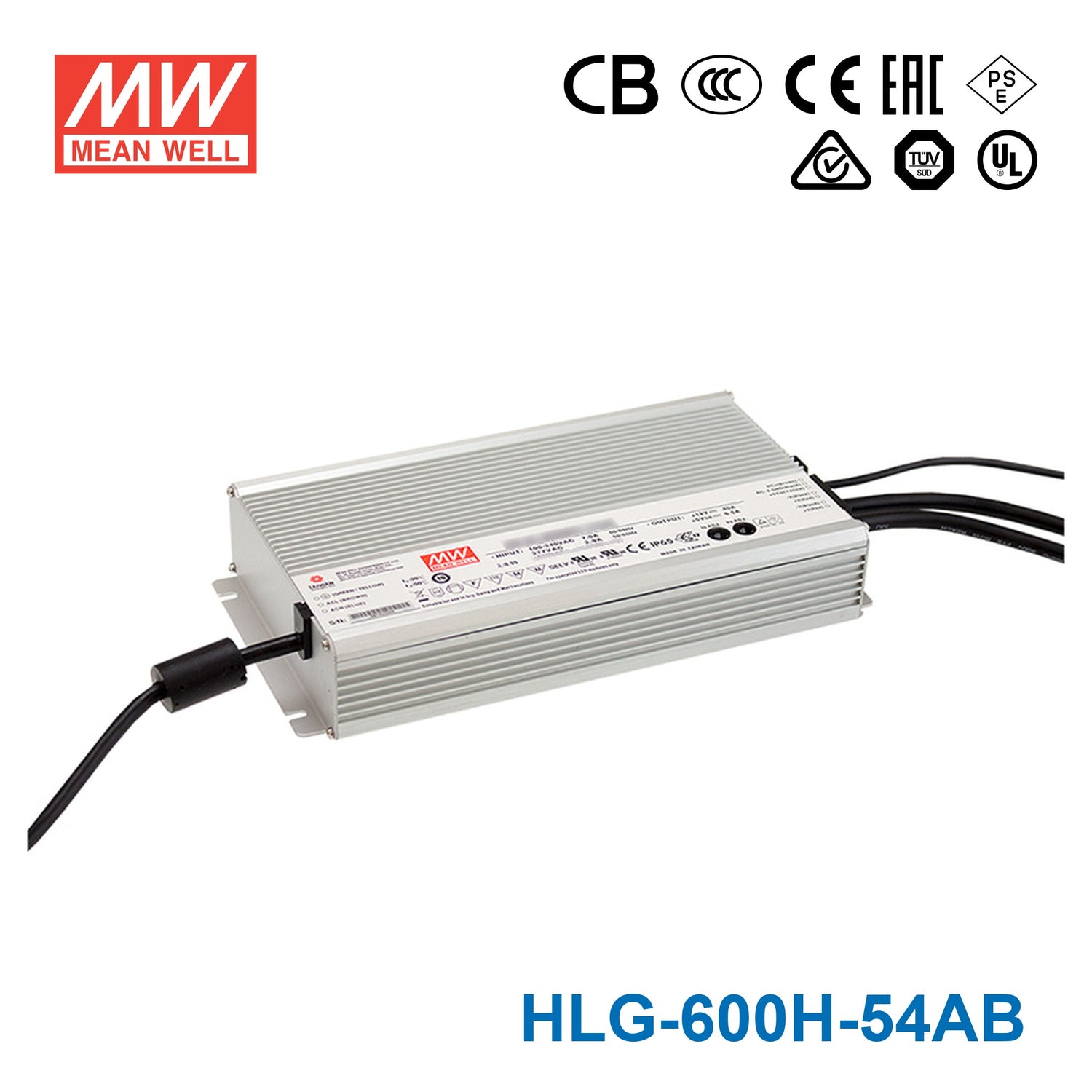

Mean Well HLG-600H-54AB Power Supply 600W 54V - Adjustable and Dimmable

The HLG-600H is a 600W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 11.2A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-600H-54AB to power a large 54V LED strip installation with dimming?

Yes. The HLG-600H-54AB delivers 600W at 54V and includes both an adjustable output and a dimming interface, so you can fine-tune voltage and brightness for large-scale LED strip runs. Its IP65 water-resistant rating suits sheltered outdoor or indoor installations where dust and low-pressure water jets may be present.

Is the HLG-600H-54AB suitable for powering high-output 54V LED signage?

Yes. With 600W of output power at 54V and 11.2A, the HLG-600H-54AB can drive large channel-letter signs or illuminated building signage that uses 54V LED modules. The adjustable output lets you trim voltage to match the exact module string, and the dimming input supports day/night brightness scheduling.

Can the HLG-600H-54AB drive 54V LED grow lights or horticultural fixtures?

Yes, provided the total fixture load does not exceed 600W. The constant-current mode with a CC voltage range of 27-54V accommodates LED grow-light arrays that may operate at varying forward voltages. The dimming function allows photoperiod intensity control, and the wide input range of 90-305VAC works with most facility mains supplies.

How many meters of 54V LED strip can the HLG-600H-54AB power?

That depends on your strip's rated power per meter. The HLG-600H-54AB supplies up to 600W at 54V. For example, if your strip draws 14W/m, you could run approximately 42 meters (600W / 14W per meter ≈ 42.8m). Always check your strip's rated power per meter and keep the total load at or below 600W.

Can the HLG-600H-54AB be installed in a covered outdoor location?

Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, making it suitable for covered patios, canopies, or ventilated outdoor electrical enclosures. For fully exposed rain or submersion scenarios, consider the IP67-rated HLG-600H-54B instead.

What are the differences between the HLG-600H-54, 54A, 54AB, and 54B models?

All four share the same 600W / 54V / 11.2A core specs. The base HLG-600H-54 has no output adjustment or dimming and is IP67 waterproof. The -54A adds a built-in potentiometer for voltage/current adjustment (IP65). The -54AB adds both adjustment and dimming input (IP65). The -54B adds dimming input only and retains IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable 25A	600W	24V	25A	IP67	View
Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable 25A	600W	24V	25A	IP65	View
Mean Well HLG-600H-24 Power Supply 600W 24V 25A	600W	24V	25A	IP67	View
Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable 40A	480W	12V	40A	IP67	View
