Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

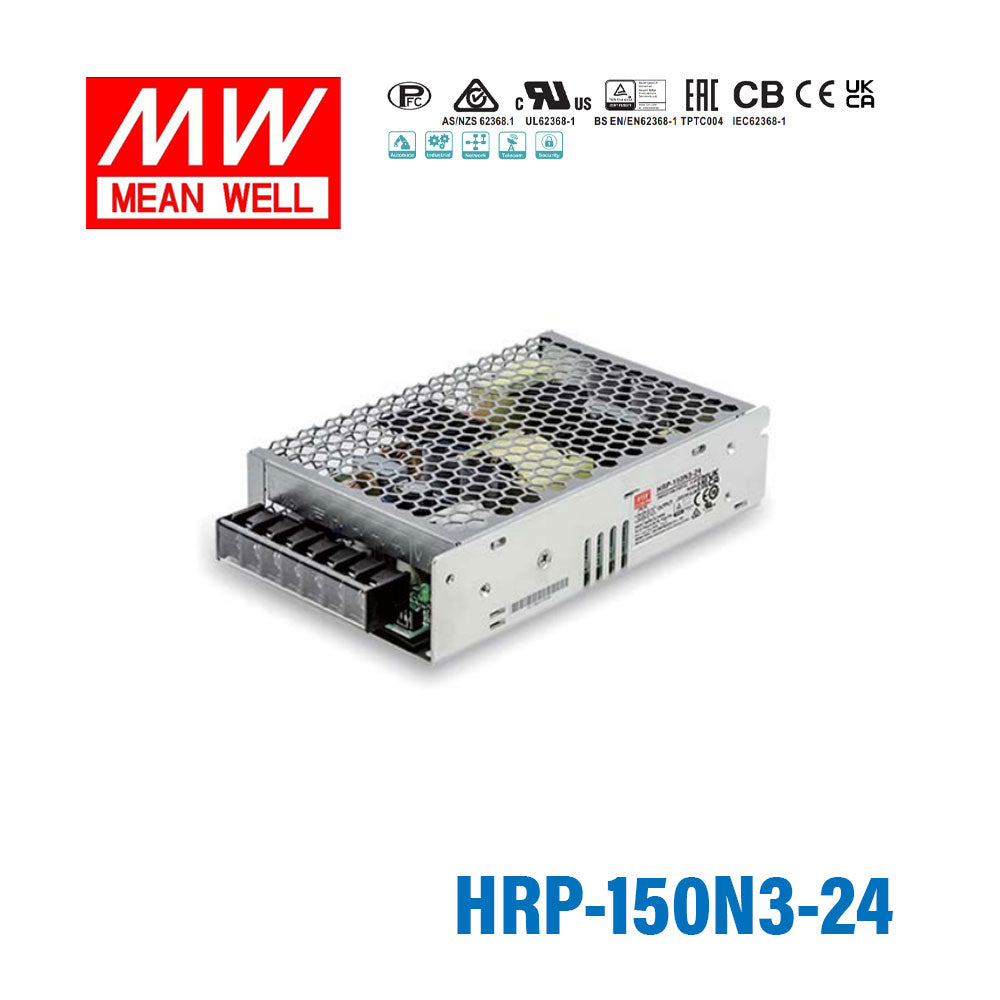

Mean Well HRP-150N3-24 Power Supply 156W 24V, 300% peak power model 6.5A

built-in active PFC1U low profile300% peak power capacity

SKU HRP-150N3-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The HRP-150N3 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).

Key Features

✓ 159mm width — DIN rail TS-35 compatible
✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 62368.1
✓ 3 years warranty

Frequently Asked Questions

What are the main output specifications of the Mean Well HRP-150N3-24?

The HRP-150N3-24 is a 24V enclosed AC-DC power supply rated at 156W with a rated current of 6.5A. It also supports output voltage adjustment of approximately plus or minus 15%, which helps when a small output trim range is needed for the application.

What does the 300% peak power feature mean on the HRP-150N3-24?

This model is designed with 300% peak power capability, which is a key differentiator in the HRP-150N3 series. It is useful in applications that may have short high-demand load conditions, while the unit's rated continuous output remains 156W at 24V.

Is the HRP-150N3-24 suitable for industrial environments?

Yes. It is built for industrial use with a wide operating temperature range of -40 to +70 degrees C, 5G vibration resistance, and operating altitude up to 5000 meters. The unit also meets heavy-industry EMC requirements including EN61000-6-2.

What input range does the Mean Well HRP-150N3-24 support?

The HRP-150N3-24 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It can additionally withstand a 300VAC surge input for 5 seconds, which supports use in demanding power environments.

What protection features are included in the HRP-150N3-24?

This model includes protection for short circuit, overload, over voltage, and over temperature. It also has a built-in constant current limiting circuit, and its overload protection shuts down the output if output power stays above 105% of rating for more than 5 seconds until power is reapplied.

Does the HRP-150N3-24 have approvals and warranty coverage suitable for commercial projects?

Yes. The unit is approved to UL62368-1, TUV EN62368-1, and AS/NZS 62368.1 safety standards, which supports use in regulated commercial and industrial procurement. Mean Well also specifies a 5-year warranty for this model.

How compact is the Mean Well HRP-150N3-24 for cabinet or low-profile builds?

The HRP-150N3-24 has a 1U low-profile design with dimensions of 159 x 97 x 38mm. Its 38mm height makes it easier to specify in enclosures or equipment layouts where vertical clearance is limited.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HRP-150N3-48 Power Supply 154.8W 48V, 300% peak power model 3.3A	150W	48V	3.3A	View
Mean Well HRP-150N3-36 Power Supply 154.8W 36V, 300% peak power model 4.3A	150W	36V	4.3A	View
Mean Well HRP-150N3-12 Power Supply 156W 12V, 300% peak power model 13A	150W	12V	13A	View
