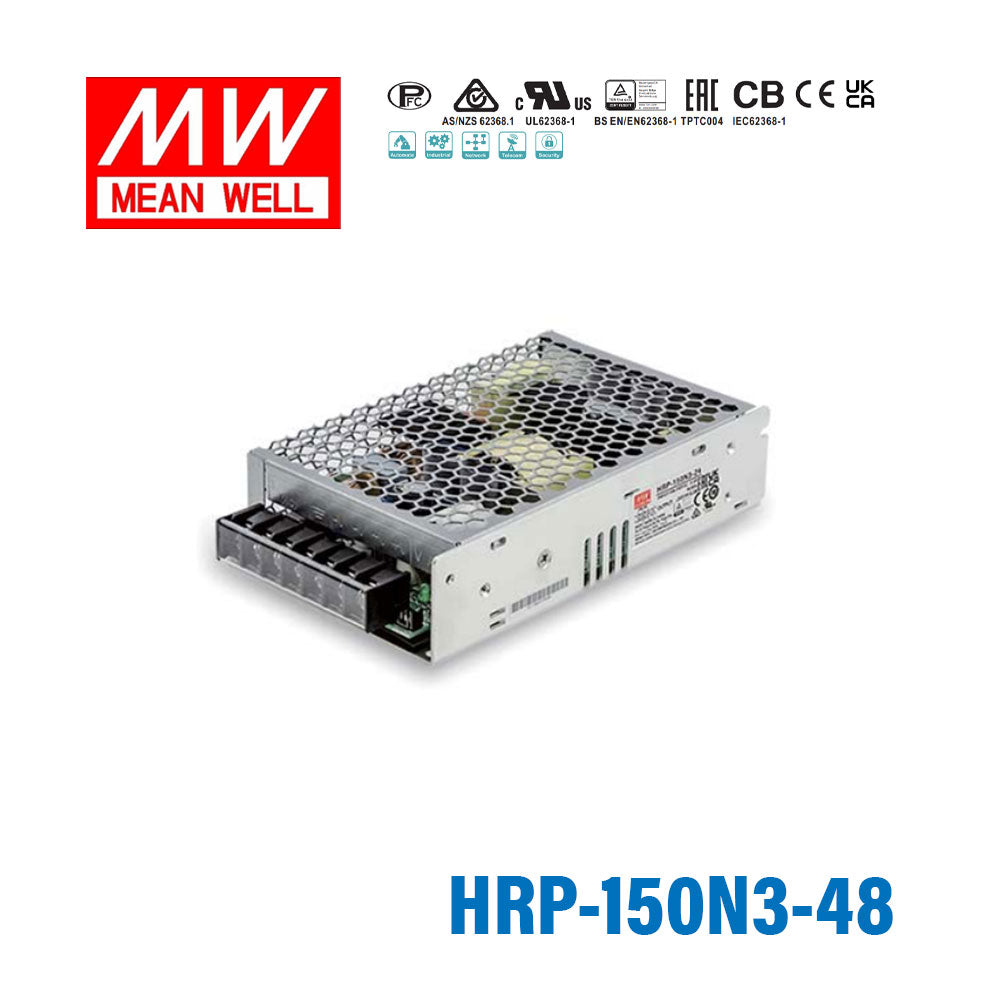

Mean Well HRP-150N3-48 Power Supply 154.8W 48V, 300% peak power model 3.3A

The HRP-150N3-48 is a 48V enclosed AC-DC power supply rated at 154.8W with a rated output current of 3.3A. It is part of Mean Well's HRP-150N3 series and is designed for industrial power applications that need a compact 1U profile.

This model is specifically described as a 300% peak power model, which makes it useful for loads that have brief high startup or peak demand conditions. It also includes a built-in constant current limiting circuit to support demanding applications without changing the unit's nominal 48V output rating.

The HRP-150N3-48 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. It is also specified to withstand a 300VAC surge input for 5 seconds.

Yes. This model is rated for operation from -40°C to +70°C, supports operating altitude up to 5000 meters, and is specified to withstand 5G vibration. It also meets heavy industry level EMC standards including EN61000-6-2.

The HRP-150N3-48 includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection range is specified at 105% to 135%, and the unit shuts down output voltage after sustained overload before recovering after repowering.

Yes. Mean Well specifies output voltage adjustment of approximately ±15% for this model. The unit also includes a built-in remote sense function, which can help maintain accurate output voltage at the load in suitable system designs.

This power supply is listed with UL62368-1, TUV EN62368-1, and AS/NZS 62368.1 safety approvals. For EMC, it is specified to meet EN55022 Class B and multiple EN61000 immunity and harmonics standards.

The HRP-150N3-48 measures 159 x 97 x 38 mm and is described as a 1U low profile design. Its listed weight is 0.54 kg, which makes it suitable where space efficiency matters in industrial equipment layouts.
