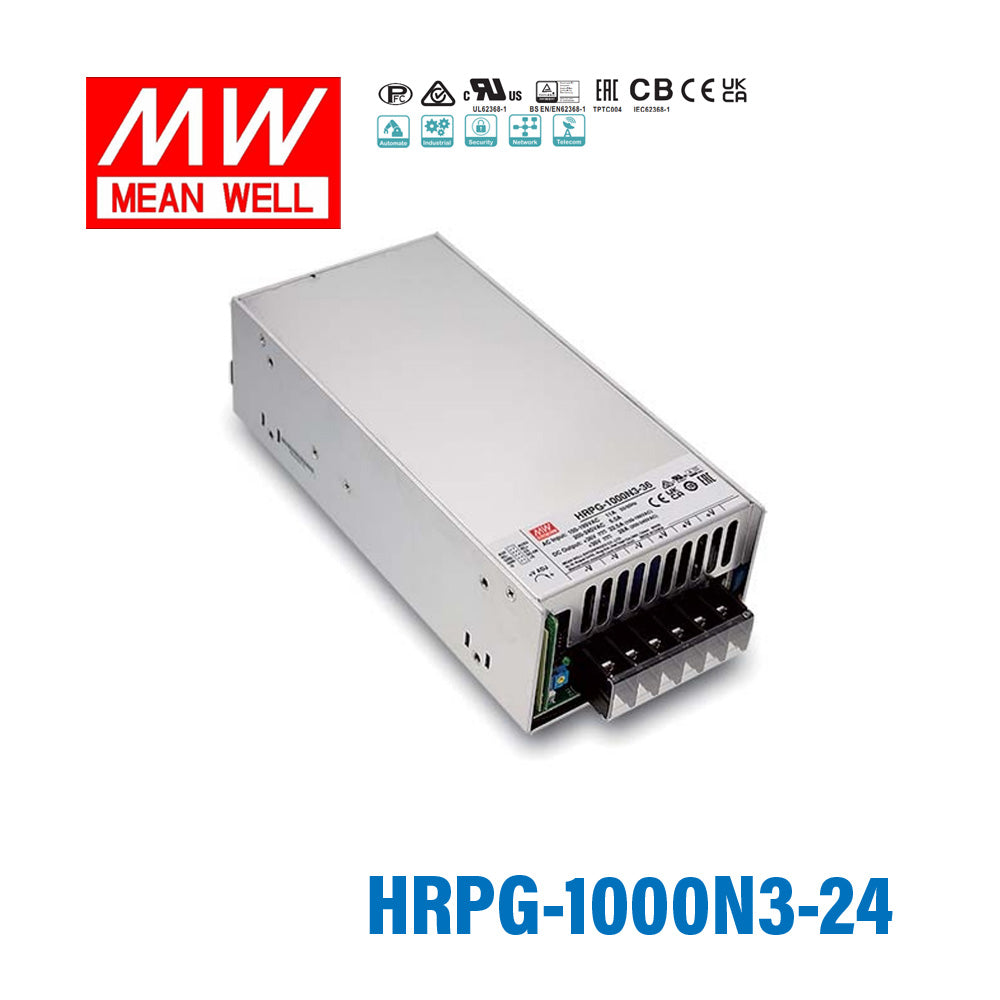

Mean Well HRPG-1000N3-24 Power Supply 960W 24V, 320% peak power mod...
Please Login for Pricing
Description
Description
The HRPG-1000N3 is a 1000W Mean Well DIN rail power converter with a 218mm profile (input range: 90~264VAC).
Key Features
- ✓ 218mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, CAN/CSA C22.2 No. 62368-1 BS EN/ , TUV EN62368-1, AS/NZS62368.1 , EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating1000 Watt
-
Output Voltage24 Volt
-
Rated Current42 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-

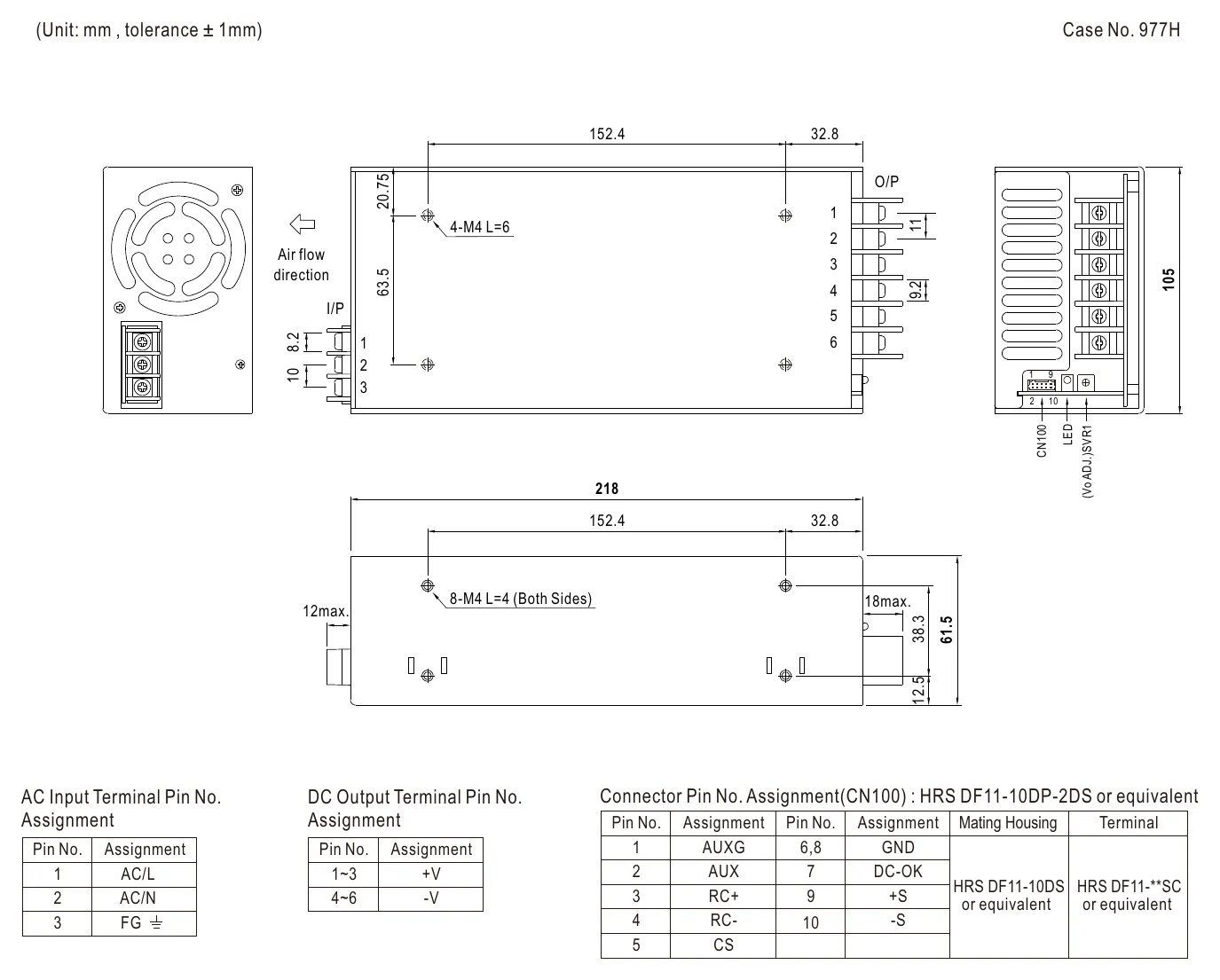

Length21.8 cm
-
Width10.5 cm
-
Height6.15 cm
-
Weight1.46 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What makes the Mean Well HRPG-1000N3-24 different from a standard 24V 1000W power supply?

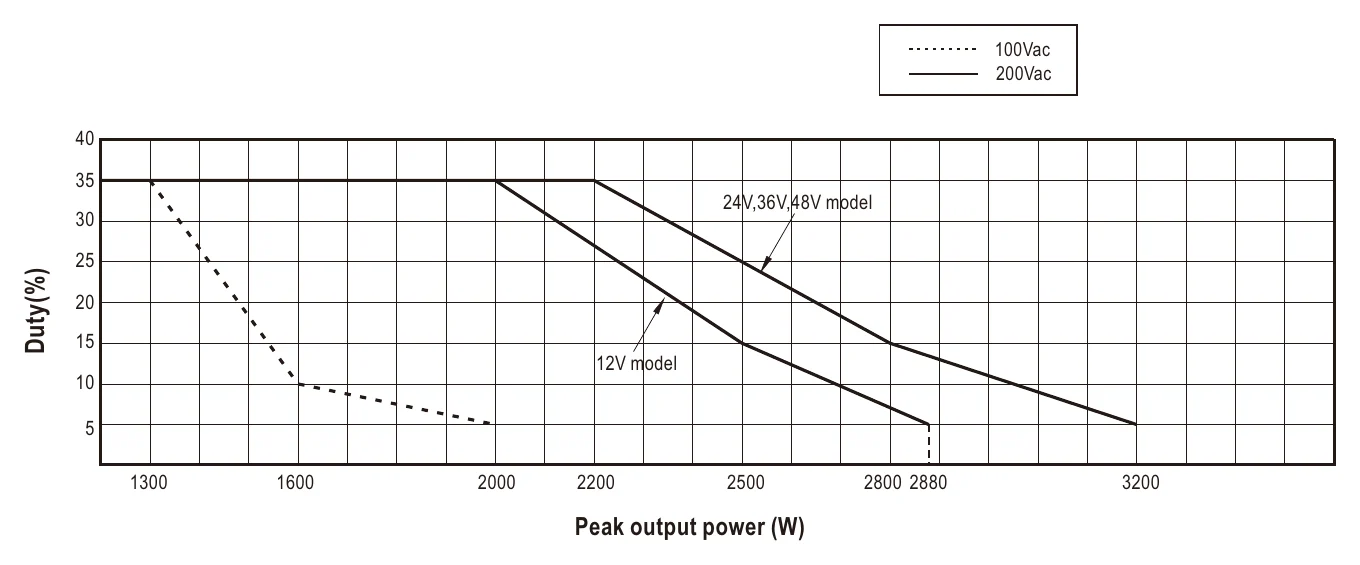

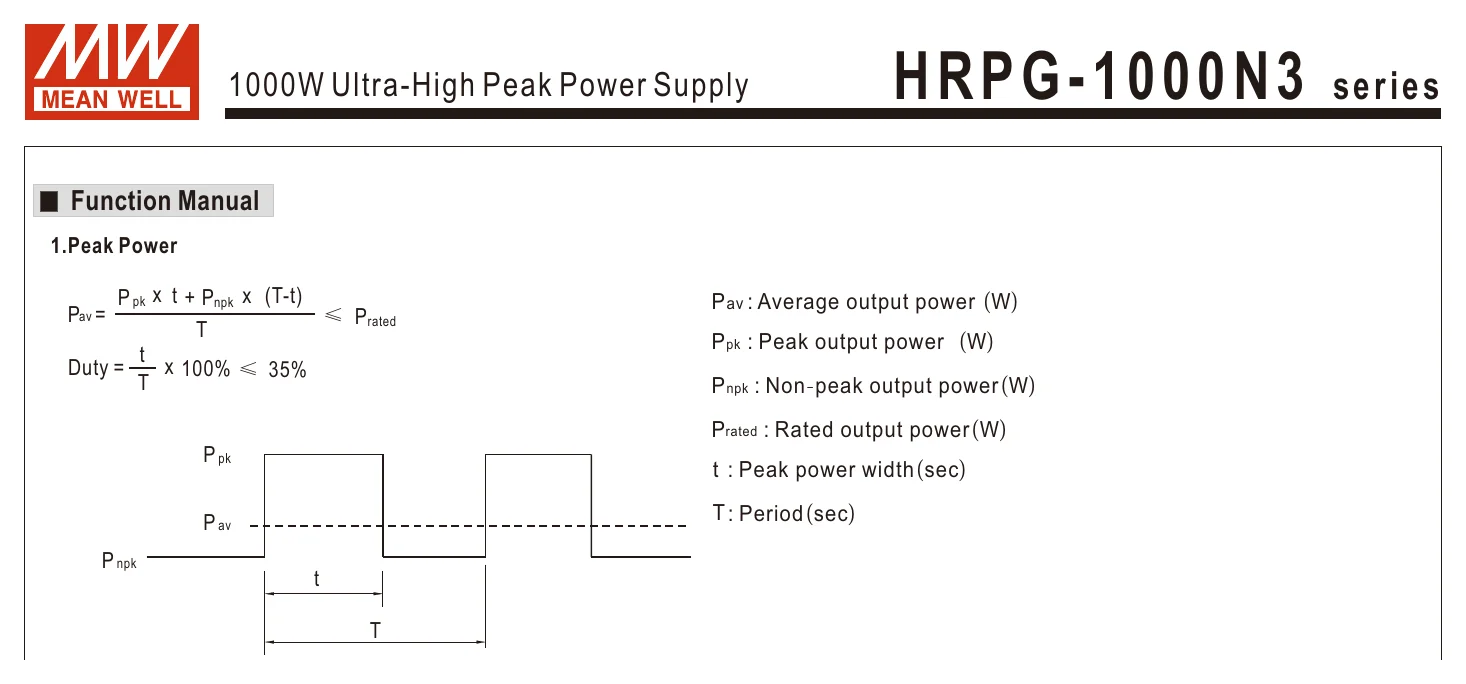

This model is designed for demanding loads that may need very high short-term surge capacity. It delivers 24V DC with a 960W rated output, and its standout feature is up to 320% peak power capability, which helps distinguish it from standard enclosed power supplies in the same voltage class.
What output does the HRPG-1000N3-24 provide?
The HRPG-1000N3-24 is a 24V enclosed AC-DC power supply with a 960W rated output and 42A rated current. It is intended for systems that need a high-power 24V DC supply from a universal AC input range.
Is the HRPG-1000N3-24 suitable for industrial equipment with heavy startup or transient loads?
Yes. This model is positioned for higher-reliability industrial use and supports up to 320% peak power capability, making it a strong fit where temporary load surges are a concern. It also includes protection functions for short circuit, overload, over voltage, and over temperature.
Can this power supply be used in systems that need monitoring or remote control features?

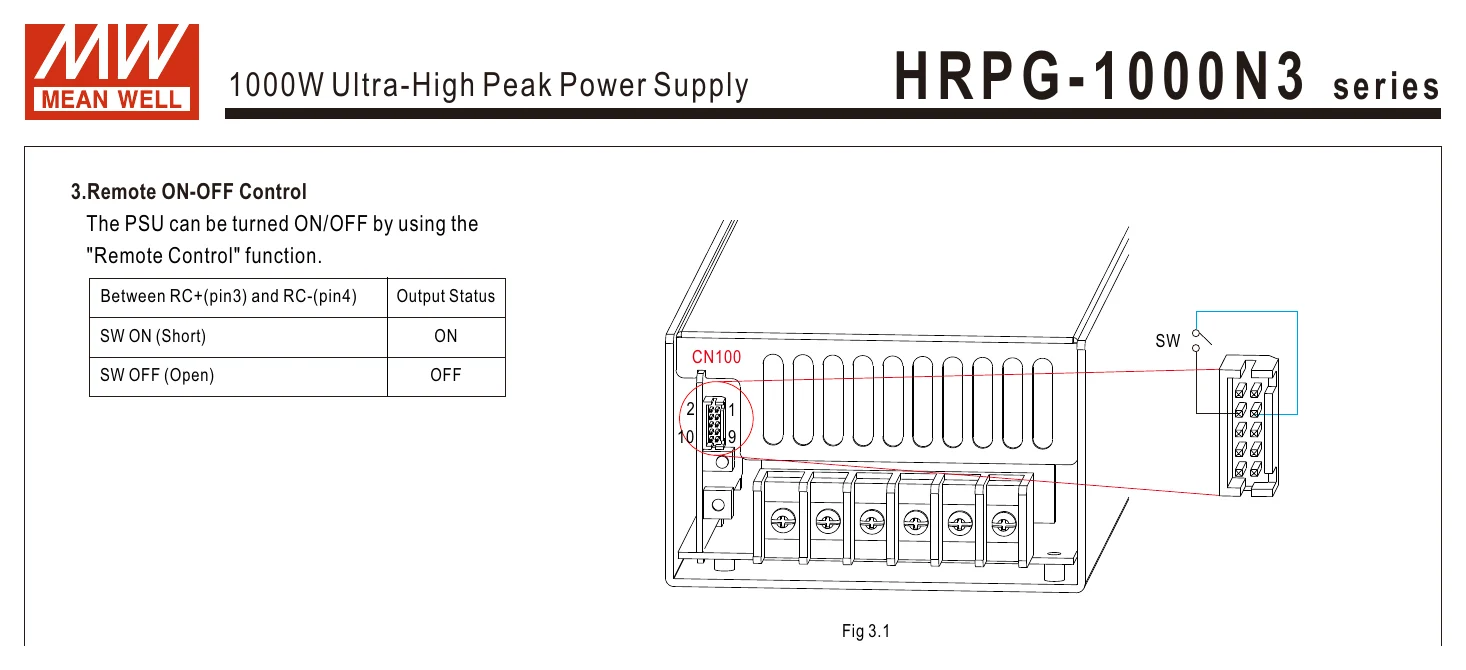

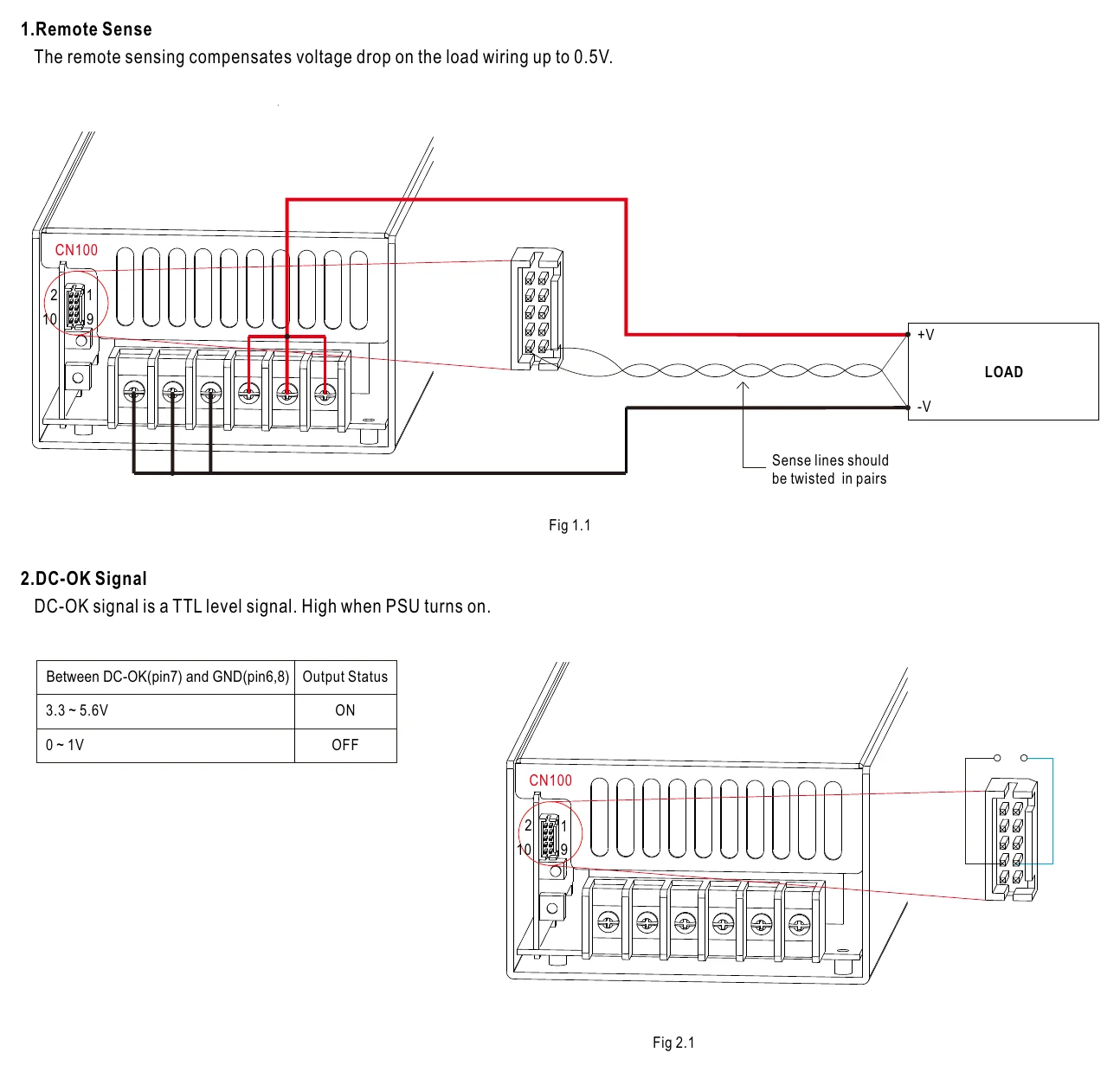

Yes. The HRPG-1000N3-24 includes a built-in DC OK signal and remote ON-OFF control, which can be useful in equipment that needs power-status monitoring or controlled power management. It also includes remote sense and a 5V standby output rated at 0.3A.
How does the HRPG-1000N3-24 perform in demanding electrical environments?
This model includes built-in active PFC with power factor greater than 0.95 and offers efficiency up to 94%. It can also withstand a 300VAC surge input for 5 seconds, which supports use in tougher industrial power environments.
Can the HRPG-1000N3-24 be scaled for higher power systems?

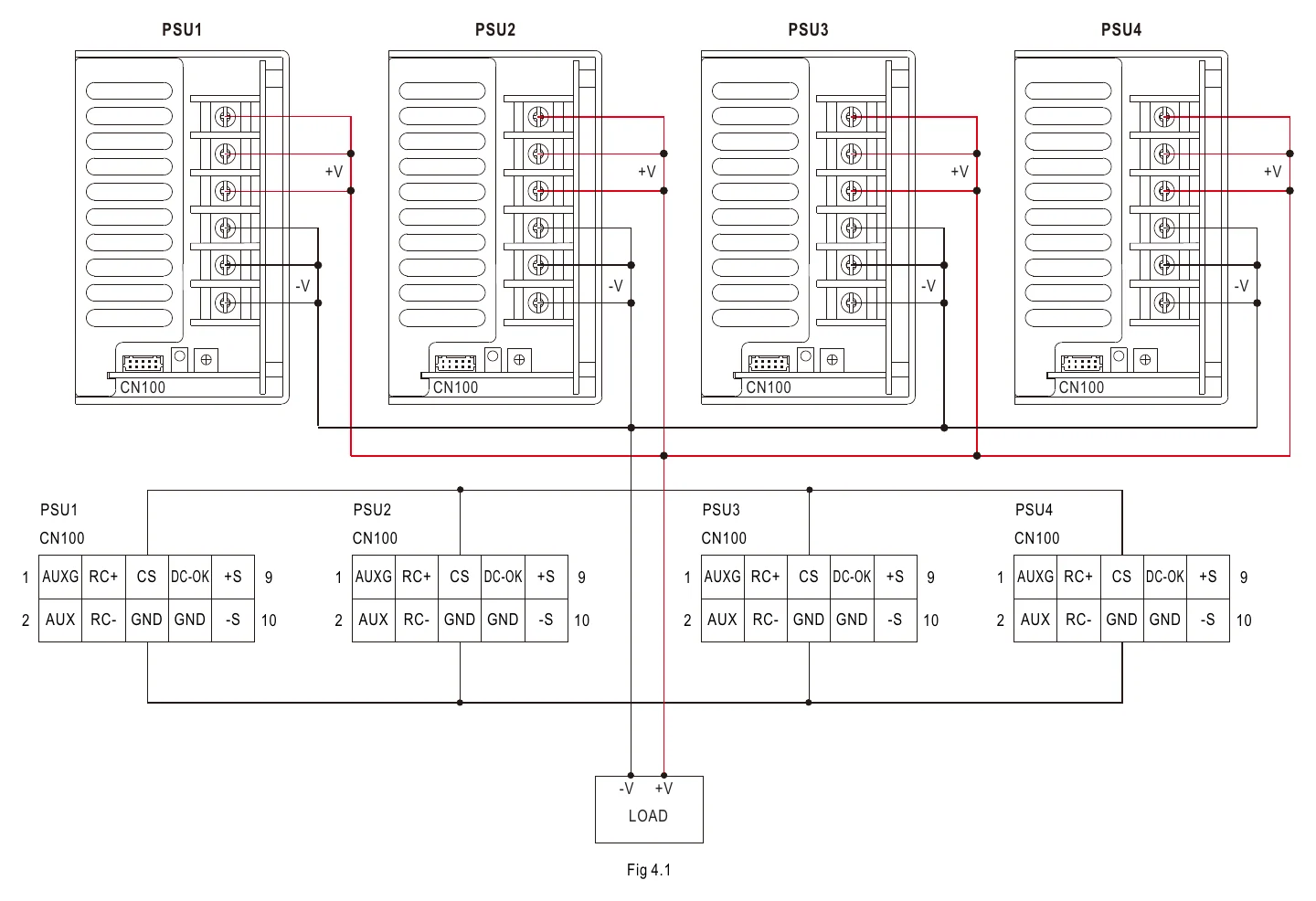

Yes. Mean Well specifies current sharing up to 4000W in a 3+1 configuration, so this model can support higher-power system designs that need parallel power capacity. That makes it relevant for larger 24V DC platforms where a single unit is not enough.
What operating conditions and warranty does this model offer?

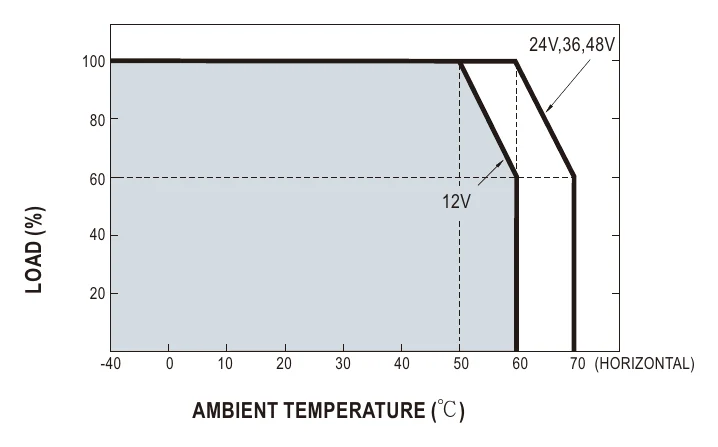

The HRPG-1000N3-24 is specified for operation from -40°C to 70°C, which is a wide temperature range for industrial applications. It also carries a 5-year warranty and has no-load power consumption below 0.85W.
Other HRPG-1000N3 Models
3 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well HRPG-1000N3-48 Power Supply 960W 48V, 320% peak power model 21A | 1000W | 21V | 21A | View |
| Mean Well HRPG-1000N3-36 Power Supply 960W 36V, 320% peak power model 28A | 1000W | 28V | 28A | View |
| Mean Well HRPG-1000N3-12 Power Supply 960W 12V, 320% peak power model 80A | 1000W | 12V | 80A | View |
