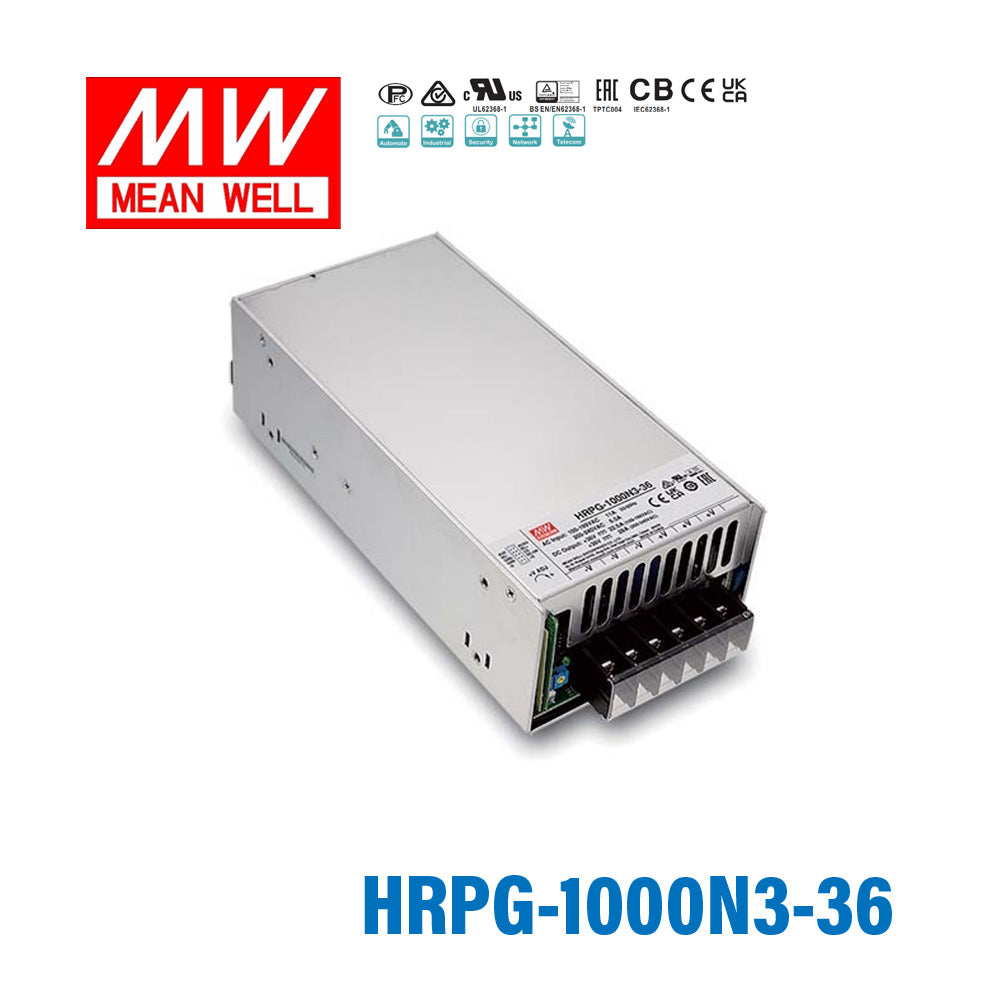

Mean Well HRPG-1000N3-36 Power Supply 960W 36V, 320% peak power model 28A

This model is aimed at industrial and high-reliability equipment that needs a high-power enclosed AC-DC supply with strong transient headroom. Its 960W class output, active PFC, and 320% peak power capability make it a fit for systems with demanding startup or short-duration surge loads.

A key differentiator is its peak power capability of up to 320%, which is intended for loads that draw much higher power briefly than they do in steady operation. It also includes features often expected in industrial systems, such as DC OK signal output, remote ON-OFF control, remote sense, and current sharing up to 4000W in a 3+1 setup.

Yes. It supports universal AC input and is specified to withstand a 300VAC surge input for 5 seconds, which is useful in electrically noisy or unstable industrial environments. The unit also includes built-in active PFC with a power factor above 0.95.

The listed operating temperature range is -40°C to 70°C, which supports use across a wide range of industrial conditions. It also includes over-temperature protection and a built-in cooling fan with ON-OFF control to help manage thermal load.

Yes. This model includes a built-in DC OK signal for status monitoring and supports current sharing up to 4000W in a 3+1 configuration. Those features are useful in systems that need power status visibility or scalable higher-power architectures.

The HRPG-1000N3-36 includes protection for short circuit, overload, over voltage, and over temperature. These built-in safeguards are important for industrial applications where load conditions can vary or fault tolerance matters.

This power supply is specified for efficiency up to 94%, which helps reduce wasted energy and heat in continuous-duty use. It also lists no-load power consumption below 0.85W and provides a 5V standby output rated at 0.3A.

This model carries a 5-year warranty. That longer warranty period is consistent with its positioning as a high-reliability enclosed power supply for industrial applications.
