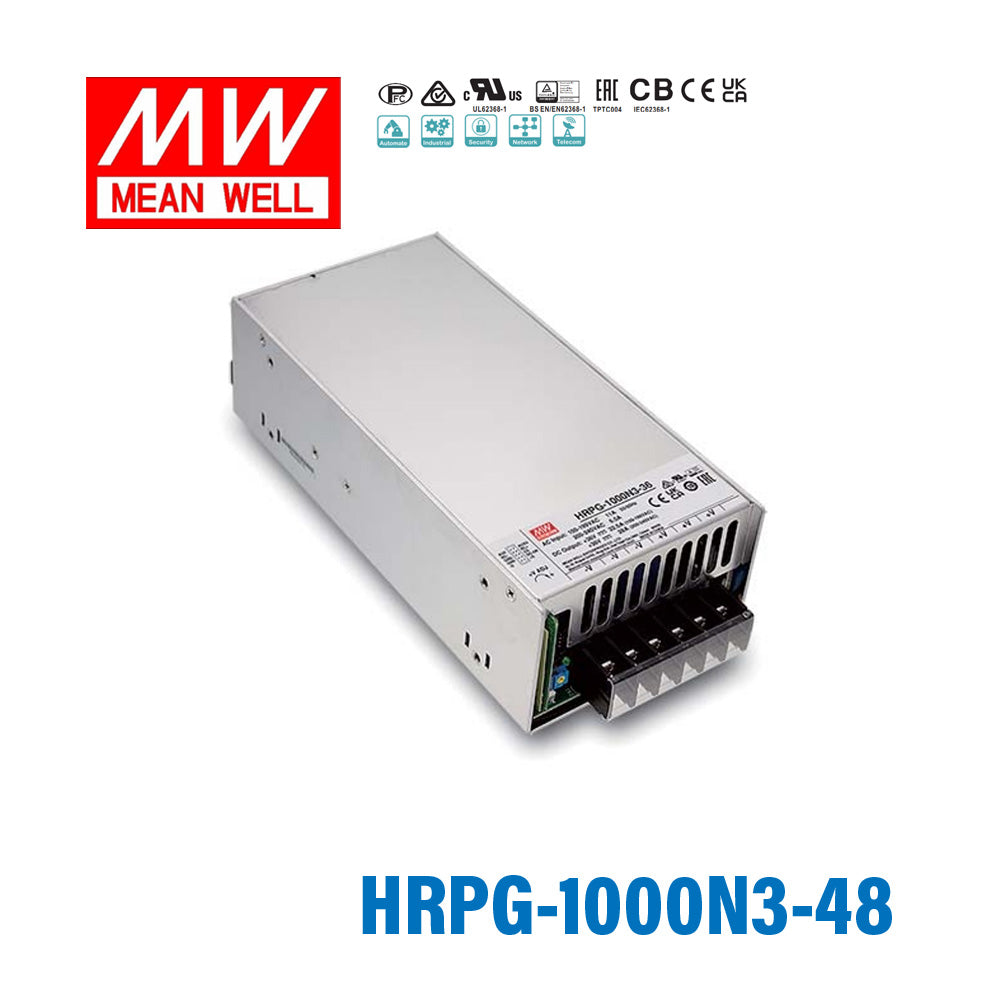

Mean Well HRPG-1000N3-48 Power Supply 960W 48V, 320% peak power mod...
Please Login for Pricing
Description
Description
The HRPG-1000N3 is a 1000W Mean Well DIN rail power converter with a 218mm profile (input range: 90~264VAC).
Key Features
- ✓ 218mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, CAN/CSA C22.2 No. 62368-1 BS EN/ , TUV EN62368-1, AS/NZS62368.1 , EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating1000 Watt
-
Output Voltage21 Volt
-
Rated Current21 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length21.8 cm
-
Width10.5 cm
-
Height6.15 cm
-
Weight1.46 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well HRPG-1000N3-48 designed for?
The HRPG-1000N3-48 is a high-power enclosed AC-DC power supply intended for industrial and high-reliability applications. It is positioned for systems that need a 48V output and strong surge or peak-load handling in a compact enclosed format.
What are the key electrical highlights of the HRPG-1000N3-48?
This model is rated at 960W with a 48V output and includes active power factor correction with PF greater than 0.95. It also delivers high efficiency up to 94% and supports universal AC input over a full range.
What does the 320% peak power capability mean for this model?
A key differentiator of the HRPG-1000N3-48 is its ability to handle peak power demands up to 320%. That makes it better suited than standard fixed-output supplies for equipment with high inrush, startup, or short-duration load spikes.
Does the HRPG-1000N3-48 include built-in protection features?
Yes. This model includes protection for short circuit, overload, over voltage, and over temperature, which helps support reliable operation in demanding industrial environments.
Can this power supply be used in harsh temperature environments?
The HRPG-1000N3-48 is specified for operation from -40°C to 70°C. That wide temperature range makes it a suitable option for industrial environments where ambient conditions can vary significantly.
Does this model support system monitoring or remote control features?
Yes. The HRPG-1000N3-48 includes a built-in DC OK signal, remote ON-OFF control, and remote sense functionality. It also provides a standby 5V at 0.3A output for supporting system-level control needs.
Can multiple HRPG-1000N3-48 units be used for higher power systems?
Yes. This model supports current sharing up to 4000W in a 3+1 arrangement, which is useful for higher-power or redundancy-oriented system designs. That capability makes it more flexible than single-unit supplies intended only for standalone loads.
What warranty is offered with the HRPG-1000N3-48?
The HRPG-1000N3-48 includes a 5-year warranty. For industrial buyers, that is a meaningful indicator of the product's intended long-service reliability.
