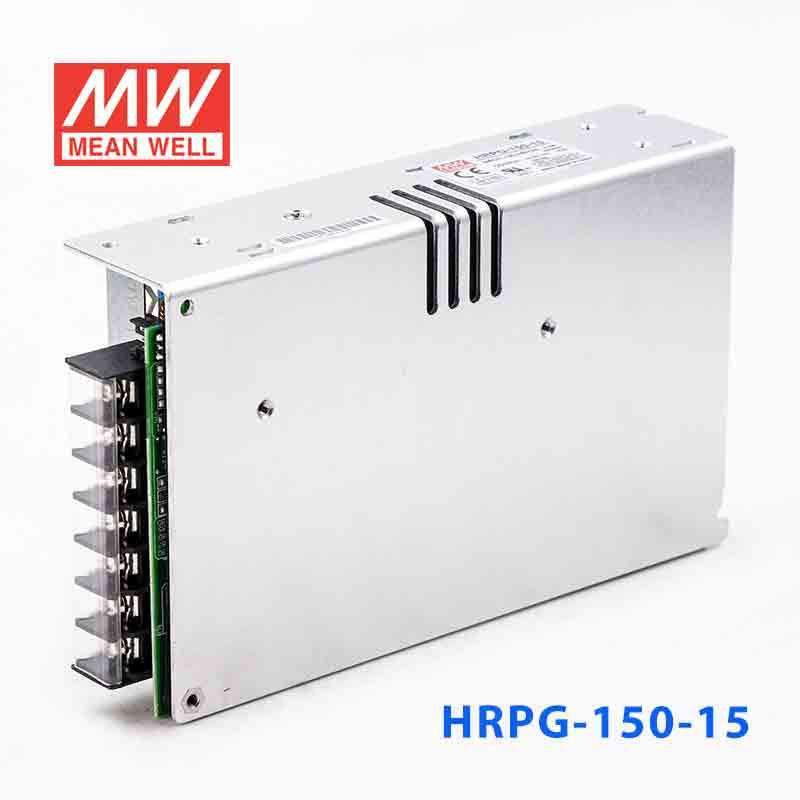

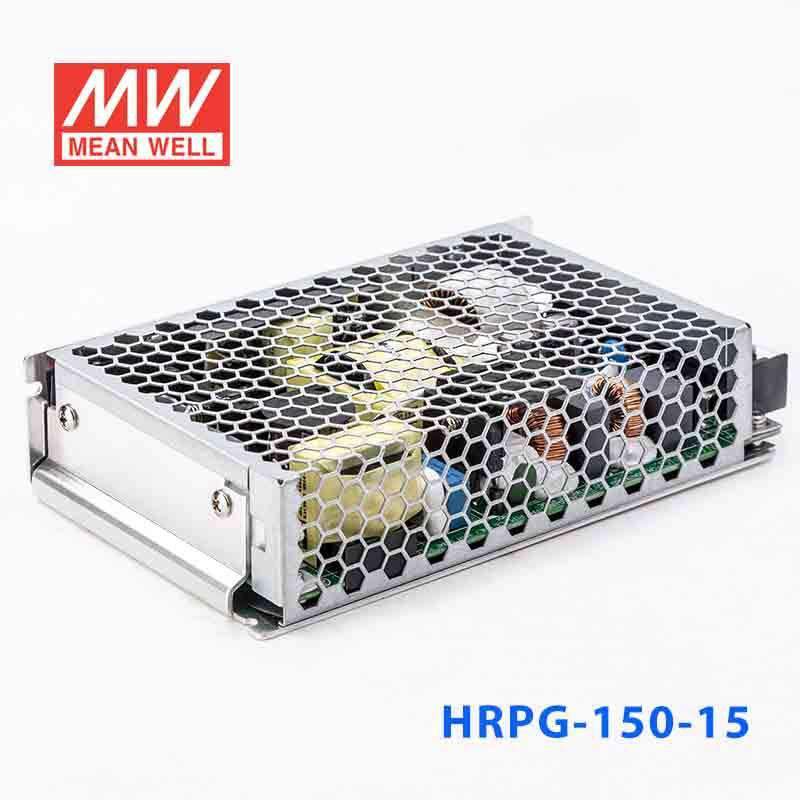

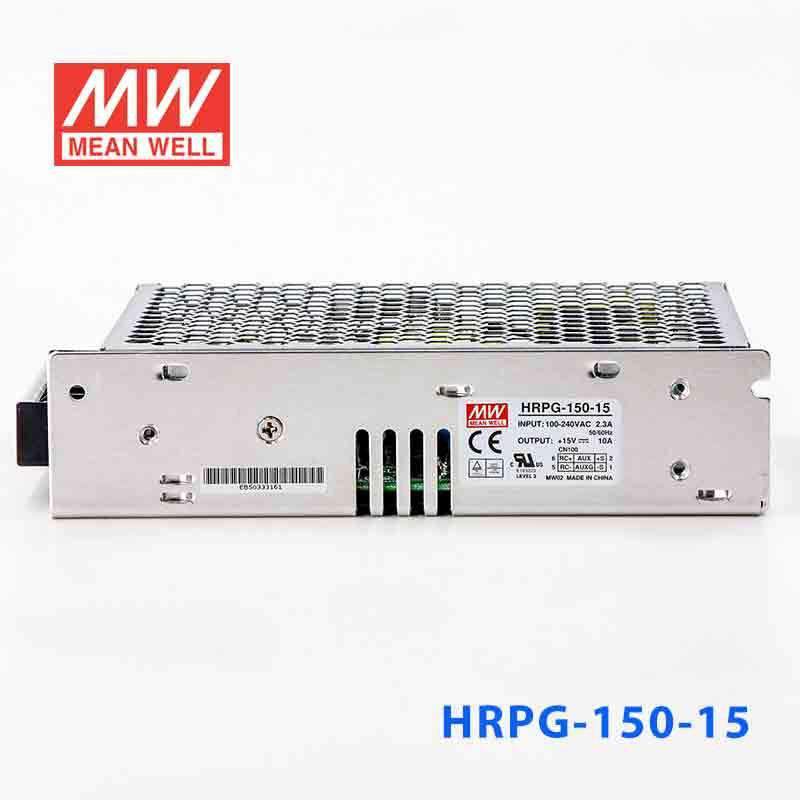

Mean Well HRPG-150-15 Power Supply 150W 15V

built-in active PFC, PF > 0.95, high efficiency up to 90%, no load power consumption

|

Description

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature (optional for HRP-75 / HRP-100)
Built-in constant current limiting circuit
Built-in remote sense function
Built-in 5V / 0.3A standby output
Cooling by free air convection
1U low profile
LED indicator for power on
100% full load burn-in test
5 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start; 70A at 230VAC
DC adjustment range ±15% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -40~+70°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level

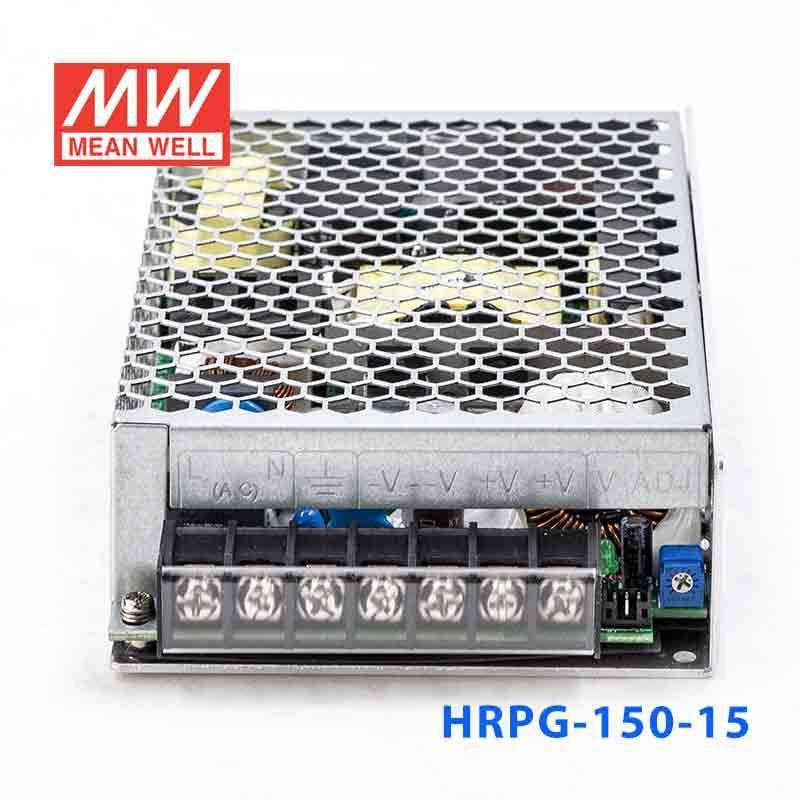

Connection 7P/9.5mm pitch terminal block with cover
Dimension (LxWxH) 159x97x38
Case No. 901I

Specifications

  • Brand
    Mean Well
  • Series
    HRPG Series
  • Power Rating
    150 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    15.9 cm
  • Width
    9.7 cm
  • Height
    3.8 cm
  • Weight
    0.63 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8343890034987, "variants" :[{ "context":"default", "variant_id": 45321005400363, "sku":"HRPG-150-15", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_identity\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

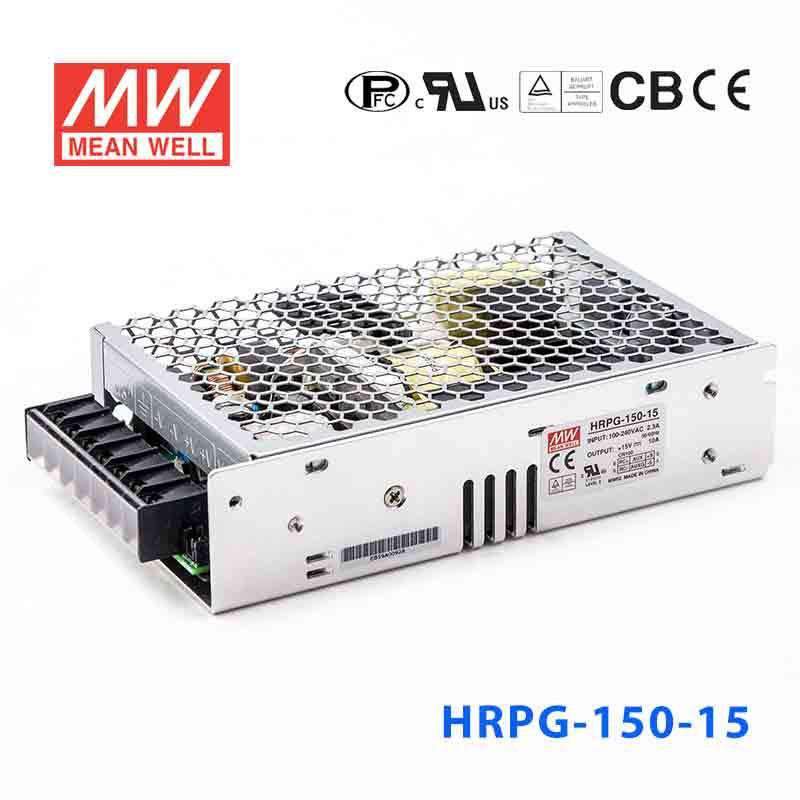

Mean Well HRPG-150-15  Power Supply 150W 15V
