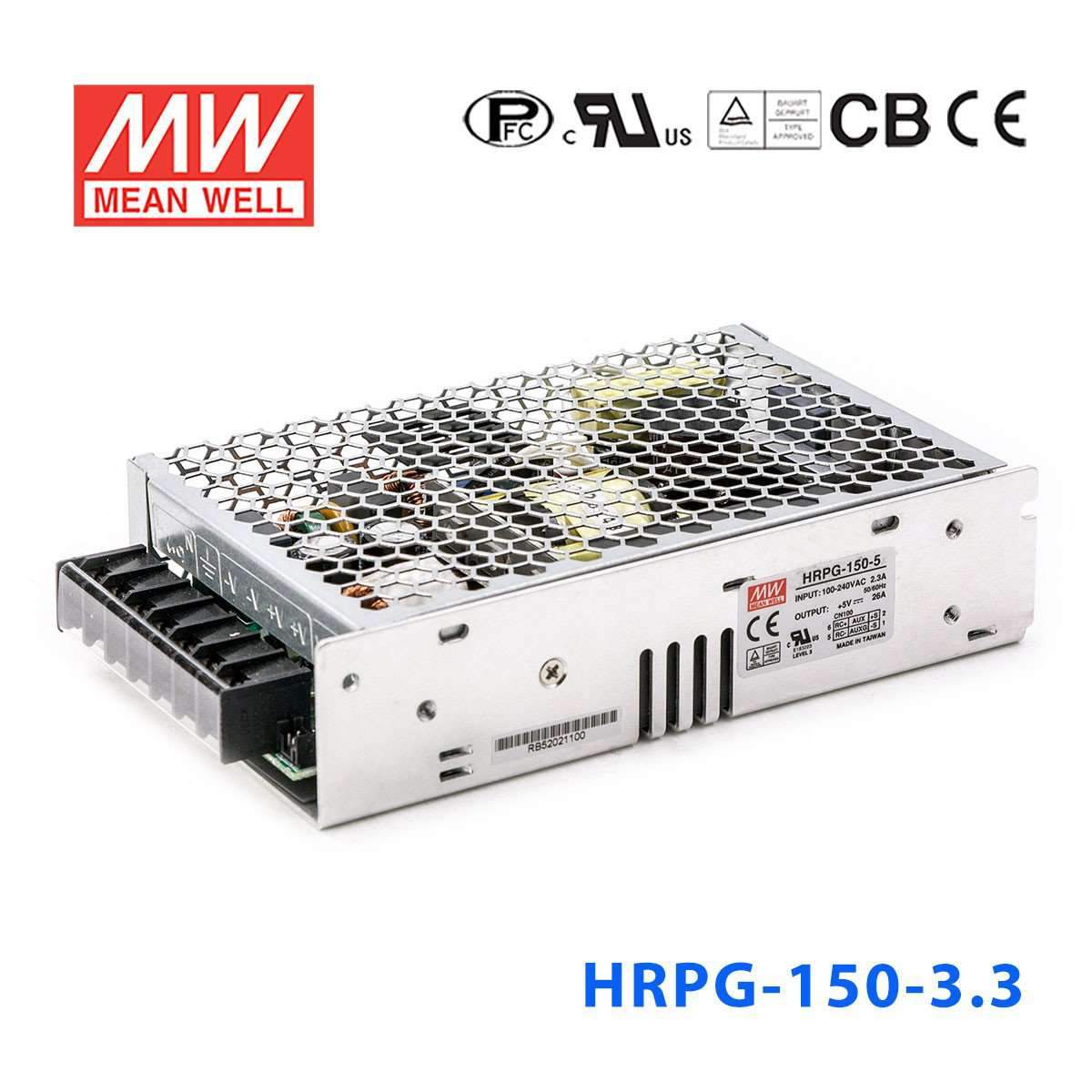

Mean Well HRPG-150-3.3 Power Supply 99W 3.3V
Please Login for Pricing
Description
Description
The HRPG-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 120~370VDC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating99 Watt
-
Output Voltage3.3 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.63 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HRPG-150-3.3 for 3.3V embedded systems or controller boards?
Yes, if the equipment requires constant 3.3V DC and the total load stays within 99W and 30A. This output level is suited to 3.3V electronics that need high current at low voltage.
Is this power supply suitable for a 3.3V logic backplane or industrial computing assembly?
It can support a 3.3V backplane or computing assembly when the full system stays at or below 30A and 99W. The unit provides constant voltage output, so it is intended for loads designed around a fixed 3.3V rail.
Can the HRPG-150-3.3 power multiple 3.3V devices in one enclosure?
It can, provided the combined 3.3V demand does not exceed 30A or 99W. That makes it useful for consolidated low-voltage electronics loads inside industrial or embedded equipment.
How can I tell whether this 3.3V model has enough output for my system?
Check the total current and power draw of the 3.3V load against the supply's 30A and 99W ratings. If the system exceeds either of those limits, a higher-capacity 3.3V model would be required.
Is the HRPG-150-3.3 rated for outdoor or temperature-variable installations?
The operating temperature range is -40°C to +70°C, which covers a wide range of ambient conditions. The provided specs do not list an IP rating, so dust and water protection are not specified here.
