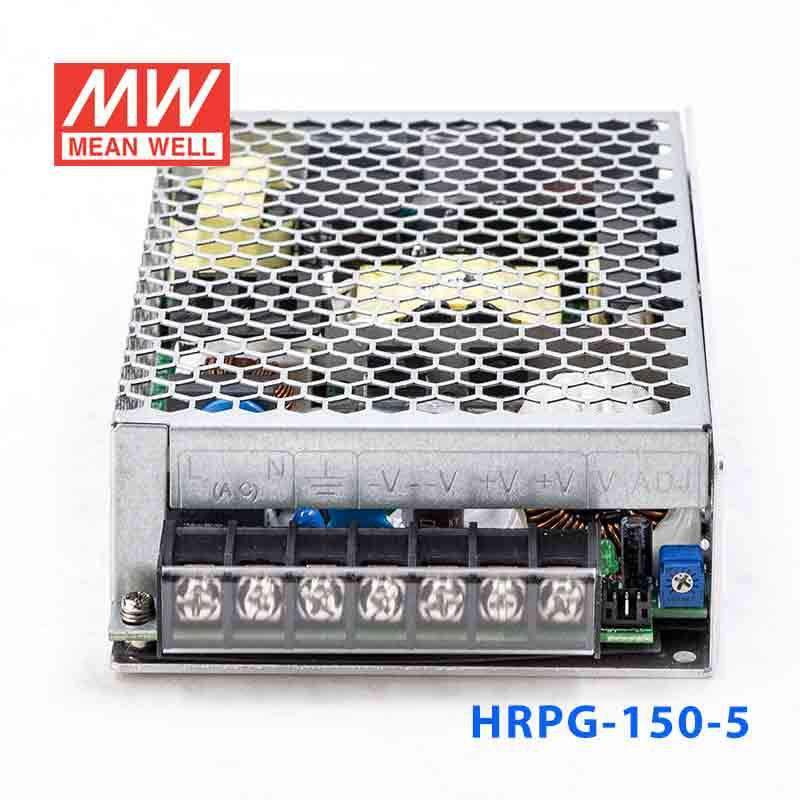

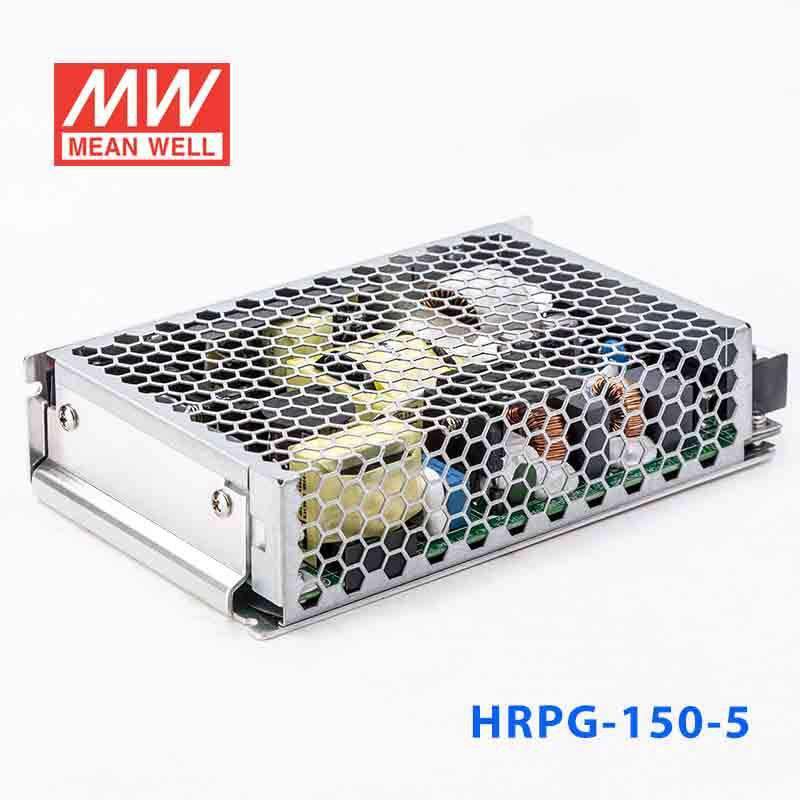

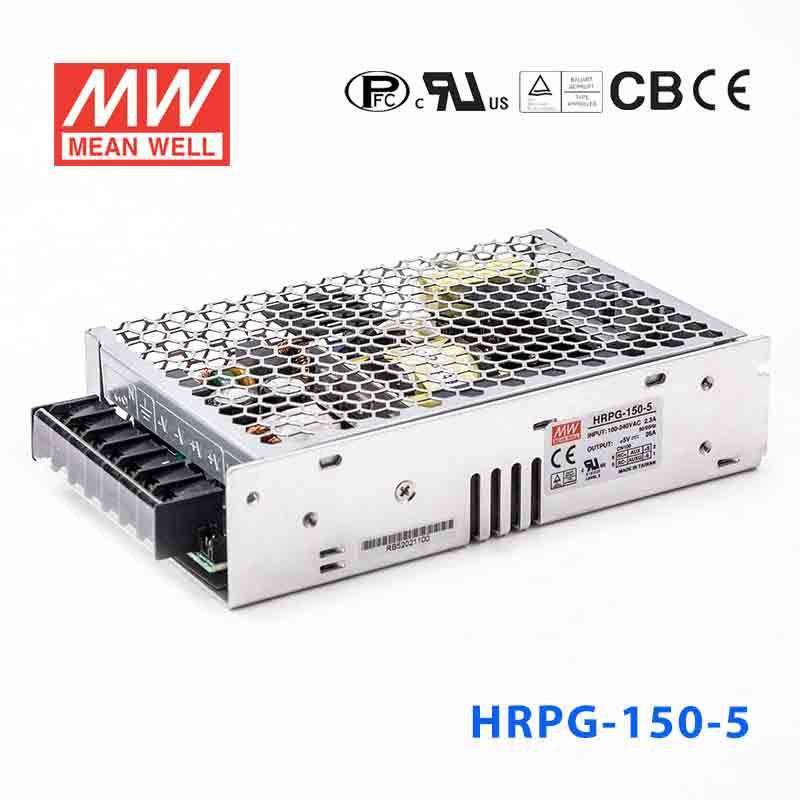

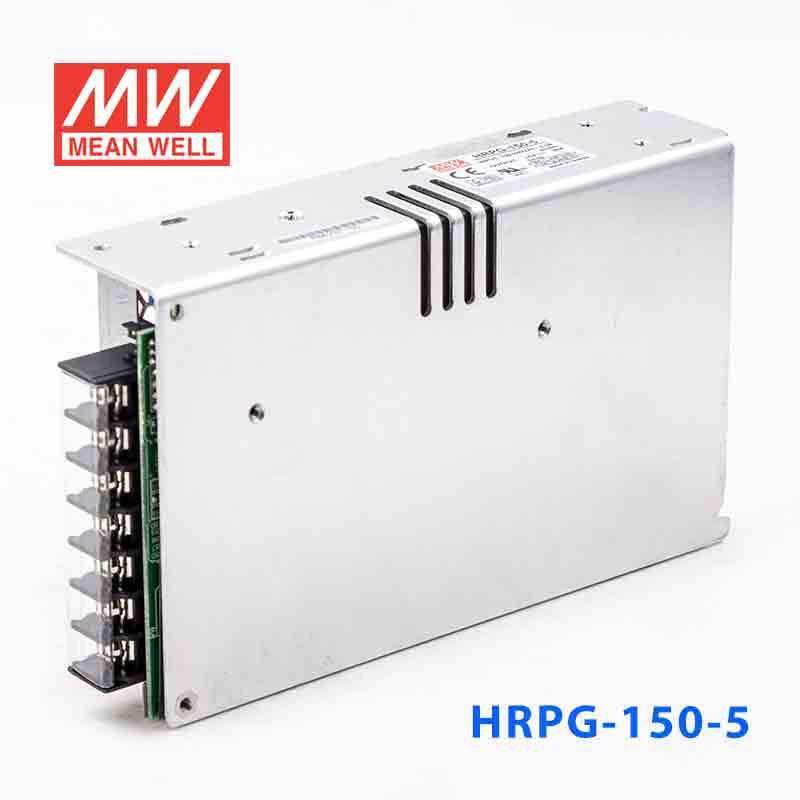

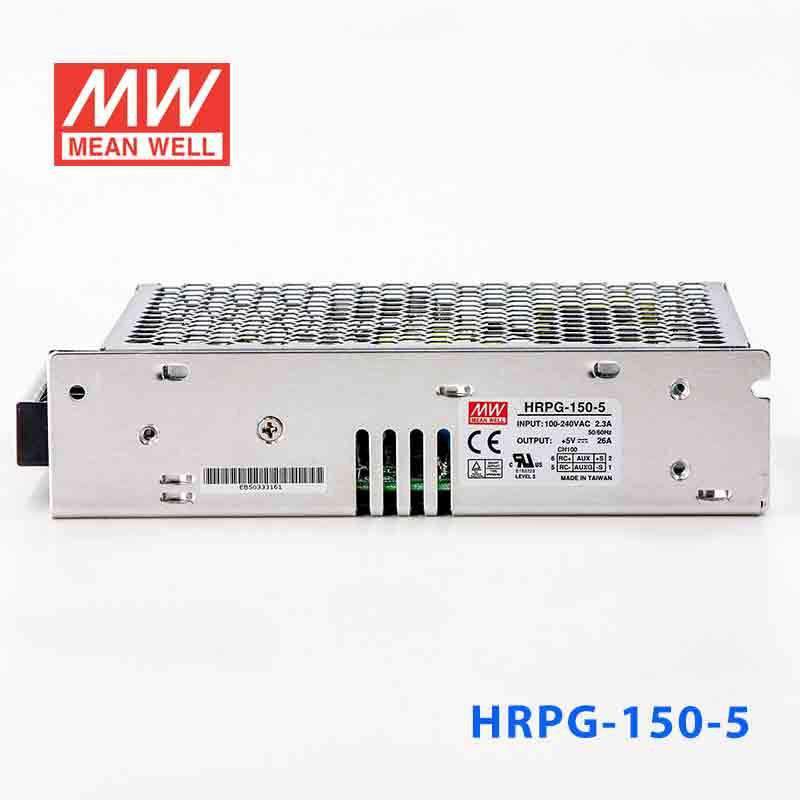

Mean Well HRPG-150-5 Power Supply 130W 5V
Please Login for Pricing
Description
Description
The HRPG-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 120~370VDC).
Key Features
- ✓ 159mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating130 Watt
-
Output Voltage5 Volt
-
Rated Current26 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.63 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HRPG-150-5 for 5V industrial electronics or control boards?
Yes, if the equipment needs constant 5V DC and the total load stays within 130W and 26A. That makes it suitable for high-current 5V electronics in industrial or embedded systems.
Is this power supply appropriate for a 5V embedded computing or logic system?
It can be a fit for 5V computing, logic, or controller systems that require a fixed 5V rail and draw no more than 26A. The maximum available output power is 130W.
Can the HRPG-150-5 support multiple 5V devices from one supply?
Yes, as long as the combined 5V load does not exceed 26A or 130W. This is useful when several 5V devices share one regulated DC source inside the same equipment.
How should I size a 5V load against this model?
Add up the total current and power required by the 5V devices, then compare that with the supply's 26A and 130W rating. If your load is above either figure, this model is too small.
Can this 5V power supply be used in harsh temperature conditions?
Its operating temperature range is specified as -40°C to +70°C, which supports use in demanding temperature environments. The listed specs do not provide an IP rating, so protection against dust or water is not defined in this data.
