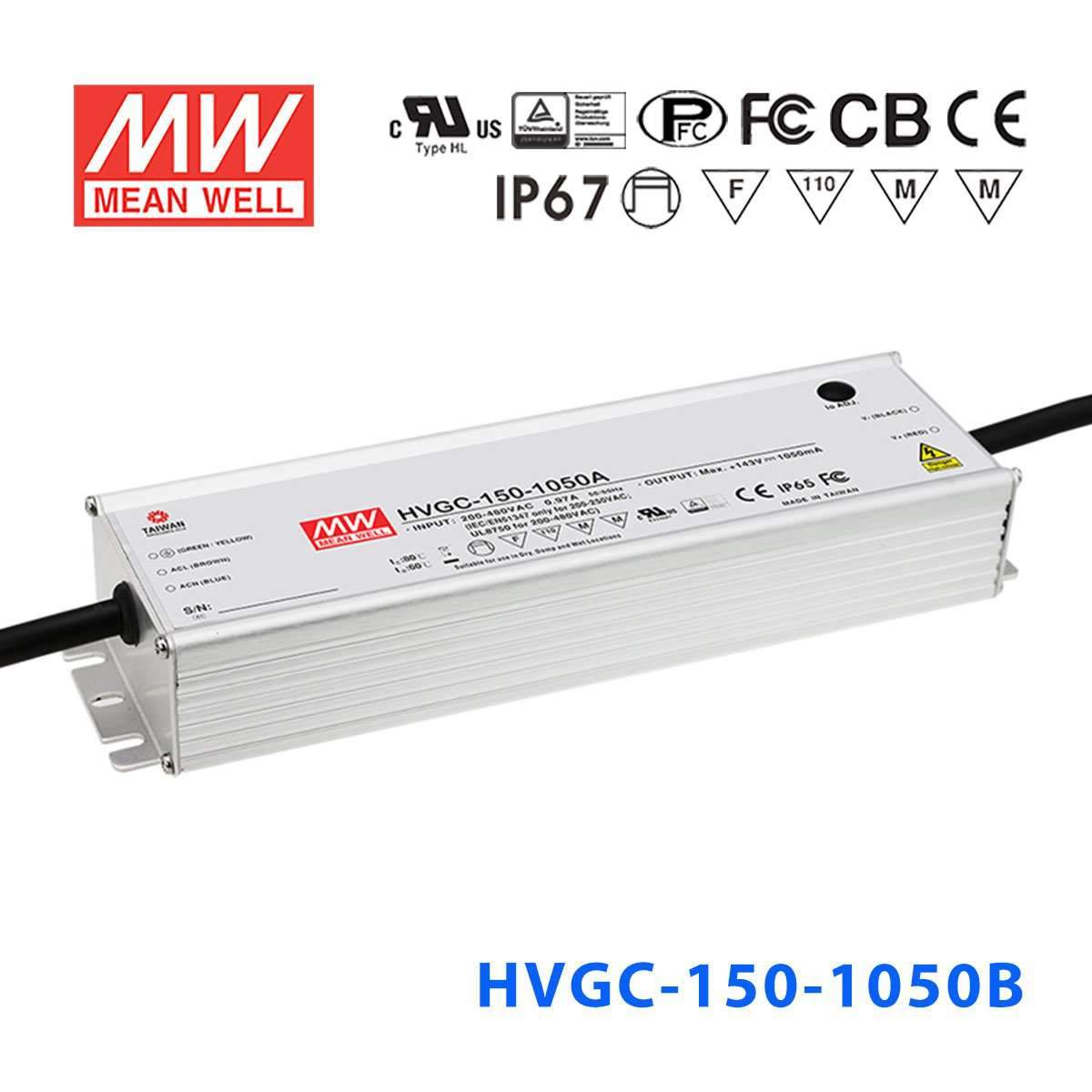

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVGC-150-1050B Power Supply 150W 1050mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-150-1050B

Please for Pricing

Notify me when it's back in stock

Description

The HVGC-150 is a 150W Mean Well power converter.

Key Features

✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

150.15 Watt
Output Voltage

143 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~528V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

24.5 cm
Width

6.8 cm
Height

3.88 cm
Weight

1.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-150-1050B for outdoor LED downlights?

Yes, this driver is a common fit for constant-current LED downlights that require 1050mA. The fixture load must stay within the 15-143V CC range and within the 150.15W power rating.

Is this a good option for weather-exposed sign lighting modules?

It can be used for constant-current signage modules where a sealed driver is preferred, because this model is rated IP67 waterproof. The LED load still needs to match 1050mA constant current and remain inside the 15-143V operating window.

Can this driver run a small high-voltage LED array from a wide AC input?

Yes, it is designed for constant-current LED loads and accepts 180-528VAC input. On the output side, the array must be a 1050mA constant-current load that operates within 15-143V.

Is the HVGC-150-1050B compatible with constant-voltage LED tape or strips?

No, this is a constant-current driver with a 1050mA output, not a constant-voltage power supply. The connected LED load must operate within the 15-143V CC range, and the number of LEDs depends on each LED forward voltage.

What are the main electrical differences between this model and other 150W HVGC versions?

The 150W HVGC range includes 350mA with 42-428V at 149.8W, 500mA with 30-300V at 150W, 700mA with 21-215V at 150.5W, 1050mA with 15-143V at 150.15W, and 1400mA with 12-107V at 149.8W. This unit is the 1050mA, IP67 version in that group.

Model	Power	Voltage	Current	IP Rating
Mean Well HVGC-150-700B Power Supply 150W 700mA - Dimmable	150.5W	215V	0.7A	IP67	View
Mean Well HVGC-150-350B Power Supply 150W 350mA - Dimmable	149.8W	428V	0.35A	IP67	View
Mean Well HVGC-150-350A Power Supply 150W 350mA - Adjustable	149.8W	428V	0.35A	IP65	View
Mean Well HVGC-150-1050A Power Supply 150W 1050mA - Adjustable	150.15W	143V	1.05A	IP65	View
