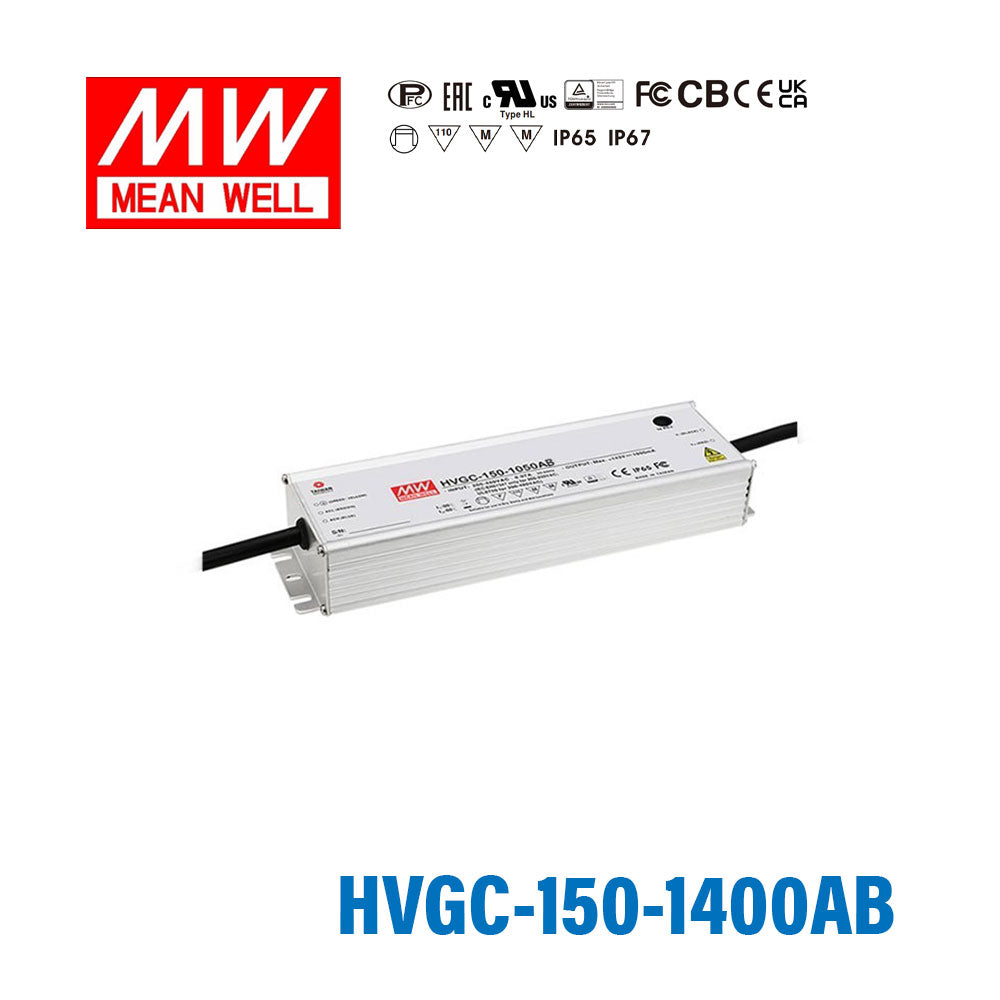

Mean Well HVGC-150-1400AB Power Supply 150W 1400mA - Adjustable and...
Please Login for Pricing
Description
Description
Features
| 180~528VAC wide input range |
| IP67 / IP65 design |
| Built-in active PFC |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 91% |
| Cooling by free air convection |
| Suitable for dry, damp. and wet location |
| Suitable for LED lighting and street lighting applications |
| Output current adjustable through output cable or internal potentiometer |
| Constant current design (C.C. mode) |
| Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC (single phase); 254~747VDC |
| AC inrush current (max.) | Cold start, 35A at 480VAC |
| Current adjustment range | 60%~100% |
| Over voltage protection | 105%~115% rated output voltage |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | Design refer to UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | STW 18AWGx2C (30cm) |
| Connection Output B-Type | STW 18AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 245x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating149.8 Watt
-
Output Voltage107 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length24.5 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.24 kg
