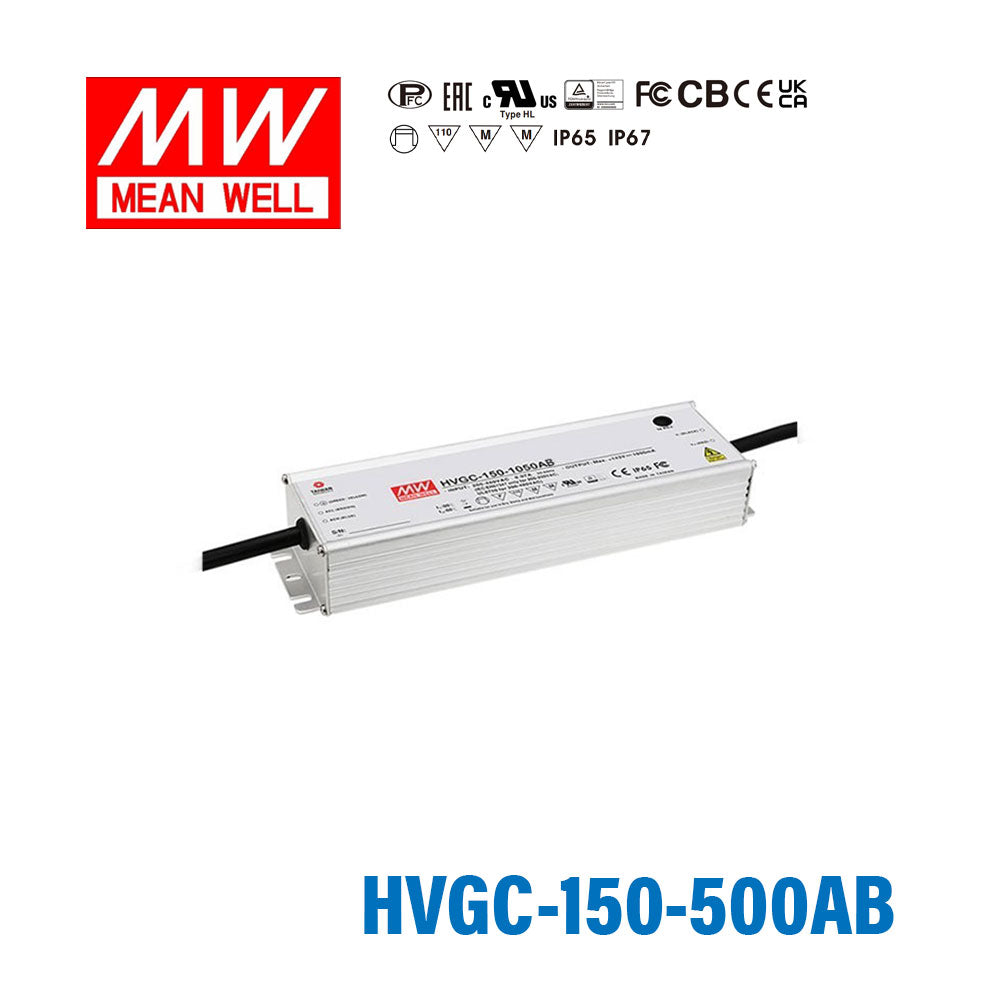

Mean Well HVGC-150-500AB Power Supply 150W 500mA - Adjustable and D...
Please Login for Pricing
Description
Description
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150 Watt
-
Output Voltage300 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~528V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length24.5 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-150-500AB with dimmable 500mA LED downlights?
Yes, if the LED downlights are designed for constant current operation at 500mA and the complete load falls within 30-300V. Because this is a constant current driver, it should not be paired with constant voltage LED fixtures.
Is this a good driver for dimmable signage modules at 500mA?
It can be a fit for signage modules that are specified for 500mA constant current and whose total forward voltage stays within the 30-300V constant current range. Its 150W output is intended for higher-power constant current LED loads within that operating window.
Can the HVGC-150-500AB power a dimmable small LED array?
Yes, when the array is built for constant current drive at 500mA. The driver operates in constant current mode over 30-300V, so the array must match that voltage window rather than a fixed DC voltage system.
What determines whether my LED load is compatible with this driver?
Compatibility depends on two things: the load must require 500mA constant current, and its total forward voltage must be within 30-300V. The number of LEDs depends on each LED forward voltage, so there is no universal LED count for this model.
Is the HVGC-150-500AB suitable for damp or semi-exposed locations?
This model carries an IP65 water-resistant rating and an operating temperature range of -40°C to +80°C. That makes it appropriate for applications that need a sealed constant current driver with those environmental limits.
