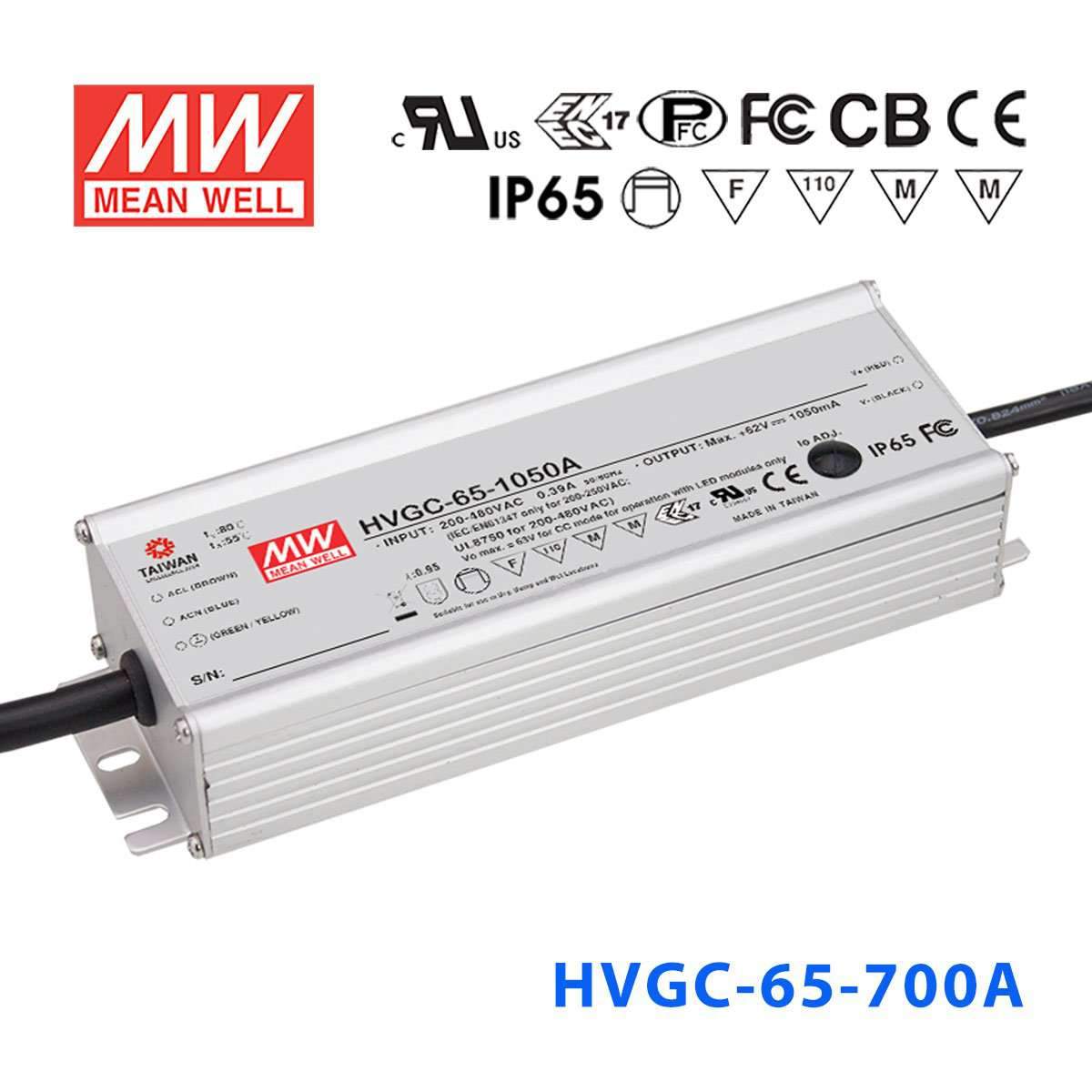

Mean Well HVGC-65-700A Power Supply 65W 700mA - Adjustable

wide input range 180~528VACaluminium casing

SKU:

HVGC-65-700A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The HVGC-65 is a 65W Mean Well DIN rail power converter with a 189mm profile (input range: 180~528VAC).

Key Features

✓ 189mm width — DIN rail TS-35 compatible
✓ Input voltage range: 180~528VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

Can I use the HVGC-65-700A for 700mA LED downlights?

Yes, this driver is intended for constant current LED loads rated at 700mA. The total LED forward voltage must stay within the 9-93V constant current range, and the total load must remain within 65.1W. It should not be used in place of a constant voltage driver.

Is the HVGC-65-700A suitable for signage modules that run at 700mA?

It can be used with signage modules designed for 700mA constant current operation. The load has to stay within the 9-93V CC range, and the exact number of LEDs depends on the forward voltage of each LED. Modules designed for constant voltage output need a different type of power supply.

Can this driver power compact LED arrays with a lower total forward voltage than 500mA models?

Yes, this 700mA model has a 9-93V constant current range, which is lower than the 13-130V range used by the 500mA versions. That makes it suited to constant current arrays that need more current but a lower total forward voltage. The full load still has to stay within 65.1W.

How do I size LED compatibility for the HVGC-65-700A?

Start by confirming the LEDs require 700mA constant current. Then make sure the total LED forward voltage is within 9-93V; the number of LEDs will vary with each LED's forward voltage, so there is no single fixed count. This is a constant current driver, not a constant voltage supply.

Can the HVGC-65-700A handle cold or hot operating conditions?

It is rated for operation from -40°C to +80°C, which supports both very cold and very hot environments. The housing is IP65 water-resistant and uses an aluminium casing. That combination makes it suitable for demanding indoor or sheltered outdoor locations where IP65 is appropriate.

How does the HVGC-65-700A compare with the other 65W HVGC current options?

In the 65W range, the 350mA versions are 65.1W with an 18-186V CC range, the 500mA versions are 65W or 65.1W with a 13-130V CC range, the 700mA versions are 65.1W with a 9-93V CC range, and the 1050mA versions are 65.1W with a 6-62V CC range. This model is the 700mA member of that group, with a 9-93V output window. The progression across siblings is higher current with lower CC voltage range.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HVGC-65-1050A Power Supply 65W 1050mA - Adjustable	65.1W	62V	1.05A	IP65	View
Mean Well HVGC-65-350A Power Supply 65W 350mA - Adjustable	65.1W	186V	0.35A	IP65	View
Mean Well HVGC-65-1050B Power Supply 65W 1050mA - Dimmable	65.1W	62V	1.05A	IP67	View
Mean Well HVGC-65-700B Power Supply 65W 700mA - Dimmable	65.1W	93V	0.7A	IP67	View
Mean Well HVGC-65-700AB Power Supply 65W 700mA - Adjustable and Dimmable	65.1W	93V	0.7A	IP65	View
Mean Well HVGC-65-500B Power Supply 65W 500mA - Dimmable	65W	130V	0.5A	IP67	View
Mean Well HVGC-65-500AB Power Supply 65W 500mA - Adjustable and Dimmable	65W	130V	0.5A	IP65	View
Mean Well HVGC-65-500A Power Supply 65W 500mA - Adjustable	65W	130V	0.5A	IP65	View
Mean Well HVGC-65-350B Power Supply 65W 350mA - Dimmable	65.1W	186V	0.35A	IP67	View
Mean Well HVGC-65-350AB Power Supply 65W 350mA - Adjustable and Dimmable	65.1W	186V	0.35A	IP65	View
Mean Well HVGC-65-1050AB Power Supply 65W 1050mA - Adjustable and Dimmable	65.1W	62V	1.05A	IP65	View
