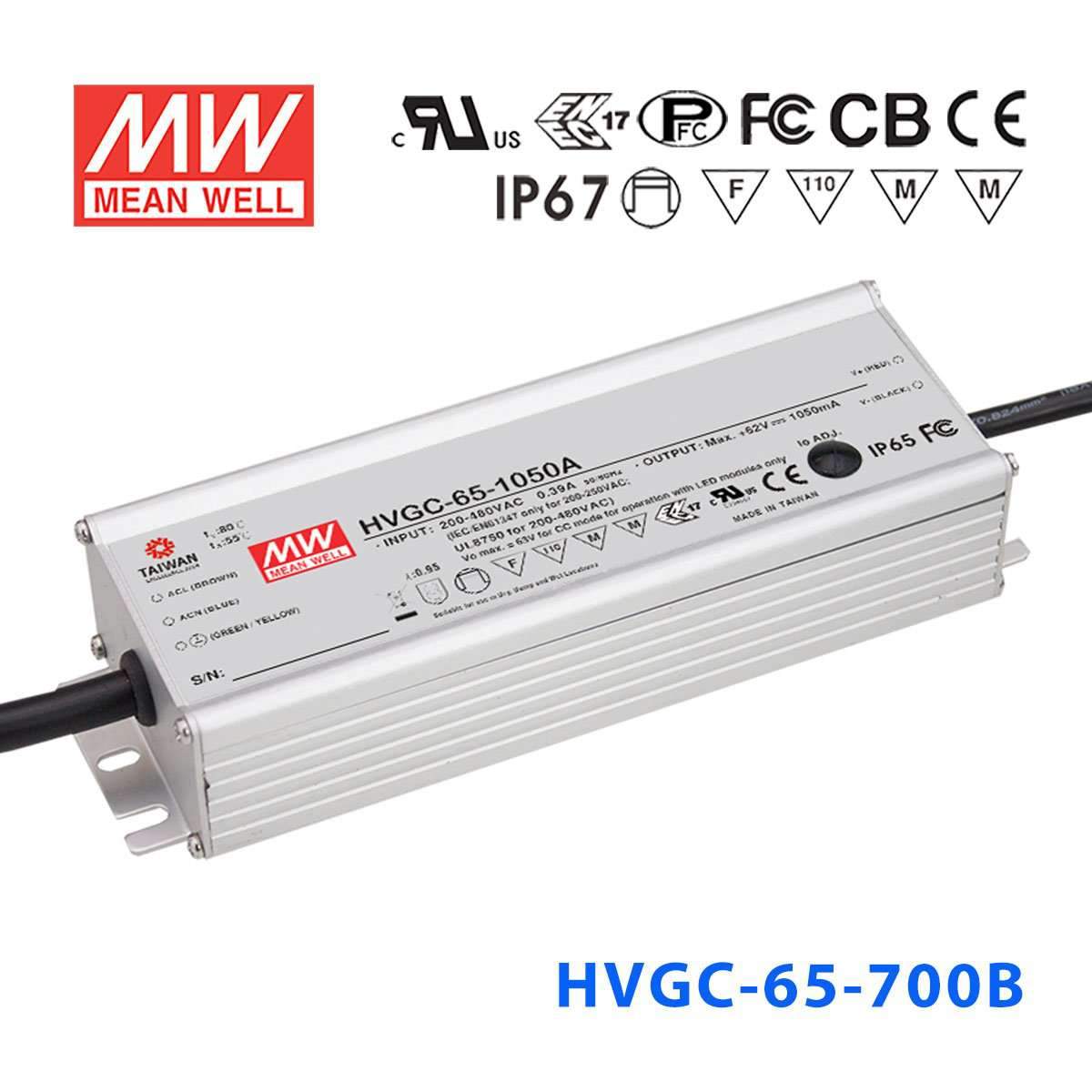

Mean Well HVGC-65-700B Power Supply 65W 700mA - Dimmable

wide input range 180~528VAC, aluminium casing
SKU:
HVGC-65-700B

|

Description

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with Class design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 180~528VAC ; 254~747VDC
AC inrush current (max.) Cold start 25A/480VAC
Over temperature protection Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection 110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -40~+80ºC (refer to output derating curve)
Safety standards UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm) 189 x 61.5 x 36.8 mm

Specifications

  • Brand
    Mean Well
  • Series
    HVGC Series
  • Power Rating
    65.1 Watt
  • Output Voltage
    93 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    CB,CE,EAC,ENEC,FCC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    18.9 cm
  • Width
    6.15 cm
  • Height
    3.68 cm
  • Weight
    0.77 kg

File Downloads

::specification::
