Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

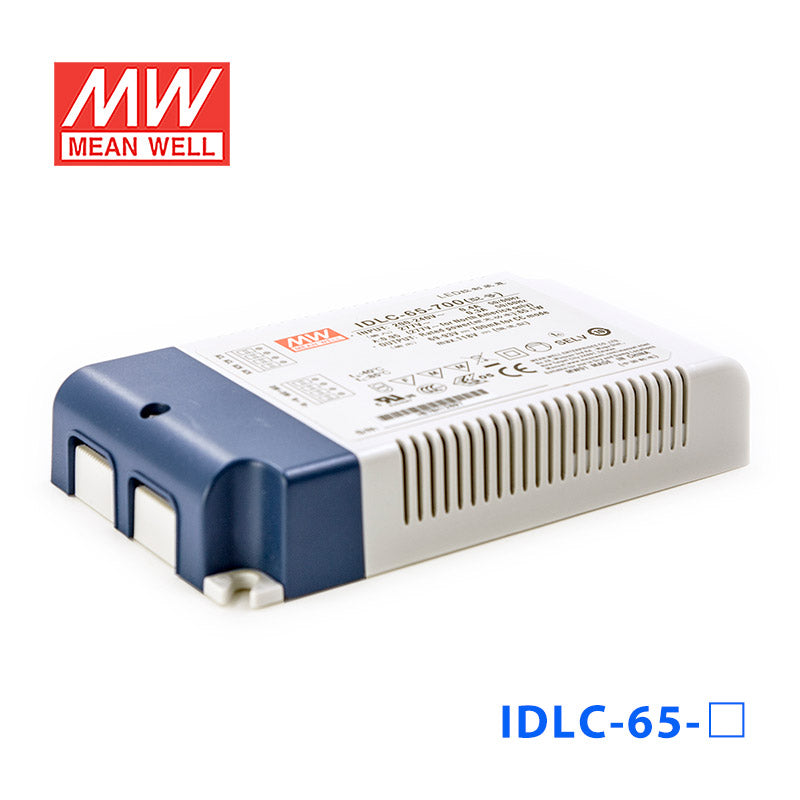

Mean Well IDLC-65-1050 Power Supply 65W 1050mA, Dimmable

SKU IDLC-65-1050

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IDLC-65-1050 is the model of this series: rated current 1050mA, rated power 65.1W, typical efficiency 87%.

IDLC-65 series is a 65W LED AC/DC driver featuring the constant current mode output with flicker free design. IDLC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. IDLC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(except for DA-Type), Standby power consumption<0.5W(DA-Type)
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

IDLC-65-1050Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 65.1W
CONSTANT CURRENT REGION^Note.2: 46 ~ 62V
OPEN CIRCUIT VOLTAGE(max.): 82V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for IDLC-65A only

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@load≧75%/230VAC,277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 87%
AC CURRENT: 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W (except for DA-Type) Standby power consumption <0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750;CSA C22.2 NO.250.13-12; ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384,EAC TP TC 004,GB19510.1,GB19510.14(for DA-Type only,others type optional) approved
DALI STANDARDS^Note.7: Compliance to IEC62386-101,102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 4389.9K hrs min. Telcordia SR-332 (Bellcore) ;405.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 130*75*25mm(L*W*H)
PACKING: 0.23Kg; 54pcs/ 13.5Kg/ 0.96CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time or set up failure.
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

IDLC-65-1050 BLOCK DIAGRAM — BLOCK DIAGRAM

IDLC-65-1050 DIMMING OPERATION — DIMMING OPERATION

IDLC-65-1050 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

IDLC-65-1050 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

IDLC-65-1050 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates8

Mean Well IDLC-65 ENEC Certificate PDF Download

Mean Well IDLC-65 CCC Certificate PDF Download

Mean Well IDLC-65 CB Certificate PDF Download

Mean Well IDLC-65 EMC Certificate PDF Download

Mean Well IDLC-65 CE Certificate PDF Download

Mean Well IDLC-65 UK Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well IDLC-65-1050 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the IDLC-65-1050 for a higher-power LED downlight?

Yes, if the downlight uses a constant current LED engine rated for 1050mA and its operating voltage is within 46-62V. With a 65.1W output rating, this model fits higher-power downlight assemblies that stay inside those limits.

Is this driver suitable for a longer small LED array with more series voltage?

It is suitable when the LED array is designed for 1050mA constant current and needs a total forward voltage between 46V and 62V. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by total load voltage rather than by LED count.

Can the IDLC-65-1050 be used in signage lighting?

Yes, but only for signage modules or light engines that are constant current at 1050mA and operate within 46-62V. It is not a constant voltage driver, so it is not the correct choice for signage products built for fixed-voltage DC input.

Would this work for a compact commercial fixture with a 1050mA LED board?

It can, as long as the LED board is specified for 1050mA constant current and its forward voltage falls in the 46-62V range. The 65.1W power rating gives more headroom than the 45W class for compatible constant current loads.

How do I verify LED load compatibility with this 1050mA driver?

Match the driver to an LED load that requires 1050mA constant current and runs between 46V and 62V under normal operation. The actual LED quantity depends on each LED's forward voltage, so a specific LED count should not be assumed.

How does the IDLC-65-1050 compare with the other 65W models in the same series?

The IDLC-65-1050 is a 1050mA model with a 46-62V CC range and 65.1W output. Other 65W versions include 1400mA at 34-46V and 64.4W, 1750mA at 27-36V and 63W, and 700mA at 69-93V and 65.1W.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well IDLC-65-700DA Power Supply 65W 700mA, DALI	65.1W	93V	0.7A	IP20	View
Mean Well IDLC-65-700 Power Supply 65W 700mA, Dimmable	65.1W	93V	0.7A	IP20	View
Mean Well IDLC-65-1750DA Power Supply 65W 1750mA, DALI	63W	36V	1.75A	IP20	View
Mean Well IDLC-65-1750 Power Supply 65W 1750mA, Dimmable	63W	36V	1.75A	IP20	View
Mean Well IDLC-65-1400DA Power Supply 65W 1400mA, DALI	64.4W	46V	1.4A	IP20	View
Mean Well IDLC-65-1400 Power Supply 65W 1400mA, Dimmable	64.4W	46V	1.4A	IP20	View
Mean Well IDLC-65-1050DA Power Supply 65W 1050mA, DALI	65.1W	62V	1.05A	IP20	View
