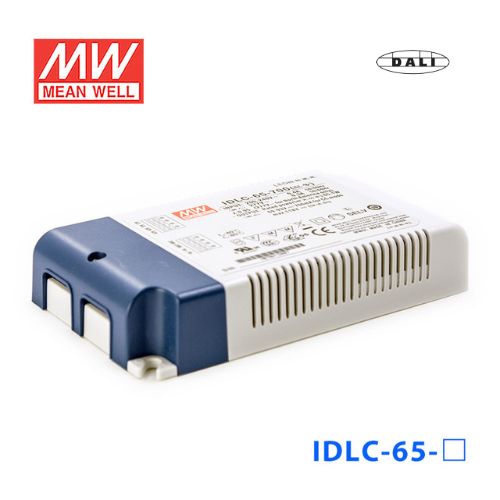

Mean Well IDLC-65-1400DA Power Supply 65W 1400mA, DALI

SKU IDLC-65-1400DA

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IDLC-65-1400DA is the model of this series: rated current 1400mA, rated power 64.4W, typical efficiency 86.5%.

IDLC-65 series is a 65W LED AC/DC driver featuring the constant current mode output with flicker free design. IDLC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. IDLC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(except for DA-Type), Standby power consumption<0.5W(DA-Type)
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

IDLC-65-1400DASpecifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 64.4W
CONSTANT CURRENT REGION^Note.2: 34 ~ 46V
OPEN CIRCUIT VOLTAGE(max.): 60V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for IDLC-65A only

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@load≧75%/230VAC,277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 86.5%
AC CURRENT: 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W (except for DA-Type) Standby power consumption <0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750;CSA C22.2 NO.250.13-12; ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384,EAC TP TC 004,GB19510.1,GB19510.14(for DA-Type only,others type optional) approved
DALI STANDARDS^Note.7: Compliance to IEC62386-101,102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 4389.9K hrs min. Telcordia SR-332 (Bellcore) ;405.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 130*75*25mm(L*W*H)
PACKING: 0.23Kg; 54pcs/ 13.5Kg/ 0.96CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time or set up failure.
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

IDLC-65-1400DA BLOCK DIAGRAM — BLOCK DIAGRAM

IDLC-65-1400DA DIMMING OPERATION — DIMMING OPERATION

IDLC-65-1400DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

IDLC-65-1400DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

IDLC-65-1400DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates8

Mean Well IDLC-65 ENEC Certificate PDF Download

Mean Well IDLC-65 CCC Certificate PDF Download

Mean Well IDLC-65 CB Certificate PDF Download

Mean Well IDLC-65 EMC Certificate PDF Download

Mean Well IDLC-65 CE Certificate PDF Download

Mean Well IDLC-65 UK Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well IDLC-65-1400 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the IDLC-65-1400DA for a 1400mA LED downlight?

Yes, if the downlight is designed for a constant current 1400mA driver and its LED load operates within the 34-46V constant current range. This is a constant current driver, not a constant voltage power supply, so it should be matched to a 1400mA LED engine rather than a fixed-voltage load.

Is this driver suitable for signage LED modules?

It can be suitable for signage modules only when the module assembly is a constant current 1400mA load that falls within the 34-46V range. It is not intended for constant voltage signage systems that expect a fixed output voltage supply.

Can this power a small LED array for architectural lighting?

Yes, for a small LED array built as a constant current 1400mA load within the 34-46V operating window and up to 64.4W. That makes it a fit for higher-current LED arrays where the array voltage stays inside the driver's constant current range.

How do I know if my LED load is compatible with this constant current driver?

The LED load needs to be rated for 1400mA constant current, and the total forward voltage of the LEDs must fall within 34-46V. The exact number of LEDs depends on the forward voltage of each LED, so compatibility is determined by current and total LED voltage, not by a fixed LED count.

Can the IDLC-65-1400DA be used in hot or cold operating conditions?

Its working temperature is specified as a case temperature (Tcase) of -20°C to +85°C, and output load must be derated at higher temperatures per the output load vs temperature curve. No IP rating is listed in the provided specs, so environmental protection should be judged by the enclosure and fixture design, not by the driver alone.
