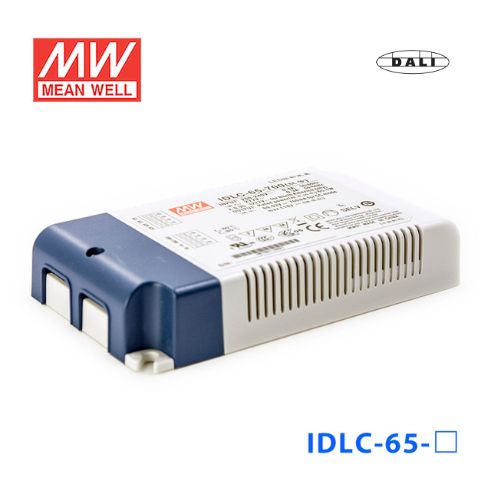

Mean Well IDLC-65-700DA Power Supply 65W 700mA, DALI

AC-DC Constant Current LED Driver (CC) with PFCOutput 93Vdc at 0.7ADimming with DALI

SKU IDLC-65-700DA

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

IDLC-65-700DA is the model of this series: rated current 700mA, rated power 65.1W, typical efficiency 89%.

IDLC-65 series is a 65W LED AC/DC driver featuring the constant current mode output with flicker free design. IDLC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. IDLC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(except for DA-Type), Standby power consumption<0.5W(DA-Type)
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

IDLC-65-700DASpecifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER: 65.1W
CONSTANT CURRENT REGION^Note.2: 69 ~ 93V
OPEN CIRCUIT VOLTAGE(max.): 118V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for IDLC-65A only

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@load≧75%/230VAC,277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 89%
AC CURRENT: 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W (except for DA-Type) Standby power consumption <0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750;CSA C22.2 NO.250.13-12; ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384,EAC TP TC 004,GB19510.1,GB19510.14(for DA-Type only,others type optional) approved
DALI STANDARDS^Note.7: Compliance to IEC62386-101,102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 4389.9K hrs min. Telcordia SR-332 (Bellcore) ;405.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 130*75*25mm(L*W*H)
PACKING: 0.23Kg; 54pcs/ 13.5Kg/ 0.96CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time or set up failure.
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

IDLC-65-700DA BLOCK DIAGRAM — BLOCK DIAGRAM

IDLC-65-700DA DIMMING OPERATION — DIMMING OPERATION

IDLC-65-700DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

IDLC-65-700DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

IDLC-65-700DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates8

Mean Well IDLC-65 ENEC Certificate PDF Download

Mean Well IDLC-65 CCC Certificate PDF Download

Mean Well IDLC-65 CB Certificate PDF Download

Mean Well IDLC-65 EMC Certificate PDF Download

Mean Well IDLC-65 CE Certificate PDF Download

Mean Well IDLC-65 UK Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well IDLC-65-700 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the IDLC-65-700DA for a DALI dimmable 700mA downlight?

Yes, if the downlight uses DALI control and its LED engine is a constant current 700mA load operating within 69-93V. This is a constant current driver, not a constant voltage power supply, so it must be paired with a matching 700mA LED load.

Will this work for a DALI-controlled signage light engine?

It can work when the signage light engine is designed for 700mA constant current and the total LED forward voltage falls within 69-93V. It is not intended for constant voltage signage modules or low-voltage fixed-output systems.

Is this driver a good match for a small LED array with a long series string?

Yes, it suits small LED arrays that need 700mA constant current and have a total forward voltage in the 69-93V range, with output power up to 65.1W. The DALI capability also makes it relevant where dimming control is required at the fixture level.

How should I size the LED load for the IDLC-65-700DA?

Choose an LED load rated for 700mA constant current with a total forward voltage between 69V and 93V. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by summed LED voltage rather than by a stated LED quantity.

Can the IDLC-65-700DA be used where temperatures vary widely?

The working temperature is specified as a case temperature (Tcase) of -20°C to +85°C, with load derating per the output load vs temperature curve. The provided specs do not include an IP rating, so outdoor or washdown suitability should not be assumed from the driver alone.
