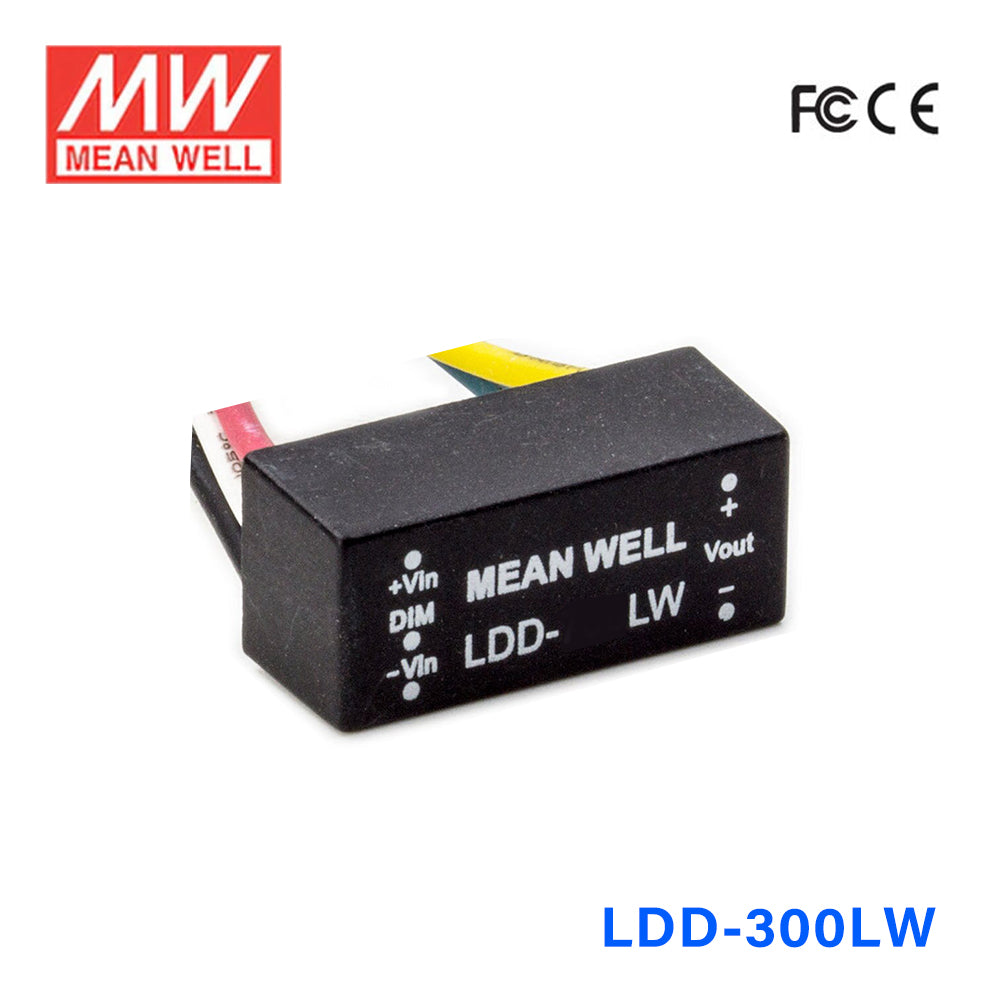

Mean Well LDD-300LW DC/DC LED Driver CC 300mA - Step-down
Please Login for Pricing
Description
Description
The LDD is a Mean Well power converter (input range: 2~52VDC).
Key Features
- ✓ Input voltage range: 2~52VDC
- ✓ Protections: Short circuit / Over temperature
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating9.6 Watt
-
Output Voltage32 Volt
-
Rated Current0.3 Ampere
-
Input Voltage9V~36V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.26 cm
-
Width0.99 cm
-
Height0.89 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LDD-300LW for compact low-current LED downlights?
Yes, if the downlight is a constant current design that requires 300mA and the LED load stays within the 2-32V CC range. Its 9.6W rating makes it a fit for lower-power downlight assemblies. It should not be used where the fixture expects a constant voltage driver.
Is the LDD-300LW a good fit for very small LED arrays or indicator-style lighting?
It can be, because it provides 300mA constant current across a 2-32V range in a compact 22.6 × 9.9 × 8.9 mm package. That makes it useful for smaller constant current LED arrays where space is tight. The exact LED quantity depends on the forward voltage of each LED.
Can the LDD-300LW be used with small waterproof signage modules?
Yes, if the signage module assembly is specified for 300mA constant current and the total LED forward-voltage requirement falls between 2V and 32V. The IP67 Waterproof rating supports use in exposed or moisture-prone locations. It is not the right match for constant voltage signage modules.
How do I check whether my LEDs are compatible with the LDD-300LW?
The load must require 300mA constant current and have a total forward-voltage requirement within the 2-32V CC output range. The number of LEDs depends on each LED's forward voltage, so a fixed LED count should not be assumed. Since this is a step-down driver, the input source also needs to stay within the 9-36VAC range.
How is the LDD-300LW different from other 300mA LDD siblings?
Within the 300mA family, the LDD-300H, LDD-300HS, and LDD-300HW are 15.6W with a 2-52V range, while the LDD-300L and LDD-300LW are 9.6W with a 2-32V range. The LDD-300LS is 8.4W with a 2-28V range. The main differences are the maximum constant current voltage range, wattage, and package style.
Is the LDD-300LW suitable for harsh temperature and moisture conditions?
Yes, it is rated IP67 Waterproof and has an operating temperature range of -40°C to +85°C. Those specs support use in demanding environments when the full fixture or system is designed accordingly. Its 0.02 kg weight and small body help where enclosure space is limited.
