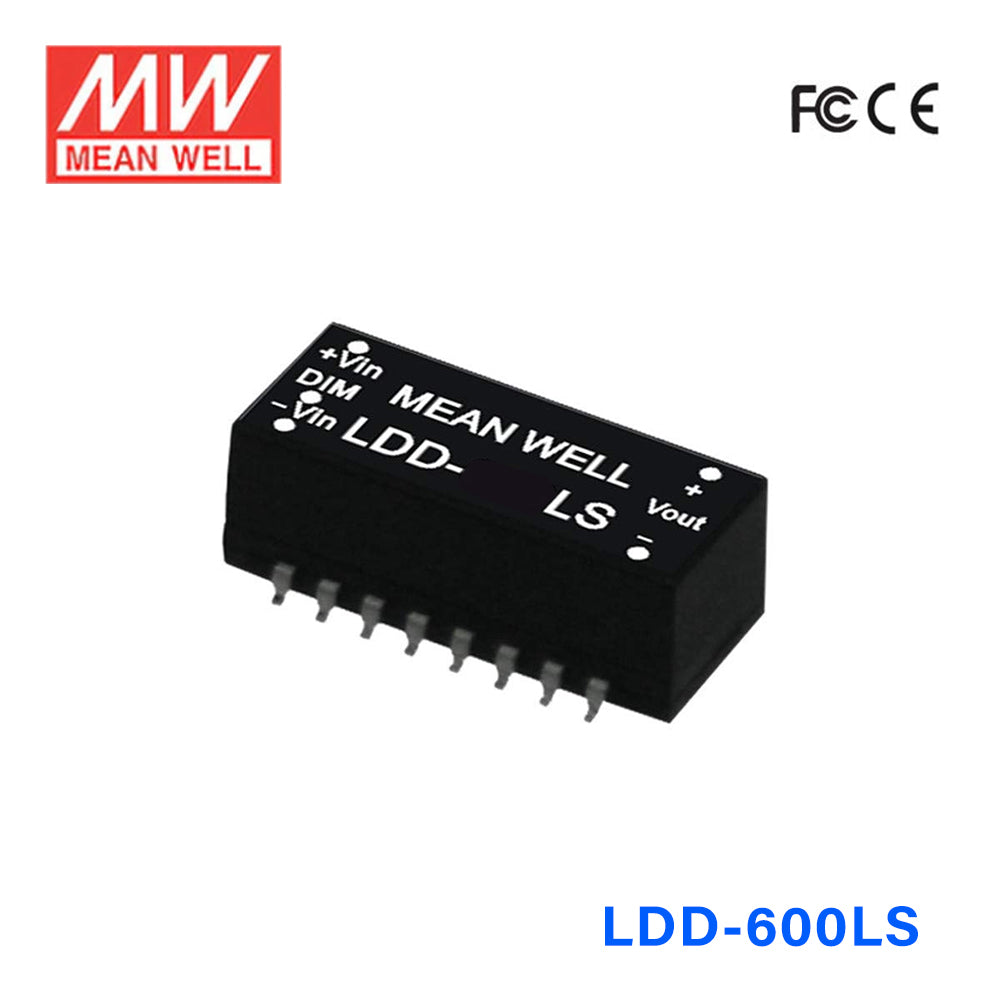

Mean Well LDD-600LS DC/DC LED Driver CC 600mA - Step-down
Please Login for Pricing
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 300mA to 700mA |
| Wide input voltage: 9~36VDC |
| Wide output LED string voltage: 2~32VDC |
| High efficiency up to 95% |
| Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors |
| Built-in PWM and remote ON/OFF control |
| Protections: Short circuit / Over Temperature |
| Cooling by free air convection |
| Fully encapsulated with IP67 level for pin and wire style |
| Compact size |
| Low cost, high reliability |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 24VDC input |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 95% at full load and 24VDC/36VDC input for LDD-300~700L/LW ; 95% at full load and 24VDC input for LDD-300~700LS |
| Short circuit protection | Protection type: Can be continued, recovers automatically after fault condition is removed |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch for LDD-300~700L/LW ; 25.4*10.5*9.3mm or 1"*0.4135"*0.366" inch for LDD-300~700LS |
| Potting material | Expoxy(UL94-V0) for LDD-300~700L/LW ; without potted for LDD-300~700LS |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating16.8 Watt
-
Output Voltage28 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~32V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width1.05 cm
-
Height0.93 cm
-
Weight0.02 kg
