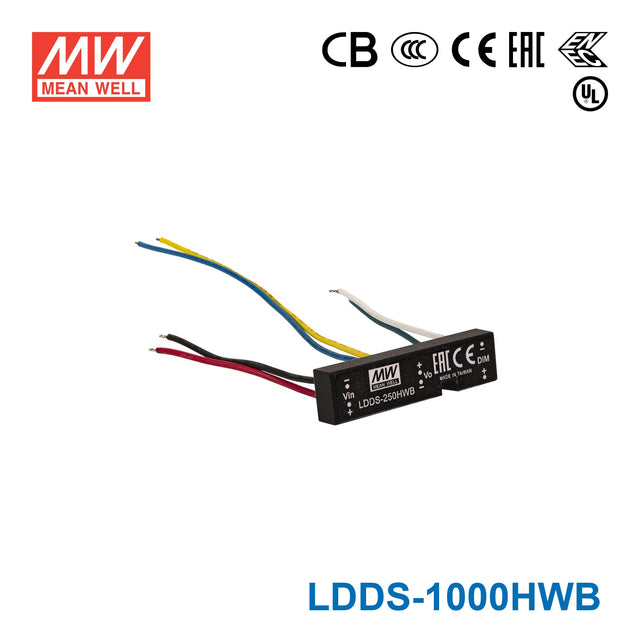

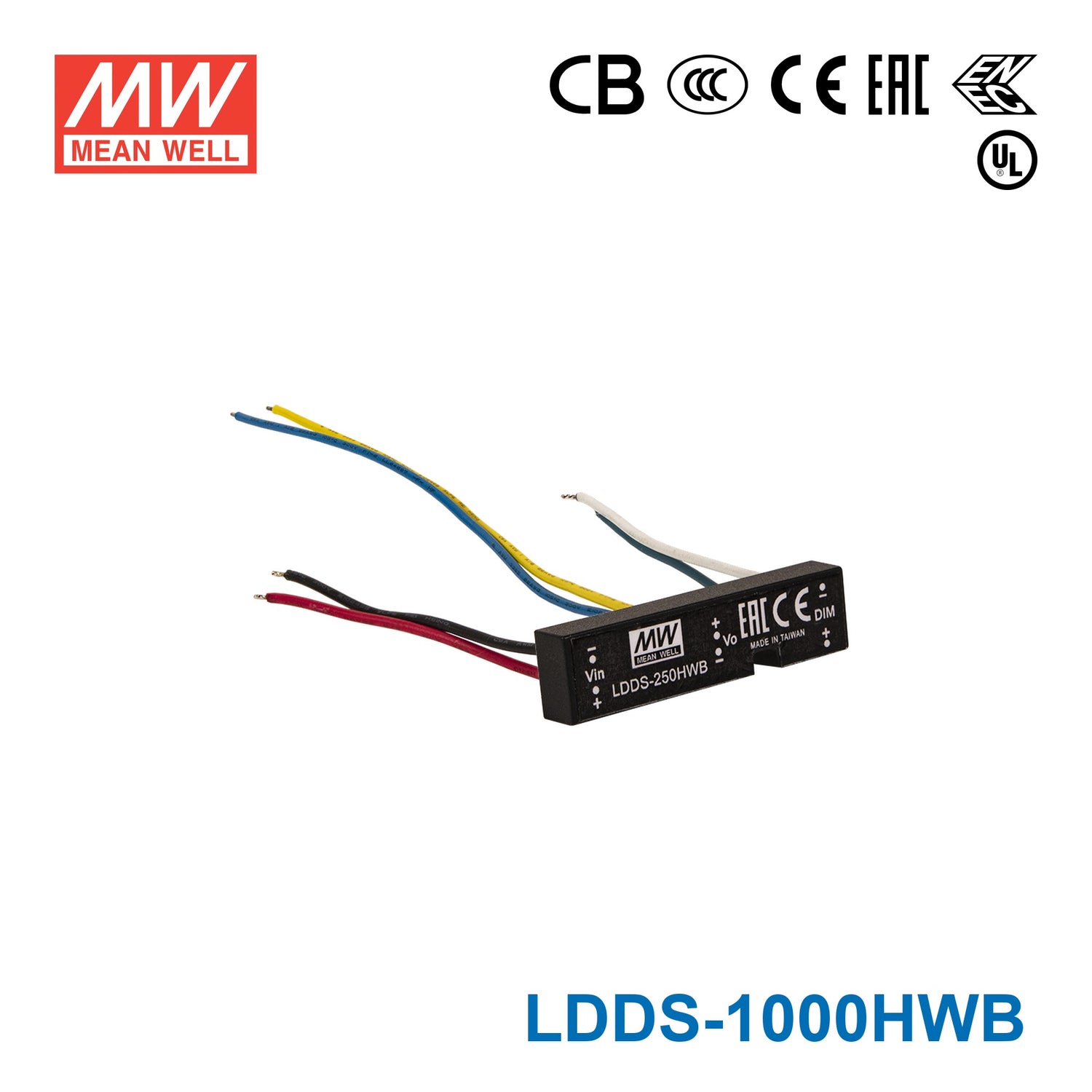

Description
Description
Features
DC/DC step-down converter |
Constant current output: 250mA to 1000mA |
Wide input voltage: 12~56VDC(48V typ.) |
Wide output LED forward voltage: 2~45VDC |
High efficiency up to 96% |
Built-in EMI filter, comply with BS EN/EN55015 |
3 in 1 dimming and remote ON/OFF control |
Protections: Short circuit/Over temperature/ Over current |
Cooling by free air convection |
Compact size and Fully encapsulated |
Suitable for driving illumination LED |
5 years warranty |
General Specification
Current accuracy | ±5% at 48VDC input (or 24VDC) |
Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
Efficiency | 94%; 95%; 96% (typical) |
Short circuit protection | Regulated at rated output current |
Working temperature | -40°C to +55°C |
EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
Temp. Coefficient | ±0.03% / °C |
Dimension (LxWxH) (mm) | 47*12*7mm or 1.85"*0.47"*0.28" inch |
Potting material | Expoxy(UL94-V0) |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDDS Series
-
Power Rating45 Watt
-
Output Voltage45 Volt
-
Rated Current1 Ampere
-
Input Voltage2V~45V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~55°C
-
Warranty5 Year
-
Length4.7 cm
-
Width1.2 cm
-
Height0.7 cm
-
Weight0.01 kg
