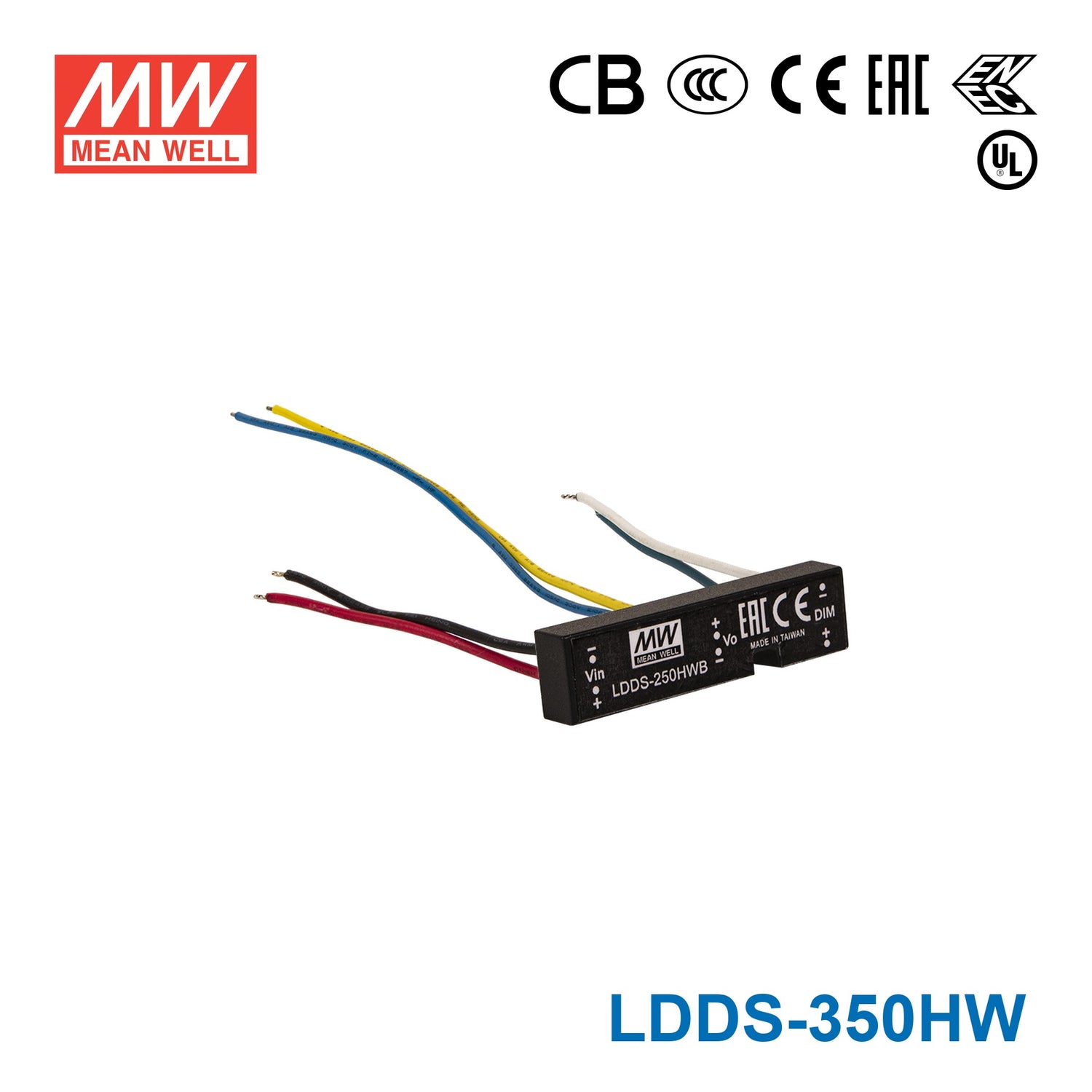

Mean Well LDDS-350HW DC/DC LED Driver CC 350mA - Step-down Wire Type
Log in to see priceOverview
LDDS-350HW is the model of this series: typical efficiency 95%. Type Blank: Remote ON/OFF control.
LDDS-H series is a 45W DC/DC LED driver featuring constant current output. LDDS-H operates from 12~56VDC and offers models with different rated current ranging between 250mA and 1000mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case with fully-potted to enhance the heat dissipation allows this series to fit for class Ⅲ commercial track light or DC bus lighting application.
Features
- DC/DC step-down converter
- Constant current output: 250mA to 1000mA
- Wide input voltage: 12 ~ 56VDC(48V typ.)
- Wide output LED forward string voltage: 2 ~ 45VDC
- High efficiency up to 96%
- Built-in EMI filter, comply with BS EN/EN55015
- Remote ON/OFF control.
- Protections: Short circuit / Over temperature / Over current
- Cooling by free air convection
- Compact size and Fully encapsulated
- Suitable for driving illumination LED
- 5 years warranty
Specifications
OUTPUT
- CURRENT RANGE
- 350mA
- VOLTAGE RANGENote.4
- 2 ~ 45VDC
- CURRENT ACCURACY (Typ.)
- ±5% at 48VDC input (or 24VDC)
- RIPPLE & NOISE(max.)Note.2
- 200mVp-p
- SWITCHING FREQENCY
- 40KHz ~ 1000KHz
- EXTERNAL CAPACITANCE LOAD (max.)
- 2.2uF
INPUT
- VOLTAGE RANGE
- 12 ~ 56VDC
- EFFICIENCY (Typ.)Note.3
- 95%
- DC CURRENT Full loadNote.3
- 300mA
- DC CURRENT No load
- 6mA
- FILTER
- Capacitor
REMOTE ON/OFF & 3 IN 1 DIMMING
- REMOTE ON/OFF
- Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 15VDC or open circuit Power OFF : DIM ~ -Vin < 0.3VDC or short
PROTECTION
- SHORT CIRCUIT
- Regulated at rated output current Protection type: Can be continued, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Tj 150℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ + 55℃(Refer to derating curve) @ full load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +125℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
- OPERATING CASE TEMP. (max.)
- 90℃
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- EMC EMISSION
- Compliance to BS EN/EN55015, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 650Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 47*12*7mm or 1.85"*0.47"*0.28" inch (L*W*H)
- PACKING
- LDDS-HW: 9.5g, 36pcs/box, 0.43kg/box. 12 box per carton/6kg LDDS-HWB: 9.4g, 36pcs/box, 0.43kg/box. 12 box per carton/6kg
- POTTING MATERIAL
- Expoxy(UL94-V0)
MODEL ENCODING
- Blank (this model)
- Remote ON/OFF control
- B
- 3 in 1 Dimming function
Test conditions and notes5
- 1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
- 3.Test condition: 48VDC input, 36VDC output without Dimming.
- 4.Output voltage will always step down 4 volts from input DC voltage.
- 5.The output of LDDS-H should not be connected to the input of the same unit or output from other sources.
Technical drawings
Typical applications
- DC battery source lighting
- Portable lighting
- Commercial lighting
- DC 48V Track lighting
- DC 24V landscape lighting
- For STUCCHI track adapters
- For class Ⅲ application(SELV)
Downloads
FAQ
Can I use the LDDS-350HW for a constant current LED downlight?
Yes, if the downlight is designed for a 350mA constant current driver. This model is a constant current step-down driver with a 2-45V output range, so the LED load needs to stay within that range rather than requiring a constant voltage supply.
Is the LDDS-350HW suitable for signage LED modules?
It can be suitable for signage modules only when the modules are built for 350mA constant current operation. The driver provides a 2-45V output range at constant current, so it is not the right choice for constant voltage signage products that expect a fixed voltage output.
Can this driver run a small LED array in a compact fixture?
Yes, this driver is often a fit for small LED arrays that need 350mA constant current and stay within the 2-45V output range. Its 47 x 12 x 7 mm size and wire-style format also make it easier to use where space is limited.
How do I know if the LDDS-350HW is compatible with my LED load?
Check that your LEDs require 350mA constant current and that the total LED forward voltage falls within the 2-45V output range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count for this model.
What is the difference between the LDDS-350HW and other LDDS wire-type models?
In this series, the LDDS-250HW and LDDS-250HWB are 250mA, the LDDS-300HW and LDDS-300HWB are 300mA, the LDDS-350HWB shares this model's 350mA, the LDDS-500HW and LDDS-500HWB are 500mA, the LDDS-700HW and LDDS-700HWB are 700mA, and the LDDS-1000HW and LDDS-1000HWB are 1000mA. All share the same 2-45V output range; HW models use remote ON/OFF control, while HWB models add 3 in 1 dimming.
