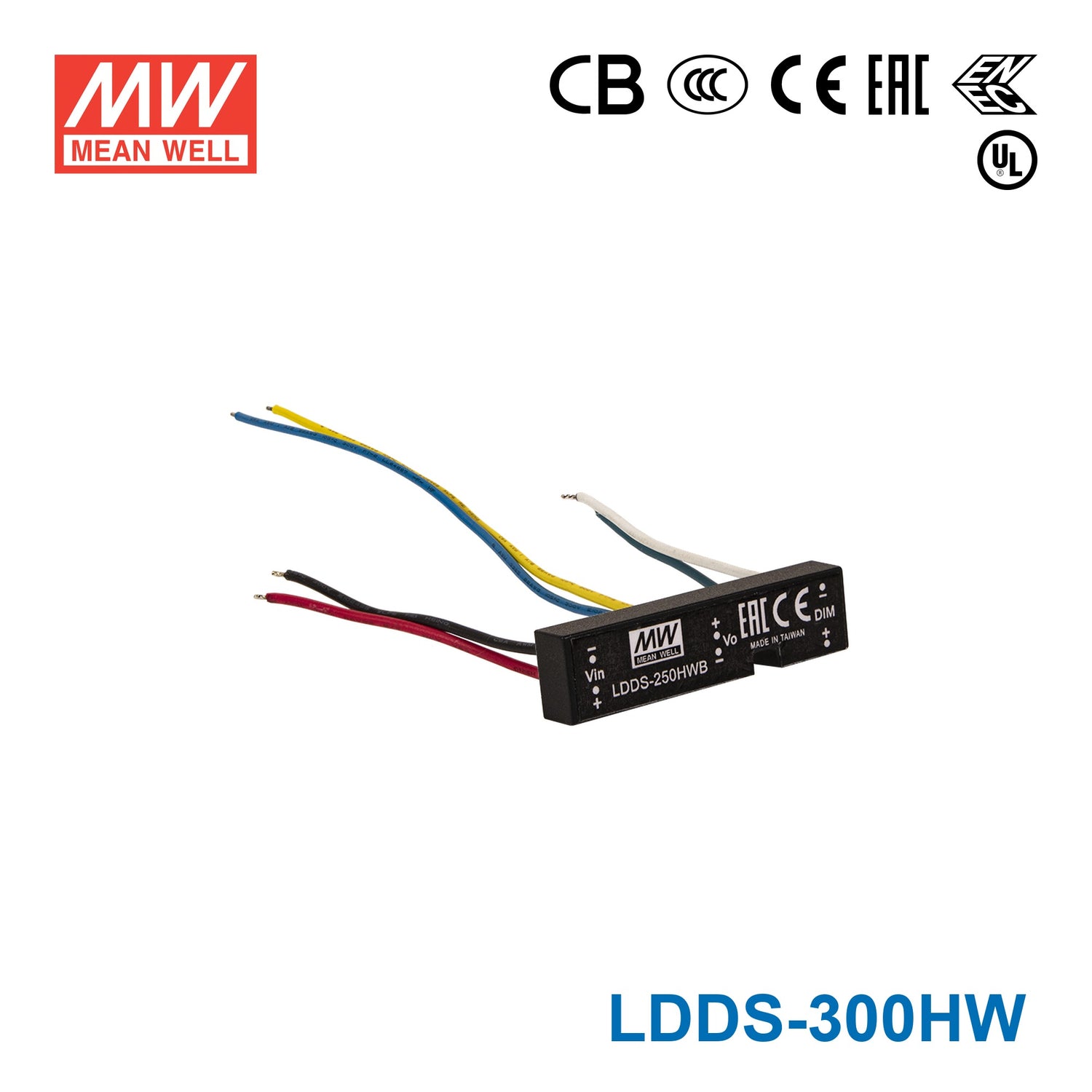

Mean Well LDDS-300HW DC/DC LED Driver CC 300mA - Step-down Wire Type
Log in to see priceOverview
LDDS-300HW is the model of this series: typical efficiency 95%. Type Blank: Remote ON/OFF control.
LDDS-H series is a 45W DC/DC LED driver featuring constant current output. LDDS-H operates from 12~56VDC and offers models with different rated current ranging between 250mA and 1000mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case with fully-potted to enhance the heat dissipation allows this series to fit for class Ⅲ commercial track light or DC bus lighting application.
Features
- DC/DC step-down converter
- Constant current output: 250mA to 1000mA
- Wide input voltage: 12 ~ 56VDC(48V typ.)
- Wide output LED forward string voltage: 2 ~ 45VDC
- High efficiency up to 96%
- Built-in EMI filter, comply with BS EN/EN55015
- Remote ON/OFF control.
- Protections: Short circuit / Over temperature / Over current
- Cooling by free air convection
- Compact size and Fully encapsulated
- Suitable for driving illumination LED
- 5 years warranty
Specifications
OUTPUT
- CURRENT RANGE
- 300mA
- VOLTAGE RANGENote.4
- 2 ~ 45VDC
- CURRENT ACCURACY (Typ.)
- ±5% at 48VDC input (or 24VDC)
- RIPPLE & NOISE(max.)Note.2
- 150mVp-p
- SWITCHING FREQENCY
- 40KHz ~ 1000KHz
- EXTERNAL CAPACITANCE LOAD (max.)
- 2.2uF
INPUT
- VOLTAGE RANGE
- 12 ~ 56VDC
- EFFICIENCY (Typ.)Note.3
- 95%
- DC CURRENT Full loadNote.3
- 250mA
- DC CURRENT No load
- 6mA
- FILTER
- Capacitor
REMOTE ON/OFF & 3 IN 1 DIMMING
- REMOTE ON/OFF
- Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 15VDC or open circuit Power OFF : DIM ~ -Vin < 0.3VDC or short
PROTECTION
- SHORT CIRCUIT
- Regulated at rated output current Protection type: Can be continued, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Tj 150℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -40 ~ + 55℃(Refer to derating curve) @ full load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +125℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
- OPERATING CASE TEMP. (max.)
- 90℃
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- EMC EMISSION
- Compliance to BS EN/EN55015, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 650Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 47*12*7mm or 1.85"*0.47"*0.28" inch (L*W*H)
- PACKING
- LDDS-HW: 9.5g, 36pcs/box, 0.43kg/box. 12 box per carton/6kg LDDS-HWB: 9.4g, 36pcs/box, 0.43kg/box. 12 box per carton/6kg
- POTTING MATERIAL
- Expoxy(UL94-V0)
MODEL ENCODING
- Blank (this model)
- Remote ON/OFF control
- B
- 3 in 1 Dimming function
Test conditions and notes5
- 1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
- 3.Test condition: 48VDC input, 36VDC output without Dimming.
- 4.Output voltage will always step down 4 volts from input DC voltage.
- 5.The output of LDDS-H should not be connected to the input of the same unit or output from other sources.
Technical drawings
Typical applications
- DC battery source lighting
- Portable lighting
- Commercial lighting
- DC 48V Track lighting
- DC 24V landscape lighting
- For STUCCHI track adapters
- For class Ⅲ application(SELV)
Downloads
FAQ
Can the LDDS-300HW be used for a 300mA LED downlight?
Yes, if the downlight is a constant-current design that requires 300mA and its LED load falls within the 2-45V output range. Because this is a constant-current driver, it is not the correct match for constant-voltage lighting products.
Is the LDDS-300HW suitable for architectural signage modules?
It can be used for constant-current signage modules that need 300mA and operate within the 2-45V output range. Its compact, epoxy-potted 47 x 12 x 7 mm body fits slim sign housings.
Can I use this driver for a compact LED array in a small fixture?
Yes, provided the LED array is rated for constant-current 300mA operation and stays within the 2-45V range. The exact number of LEDs depends on the forward voltage of each LED rather than a preset count.
What LEDs are compatible with the LDDS-300HW?
Compatible loads are constant-current LEDs that need 300mA and fit inside the 2-45V output range. Constant-voltage strips are not compatible, and the LED count depends on the forward voltage of the LEDs being used.
How does the LDDS-300HW compare with other LDDS-HW and LDDS-HWB versions?
All listed siblings share the same 2-45V output range. The difference is output current: 250mA on the 250 models, 300mA on the 300 models, 350mA on the 350 models, 500mA on the 500 models, 700mA on the 700 models, and 1000mA on the 1000 models; HW versions use remote ON/OFF, HWB versions add 3 in 1 dimming.
