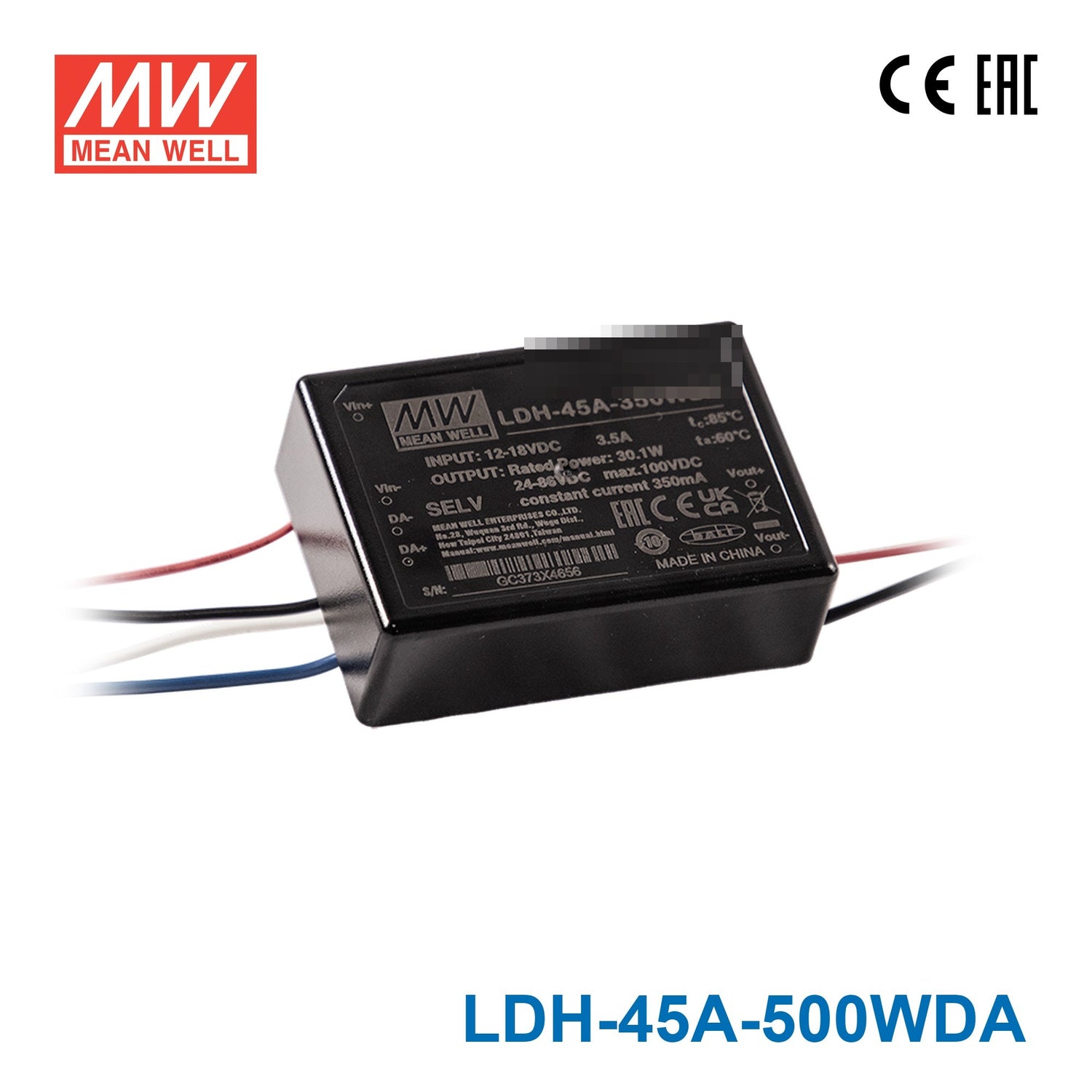

Mean Well LDH-45A-500WDA DC/DC LED Driver CC 500mA - Step-up

constant current, step up, high efficiency up to 95%, wire style
SKU:
LDH-45A-500WDA

|

Description

Features

DC/DC step-up converter
Constant current output: 350ma to 1050mA
Wide output LED forward voltage up to 126VDC
High efficiency up to 95%
Built-in EMI filter, comply with BS EN/EN55015 without additional input filter and capacitors
PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
DALI dimming [(Black)DA type or WDA type
Protections: Short circuit/ Over voltage / Under voltage
Cooling by free air convection
Fully encapsulated
3 years warranty

General Specification

Current accuracy ±5% at 12VDC input
Over-voltage protection up to 140% output voltage
Efficiency 95.5%
Short circuit protection Protection type: Power OFF and fuse open
Working temperature -40 ~ +70℃ (Refer to "Derating Curve")
EMC Compliance to EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient ±0.03%/℃ (0 ~ 50℃)
Dimension (LxWxH) (mm) 75 x 53 x 22.7mm
Packing 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)

Specifications

  • Brand
    Mean Well
  • Series
    LDH Series
  • Power Rating
    43 Watt
  • Output Voltage
    86 Volt
  • Rated Current
    0.5 Ampere
  • Input Voltage
    9V~18V
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~70°C
  • Warranty
    3 Year
  • Length
    7.5 cm
  • Width
    5.3 cm
  • Height
    2.27 cm
  • Weight
    0.02 kg

File Downloads

::specification::
