Can I use the LDH-45A-700W for a 700mA constant current downlight project?

Yes, this model is intended for constant current LED loads at 700mA. It supports a 12-64V constant current output range and up to 44.8W, which suits compatible LED downlights in that operating window.

Is this a fit for small signage modules that are not constant voltage?

Yes, if the signage module is built as a 700mA constant current load. This driver is not for constant voltage LED products; it is a step-up constant current driver rated 44.8W with a 12-64V range.

Can the LDH-45A-700W run a small multi-LED board or light engine?

It can run a small LED array when the board is specified for 700mA constant current operation. The total LED forward voltage must stay within 12-64V, and the total load must remain within 44.8W.

How should I check LED compatibility with this 700mA driver?

Start by confirming the LEDs require constant current rather than constant voltage. This model delivers 700mA over a 12-64V constant current range, and the usable number of LEDs depends on each LED forward voltage instead of a preset LED count.

What differentiates the LDH-45A-700W from the other 700mA LDH-45A models?

All four 700mA LDH-45A versions are rated 44.8W with a 64V maximum output, but LDH-45A-700 and LDH-45A-700W use a 12-64V constant current range while LDH-45A-700DA and LDH-45A-700WDA use 24-64V. The W and WDA models are wire style, while the non-W versions are pin style.

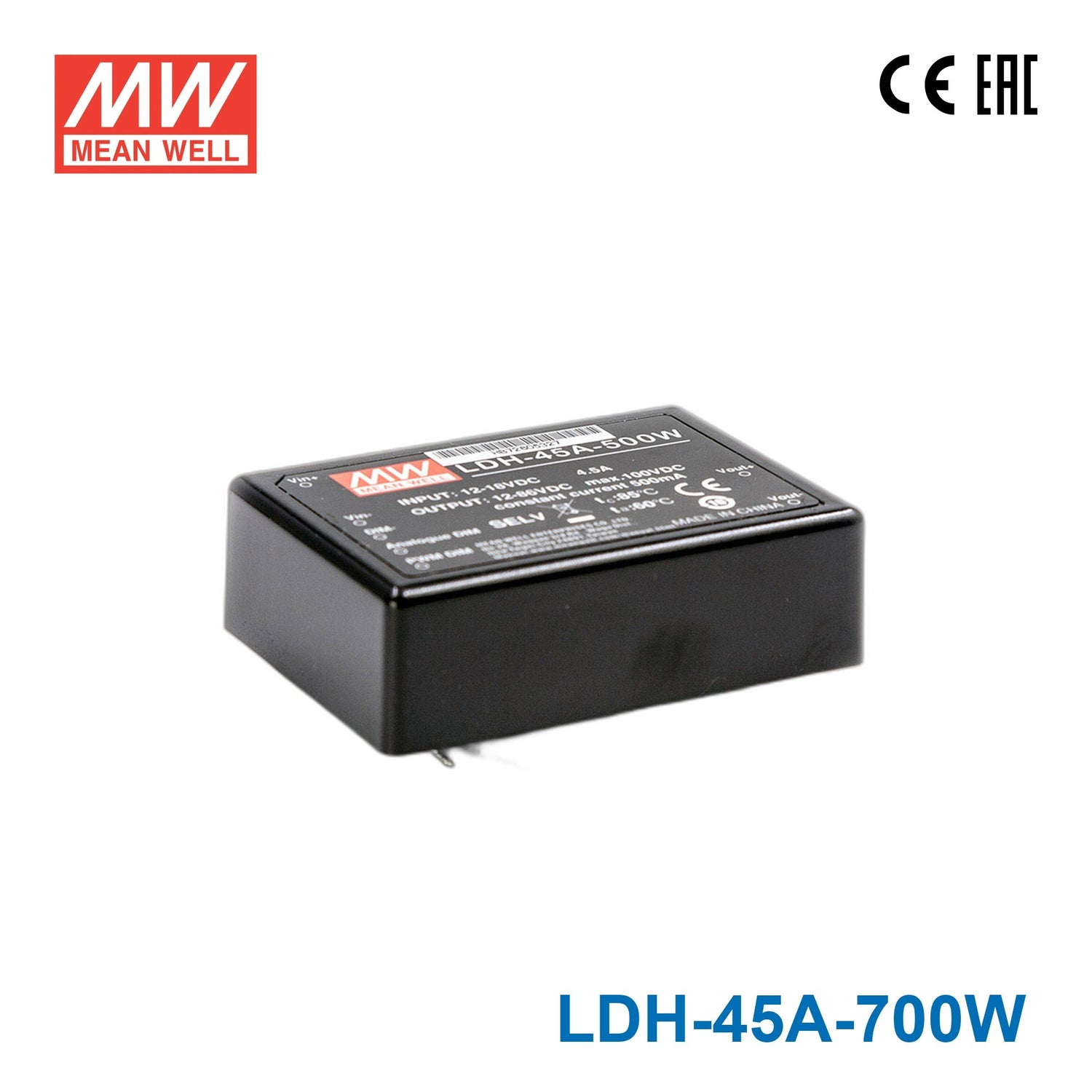

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well LDH-45A-700W DC/DC LED Driver CC 700mA - Step-up

constant currentstep uphigh efficiency up to 95%wire style

SKU:

LDH-45A-700W

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LDH-45A is a Mean Well power converter (input range: 9~18VDC).

Key Features

✓ Input voltage range: 9~18VDC
✓ Protections: Short circuit / Over voltage
✓ Remote ON/OFF control
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LDH-45A-700WDA DC/DC LED Driver CC 700mA - Step-up	44.8W	64V	0.7A	IP67	View
Mean Well LDH-45A-700DA DC/DC LED Driver CC 700mA - Step-up	44.8W	64V	0.7A	IP67	View
Mean Well LDH-45A-700 DC/DC LED Driver CC 700mA - Step-up	44.8W	64V	0.7A	IP67	View
Mean Well LDH-45A-500WDA DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-500W DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-500DA DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-500 DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-350WDA DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-350W DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-350DA DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-350 DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-1050WDA DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
Mean Well LDH-45A-1050W DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
Mean Well LDH-45A-1050DA DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
Mean Well LDH-45A-1050 DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
