Can I use the LDH-45A-700 for a 700mA LED downlight retrofit?

Yes, if the downlight is designed for constant current operation at 700mA. This model delivers 700mA across a 12-64V constant current range and supports up to 44.8W.

Is the LDH-45A-700 a good choice for signage lighting that uses constant current modules?

It can be, provided the signage module is a 700mA constant current load and not a constant voltage product. The driver is a step-up constant current unit with a 12-64V operating range and a 44.8W rating.

Can this driver run a compact high-output LED array?

Yes, small LED arrays that require 700mA constant current can be paired with this model when their total forward voltage falls within 12-64V. The available output power is 44.8W, so the array also needs to stay within that limit.

How do I know if my LEDs are compatible with this driver?

Match the LEDs by drive type first: this is a constant current driver, not a constant voltage power supply. It outputs 700mA over a 12-64V constant current range, and the number of LEDs depends on each LED forward voltage rather than a fixed LED count.

How does the LDH-45A-700 compare with the other 700mA LDH-45A versions?

LDH-45A-700 and LDH-45A-700W are 44.8W, 700mA models with a 12-64V constant current range, while LDH-45A-700DA and LDH-45A-700WDA are 44.8W, 700mA models with a 24-64V range. The standard and DA versions are pin style, while the W and WDA versions are wire style.

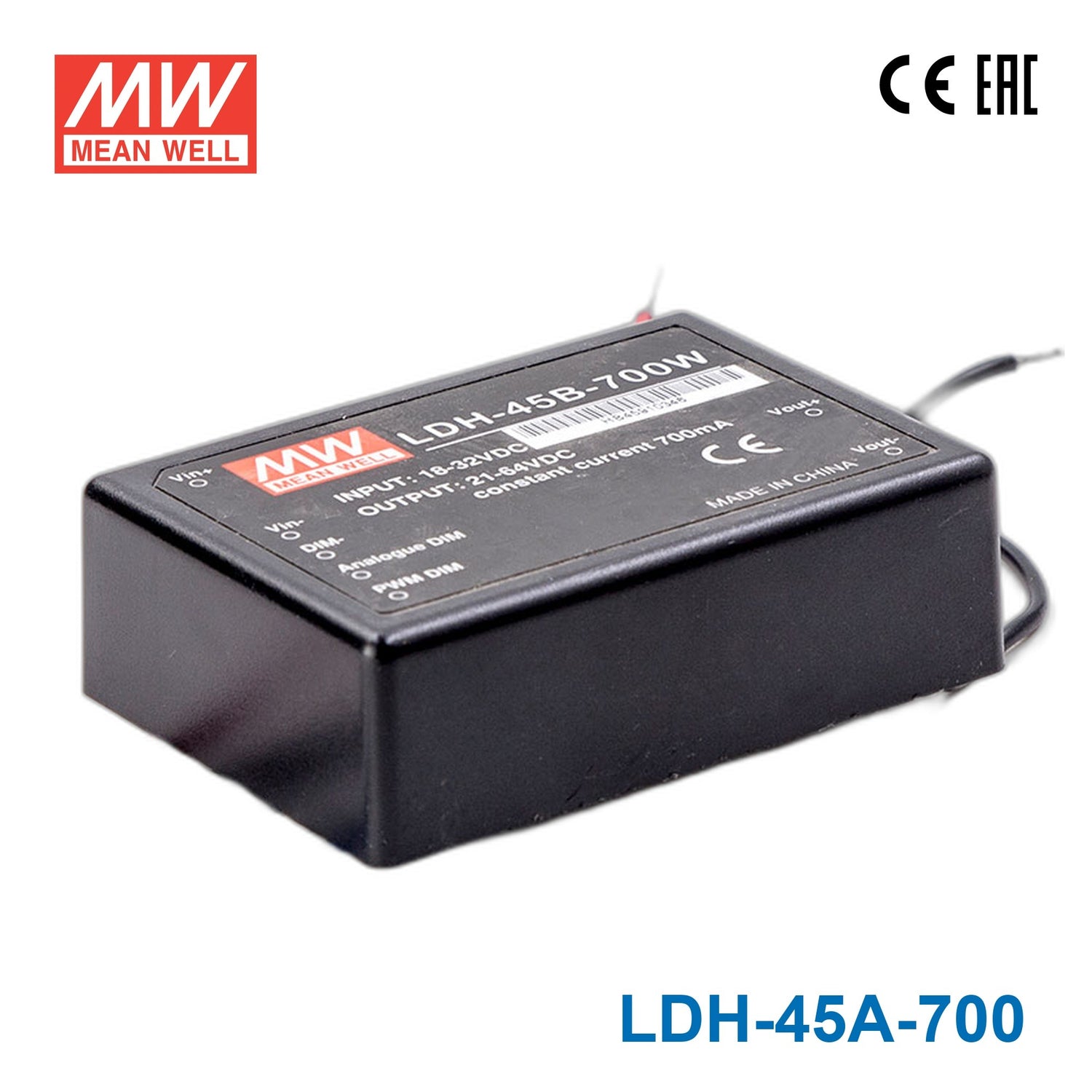

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well LDH-45A-700 DC/DC LED Driver CC 700mA - Step-up

constant currentstep uphigh efficiency up to 95%pin style

SKU:

LDH-45A-700

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LDH-45A is a Mean Well power converter (input range: 9~18VDC).

Key Features

✓ Input voltage range: 9~18VDC
✓ Protections: Short circuit / Over voltage
✓ Remote ON/OFF control
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LDH-45A-700WDA DC/DC LED Driver CC 700mA - Step-up	44.8W	64V	0.7A	IP67	View
Mean Well LDH-45A-700W DC/DC LED Driver CC 700mA - Step-up	44.8W	64V	0.7A	IP67	View
Mean Well LDH-45A-700DA DC/DC LED Driver CC 700mA - Step-up	44.8W	64V	0.7A	IP67	View
Mean Well LDH-45A-500WDA DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-500W DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-500DA DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-500 DC/DC LED Driver CC 500mA - Step-up	43W	86V	0.5A	IP67	View
Mean Well LDH-45A-350WDA DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-350W DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-350DA DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-350 DC/DC LED Driver CC 350mA - Step-up	30.1W	86V	0.35A	IP67	View
Mean Well LDH-45A-1050WDA DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
Mean Well LDH-45A-1050W DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
Mean Well LDH-45A-1050DA DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
Mean Well LDH-45A-1050 DC/DC LED Driver CC 1050mA - Step-up	45.15W	43V	1.05A	IP67	View
