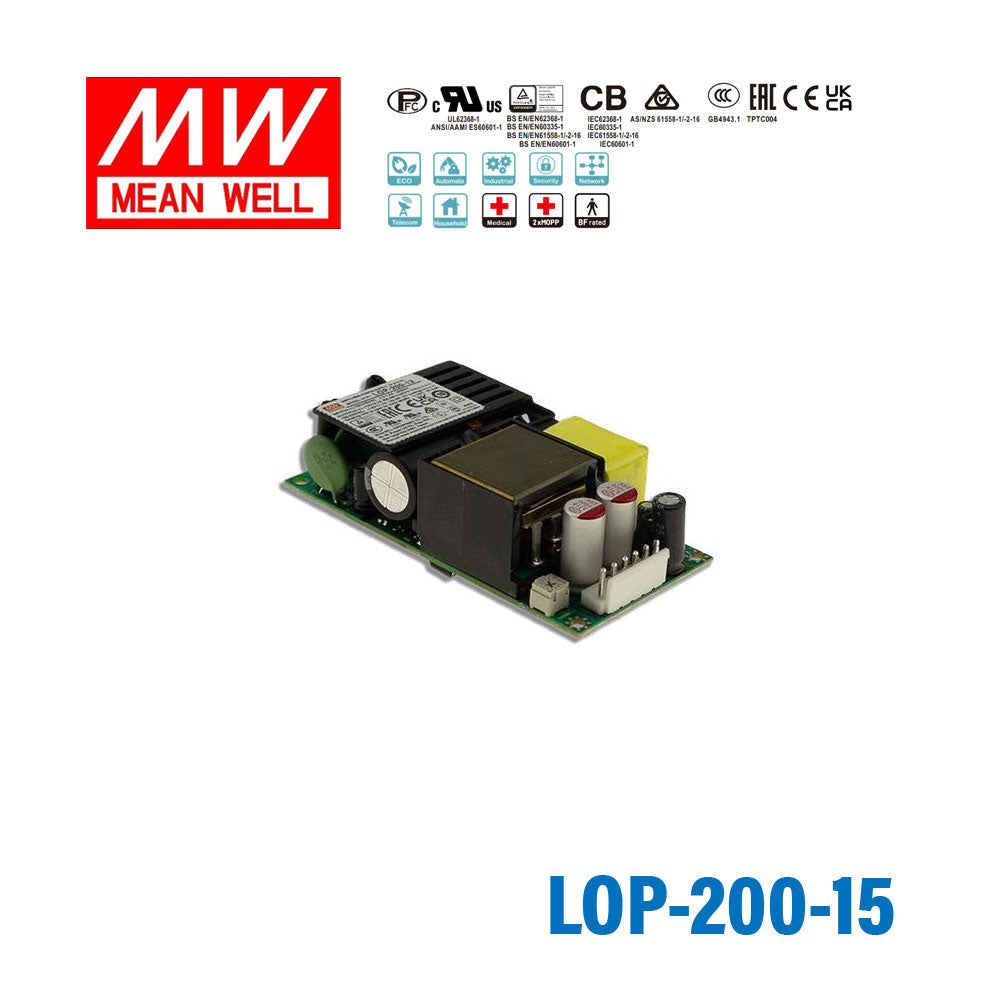

Mean Well LOP-200-15 200W 4"×2" Low Profile Open Frame Po...
Please Login for Pricing
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓140W convection, 200W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating200 Watt
-
Output Voltage15 Volt
-
Rated Current9.4 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.54 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key electrical ratings of the Mean Well LOP-200-15?
The LOP-200-15 is a 200W open frame AC/DC power supply with a 15V DC output. It is rated for 9.4A output current and accepts a wide 80 to 264VAC input range, with 113 to 370VDC input also listed. This model includes active power factor correction and reaches up to 94% efficiency.
What applications is the LOP-200-15 designed for?
This model is intended for OEM and industrial equipment where a compact 4 x 2 inch low profile power supply is needed. Its certifications also make it relevant for ITE, household, industrial, and certain medical-related applications. The 15V output is suited to equipment designed around that nominal DC voltage.
Is the Mean Well LOP-200-15 suitable for medical equipment?
The product description states that it has IEC/EN/UL 60601-1 related approvals and features extremely low leakage current with 2 x MOPP. It is described as suitable for BF medical applications. Buyers should still confirm the full system-level compliance requirements for their specific medical device.
Can the LOP-200-15 operate in harsh temperature conditions?
Yes, this model is specified for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide temperature range makes it a strong fit for demanding industrial environments. It also supports operating altitudes up to 5000 meters.
How compact is the LOP-200-15 power supply?
The LOP-200-15 uses a 4 x 2 inch footprint and has a low 25.4mm profile. Its listed dimensions are 101.6 x 50.8 x 25.4mm. This compact form factor helps it fit applications where space is limited.
What protection features are included in the LOP-200-15?
This power supply includes short circuit, overload, overvoltage, and overtemperature protection. The overload specification is 105 to 150% of rated output power, and the product also supports a 150% peak load for 3 seconds. These protections are intended to improve reliability in demanding applications.
