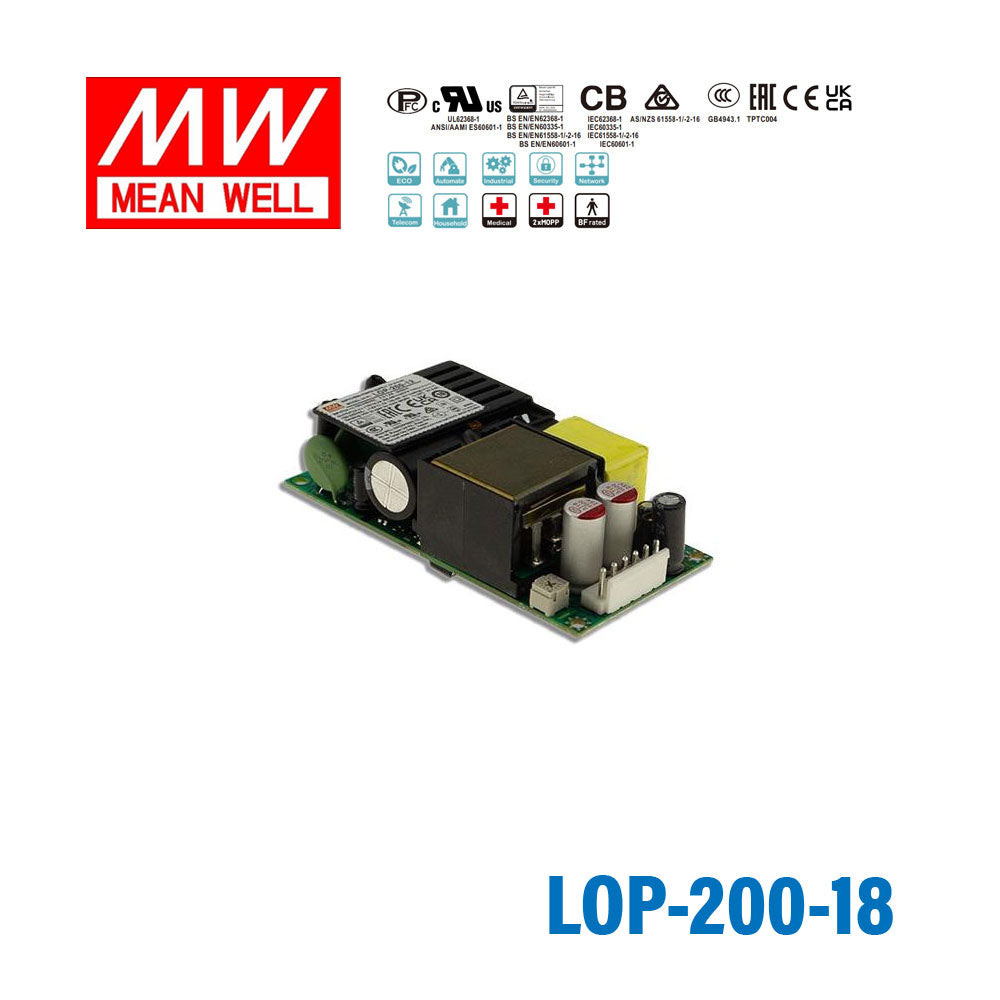

Mean Well LOP-200-18 200W 4"×2" Low Profile Open Frame Po...
Please Login for Pricing
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓140W convection, 200W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating200 Watt
-
Output Voltage18 Volt
-
Rated Current7.8 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.54 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well LOP-200-18 designed for?
The LOP-200-18 is a 200W open frame AC/DC power supply with an 18V output, making it a fit for embedded equipment, industrial systems, and space-constrained OEM designs. Its broad safety approvals also make it relevant for ITE, household, industrial, and certain medical-related applications where the overall system design supports those requirements.
What are the main electrical ratings of the LOP-200-18?
This model provides a nominal 18V DC output and is rated for 200W total power. The listed rated current is 7.8A, and it accepts a wide 80 to 264VAC input range with active power factor correction.
How compact is the Mean Well LOP-200-18?
The LOP-200-18 uses a 4 inch by 2 inch footprint and has a low 25.4mm profile. Its stated dimensions are 101.6 x 50.8 x 25.4 mm, which helps when height and board area are limited.
Can this power supply operate in demanding temperature conditions?
Yes. Mean Well specifies an operating temperature range of -40°C to +80°C, with derating considered as noted in the product data. The unit is also rated for operating altitudes up to 5000 meters.
What cooling and load capability should buyers know about for the LOP-200-18?
This model is rated for 140W under convection cooling and up to 200W with 10.98 CFM forced-air cooling. It also supports 150% peak load for 3 seconds, which can help with short-duration surge demands in suitable system designs.
What safety and protection features are included in the LOP-200-18?
The LOP-200-18 includes short circuit, overload, overvoltage, and overtemperature protection. It is also listed with multiple safety standards across ITE, medical, household, and industrial categories, and features low leakage current with 2 x MOPP suitability for BF medical applications.
