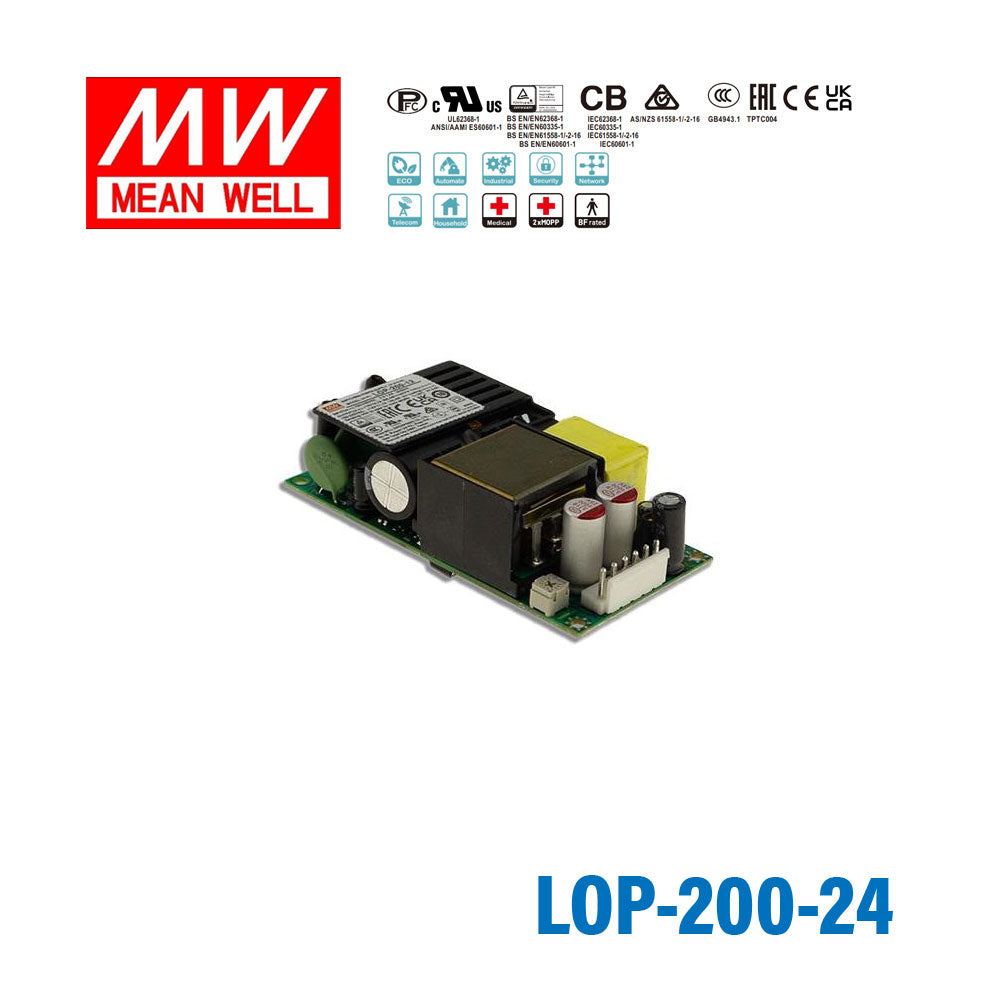

Mean Well LOP-200-24 200W 4"×2" Low Profile Open Frame Po...
Please Login for Pricing
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓140W convection, 200W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.54 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main electrical specs of the Mean Well LOP-200-24?
The LOP-200-24 is a 200W open frame AC/DC power supply with a 24V DC output and a rated current of 5.9A. It accepts a wide 80 to 264VAC input range and includes active power factor correction. Efficiency is listed up to 94% for this series.
How compact is the LOP-200-24 for space-constrained equipment?
This model uses a 4 x 2 inch footprint and measures 101.6 x 50.8 x 25.4 mm. Its low-profile design makes it useful where vertical clearance is limited inside OEM equipment. The unit also weighs about 0.21 kg.
What types of applications is the LOP-200-24 designed for?
The LOP-200-24 is aimed at embedded equipment that needs a compact 24V AC/DC power supply in an open frame format. Its listed approvals span ITE, medical, household, and industrial standards, which makes it relevant for a broad range of OEM and B2B applications. It is also noted as suitable for BF medical applications due to extremely low leakage current and 2 x MOPP.
Can the LOP-200-24 handle demanding thermal environments?
This model is rated for operation from -40 to +80 degrees C, subject to the derating curve. That wide temperature range makes it a strong candidate for equipment exposed to cold starts or elevated internal cabinet temperatures. It is also specified for operating altitudes up to 5000 meters.
Does the LOP-200-24 support higher short-term power demand?
Yes. Mean Well specifies 150% peak load capability for 3 seconds on this model. The series is also listed at 140W convection cooling and up to 200W with 10.98CFM forced-air cooling.
What protection and compliance features does the LOP-200-24 include?
The LOP-200-24 includes short circuit, overload, overvoltage, and overtemperature protection. It is certified to multiple safety standards including IEC/EN/UL 62368-1 and IEC/EN/UL 60601-1, along with additional household and industrial standards listed by Mean Well. It is suitable for Class I or Class II installations and rated for OVC III.
