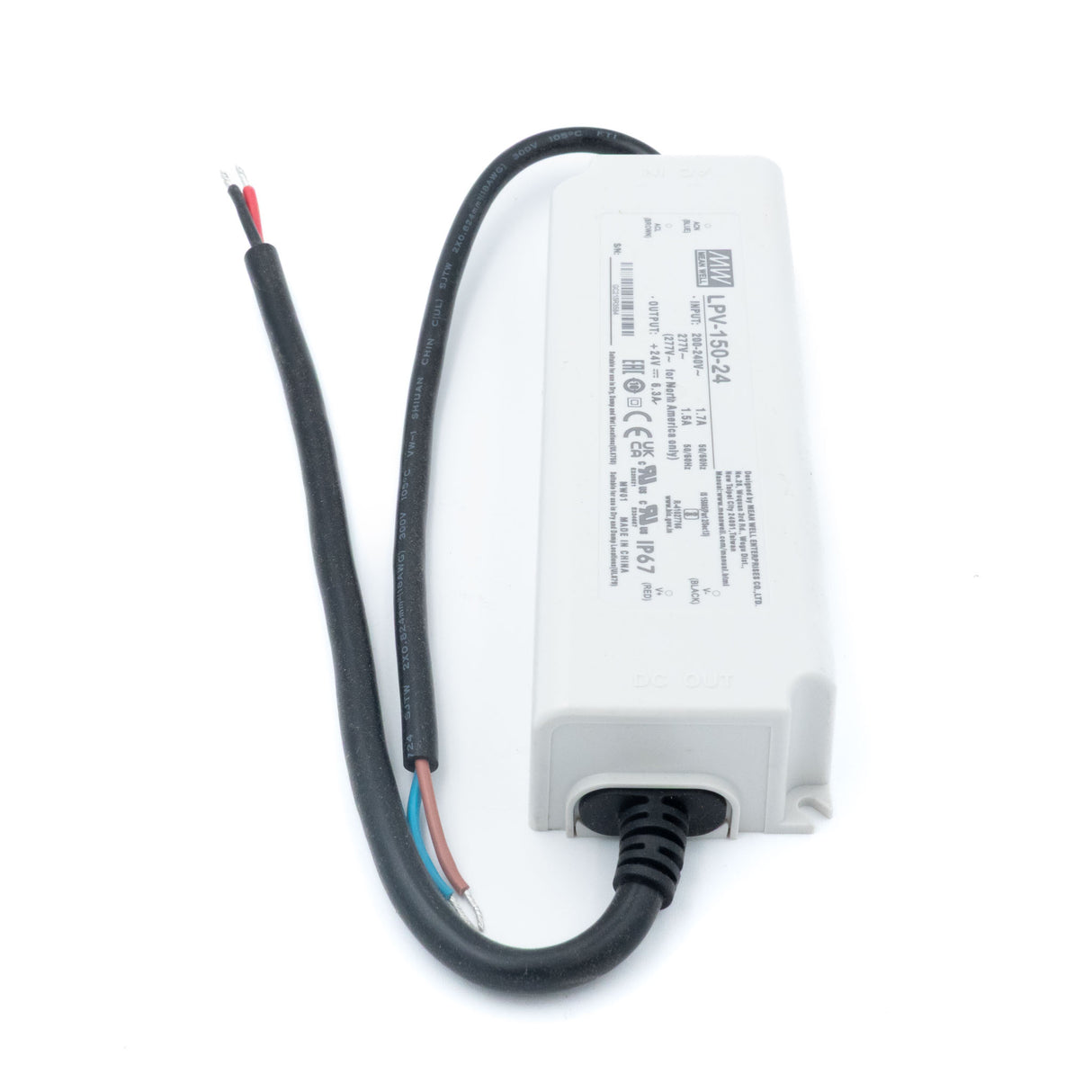

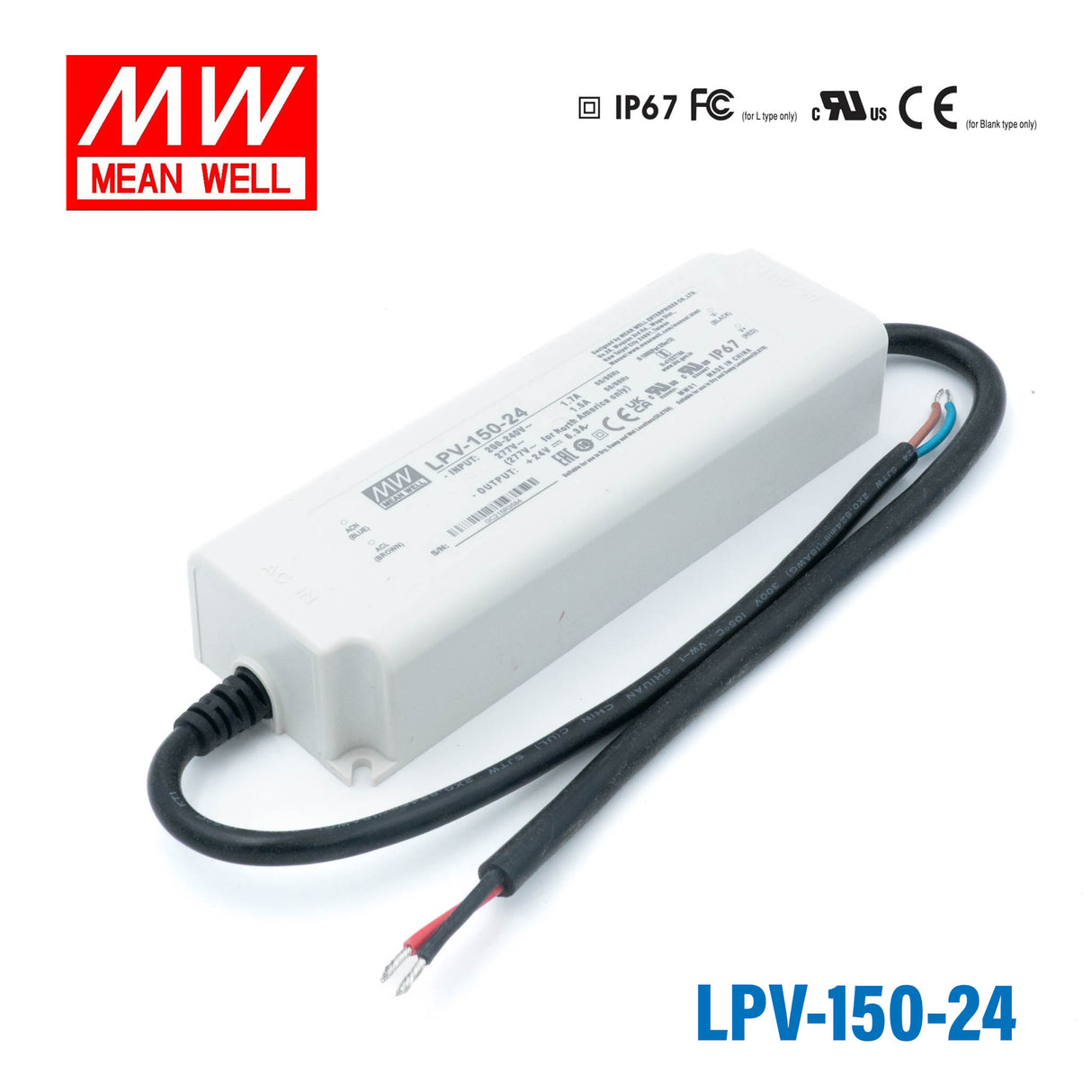

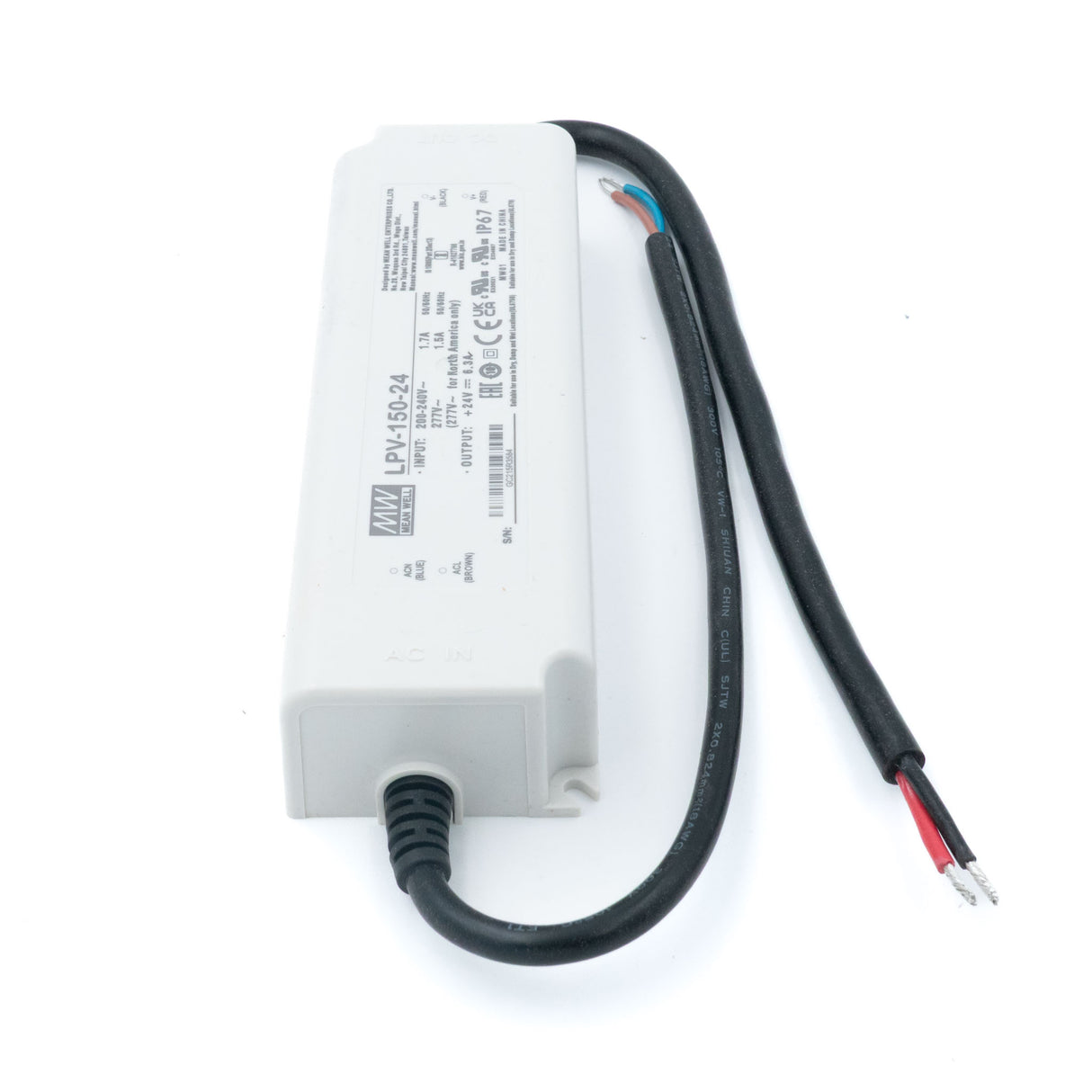

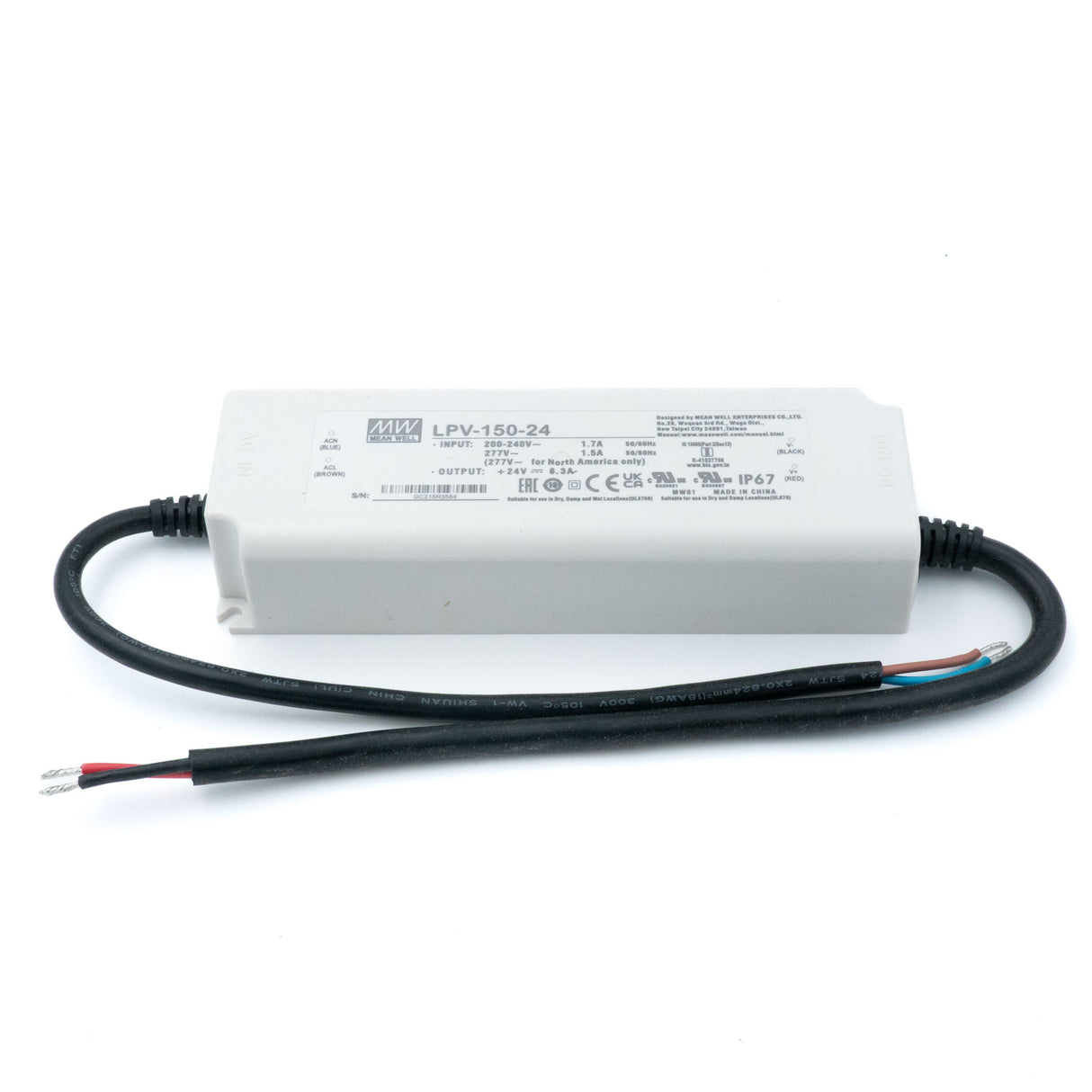

Mean Well LPV-150-24 LED Driver — 151.2W 24V 6.3A IP67 Waterproof

Constant Voltage, CE/EAC/FCC/UL Certified, 180-305VAC Universal Input, 2-Year Warranty

SKU:

LPV-150-24

Notify me when it's back in stock

Description

Mean Well LPV-150-24 LED Driver — 151.2W 24V 6.3A IP67 Waterproof

The Mean Well LPV-150-24 is a 151.2W, 24V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 24V DC output at up to 6.3A and carries CE, EAC, FCC, UL certifications for global compliance.

Accepting 180-305VAC universal AC input, the LPV-150-24 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +65°C making it suitable for outdoor and harsh-environment installations.

Key Features

Constant voltage output: 24V DC at up to 6.3A (151.2W max)
IP67 waterproof and dustproof — suitable for outdoor installations
Universal AC input: 180-305VAC
Certifications: CE, EAC, FCC, UL
Wide operating temperature: -25°C to +65°C
Built-in protections: short circuit, overload, over-voltage
Compact, lightweight enclosure: 191.0 × 63.0 × 37.5 mm, 0.74 kg
2-year Mean Well warranty

Specifications

Model	LPV-150-24
Output Power	151.2W
Output Voltage	24V DC
Output Current	6.3A
Operation Mode	Constant Voltage
Input Voltage Range	180-305VAC
IP Rating	IP67 Waterproof
Certifications	CE, EAC, FCC, UL
Operating Temperature	-25°C to +65°C
Dimensions (L × W × H)	191.0 × 63.0 × 37.5 mm
Weight	0.74 kg
Warranty	2 Years

Applications

LED signage and electronic displays
Architectural and decorative LED lighting
Outdoor and landscape LED installations
Stage and theater LED lighting
Commercial LED lighting installations

Specifications

Brand

Mean Well
Series

LP Series
Power Rating

151.2 Watt
Output Voltage

24 Volt
Rated Current

6.3 Ampere
Input Voltage

180V~305V
Standards Met

CE,EAC,FCC,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~65°C
Warranty

2 Year
Length

19.1 cm
Width

6.3 cm
Height

3.75 cm
Weight

0.74 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What types of LED lighting can the LPV-150-24 power at 24V?

The LPV-150-24 outputs 24V DC at up to 6.3A (151.2W total), making it suitable for 24V LED strip lighting, architectural cove lighting, and illuminated signage panels. Any 24V LED load that draws 6.3A or less can be driven by this unit.

How many meters of 24V LED strip can the LPV-150-24 drive?

The driver delivers a maximum of 151.2W at 24V. To find the maximum length, divide 151.2W by your strip's rated power per meter (e.g., 151.2W ÷ 14.4W/m ≈ 10.5 m). Always check your strip's rated power per meter and apply a 20% derating margin for long runs.

Is the LPV-150-24 suitable for outdoor use?

Yes. The LPV-150-24 carries an IP67 rating, meaning it is protected against dust ingress and temporary immersion in water up to 1 meter. It is rated for operating temperatures from -25°C to +65°C, so it can be used in exposed outdoor installations such as building facades, signage, and landscape lighting.

Does the LPV-150-24 work with 277V commercial mains?

Yes. The input range is 180–305VAC, which covers 200V, 208V, 240V, and 277V commercial and industrial supply voltages in addition to standard 230V mains. This makes it suitable for use in North American commercial panels as well as European supplies without modification.

How does the LPV-150-24 compare to the LPV-150-36 and LPV-150-48 in the same power class?

All three share the 150-class power ceiling and identical physical dimensions (191×63×37.5mm), but differ in output voltage and current: the LPV-150-24 delivers 24V at 6.3A (151.2W), the LPV-150-36 delivers 36V at 4.2A (151.2W), and the LPV-150-48 delivers 48V at 3.2A (153.6W). Choose based on the rated voltage of your LED load.

Model	Power	Voltage	Current	IP Rating
Mean Well S-LPV-150-24 Power Supply 150W 24V with AU/NZ plug	151.2W	24V	6.3A	IP67	View
Mean Well LPV-150-48 LED Driver — 153.6W 48V 3.2A IP67 Waterproof	153.6W	48V	3.2A	IP67	View
Mean Well S-LPV-150-12 Power Supply 120W 12V with AU/NZ plug	120W	12V	10A	IP67	View
Mean Well LPV-150-12 LED Driver — 120W 12V 10A IP67 Waterproof	120W	12V	10A	IP67	View
Mean Well LPV-150-36 LED Driver — 151.2W 36V 4.2A IP67 Waterproof	151.2W	36V	4.2A	IP67	View
Mean Well LPV-150-15 LED Driver — 120W 15V 8A IP67 Waterproof	120W	15V	8A	IP67	View
