Mean Well

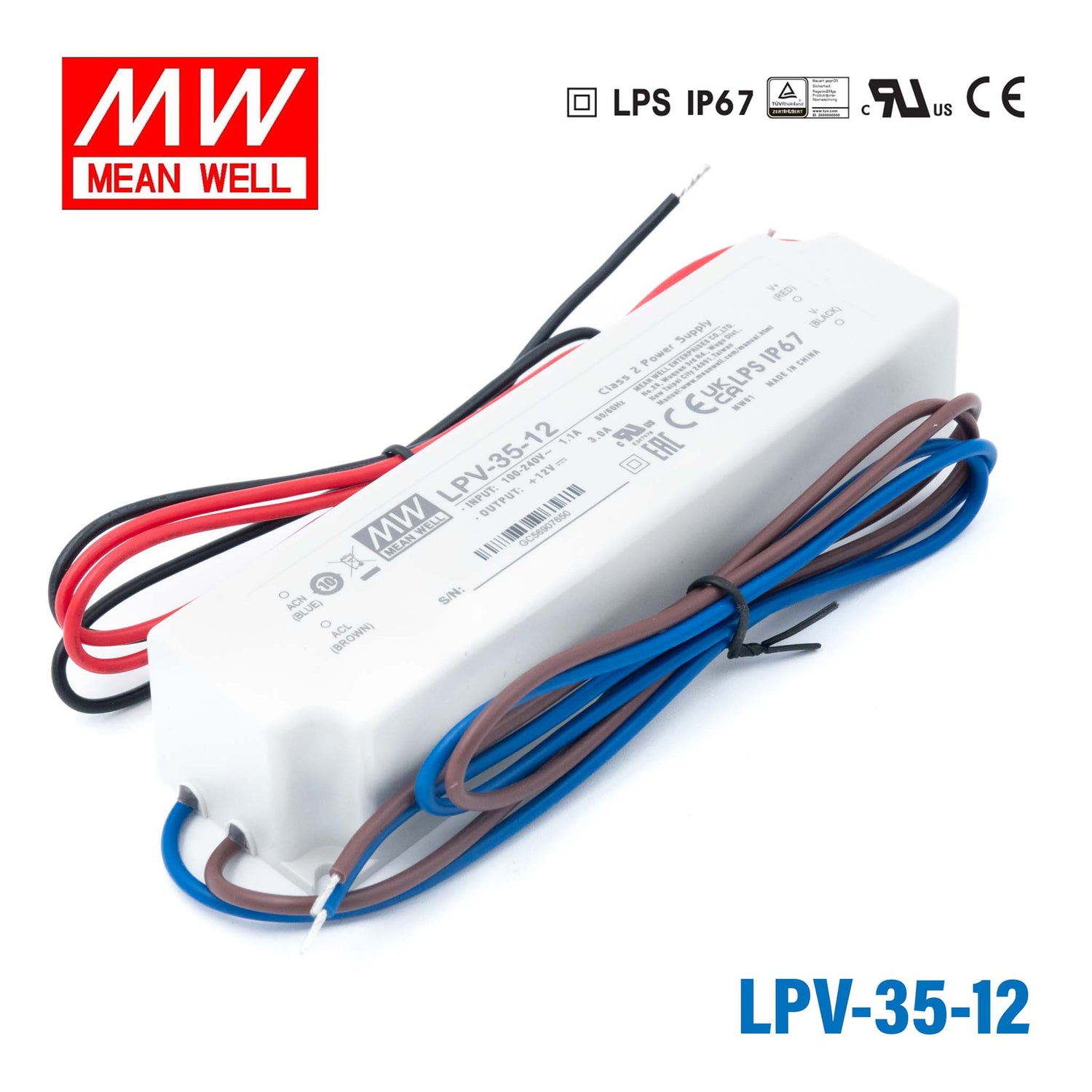

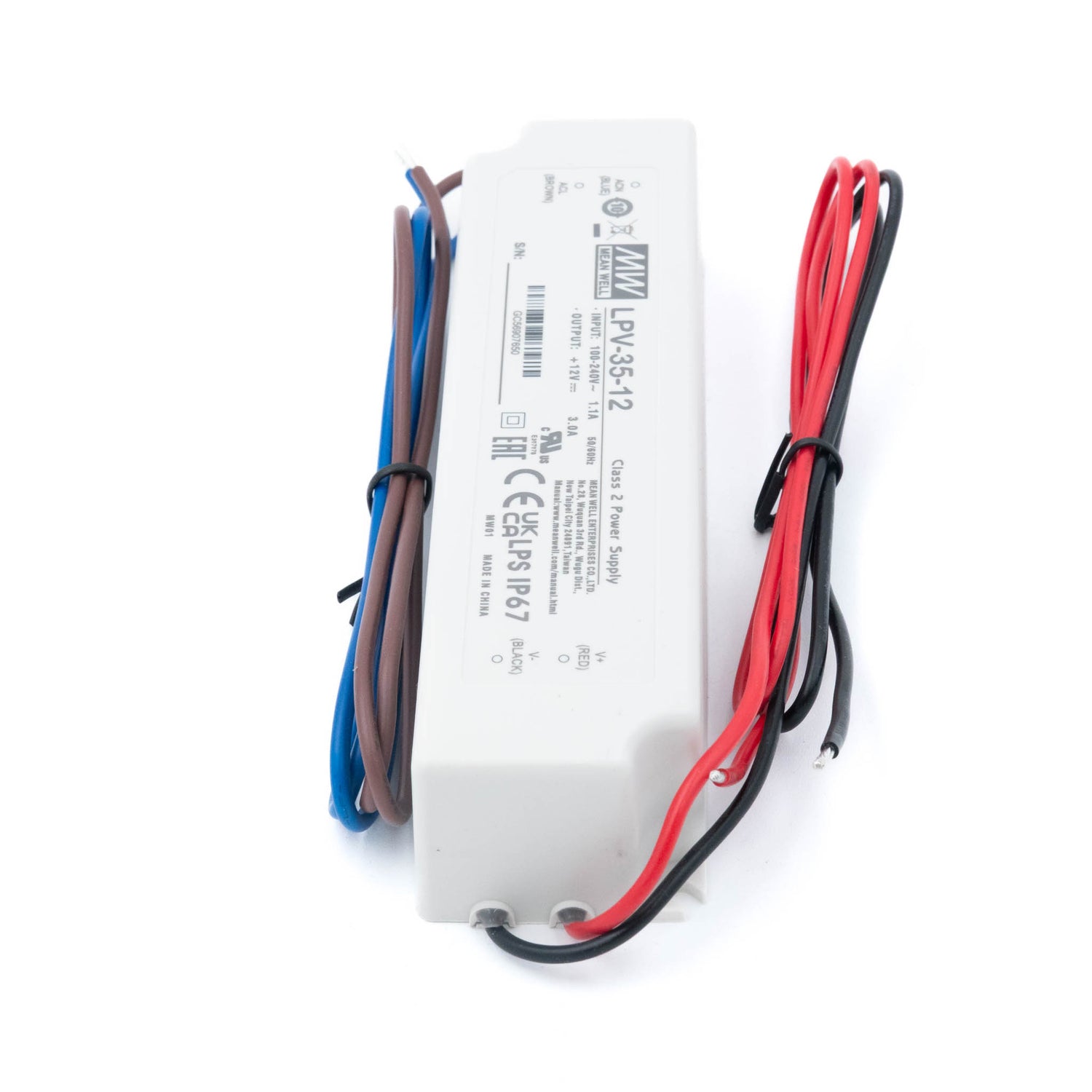

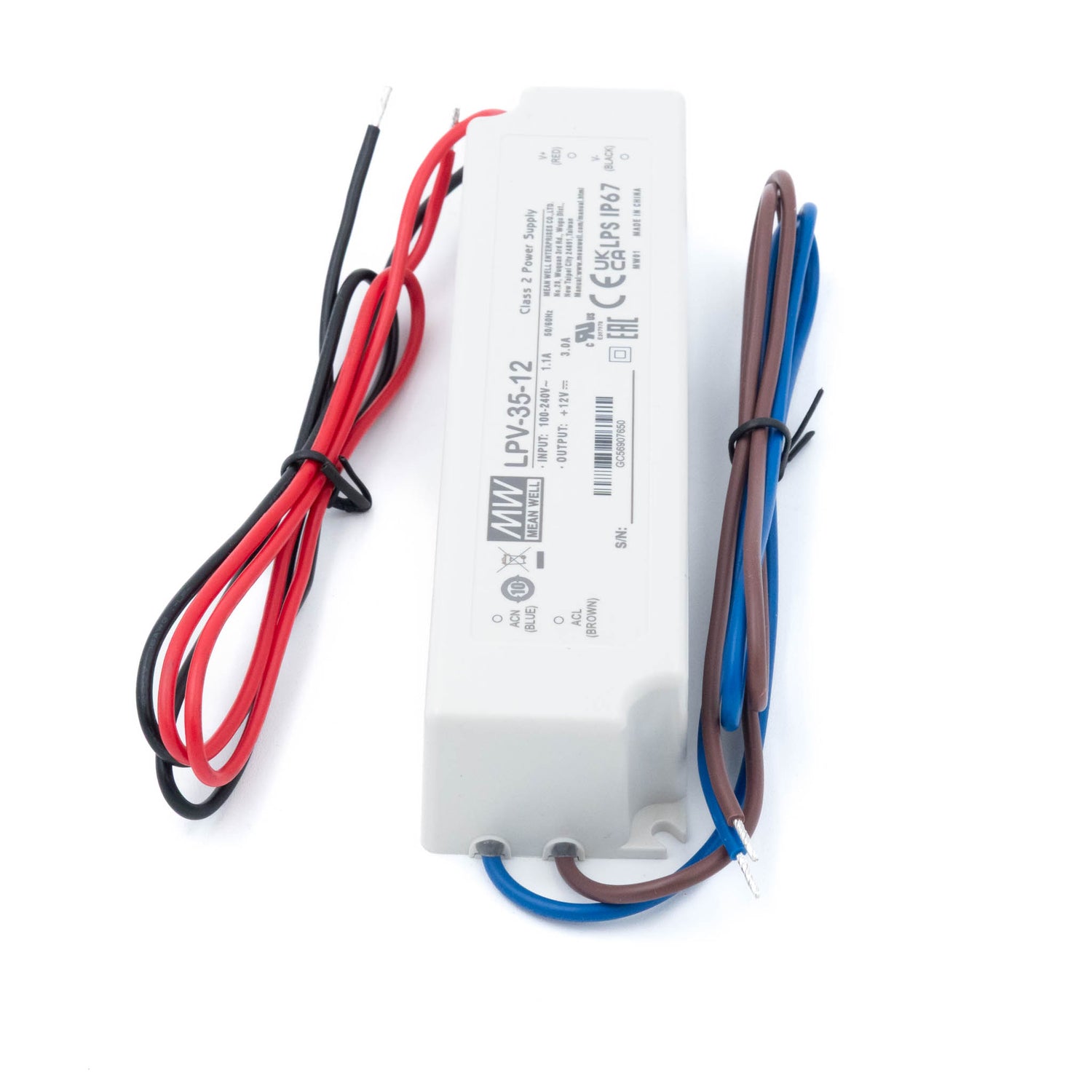

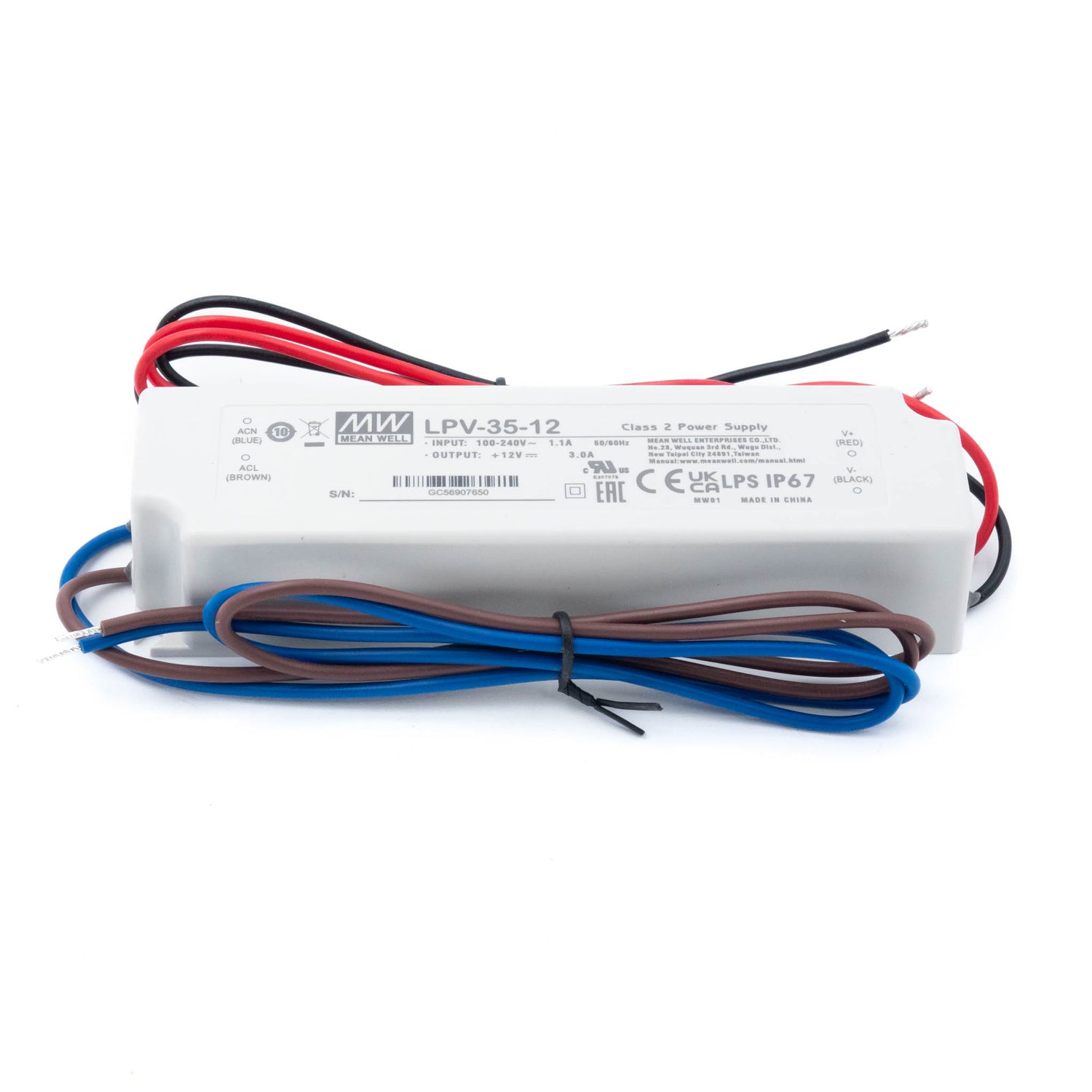

Mean Well LPV-35-12 LED Driver — 36W 12V 3A IP67 Waterproof

Constant Voltage, CE/EAC/TÜV/UL Certified, 90-264VAC Universal Input, 2-Year Warranty
SKU:
LPV-35-12
Model
Please for Pricing
|

Description

The Mean Well LPV-35-12 is a 36W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 3A and carries CE, EAC, TÜV, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-35-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +65°C making it suitable for outdoor and harsh-environment installations.

Key Features

  • ✓Constant voltage output: 12V DC at up to 3A (36W max)
  • ✓IP67 waterproof and dustproof — suitable for outdoor installations
  • ✓Universal AC input: 90-264VAC
  • ✓Certifications: CE, EAC, TÜV, UL
  • ✓Wide operating temperature: -30°C to +65°C
  • ✓Built-in protections: short circuit, overload, over-voltage
  • ✓Compact, lightweight enclosure: 148.0 × 40.0 × 30.0 mm, 0.31 kg
  • ✓2-year Mean Well warranty

Specifications
  • Brand
    Mean Well
  • Series
    LP Series
  • Power Rating
    36 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    3 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~65°C
  • Warranty
    2 Year
  • Length
    14.8 cm
  • Width
    4 cm
  • Height
    3 cm
  • Weight
    0.31 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What LED lighting is the LPV-35-12 suited for at 12V?

The LPV-35-12 outputs 12V DC at up to 3A (36W total), making it suitable for short to medium runs of 12V LED strip, under-cabinet lighting, small display case lighting, and compact 12V LED signage. Total connected LED load must not exceed 36W.

How much 12V LED strip can the LPV-35-12 power?

With a maximum output of 36W at 12V, the supportable strip length depends on the strip's power per meter rating. At 7.2W/m, for example, the driver supports up to 5 m. Check your strip's rated watts per meter and stay within the 36W limit, applying a safety margin for reliability.

Is the LPV-35-12 suitable for outdoor installations?

Yes. The IP67 rating means the unit is fully sealed against dust and can withstand temporary water immersion up to 1 meter. The operating temperature range is -30°C to +65°C, covering most outdoor installation environments for garden lighting, exterior signage, and facade lighting.

What mains voltages does the LPV-35-12 accept?

The input range is 90–264VAC, covering 110V/120V North American mains and 220V/230V European mains with no adjustment required. It accepts any supply voltage within that range without modification.

How does the LPV-35-12 compare to the LPV-20-12 and LPV-60-12 for 12V projects?

All three supply 12V but at different power capacities: LPV-20-12 delivers 1.67A and 20W, LPV-35-12 delivers 3A and 36W, and LPV-60-12 delivers 5A and 60W. Choose the LPV-35-12 when your 12V LED load falls between 20W and 36W; use the LPV-20-12 for lighter loads and the LPV-60-12 for loads up to 60W.
