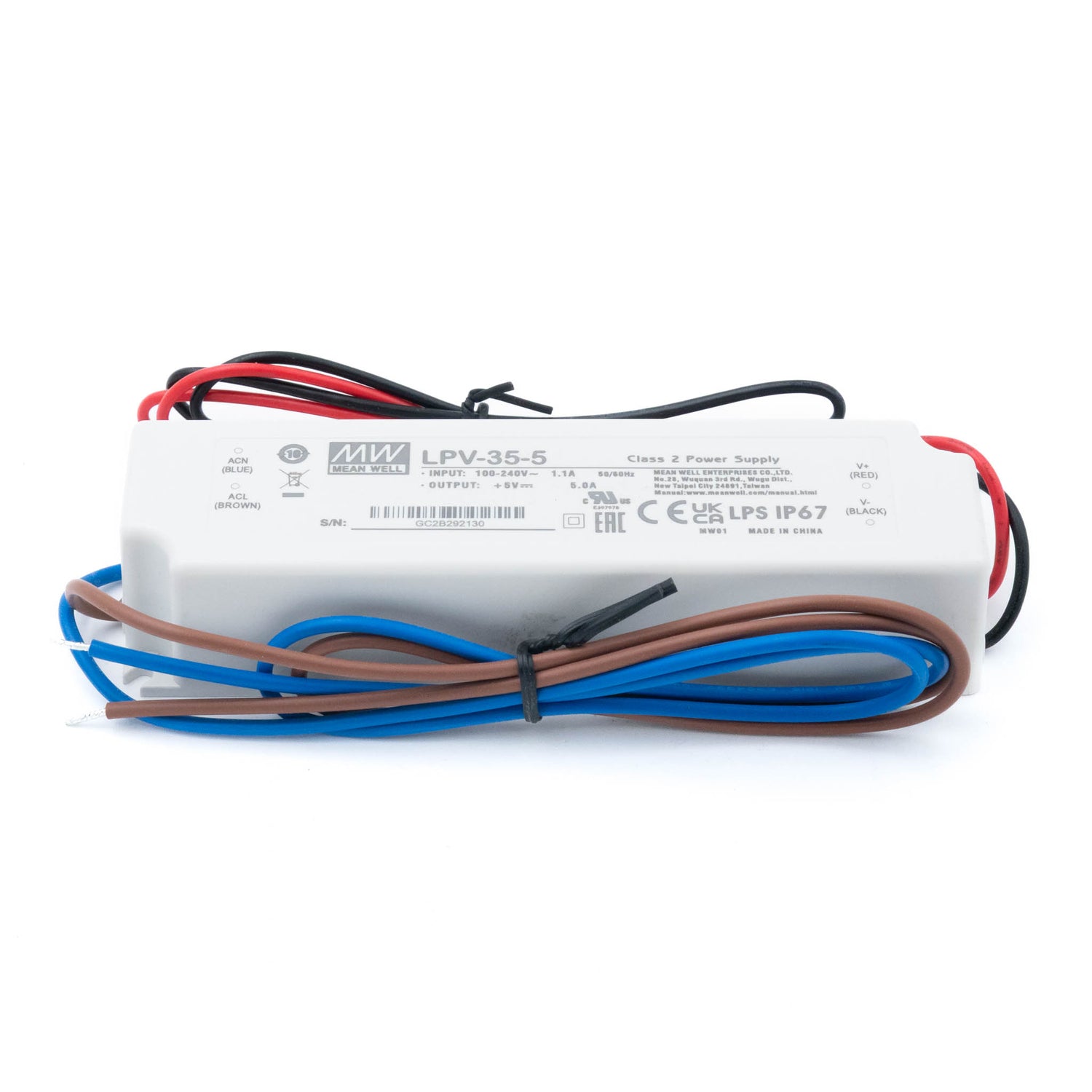

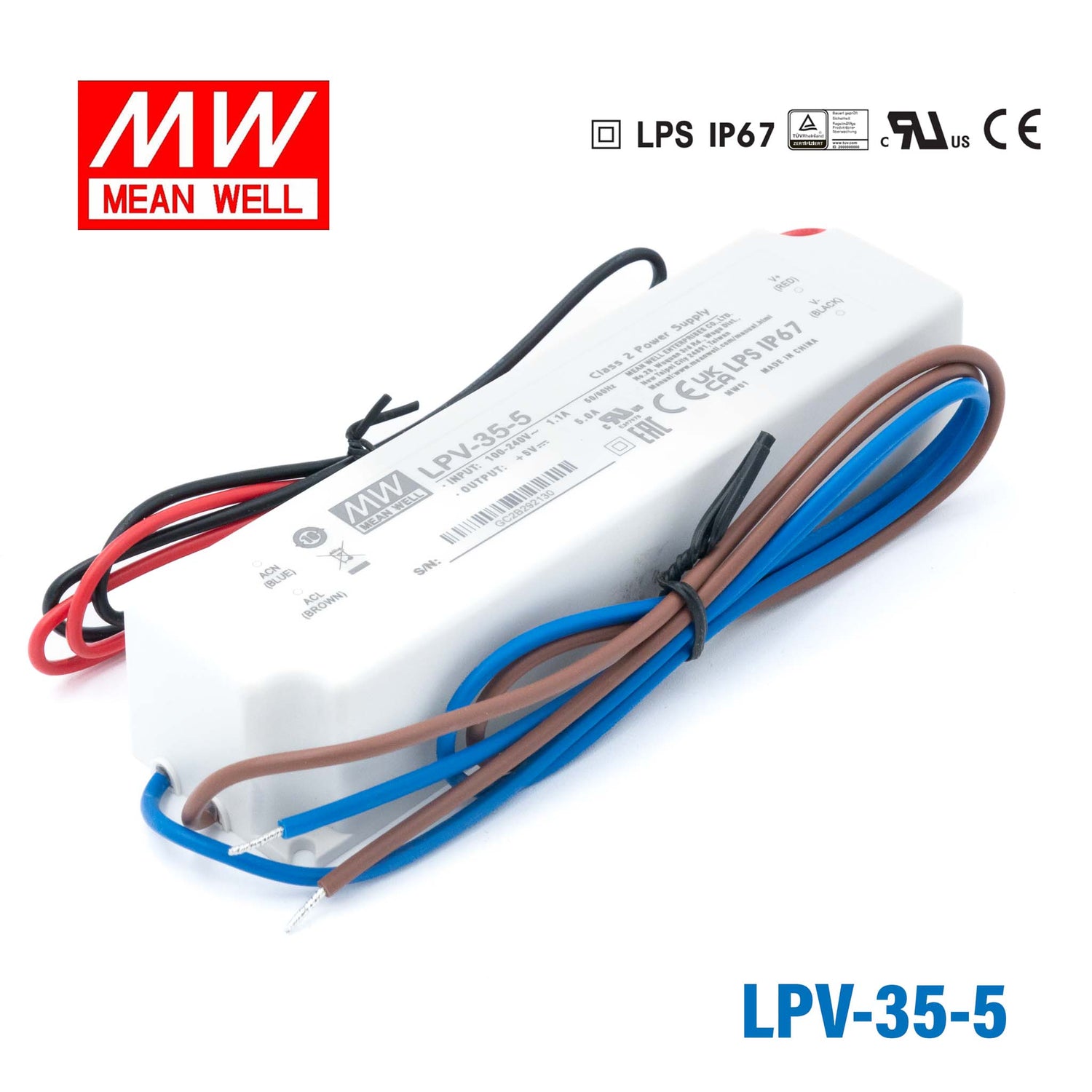

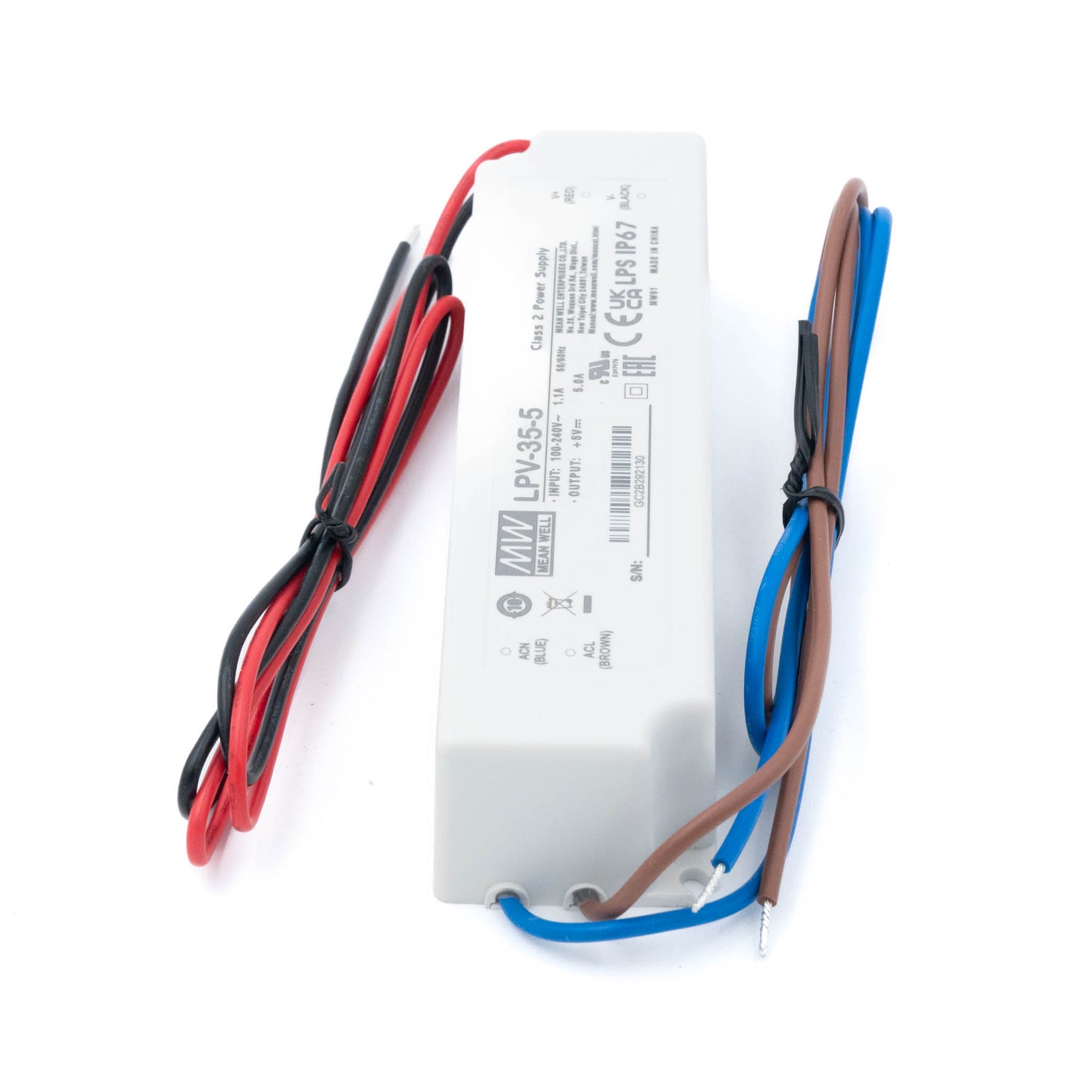

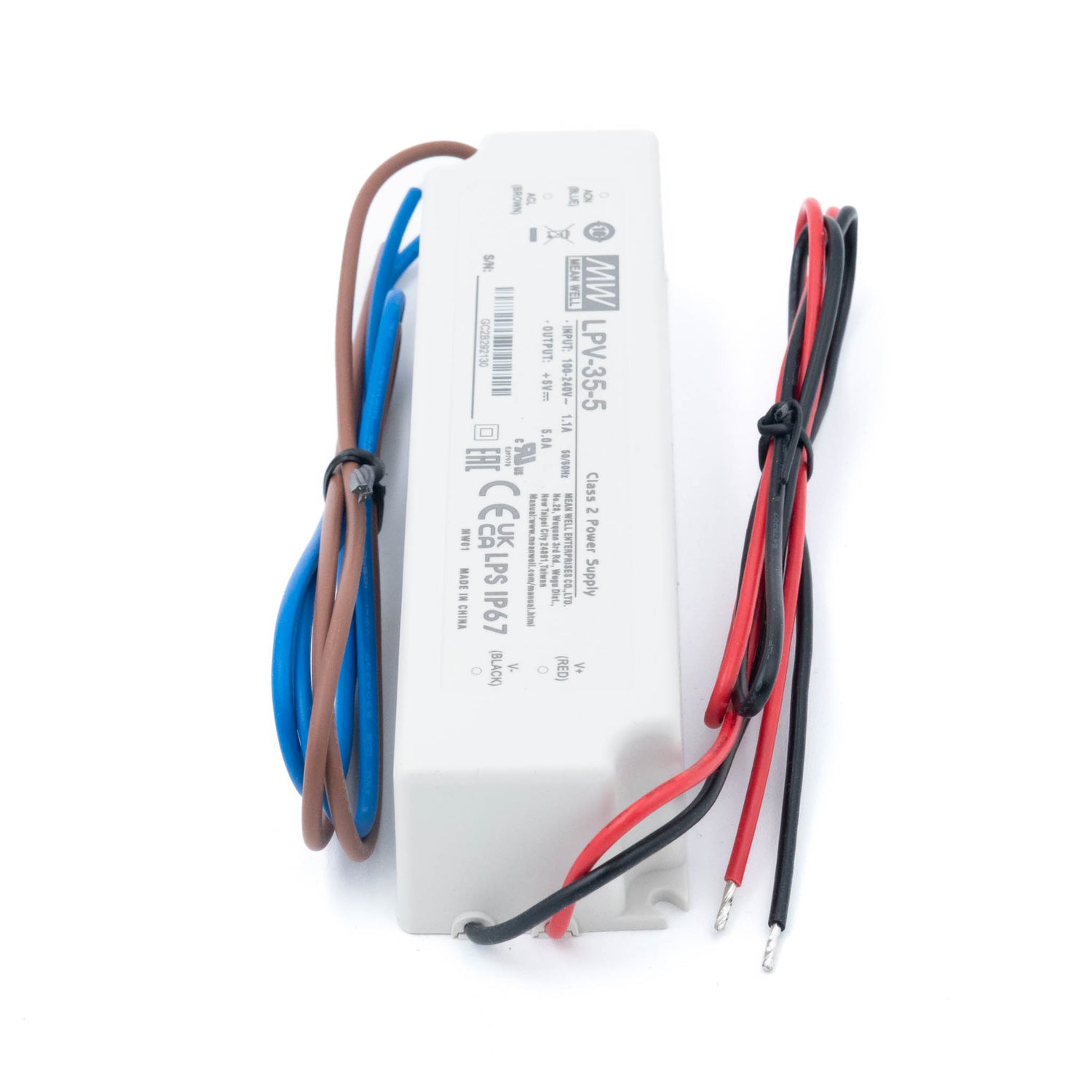

Mean Well LPV-35-5 LED Driver — 30W 5V 5A IP67 Waterproof
Please Login for Pricing
Description
Description
The Mean Well LPV-35-5 is a 30W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 5A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-35-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +65°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 5V DC at up to 5A (30W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, TÜV, UL
- ✓Wide operating temperature: -30°C to +65°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 148.0 × 40.0 × 30.0 mm, 0.31 kg
- ✓2-year Mean Well warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty2 Year
-
Length14.8 cm
-
Width4 cm
-
Height3 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the LPV-35-5 rated output, and what LED loads does it suit?
The LPV-35-5 delivers 30W at 5V (5A output) using constant-voltage mode. It is suited to 5V LED strips, low-voltage signage modules, or decorative lighting specifically designed to run on a 5V supply.
How many metres of 5V LED strip can the LPV-35-5 drive?
The driver's maximum output is 30W at 5V. Divide 30W by the rated watts per metre of your strip to find the maximum run — for example, a 5 W/m strip allows up to 6 metres (30 ÷ 5 = 6 m). Always check your strip's rated power per metre before sizing the installation.
Can the LPV-35-5 be used outdoors or in damp locations?
Yes. The IP67 rating provides complete dust protection and resistance to temporary water immersion, and the unit operates from -30°C to +65°C. These ratings make it suitable for sheltered outdoor locations, damp signage enclosures, or installations exposed to condensation.
How does the LPV-35-5 compare to the LPV-35-12 and LPV-35-15 in terms of power?
The LPV-35-5 outputs 30W, which is slightly lower than the LPV-35-12 (36W at 12V, 3A) and LPV-35-15 (36W at 15V, 2.4A). All three share the 148 × 40 × 30 mm IP67 enclosure; the difference is output voltage and the resulting wattage ceiling at 5V.
Does the LPV-35-5 include a warranty, and what certifications apply?
The LPV-35-5 carries a 2-year warranty from Mean Well and holds CE, EAC, TÜV, and UL certifications. These cover major markets including Europe, Eurasia, and North America.
Other LPV-35 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPV-35-24 LED Driver — 36W 24V 1.5A IP67 Waterproof | 36W | 24V | 1.5A | IP67 | View |
| Mean Well LPV-35-12 LED Driver — 36W 12V 3A IP67 Waterproof | 36W | 12V | 3A | IP67 | View |
| Mean Well LPV-35-36 LED Driver — 36W 36V 1A IP67 Waterproof | 36W | 36V | 1A | IP67 | View |
| Mean Well LPV-35-15 LED Driver — 36W 15V 2.4A IP67 Waterproof | 36W | 15V | 2.4A | IP67 | View |
