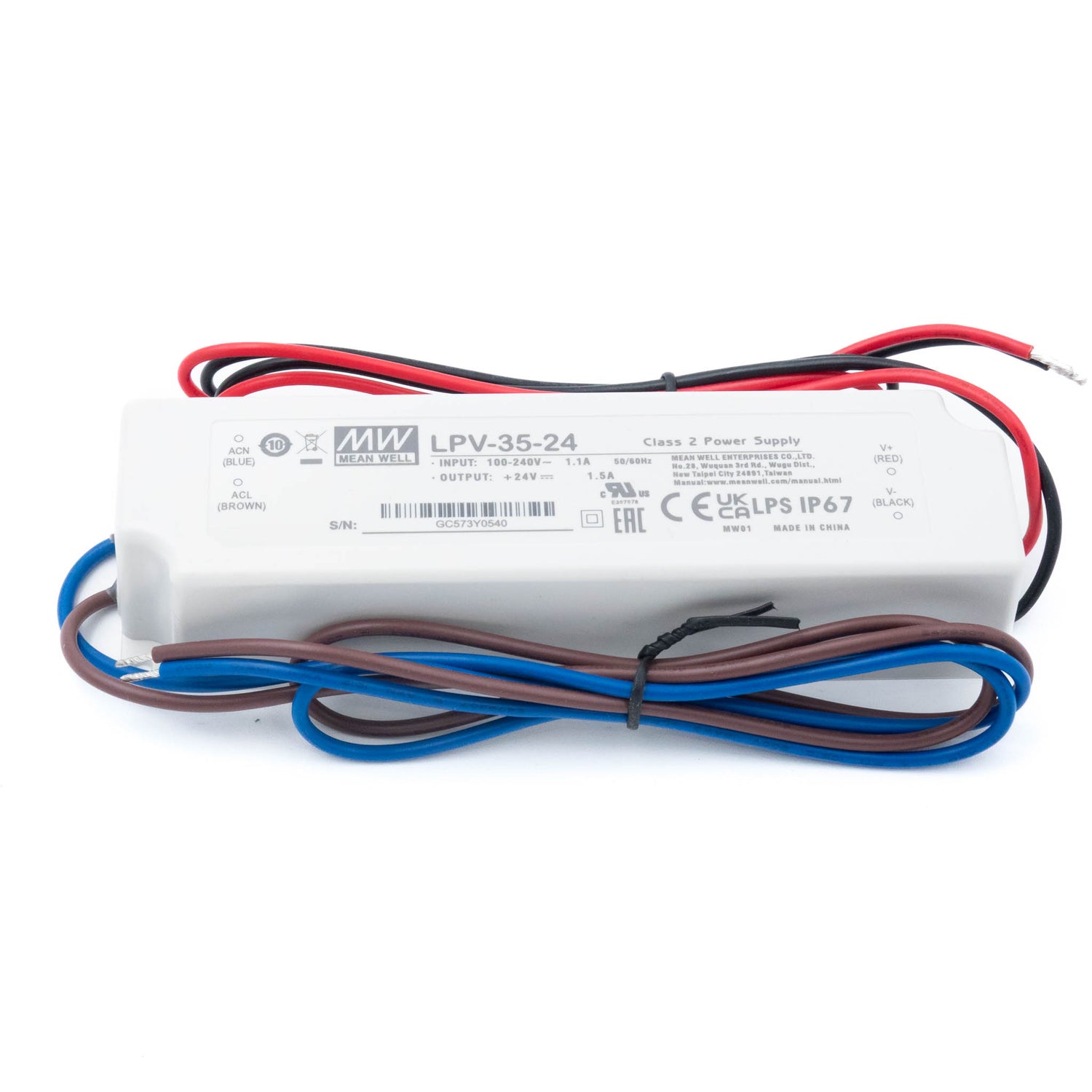

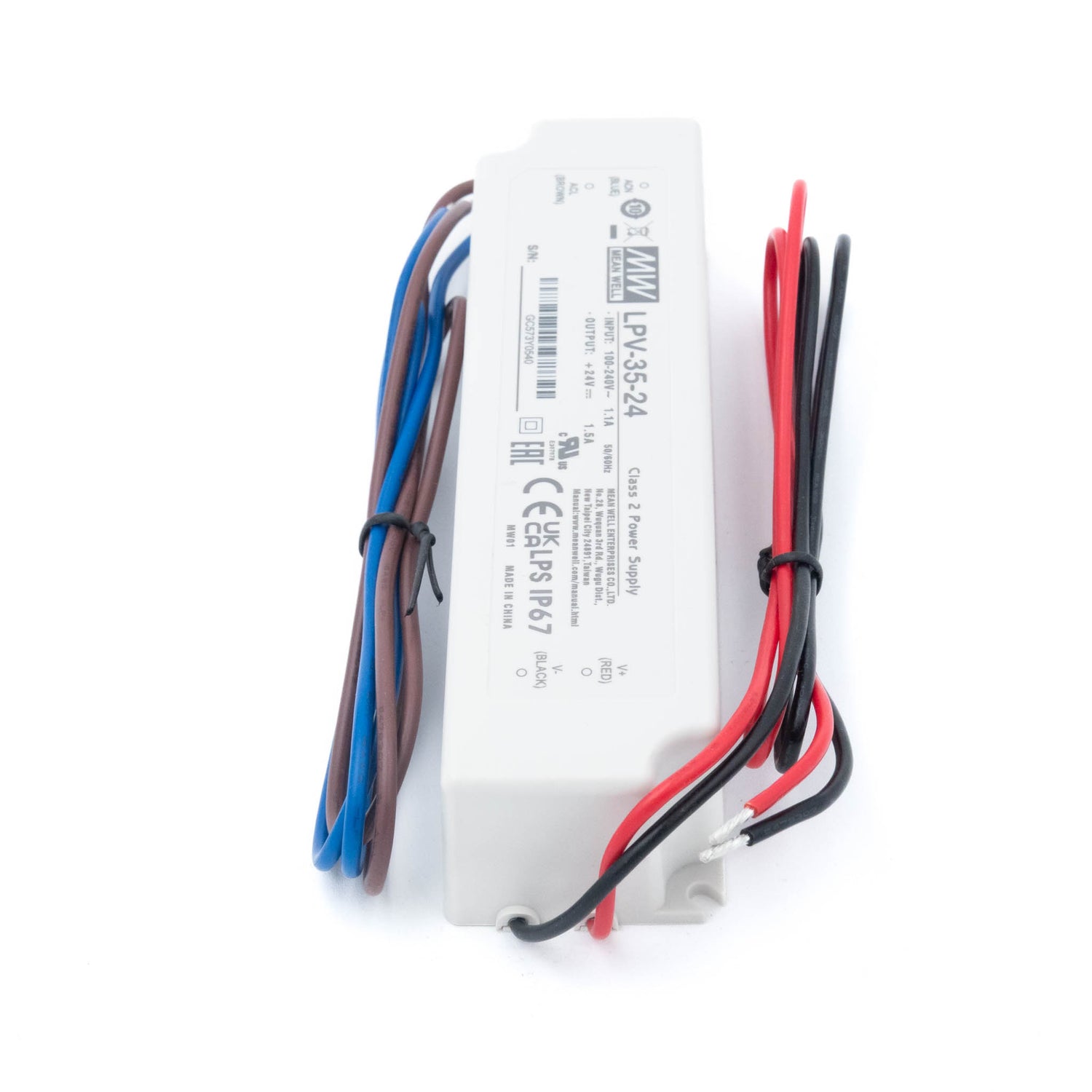

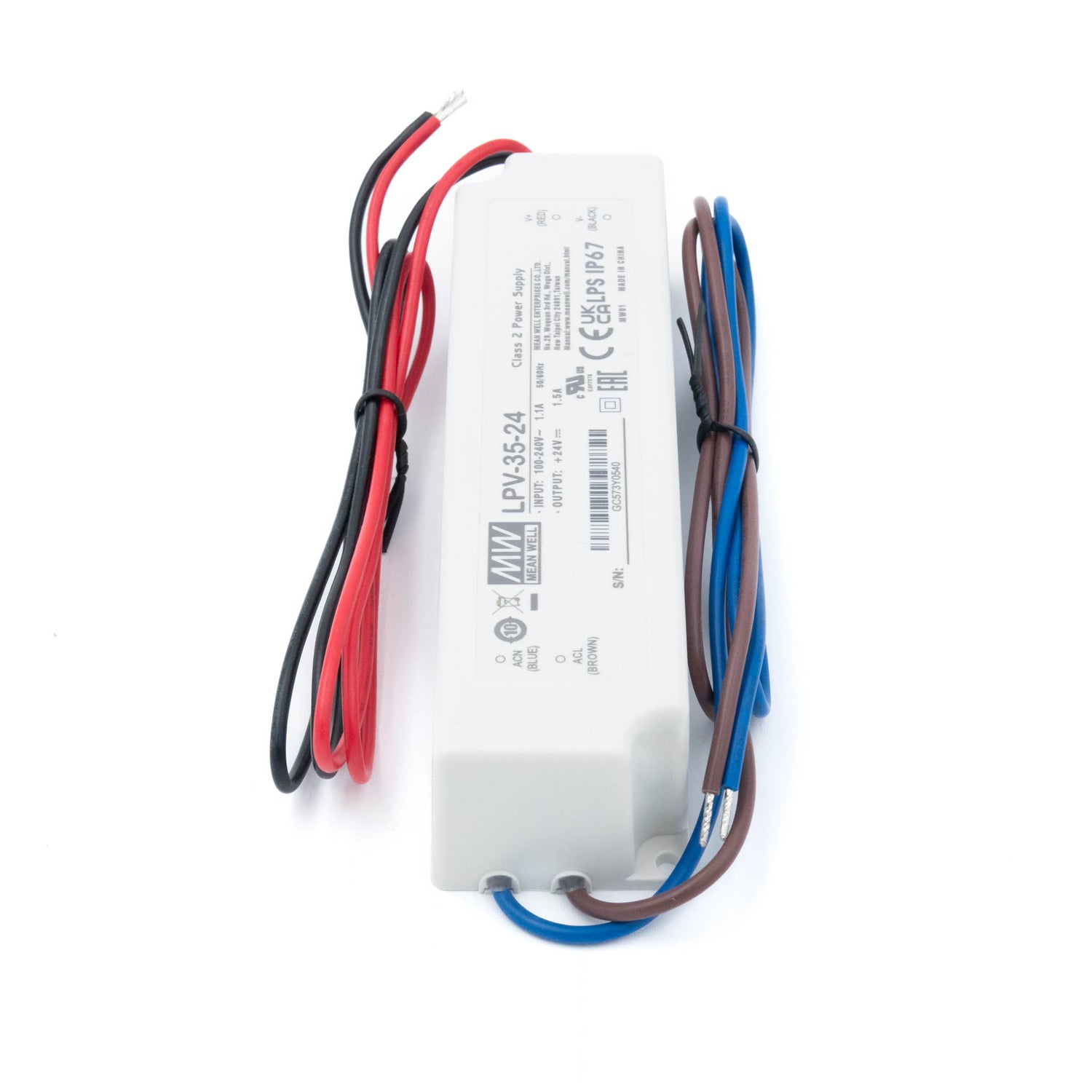

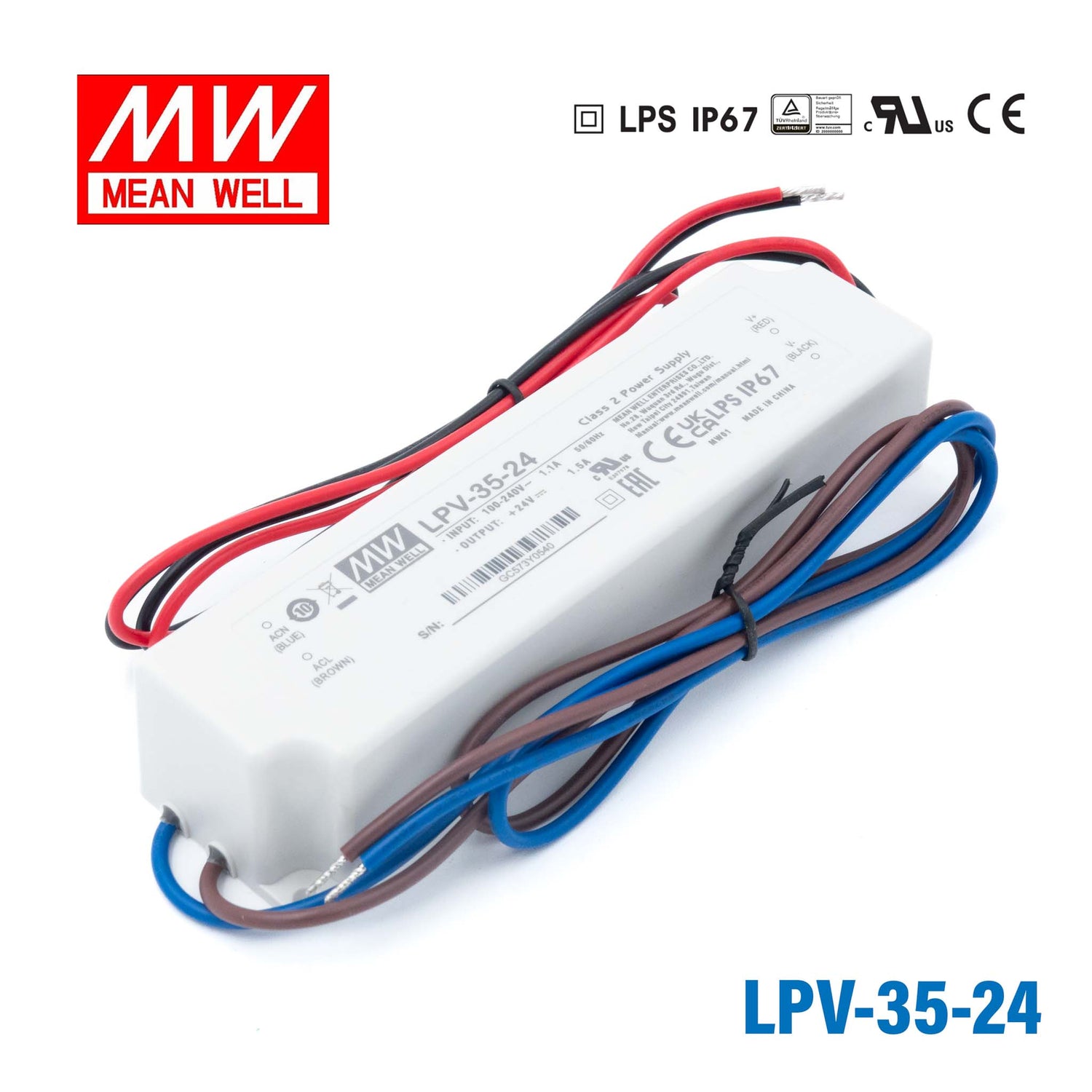

Mean Well LPV-35-24 LED Driver — 36W 24V 1.5A IP67 Waterproof
Please Login for Pricing
Description
Description
The Mean Well LPV-35-24 is a 36W, 24V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 24V DC output at up to 1.5A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-35-24 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +65°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 24V DC at up to 1.5A (36W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, TÜV, UL
- ✓Wide operating temperature: -30°C to +65°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 148.0 × 40.0 × 30.0 mm, 0.31 kg
- ✓2-year Mean Well warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty2 Year
-
Length14.8 cm
-
Width4 cm
-
Height3 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What LED strip lengths can the LPV-35-24 support?
The LPV-35-24 supplies up to 36W at 24V. Divide 36W by your strip's rated wattage per metre to get the maximum run length — for instance, a 12 W/m strip allows up to 3 metres (36 ÷ 12 = 3 m). Always verify your strip's rated power per metre before finalising the design.
Is the LPV-35-24 approved for use in wet or outdoor locations?
The LPV-35-24 holds an IP67 rating, which covers complete dust-tightness and short-term water immersion. It is rated for operation from -30°C to +65°C, making it appropriate for outdoor signage, covered canopies, and similar wet-location luminaire applications.
Can the LPV-35-24 accept both 110V and 230V mains input?
Yes. The universal input range of 90–264VAC means the unit works on both North American 120V and European 230V supplies without any manual switching. This simplifies global procurement and stocking.
How does the LPV-35-24 compare to the LPV-60-24 for the same 24V application?
Both are IP67 constant-voltage drivers at 24V, but the LPV-35-24 is rated at 36W (1.5A) while the LPV-60-24 is rated at 60W (2.5A). The LPV-35-24 also uses a smaller 148 × 40 × 30 mm enclosure versus the LPV-60-24's 162.5 × 42.5 × 32.0 mm body. Choose based on the total wattage your load requires.
What is the physical size and weight of the LPV-35-24?
The LPV-35-24 measures 148.0 × 40.0 × 30.0 mm and weighs 0.31 kg. Its compact form factor is suited to installations with limited mounting space, such as inside sign cabinets or shallow lighting channels.
Other LPV-35 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPV-35-12 LED Driver — 36W 12V 3A IP67 Waterproof | 36W | 12V | 3A | IP67 | View |
| Mean Well LPV-35-5 LED Driver — 30W 5V 5A IP67 Waterproof | 30W | 5V | 5A | IP67 | View |
| Mean Well LPV-35-36 LED Driver — 36W 36V 1A IP67 Waterproof | 36W | 36V | 1A | IP67 | View |
| Mean Well LPV-35-15 LED Driver — 36W 15V 2.4A IP67 Waterproof | 36W | 15V | 2.4A | IP67 | View |
