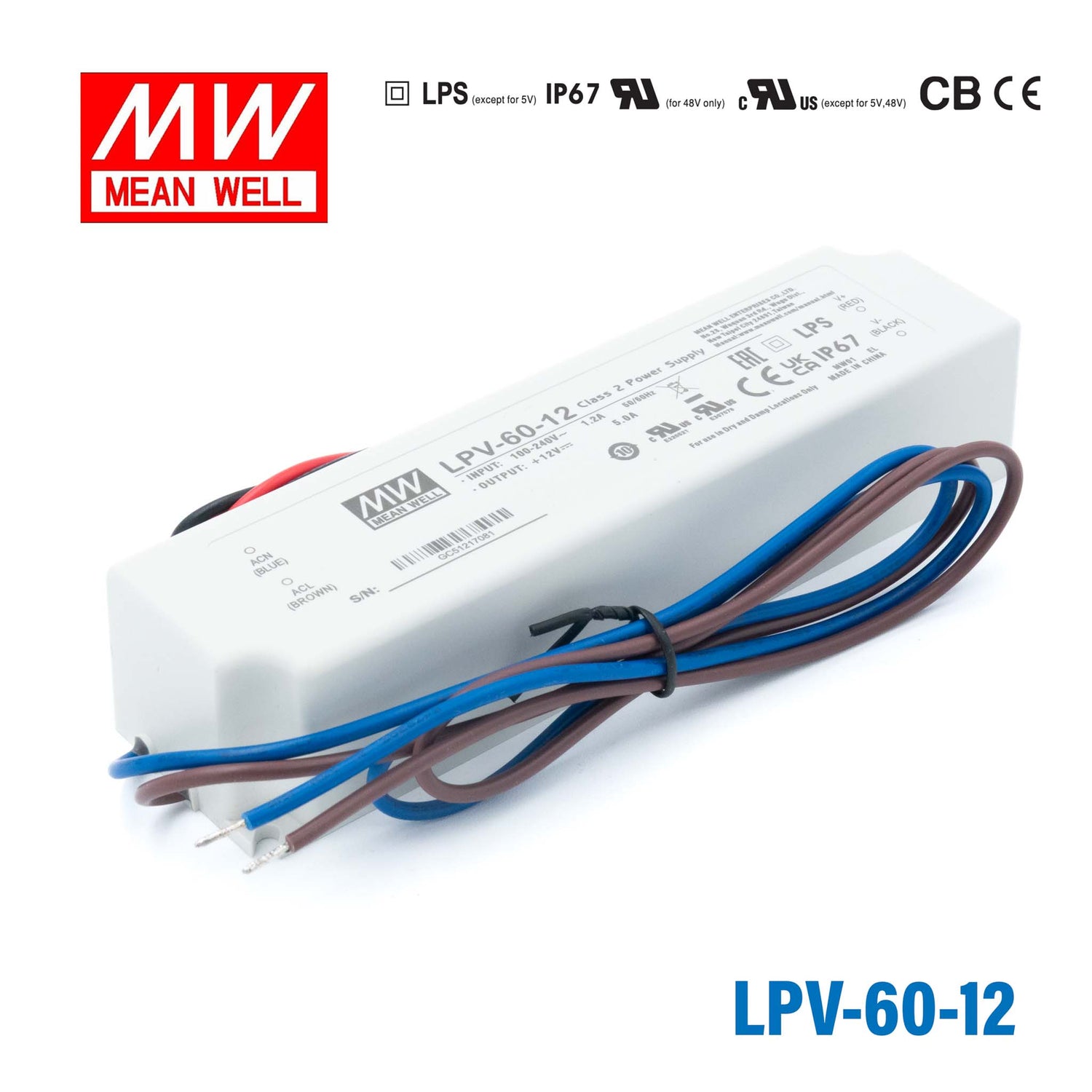

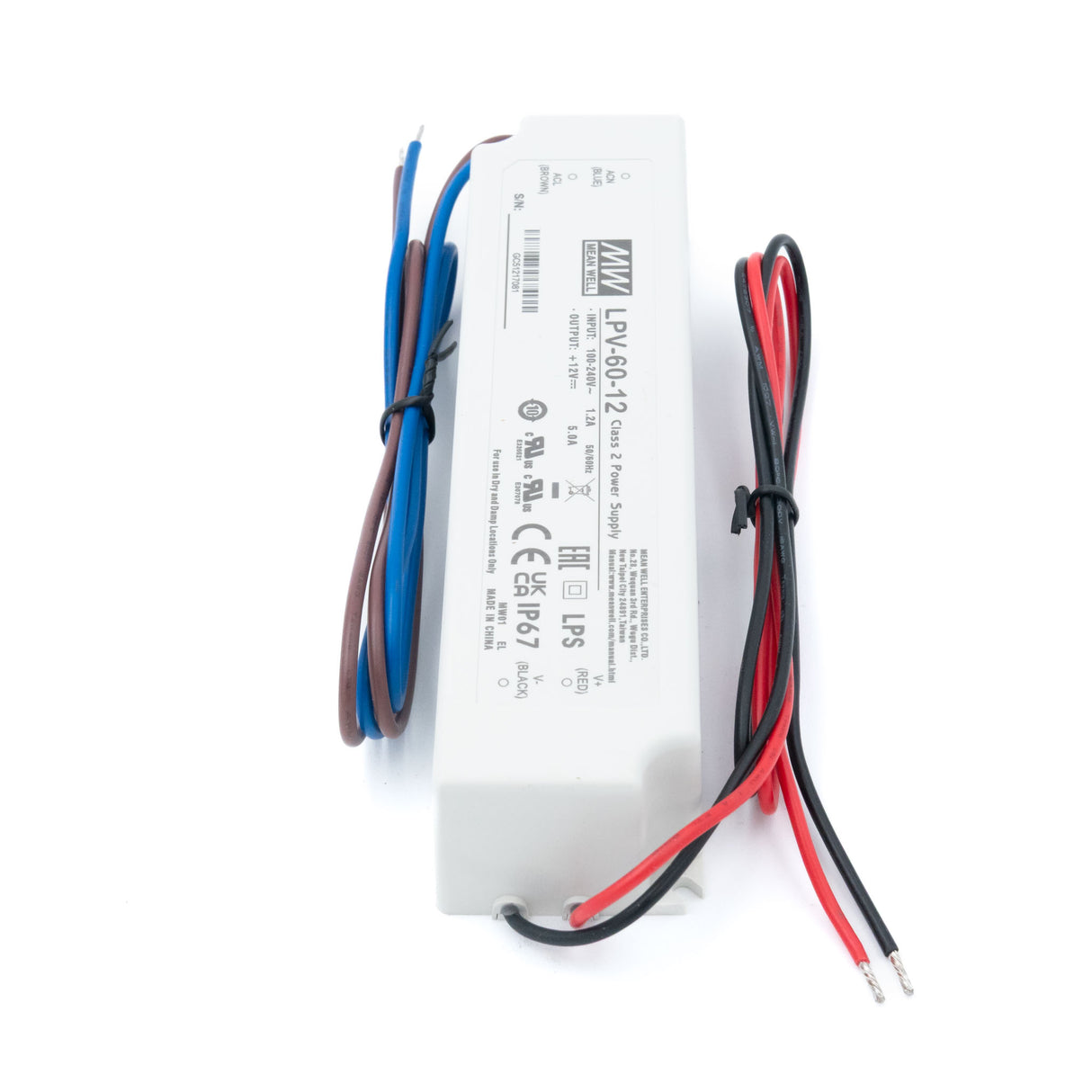

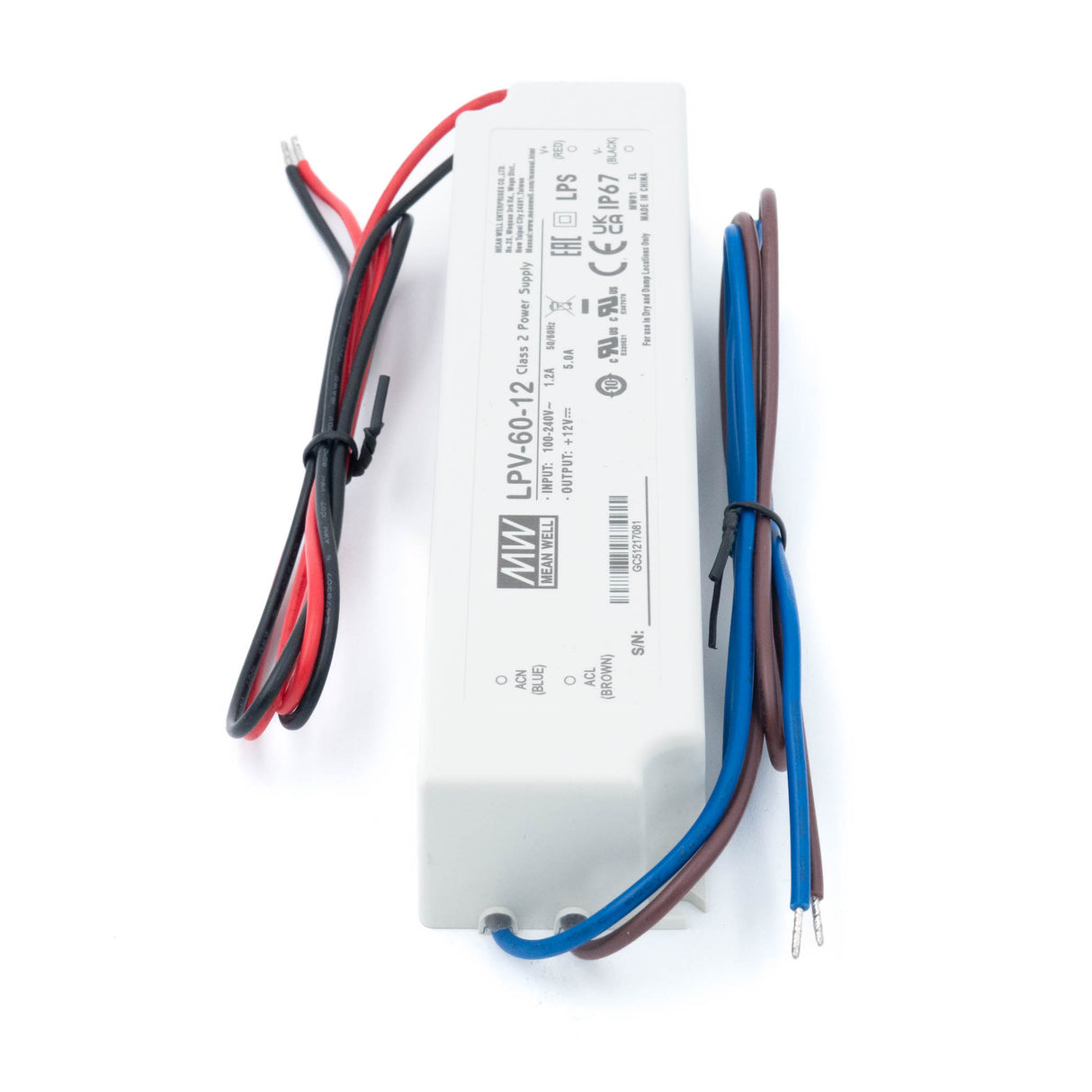

Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof

Constant Voltage, CB/CE/EAC/UL Certified, 90-264VAC Universal Input, 2-Year Warranty

SKU:

LPV-60-12

Model

20W 12V

SKU: LPV-20-12

100W 12V

SKU: LPV-100-12

35W 12V

SKU: LPV-35-12

60W 12V

SKU: LPV-60-12

150W 12V

SKU: LPVL-150-12

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof

The Mean Well LPV-60-12 is a 60W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 5A and carries CB, CE, EAC, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-60-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

Constant voltage output: 12V DC at up to 5A (60W max)
IP67 waterproof and dustproof — suitable for outdoor installations
Universal AC input: 90-264VAC
Certifications: CB, CE, EAC, UL
Wide operating temperature: -30°C to +70°C
Built-in protections: short circuit, overload, over-voltage
Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
2-year Mean Well warranty

Specifications

Model	LPV-60-12
Output Power	60W
Output Voltage	12V DC
Output Current	5A
Operation Mode	Constant Voltage
Input Voltage Range	90-264VAC
IP Rating	IP67 Waterproof
Certifications	CB, CE, EAC, UL
Operating Temperature	-30°C to +70°C
Dimensions (L × W × H)	162.5 × 42.5 × 32.0 mm
Weight	0.4 kg
Warranty	2 Years

Applications

LED signage and electronic displays
Architectural and decorative LED lighting
Outdoor and landscape LED installations
Stage and theater LED lighting
LED strip and tape lighting

Specifications

Brand

Mean Well
Series

LP Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

16.25 cm
Width

4.25 cm
Height

3.2 cm
Weight

0.4 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What LED strip lengths can the LPV-60-12 realistically power?

The LPV-60-12 provides 60W at 12V (5A). To estimate the maximum strip length, divide 60W by your strip's rated power per metre — a strip at 10 W/m, for instance, supports up to 6 metres (60 ÷ 10 = 6 m). Always confirm the rated W/m on your specific strip before specifying the run length.

Is the LPV-60-12 suitable for fully outdoor, weather-exposed mounting?

The LPV-60-12 is IP67 rated — fully dust-tight and protected against temporary water immersion — and operates from -30°C to +70°C. These ratings make it appropriate for outdoor signage, facade LED strips, and similar installations that face direct weather exposure.

How does the LPV-60-12 compare to the LPV-35-12 for the same 12V application?

Both are 12V IP67 constant-voltage drivers, but the LPV-60-12 is rated at 60W (5A) versus the LPV-35-12 at 36W (3A). The LPV-60-12 also uses a larger enclosure (162.5 × 42.5 × 32.0 mm versus 148 × 40 × 30 mm) and adds a CB certification not present on the LPV-35-12. Choose based on the total wattage the installation requires.

What certifications does the LPV-60-12 carry?

The LPV-60-12 holds CB, CE, EAC, and UL certifications. CB certification facilitates market approval in over 50 countries that participate in the IECEE CB scheme, which is useful for international projects.

Is the LPV-60-12 appropriate for use in both 120V and 240V countries?

Yes. The 90–264VAC universal input range covers both North American 120V and European/Australian 230–240V mains supplies without any manual adjustment, making the unit interchangeable across regions.

Model	Power	Voltage	Current	IP Rating
Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof	60W	24V	2.5A	IP67	View
Mean Well LPV-60-48 LED Driver — 60W 48V 1.25A IP67 Waterproof	60W	48V	1.25A	IP67	View
Mean Well LPV-60-5 LED Driver — 40W 5V 8A IP67 Waterproof	40W	5V	8A	IP67	View
Mean Well LPV-60-36 LED Driver — 60W 36V 1.67A IP67 Waterproof	60W	36V	1.67A	IP67	View
Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof	60W	15V	4A	IP67	View
