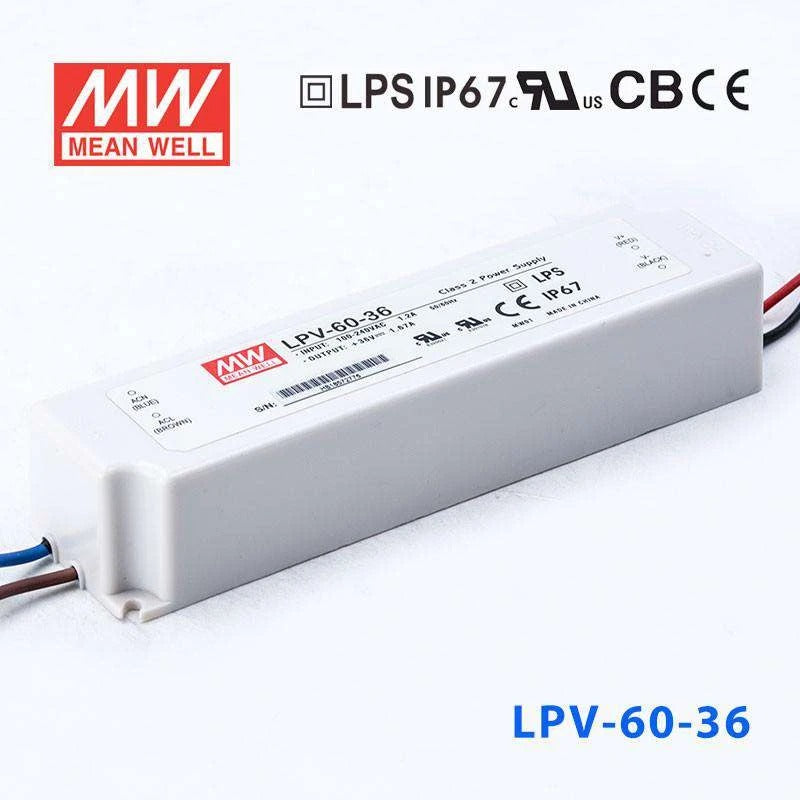

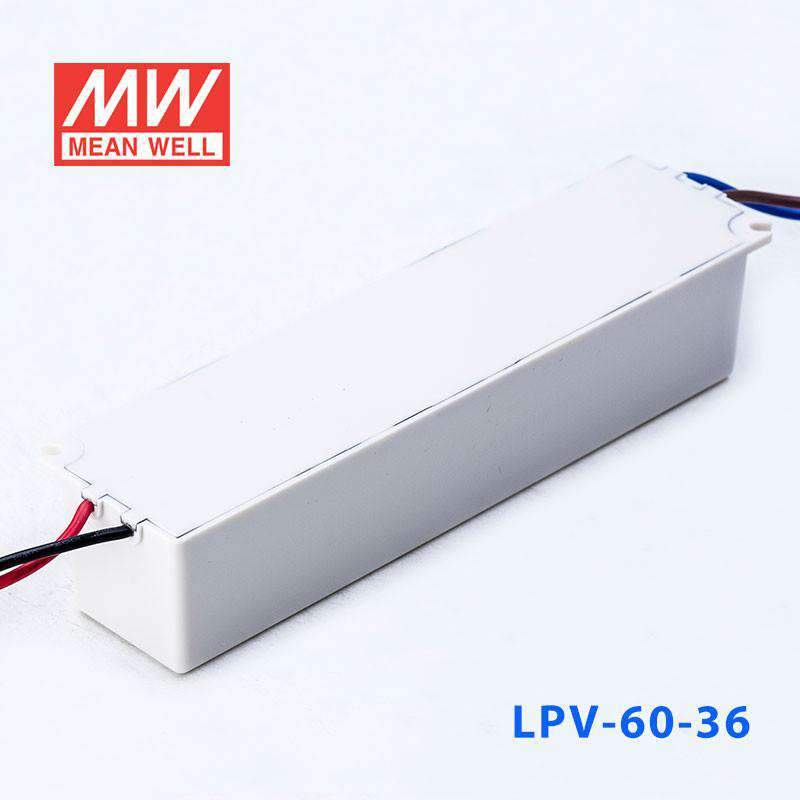

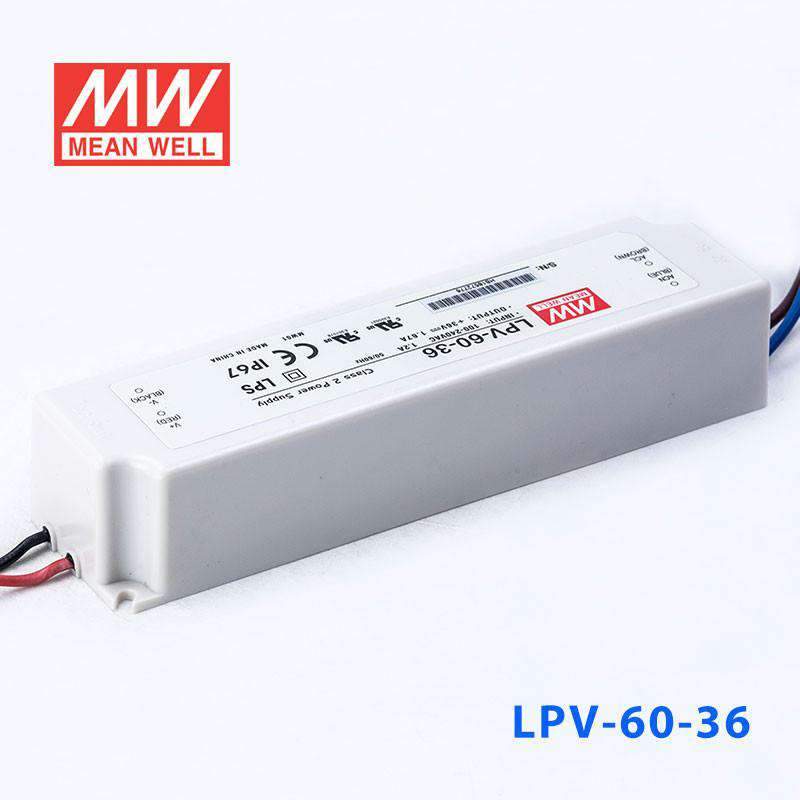

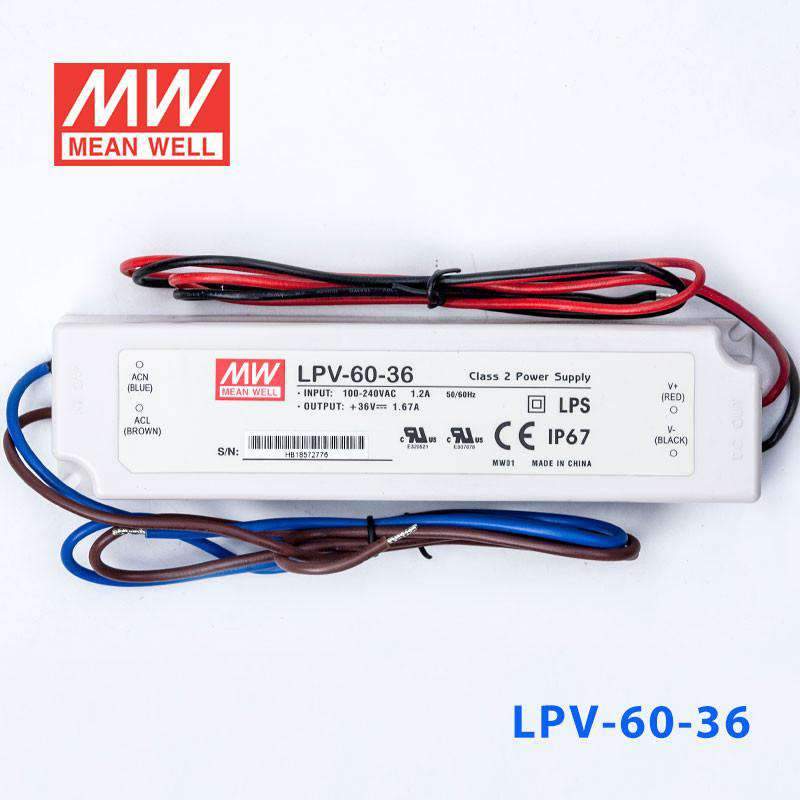

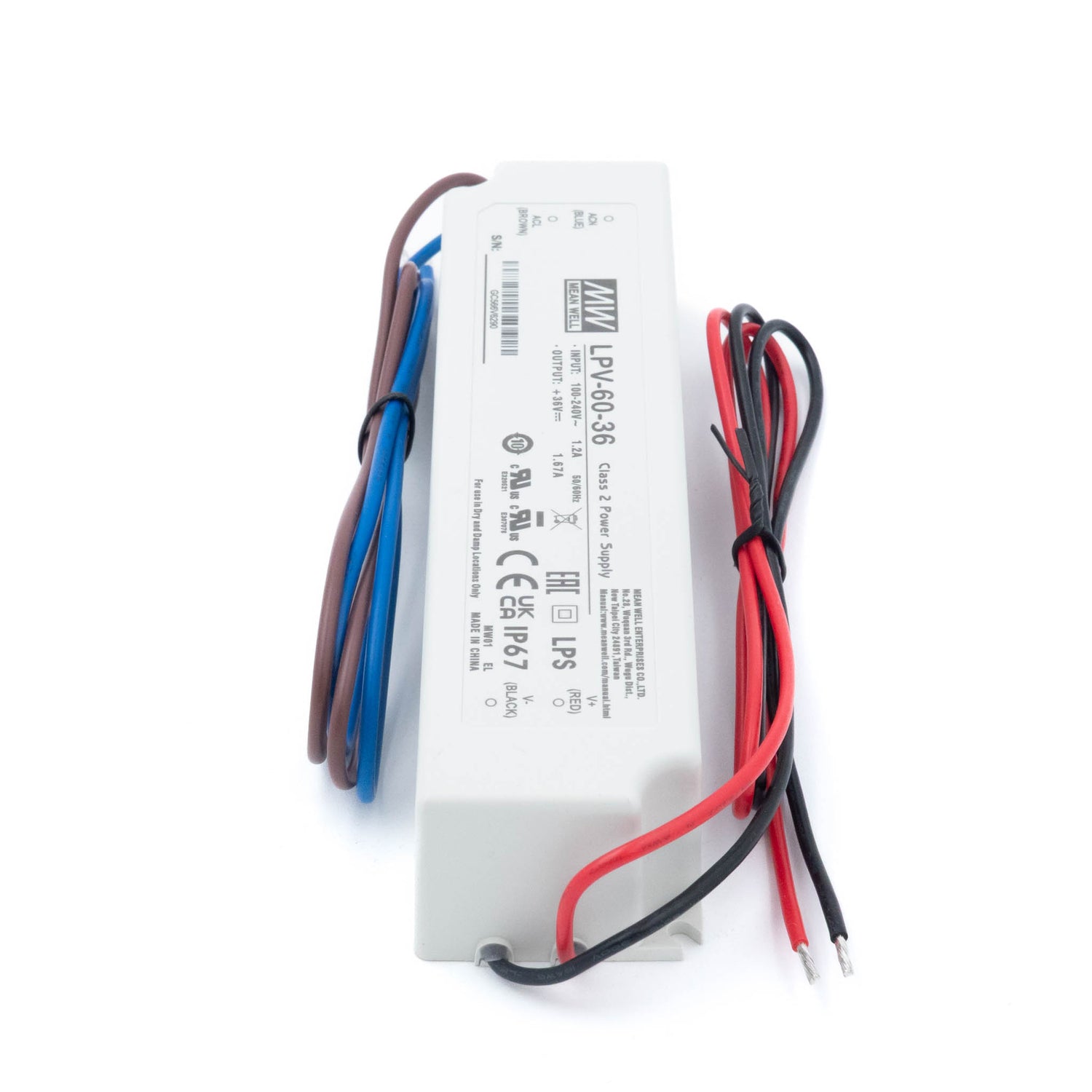

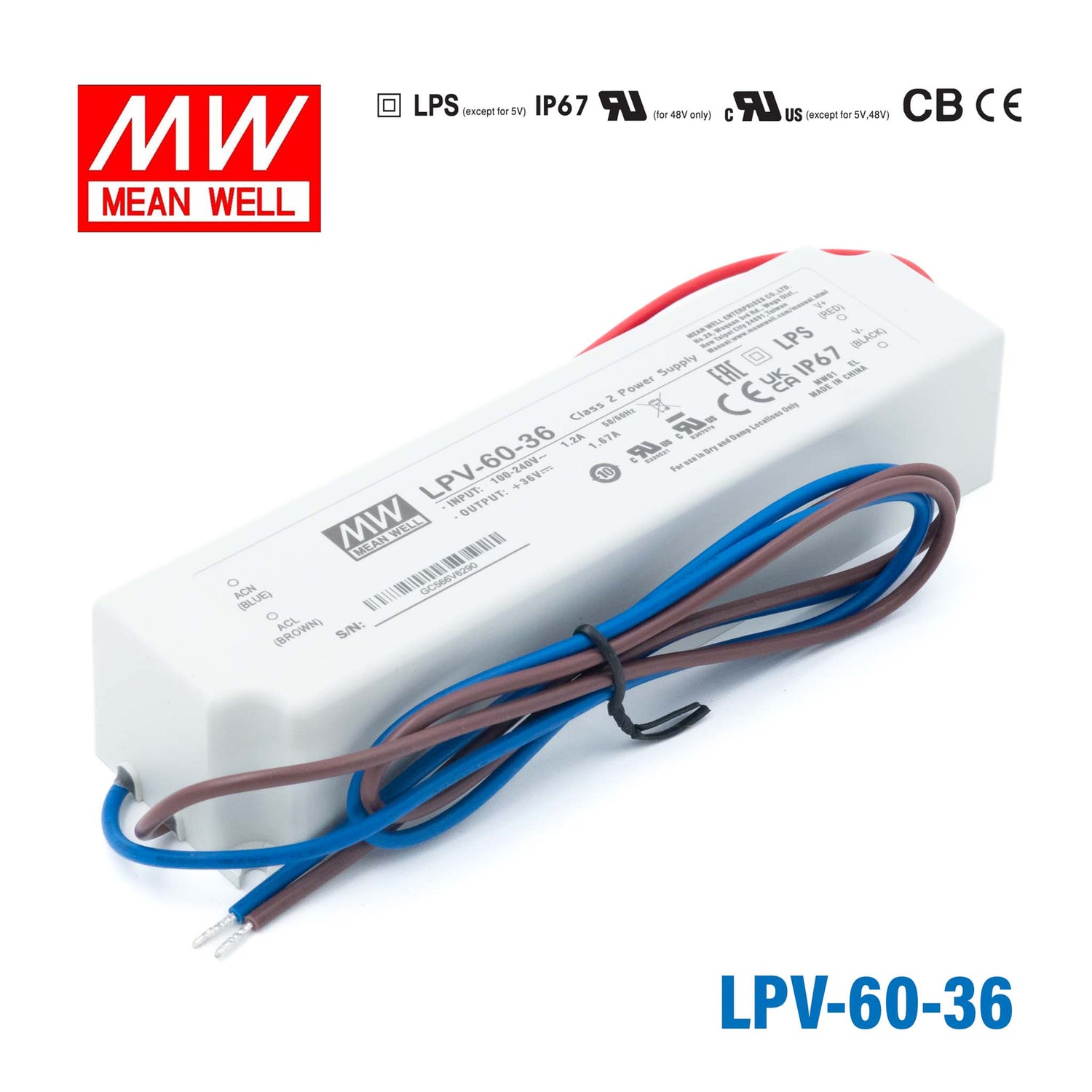

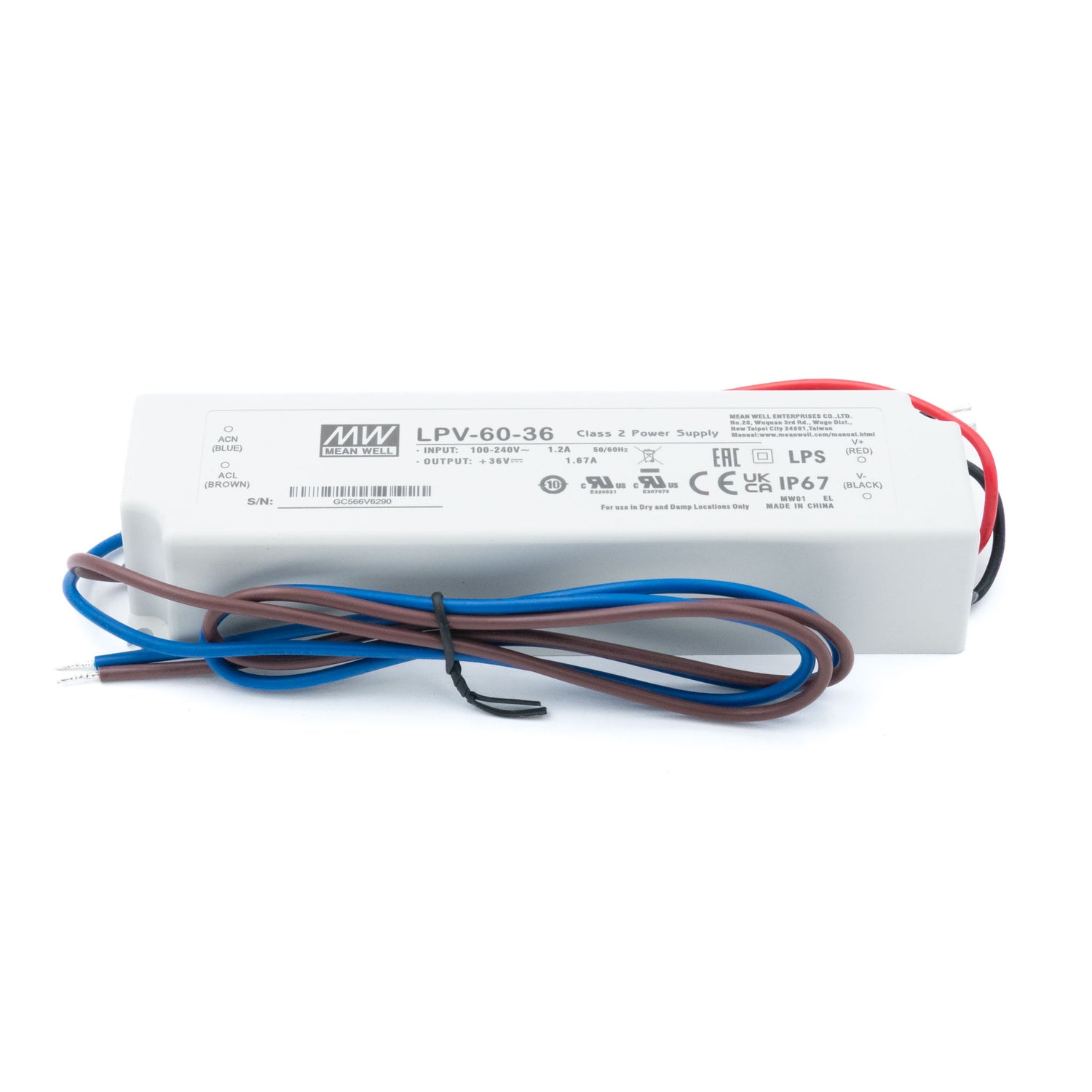

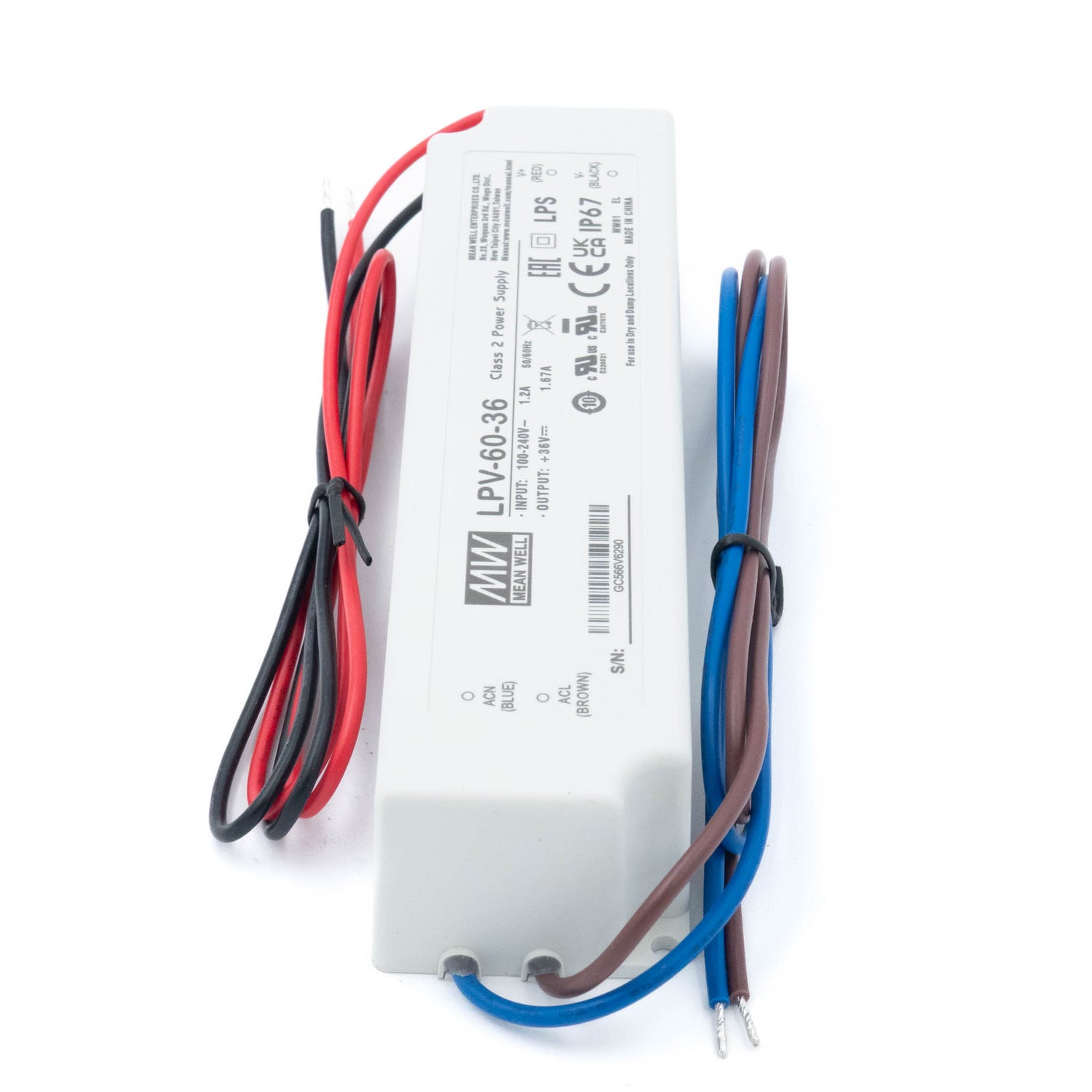

Mean Well LPV-60-36 Power Supply 60W 36V
Please Login for Pricing
Description
Description
Features
| 90~264VAC input |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Overload / Over voltage |
| Constant voltage design (C.V. mode) |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Withstand 300VAC surge input for 5 seconds |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start, 60A at 230VAC |
| Overload protection | 110%~150% hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL879 (except for LPV-60-5), UL1310 (except for LPV-60-5) approved |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, 18AWGx2C (60cm) |
| Connection Output | UL rated, 16AWGx2C (60cm) |
| Dimension (LxWxH)(mm) | 162.5x 42.5x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length16.25 cm
-
Width4.25 cm
-
Height3.2 cm
-
Weight0.4 kg
