Mean Well

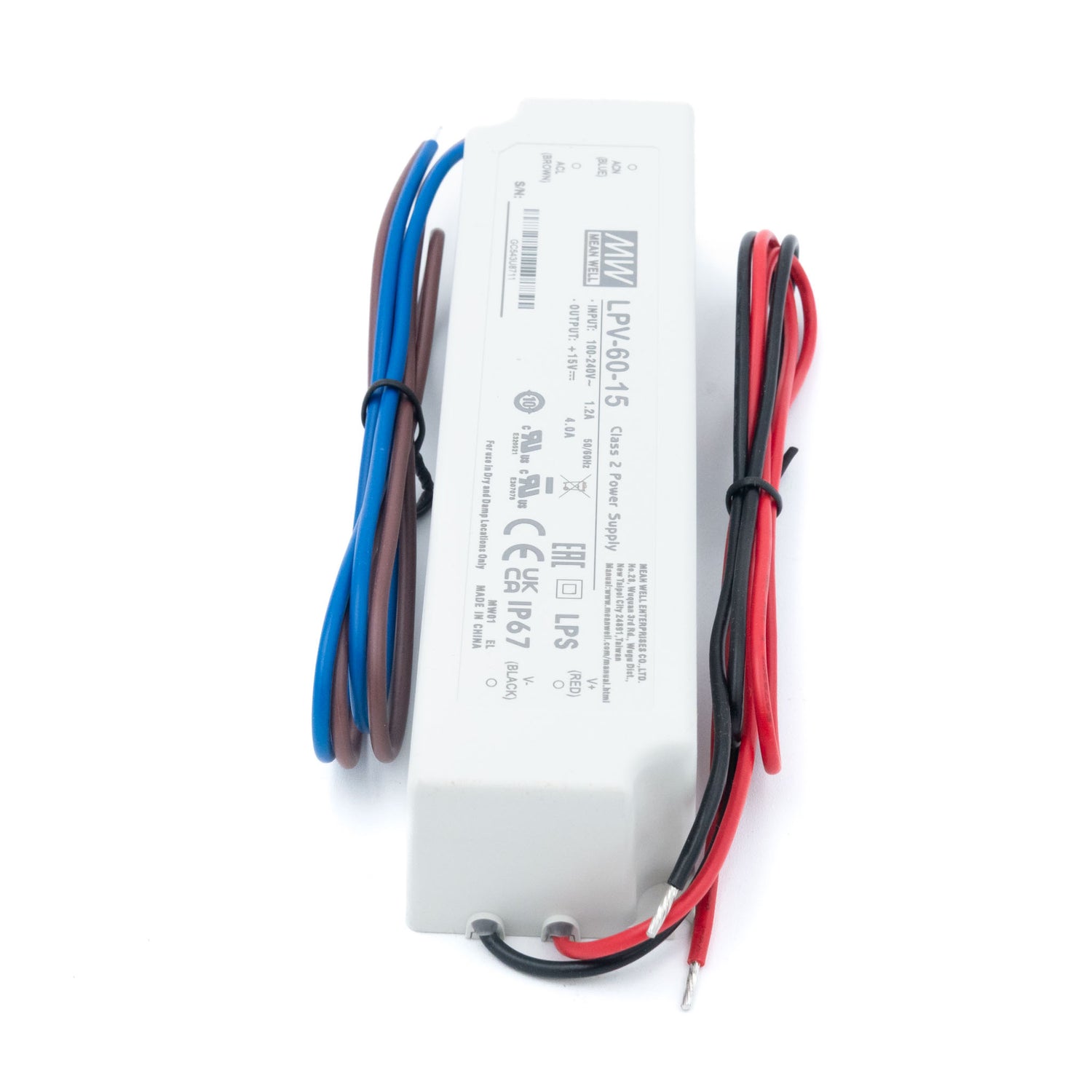

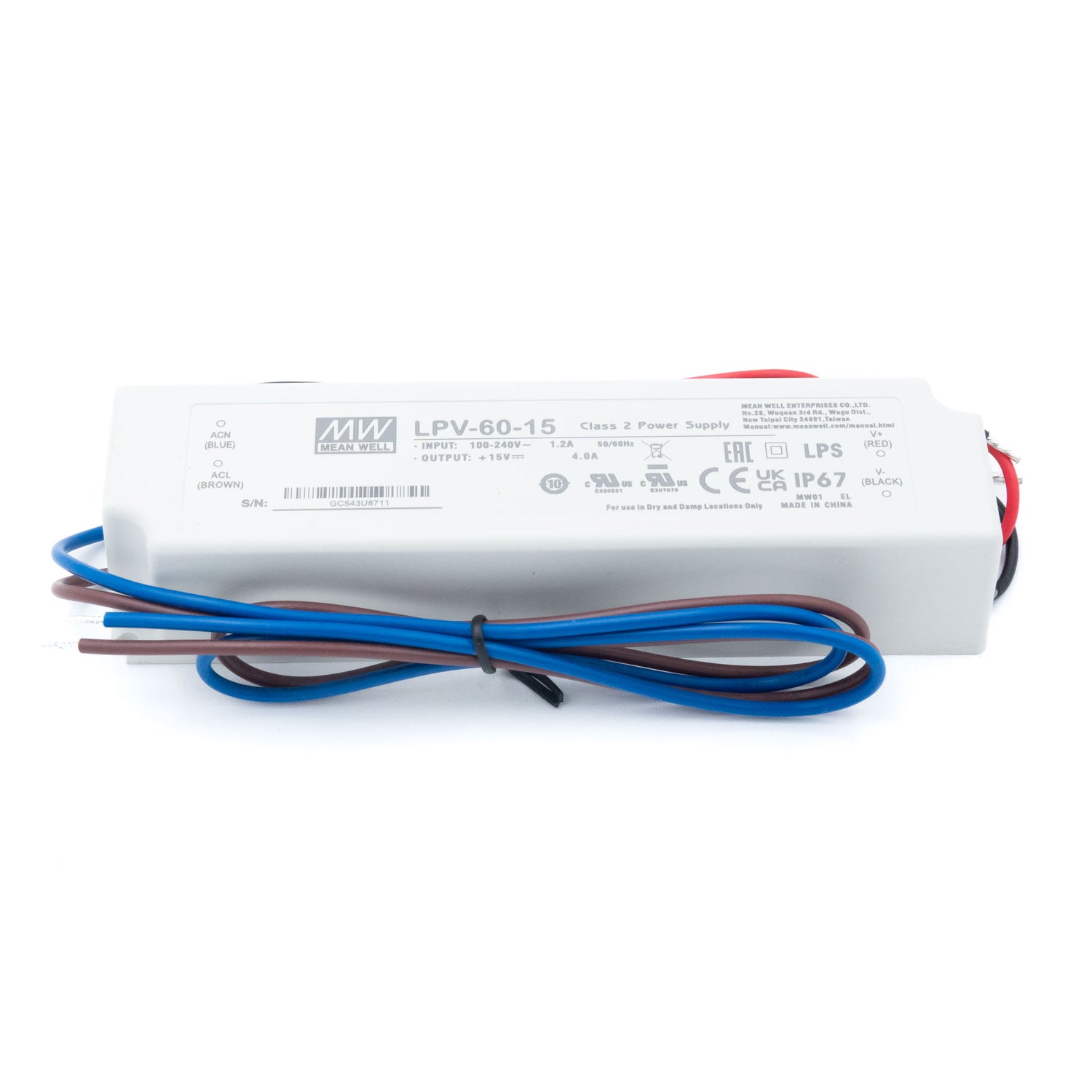

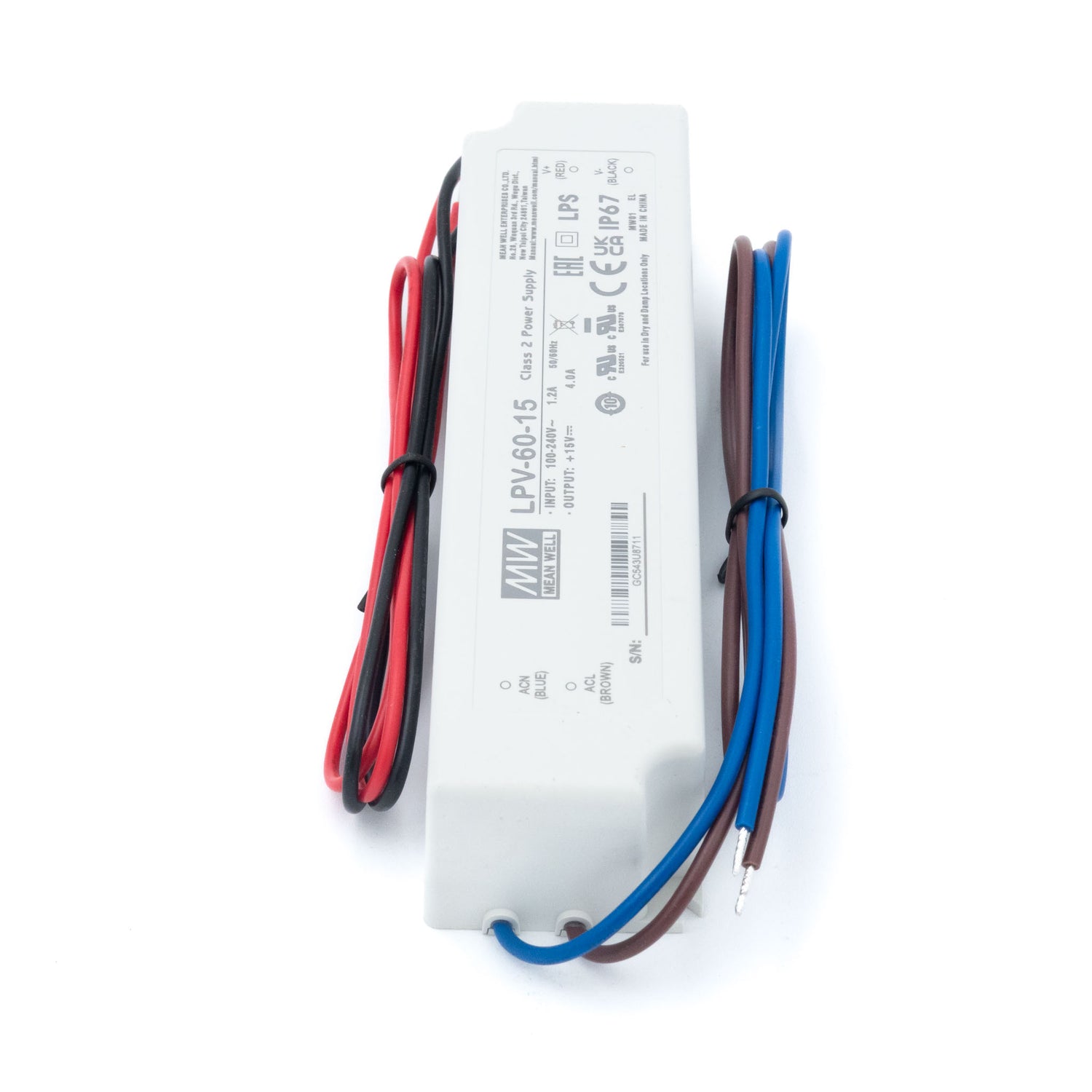

Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof

Constant VoltageCB/CE/EAC/UL Certified90-264VAC Universal Input2-Year Warranty
SKU LPV-60-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

LPV-60-15
In stock
|

Overview

LPV-60-15 is the 15V output model of this series: rated current 4A, rated power 60W, typical efficiency 83%.

Features

  • Constant voltage design
  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Over load / Over voltage
  • Cooling by free air convection
  • Fully encapsulated with IP67 level (Note.7)
  • Fully isolated plastic case
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Pass LPS
  • Display devices for decorative & advertising accessories (Note.11)
  • General-purpose electronics operated in dusty or damp environments
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty

Specifications

LPV-60-15Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
4A
CURRENT RANGE
0 ~ 4A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE TOLERANCENote.3
±5.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
83%
AC CURRENT (Typ.)
1.2A/115VAC 1A/230VAC
INRUSH CURRENT(Typ.)
COLD START 60A(twidth=525μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER LOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), BIS IS15885(Note 12), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
5188.4K hrs min. Telcordia SR-332 (Bellcore) ; 732.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
162.5*42.5*32mm (L*W*H)
PACKING
0.4Kg; 32pcs/13.8Kg/0.66CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
  10. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  11. 11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
  12. 12. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

LPV-60-15 Recommend Mounting Direction
Recommend Mounting Direction
LPV-60-15 Block Diagram
Block Diagram
LPV-60-15 Derating Curve
Derating Curve

Downloads

FAQ

How much 15V LED strip can the LPV-60-15 support?

The LPV-60-15 outputs 60W at 15V (4A). Divide 60W by your LED strip's rated wattage per metre to estimate the run length — a strip at 10 W/m, for example, gives up to 6 metres (60 ÷ 10 = 6 m). Always verify the rated power per metre of your specific strip before finalising the design.

Where does the LPV-60-15 fit in the LPV-60 voltage lineup?

The LPV-60 series at 60W capacity offers six voltage options: 5V (40W), 12V (5A), 15V (4A), 24V (2.5A), 36V (1.67A), and 48V (1.25A), all sharing the 162.5 × 42.5 × 32.0 mm IP67 enclosure. The LPV-60-15 is the 15V variant, intended for LED loads that specifically require a 15V supply rather than the more common 12V or 24V.

Can the LPV-60-15 be used in wet outdoor environments?

Yes, out of direct sunlight. IP67 certification means the unit is dust-tight and can withstand temporary immersion in water (avoid immersion over 30 minutes), and the sheet rates it for outdoor use without direct sunlight exposure. The -30°C to +70°C operating range (with derating at higher temperatures) further supports year-round use in locations such as shaded outdoor signs, architectural lighting features, and covered walkways.

What is the weight and size of the LPV-60-15?

The LPV-60-15 measures 162.5 × 42.5 × 32.0 mm (L × W × H) and weighs 0.4 kg. It is a compact, fully encapsulated plastic enclosure, and its size should be factored into mounting space planning for sign cabinets or fixture housings.
