Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

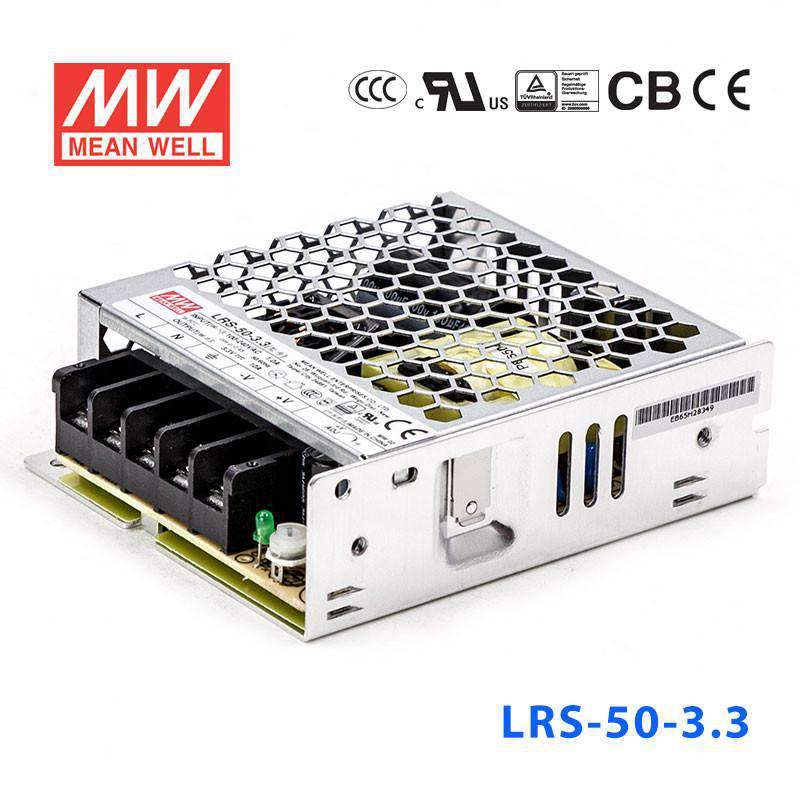

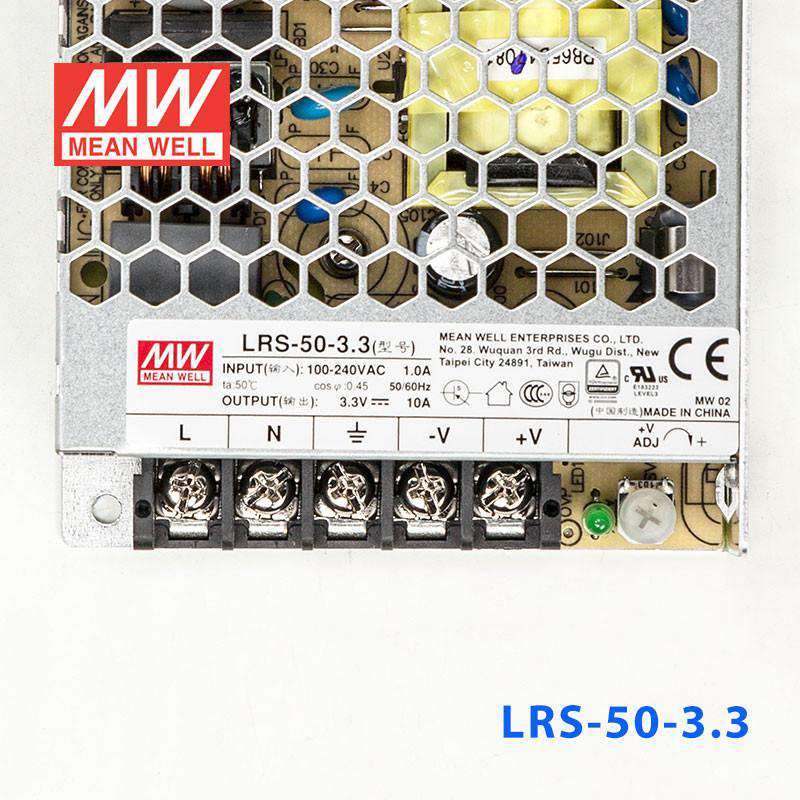

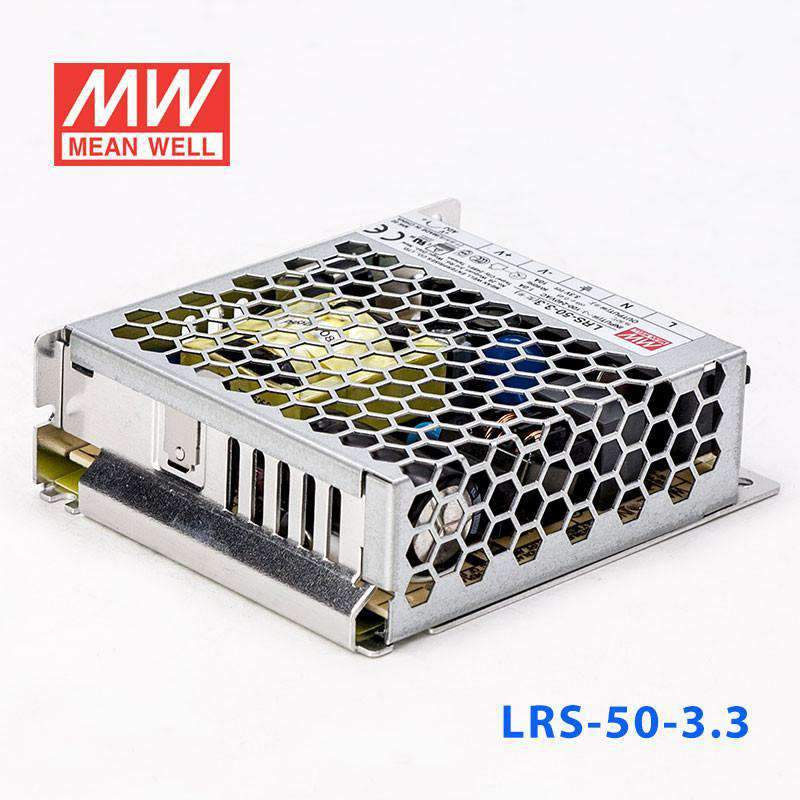

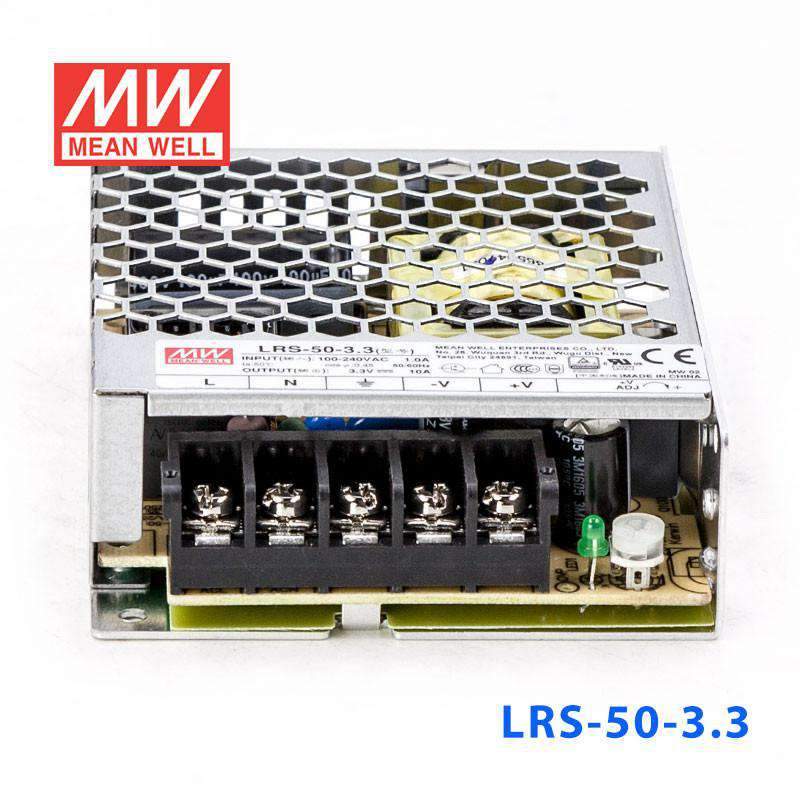

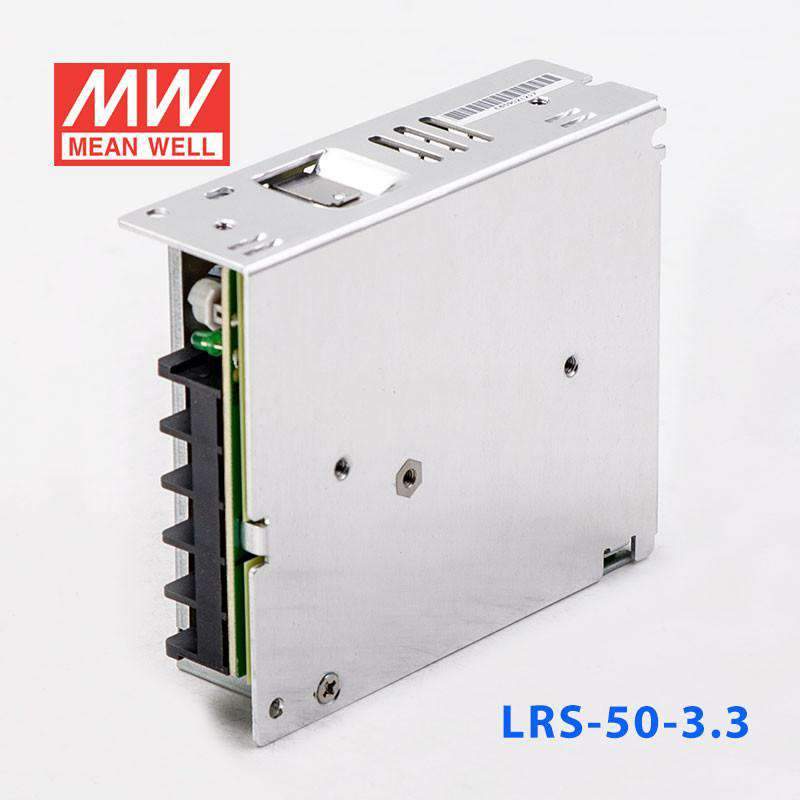

Mean Well LRS-50-3.3 Power Supply 50W 3.3V

Q: What loads is the LRS-50-3.3 suitable for at 3.3V?

The LRS-50-3.3 supplies 3.3V at 10A (33W), the standard core logic voltage for FPGAs, microcontrollers, and DDR memory modules. It suits embedded development boards, custom PCBs requiring a 3.3V rail, and low-power logic subsystems within larger equipment.

Q: How does the LRS-50-3.3 output power compare to other LRS-50 models?

The LRS-50-3.3 delivers 33W — the lowest wattage in the LRS-50 family due to the low voltage. By comparison: LRS-50-5 (50W), LRS-50-12 (50.4W), LRS-50-15 (51W), LRS-50-24 (52.8W), LRS-50-36 (52.2W), LRS-50-48 (52.8W). All share the same 99 × 82 × 30 mm case and 0.21 kg weight.

Q: Can the LRS-50-3.3 be used in cold environments?

The LRS-50-3.3 is rated for -30°C to +70°C operation. This low-end cold rating allows deployment in unheated industrial spaces, cold-storage control panels, or outdoor enclosures in temperate climates where temperatures drop near or below freezing.

Q: Is the LRS-50-3.3 appropriate as a standalone board-level power supply for custom electronics?

Yes. At 3.3V and 10A (33W), the LRS-50-3.3 can serve as a primary or auxiliary power supply for custom PCBs requiring a regulated 3.3V rail. Its compact 99 × 82 × 30 mm footprint and 0.21 kg weight allow tight integration inside enclosures.

most economical model, ultra compact and 1U low profile, withstand 5G vibration and 70°C operation

SKU:

LRS-50-3.3

Model

50W 3.3V

SKU: LRS-50-3.3

100W 3.3V

SKU: LRS-100-3.3

200W 3.3V

SKU: LRS-200-3.3

350W 3.3V

SKU: LRS-350-3.3

Product variants

Please for Pricing

Notify me when it's back in stock

Description

No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty

Key Features

✓85~264VAC; 120~370VDC
✓Cold start, 45A at 230VAC
✓±10% by potentiometer
✓110%~150%
✓Type Hiccup mode, auto-recovery
✓115%~135% rated output voltage
✓Shut down o/p voltage, re-power on to recover
✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
✓-30~+70°C (refer to output derating curve)
✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
✓5P/9.5mm pitch terminal block
✓99x 82x 30

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

33 Watt
Output Voltage

3.3 Volt
Rated Current

10 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9.9 cm
Width

8.2 cm
Height

3 cm
Weight

0.21 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What loads is the LRS-50-3.3 suitable for at 3.3V?

The LRS-50-3.3 supplies 3.3V at 10A (33W), the standard core logic voltage for FPGAs, microcontrollers, and DDR memory modules. It suits embedded development boards, custom PCBs requiring a 3.3V rail, and low-power logic subsystems within larger equipment.

How does the LRS-50-3.3 output power compare to other LRS-50 models?

The LRS-50-3.3 delivers 33W — the lowest wattage in the LRS-50 family due to the low voltage. By comparison: LRS-50-5 (50W), LRS-50-12 (50.4W), LRS-50-15 (51W), LRS-50-24 (52.8W), LRS-50-36 (52.2W), LRS-50-48 (52.8W). All share the same 99 × 82 × 30 mm case and 0.21 kg weight.

Can the LRS-50-3.3 be used in cold environments?

The LRS-50-3.3 is rated for -30°C to +70°C operation. This low-end cold rating allows deployment in unheated industrial spaces, cold-storage control panels, or outdoor enclosures in temperate climates where temperatures drop near or below freezing.

Is the LRS-50-3.3 appropriate as a standalone board-level power supply for custom electronics?

Yes. At 3.3V and 10A (33W), the LRS-50-3.3 can serve as a primary or auxiliary power supply for custom PCBs requiring a regulated 3.3V rail. Its compact 99 × 82 × 30 mm footprint and 0.21 kg weight allow tight integration inside enclosures.

Model	Power	Voltage	Current
Mean Well LRS-50-5 Power Supply 50W 5V	50W	5V	10A	View
Mean Well LRS-50-12 Power Supply 50W 12V	50.4W	12V	4.2A	View
Mean Well LRS-50-48 Power Supply 50W 48V	52.8W	48V	1.1A	View

{ "id":8343902585131, "variants" :[{ "context":"default", "variant_id": 45321090335019, "sku":"LRS-50-3.3", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓85~264VAC; 120~370VDC

✓Cold start, 45A at 230VAC

✓±10% by potentiometer

✓110%~150%

✓Type Hiccup mode, auto-recovery

✓115%~135% rated output voltage

✓Shut down o/p voltage, re-power on to recover

✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute

✓-30~+70°C (refer to output derating curve)

✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved

✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

✓5P/9.5mm pitch terminal block

✓99x 82x 30
