What 36V low-power applications suit the LRS-50-36?

The LRS-50-36 delivers 36V at 1.45A (52.2W), suitable for powering small 36V brushless DC motors in light-duty automation, 36V battery chargers at low current, and compact 36V sensor networks. Its 99 × 82 × 30 mm form factor fits confined control enclosures.

How does the LRS-50-36 compare to the LRS-50-48 and LRS-50-24?

All share the same 99 × 82 × 30 mm case and 0.21 kg weight. LRS-50-24 (52.8W, 2.2A), LRS-50-36 (52.2W, 1.45A), LRS-50-48 (52.8W, 1.1A). The wattage is nearly identical across the three; the key difference is the output voltage and resulting current, so the selection depends on the target load's required voltage.

Is the LRS-50-36 suitable for cold storage or unheated industrial spaces?

The LRS-50-36 operates from -30°C to +70°C, making it one of the more cold-tolerant models in the LRS family. This allows use in unheated warehouses, refrigerated storage control panels, or cold-climate outdoor enclosures within a suitable protective cabinet.

What certifications does the LRS-50-36 carry, and which markets does it cover?

The LRS-50-36 holds BSMI, CB, CCC, CE, EAC, RCM, TÜV, and UL certifications. This covers North America (UL), Europe (CE, TÜV), Australia/New Zealand (RCM), China (CCC), Taiwan (BSMI), and Eurasia (EAC), supporting broad international deployment.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

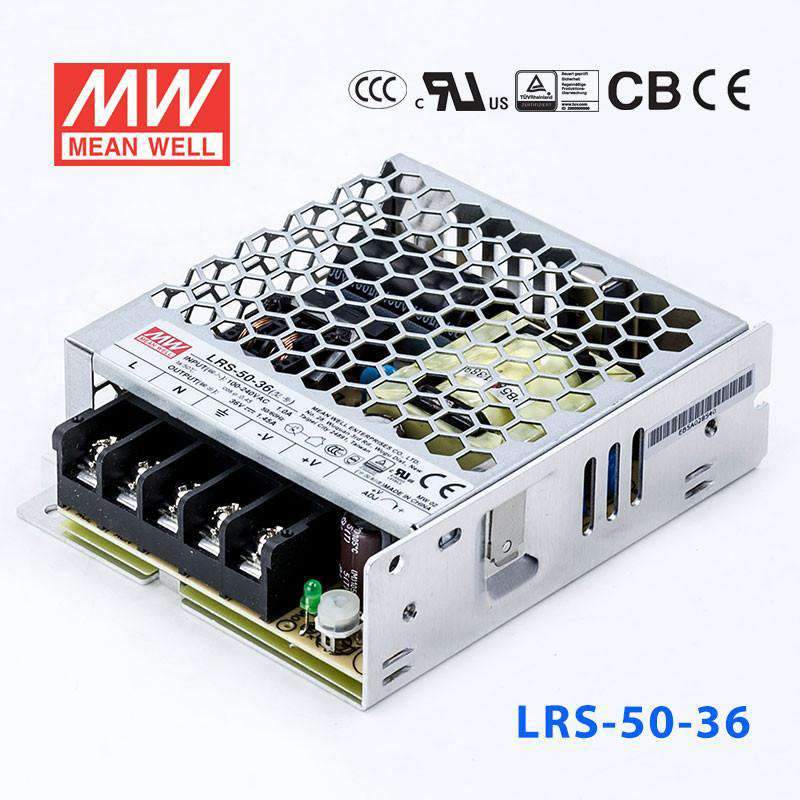

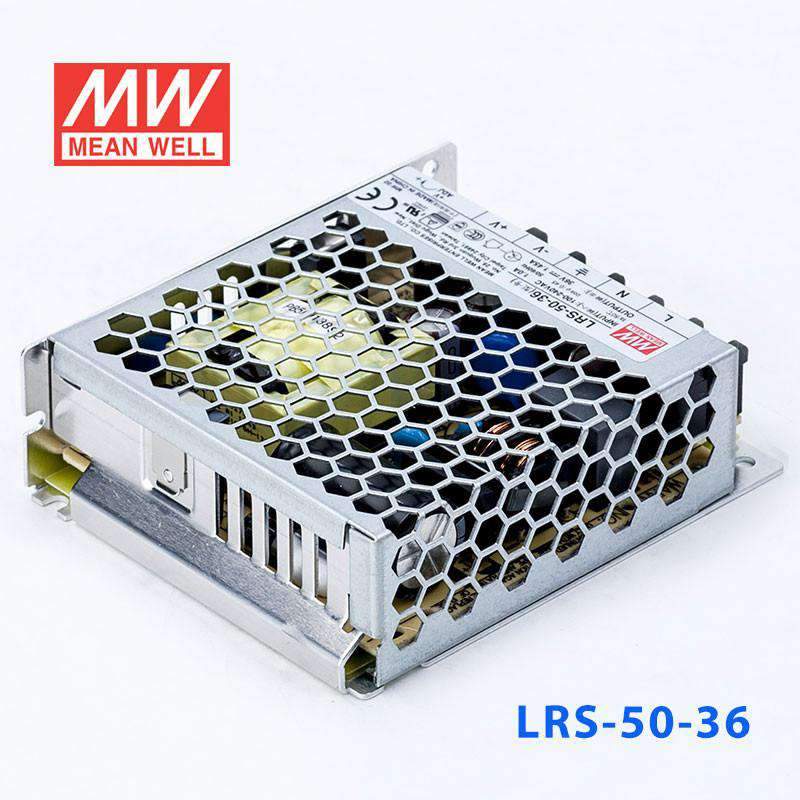

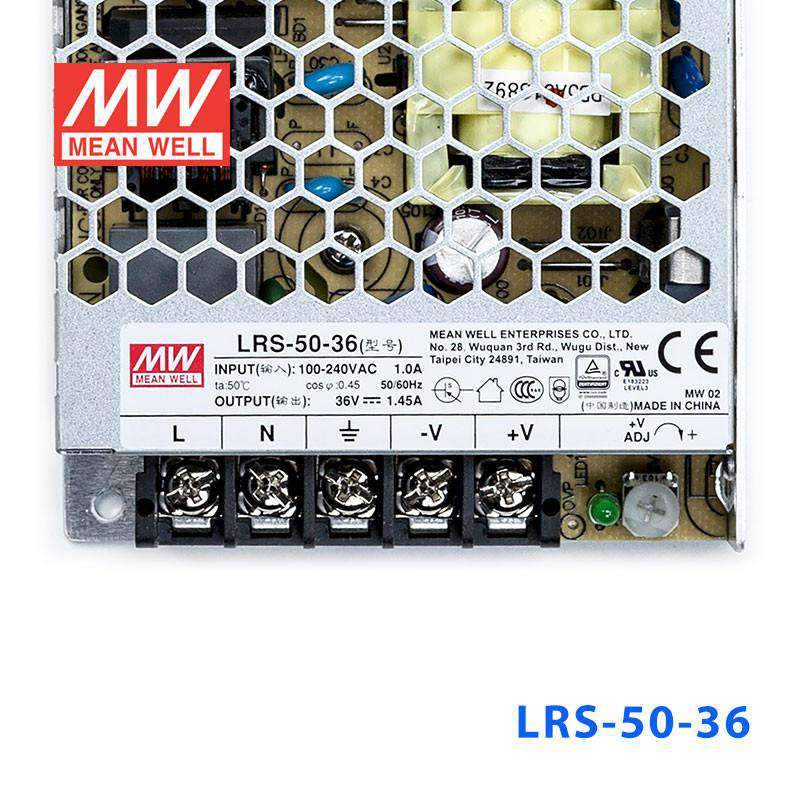

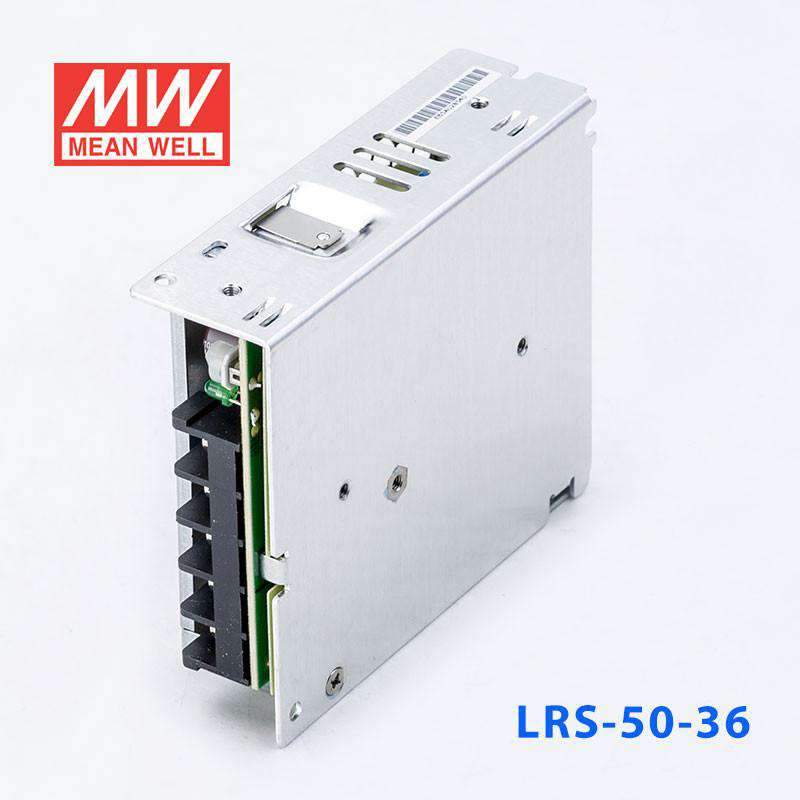

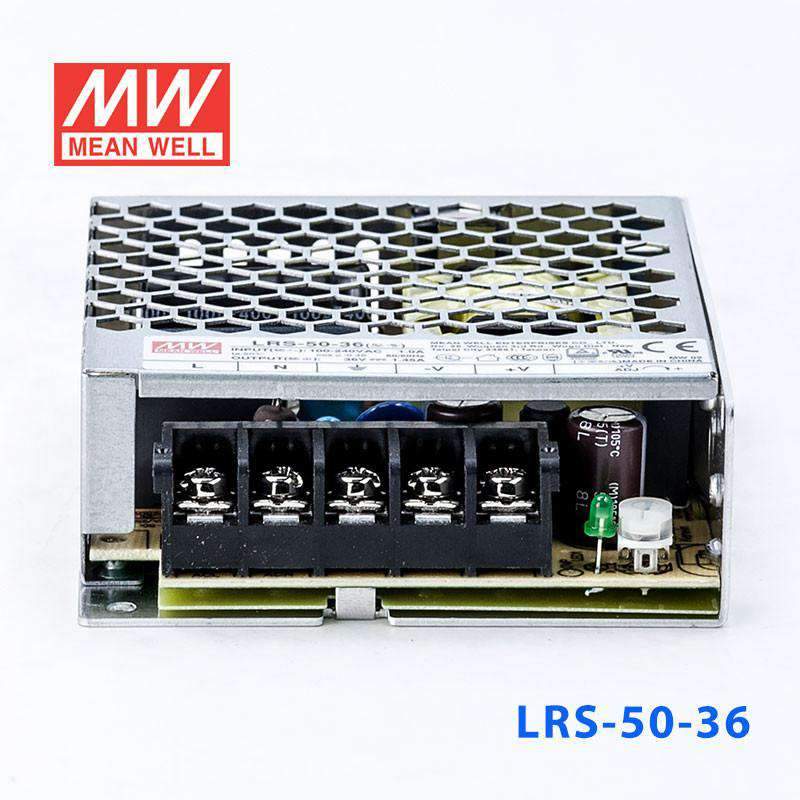

Mean Well LRS-50-36 Power Supply 50W 36V 1.45A

4.7 (17 reviews)

most economical modelultra compact and 1U low profilewithstand 5G vibration and 70°C operation

SKU LRS-50-36

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

LRS-50-36

LRS-35-36 35W 36V Backorder

LRS-100-36 100W 36V Backorder

LRS-150-36 150W 36V Backorder

LRS-200-36 200W 36V Backorder

LRS-350-36 350W 36V Backorder

LRS-450-36 450W 36V Backorder

LRS-50-36 50W 36V Backorder

LRS-600-36 600W 36V Low stock

LRS-75-36 75W 36V Backorder

Product variants

Notify me when it's back in stock

The LRS-50 is a 52.2W Mean Well power supply (input: 85~264VAC, operating temperature: -30~+70°C).

Key Features

✓ Input voltage: 85~264VAC
✓ Output voltage (max): 36V
✓ Rated output current: 1.45A
✓ Operating temperature: -30~+70°C
✓ Safety certifications: BSMI, CB, CCC, CE, EAC, RCM, TÜV, UL
✓ 3 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well LRS-50-12 Power Supply 50W 12V 4.2A	50.4W	12V	4.2A	View
Mean Well LRS-50-5 Power Supply 50W 5V 10A	50W	5V	10A	View
Mean Well LRS-50-24 Power Supply 50W 24V 2.2A	52.8W	24V	2.2A	View
Mean Well LRS-50-15 Power Supply 50W 15V 3.4A	51W	15V	3.4A	View
