Can I use the MDS06F-05 for a 5V industrial controller or single-board computer?

Yes, if the 5V load stays within 1.2A and 6W. That gives it more headroom than a 3W model for 5V embedded controllers, industrial computing boards, or communication electronics using a 9-36V input range.

Is the MDS06F-05 suitable for 5V HMI, gateway, or monitoring electronics in a control panel?

It can be a fit for low-power 5V HMI, gateway, or monitoring circuits when total demand does not exceed 1.2A. The converter provides constant-voltage 5V output and fits in a 31.8 × 20.3 × 12.2 mm footprint.

Can this converter power multiple low-power 5V logic and sensor circuits from one source?

It can support grouped 5V logic or sensor loads as long as the combined output remains within 6W and 1.2A. The 9-36V input range also matches systems built around lower-voltage DC buses.

How does the MDS06F-05 compare with the other MDS06F versions?

All MDS06F models are 6W medical-grade DC/DC converters with a 9-36V input range, the same 31.8 × 20.3 × 12.2 mm dimensions, 0.017 kg weight, -40°C to +90°C operating range, certifications, and 3-year warranty. The difference is output: MDS06F-05 is 5V at 1.2A, MDS06F-12 is 12V at 0.5A, and MDS06F-15 is 15V at 0.4A.

Can the MDS06F-05 be used in outdoor or temperature-extreme equipment?

Its operating temperature is specified from -40°C to +90°C, so the thermal range is broad. No IP rating is provided in these specs, so outdoor exposure or sealed-enclosure suitability is not established by the product data shown here.

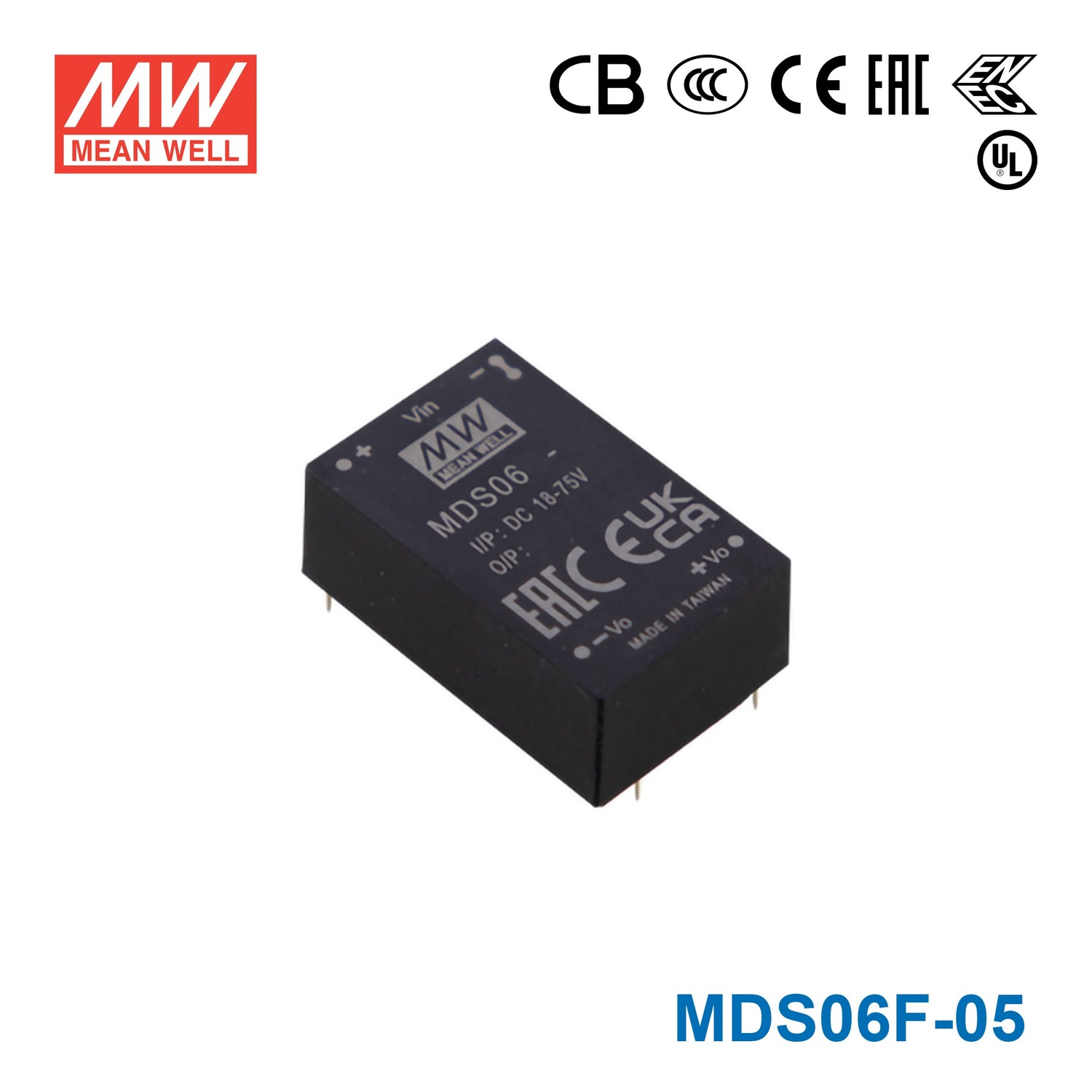

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well MDS06F-05 Medical Grade DC/DC Converter 6W - 9-36V input, 5Voutput 1.2A

5V6WDC/DCMedical Grade

SKU:

MDS06F-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS06F is a 6W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15V output 400mA	6W	15V	0.4A	Indoor	View
Mean Well MDS06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12V output 500mA	6W	12V	0.5A	Indoor	View
