Can I use the MDS06F-12 for 12V industrial control or instrumentation electronics?

Yes, for 12V loads that stay within 0.5A and 6W. That rating suits low-power control, instrumentation, or interface electronics fed from a 9-36V input source.

Is the MDS06F-12 suitable for small 12V automation modules inside mobile or panel systems?

It can fit small 12V automation modules when the total load remains at or below 0.5A. The 9-36V input range is also useful where the available DC bus is lower than the 18-75V range used by other series.

Can this model provide a 12V auxiliary supply for medical or embedded OEM designs?

Yes, for low-power 12V auxiliary rails up to 6W. It is a medical-grade converter with CB, CCC, CE, EAC, ENEC, and UL certifications and uses a constant-voltage 12V output.

What are the output differences across the MDS06F family?

The MDS06F family shares the same 6W power rating, 9-36V input range, 31.8 × 20.3 × 12.2 mm size, 0.017 kg weight, -40°C to +90°C operating range, certification set, and 3-year warranty. Output options are 5V at 1.2A for MDS06F-05, 12V at 0.5A for MDS06F-12, and 15V at 0.4A for MDS06F-15.

Is the MDS06F-12 appropriate for exposed outdoor conditions?

The published operating temperature range is -40°C to +90°C, which supports demanding temperature conditions. However, no IP rating is listed, so the specs do not confirm outdoor, rain, or dust-exposed use by themselves.

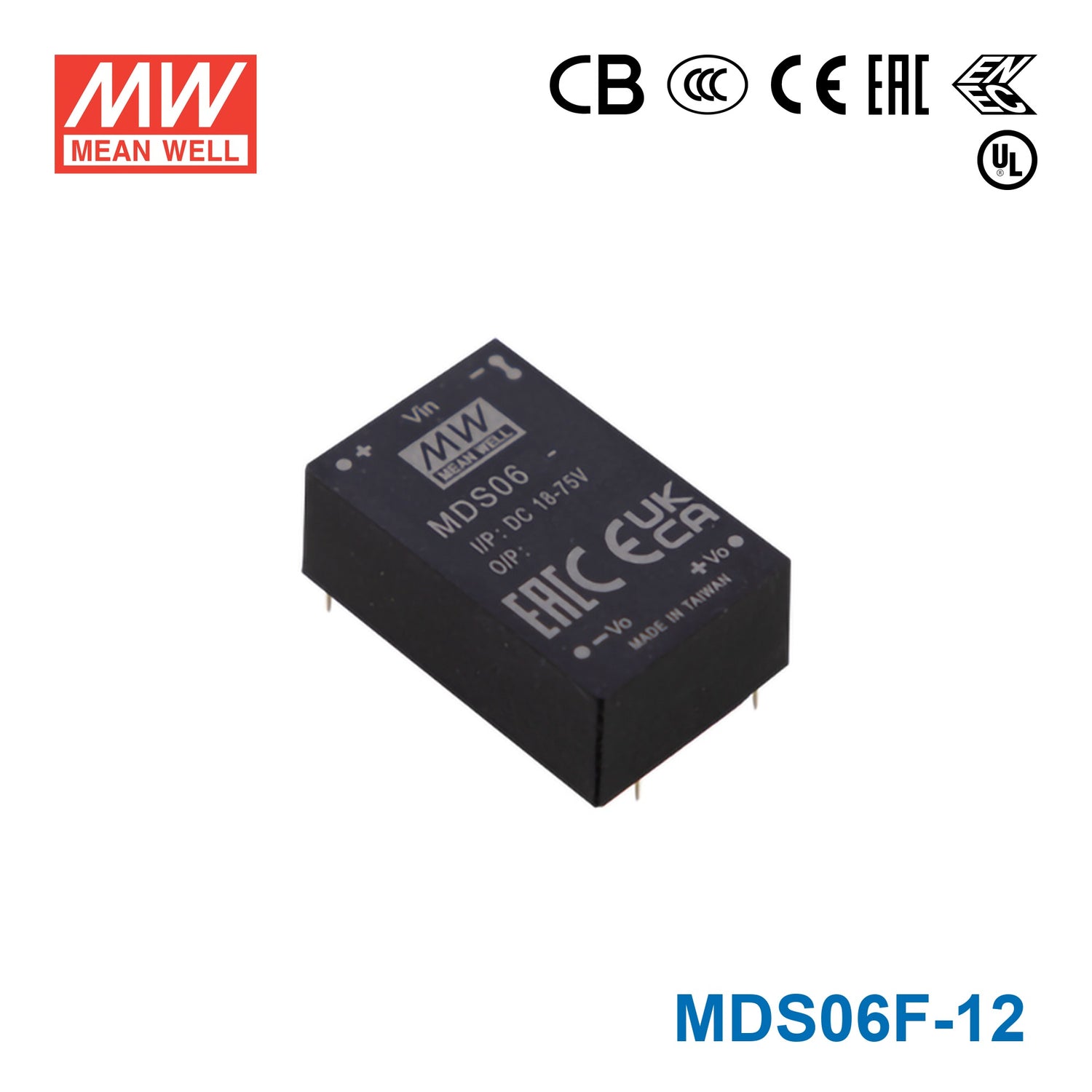

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well MDS06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12V output 500mA

12V6WDC/DCMedical Grade

SKU:

MDS06F-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS06F is a 6W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15V output 400mA	6W	15V	0.4A	Indoor	View
Mean Well MDS06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12V output 500mA	6W	12V	0.5A	Indoor	View
