Can I use the MDS06F-15 to power a 15V sensor or industrial transmitter?

Yes, this converter provides a constant 15V output at up to 0.4A, with 6W total output power. That makes it a fit for low-power 15V sensors, transmitters, or interface modules that stay within those limits.

Is the MDS06F-15 suitable for a compact medical or lab instrument control board?

It is designed as a medical grade 6W DC/DC converter and carries CB, CCC, CE, EAC, ENEC, and UL certifications. Its 31.8 x 20.3 x 12.2 mm size and 0.017 kg weight also make it appropriate where board space and weight are limited.

Can this 15V converter run embedded analog or signal-conditioning circuits?

It can support embedded 15V analog stages or signal-conditioning boards that need constant voltage and draw no more than 0.4A. The 6W rating is suited to low-power electronics rather than larger loads.

Is the MDS06F-15 suitable for outdoor or harsh-environment use?

The listed operating temperature range is -40C to +90C, so the temperature spec is broad. However, no IP rating is provided in these specs, so the product data here does not establish dust or water protection for exposed outdoor use.

How does the MDS06F-15 compare with the other MDS06F models?

All three listed MDS06F models are 6W converters. The MDS06F-05 outputs 5V at 1.2A, the MDS06F-12 outputs 12V at 0.5A, and the MDS06F-15 outputs 15V at 0.4A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

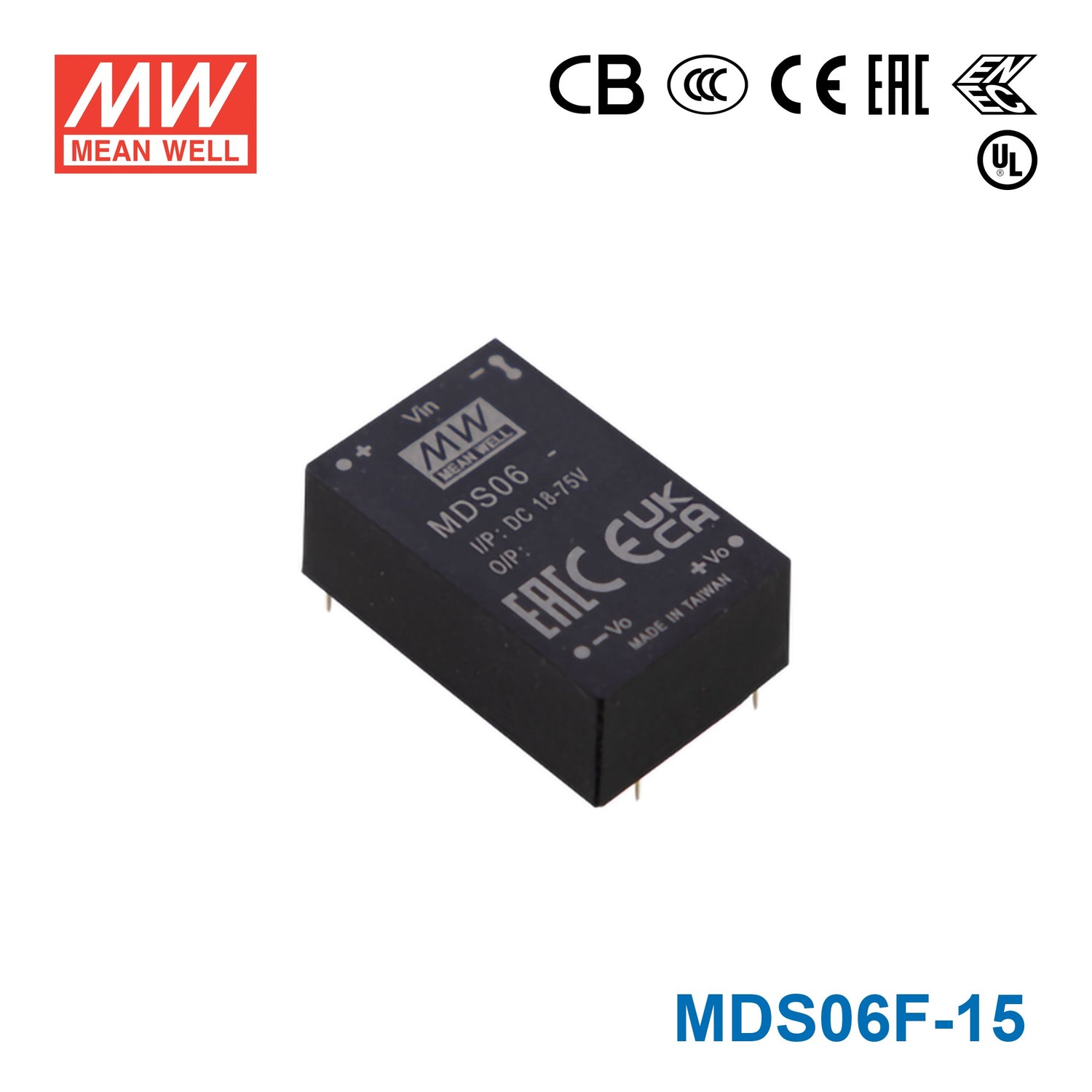

Mean Well MDS06F-15 Medical Grade DC/DC Converter 6W - 9-36V input, 15V output 400mA

15V6WDC/DCMedical Grade

SKU:

MDS06F-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS06F is a 6W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15V output 400mA	6W	15V	0.4A	Indoor	View
Mean Well MDS06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12V output 500mA	6W	12V	0.5A	Indoor	View
