Can I use the MDS06G-05 for a 5V embedded controller or SBC inside industrial equipment?

Yes, it delivers a constant 5V output at up to 1.2A, for 6W total output power. That suits low-power 5V controller boards, embedded processors, and support electronics that stay within those electrical limits.

Is the MDS06G-05 a fit for 5V industrial sensors or communication modules?

It can be used for 5V industrial sensors, communication modules, or interface boards that need regulated constant voltage and draw up to 1.2A. The 18-75VAC input range also supports use in systems with a wider input span than the 9-36VAC models.

Can this converter power low-power medical electronics that require 5V?

The unit is specified as medical grade and provides 5V at up to 1.2A from a 6W converter platform. That makes it suitable for low-power 5V electronics in medical or diagnostic equipment where the load fits the stated output range.

Can the MDS06G-05 be used in outdoor cabinets or washdown areas?

Its operating temperature range is -40C to +90C, which supports wide-temperature operation. But no IP rating is listed, so these specs do not indicate protection against water or dust exposure in outdoor or washdown conditions.

What is the difference between the MDS06G-05, MDS06G-12, and MDS06G-15?

These MDS06G siblings all use the same 18-75VAC input range and 6W power class. The difference is the output: MDS06G-05 is 5V at 1.2A, MDS06G-12 is 12V at 0.5A, and MDS06G-15 is 15V at 0.4A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

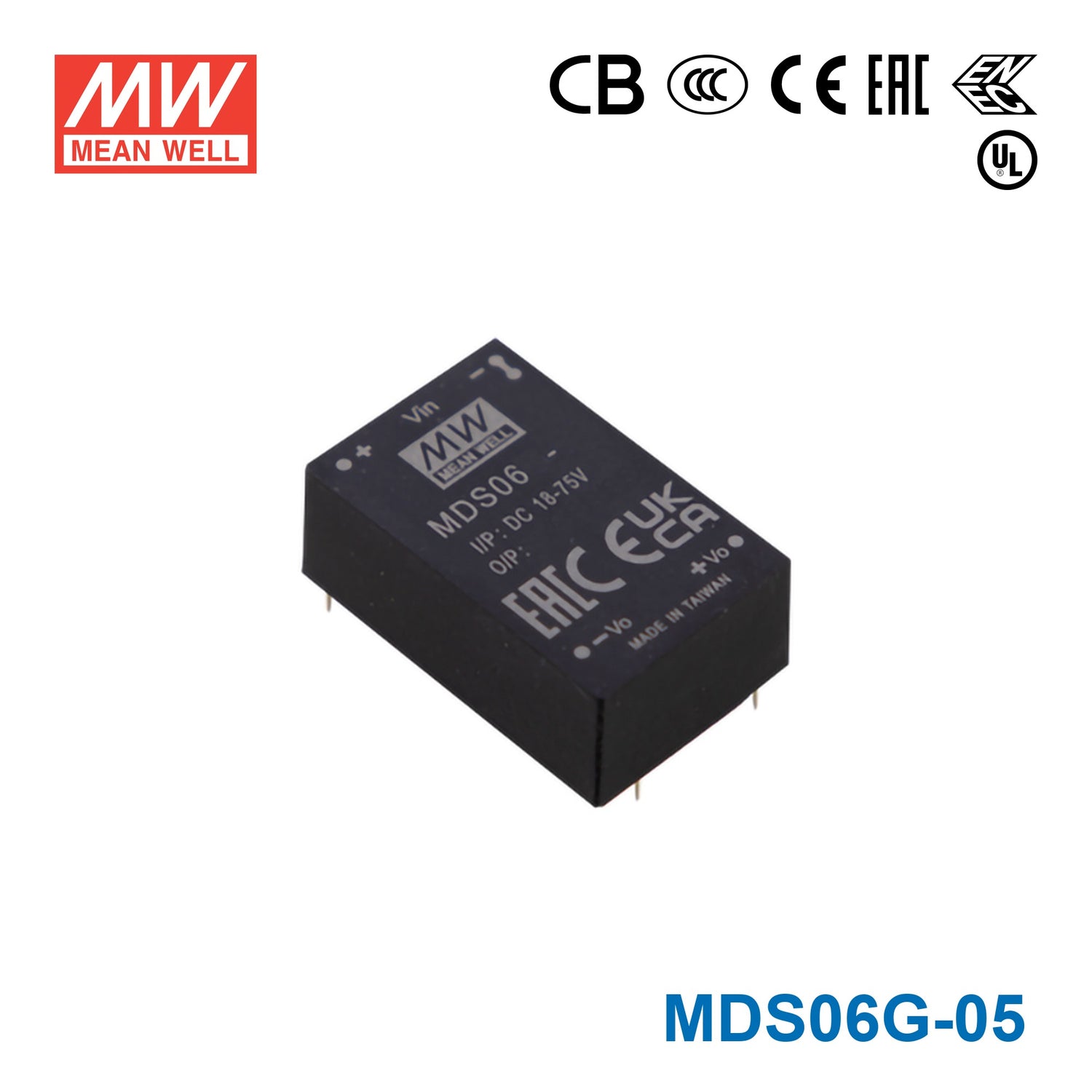

Mean Well MDS06G-05 Medical Grade DC/DC Converter 6W - 18-75V input, 5V output 1.2A

5V6WDC/DCMedical Grade

SKU:

MDS06G-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS06G is a 6W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15V output 400mA	6W	15V	0.4A	Indoor	View
Mean Well MDS06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12V output 500mA	6W	12V	0.5A	Indoor	View
