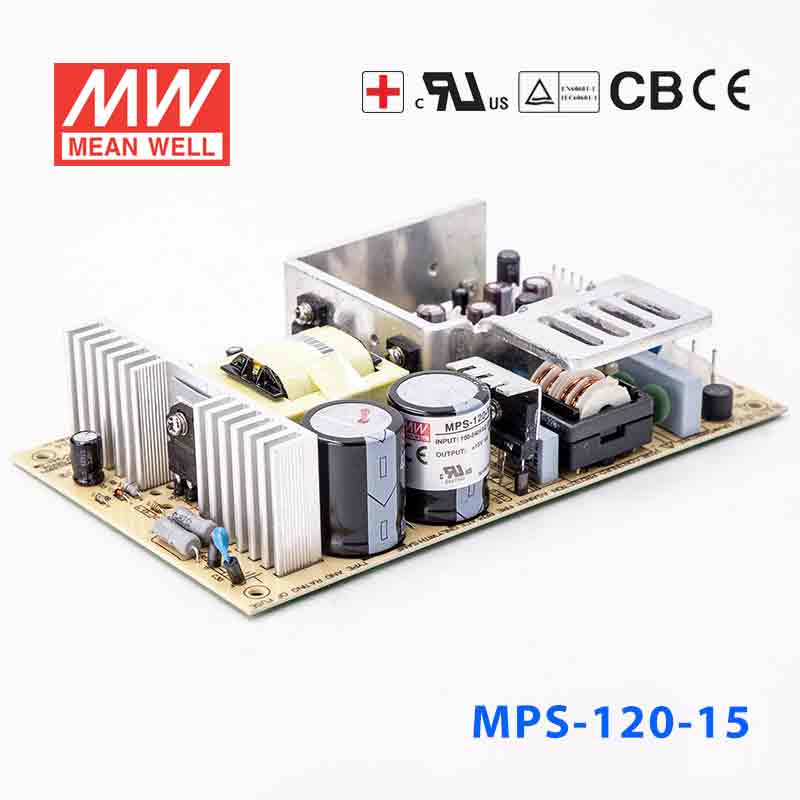

Mean Well MPS-120-15 Power Supply 120W 15V he rated current is based on there being a fan that can provide 25CFM. 8A

SKU MPS-120-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-120-15
Available to order
|

Overview

MPS-120-15 is the 15V output model of this series: rated current 8A, typical efficiency 79%.

Specifications

MPS-120-15Specifications from the official datasheet (2013-08-16 edition)Download datasheet PDF

Output Chart

OUTPUT VOLTAGE
15V
RATED CURRENT
8A
OUTPUT CURRENT MINIMUM LOAD
0A
OUTPUT CURRENT CONVECTION (max.)
5.3A
OUTPUT CURRENT WITH FAN WITH 25CFM FAN (Note 2)Note 2
8A
OUTPUT CURRENT PEAK LOAD WITH 25CFM FAN (Max.) (Note 4)Note 4
8.8A
RIPPLE & NOISE (Max.) (Note 2)Note 2
100mVp-p
VOLTAGE TOLERANCE (Note 3)Note 3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
EFFICIENCY
79%

Specification

AC INPUT VOLTAGE
90~264VAC, 47~440Hz / 127~370VDC
AC INPUT CURRENT (Typ.)
Maximum input current 2.9A at 115VAC, 60Hz or 1.7A at 230VAC, 60Hz with 100% output load
INRUSH CURRENT (Typ.)
Less than 22A at 115VAC or less than 50A at 230VAC under cold start conditions; limited by internal thermistors
SETUP, RISE TIME
800ms, 20ms / 230VAC at full load; 2000ms, 50ms / 115VAC at full load
HOLD-UP TIME (Typ.)
80ms / 230VAC at full load; 14ms / 115VAC at full load
LEAKAGE CURRENT (Note 7)Note 7
Earth leakage current < 150μA/264VAC, Touch current < 100μA/264VAC
DC OUTPUT ADJ. RANGE
-5%~+10% rated output voltage, adjustable by potential meter
OVERLOAD PROTECTION
Protected against short circuit and overload; hiccup mode at 120~160% rated load (MPS-120), recovers automatically after fault condition is removed
OVER VOLTAGE PROTECTION
120%~140% rated output voltage, shut down
POWER GOOD / FAIL SIGNAL (OPTIONAL)
TTL high for power good, TTL low for power fail; +5V TTL signal sent 10~500ms after output reaches 90% of rated value; goes low at least 1ms before output drops below 90%
WORKING TEMP.
-20~70℃ (refer to derating curves)
WORKING HUMIDITY
20~90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40~+85℃, 10~90% RH
TEMP. COEFFICIENT
±0.04%/℃ on all outputs at full load (0~50℃)
VIBRATION
2G, 10Hz~500Hz, 10-minute cycle; 6 testing cycles (60 minutes) each along X, Y, Z axes
SAFETY STANDARDS
Medical: UL60601-1, TUV EN60601-1, IEC60601-1 approved; Commercial: also designed referring to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE
I/P-O/P:4000VAC, I/P-FG:2000VAC, O/P-FG:500VAC
ISOLATION RESISTANCE
>100M Ohms for I/P-O/P, I/P-FG, O/P-FG at 500VDC
EMI COMPLIANCE
Conducted & Radiation: EN55011 Class B, EN55022 Class B; Harmonic distortion: EN61000-3-2; Voltage flicker: EN61000-3-3
EMS COMPLIANCE
ESD air: EN61000-4-2 Level 3, 8KV; ESD contact: EN61000-4-2 Level 2, 4KV; RF field susceptibility: EN61000-4-3 Level 2, 3V/m, Level 3, 10V/m; EFT/Burst: EN61000-4-4 Level 2, 1KV/5KHz, Level 3, 2KV/5KHz; Lightning/Surge: EN61000-4-5 Level 2, 2KV/Line-Line, Level 4, 4KV/Line-Earth; Conducted RF susceptibility: EN61000-4-6 Level 2, 3Vrms/m, Level 3, 10Vrms/m; Magnetic field immunity: EN61000-4-8 Level 2, 3A/m, Level 3, 10A/m; Voltage dip, interruption: EN61000-4-11 compliance; Digital phone carrier immunity: ENV50204 Level 2, 3V/m, 900MHz, Level 3, 10A/m, 900MHz
MTBF
262,100 hours min. at full load and 25℃ of ambient temperature, MIL-HDBK-217F
DIMENSION (L*W*H)
177.8x107.95x35.5mm or 7"x4.25"x1.4"
PACKING
0.55Kg; 24pcs/14.5Kg/0.99CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  5. 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
  6. 6. Heat Sink HS1,HS2 can not be shorted.
  7. 7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-120-15 1 2 0 W M e d i c a l series
1 2 0 W M e d i c a l series

Downloads

FAQ

Can I use the MPS-120-15 for 15V industrial control or test equipment?

Yes, it is built for constant-voltage 15V applications and is rated for 8A with 120W total power with a 25CFM fan, or 5.3A with convection cooling. That makes it a fit for industrial control, bench, or test equipment that specifically requires 15V DC and stays within those limits. It is not interchangeable with 12V or 24V loads that need a different nominal output.

Is the MPS-120-15 suitable for embedded systems or instrumentation that need 15V DC?

It can work for embedded or instrumentation loads designed around a 15V constant-voltage input. The available output is 8A with a 25CFM fan (5.3A by convection), with 120W total capacity, so it suits moderate-power 15V electronics rather than higher-current 200W-class systems. The 90-264VAC input is also useful when equipment may be deployed across different mains ranges.

Can the MPS-120-15 be used for 15V automation accessories inside a machine enclosure?

It can be used where the machine or control assembly needs a regulated 15V source and the total load remains within 8A and 120W with a 25CFM fan, or 5.3A with convection cooling. That makes it suitable for 15V automation accessories, sensors, or support electronics that are specified for constant-voltage operation. Buyers should size it to the actual 15V load, not just to the series name.

What are the main spec differences between the MPS-120-15 and related MPS models?

The listed MPS-120-15 is 120W at 15V and 8A. Nearby options include MPS-120-12 at 120W and 10A, MPS-120-24 at 120W and 5A, MPS-120-48 at 120W and 2.5A, MPS-120-5 at 110W and 22A, and MPS-120-3.3 at 79.2W and 24A. These ratings apply with a 25CFM fan; with convection cooling the MPS-120-15 is limited to 5.3A.

Can the MPS-120-15 handle wider ambient conditions, and is it okay outdoors?

Its rated operating temperature range is -20°C to +70°C with derating per the derating curves, so it supports a broad temperature band in controlled equipment conditions. The provided specs do not include an IP rating, which means outdoor exposure should not be assumed. It is better suited to protected indoor installations or enclosed systems.
