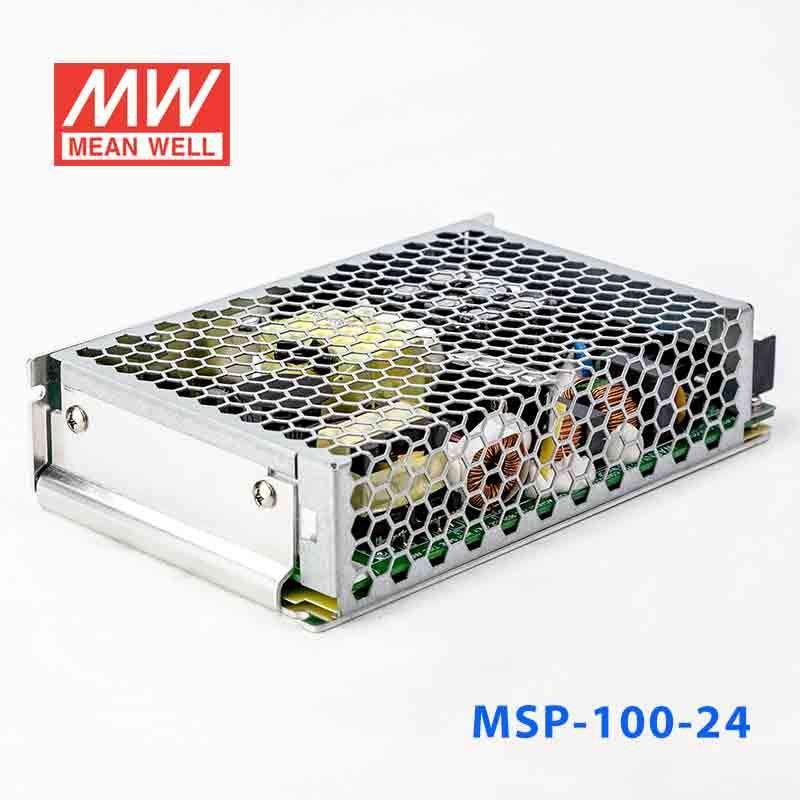

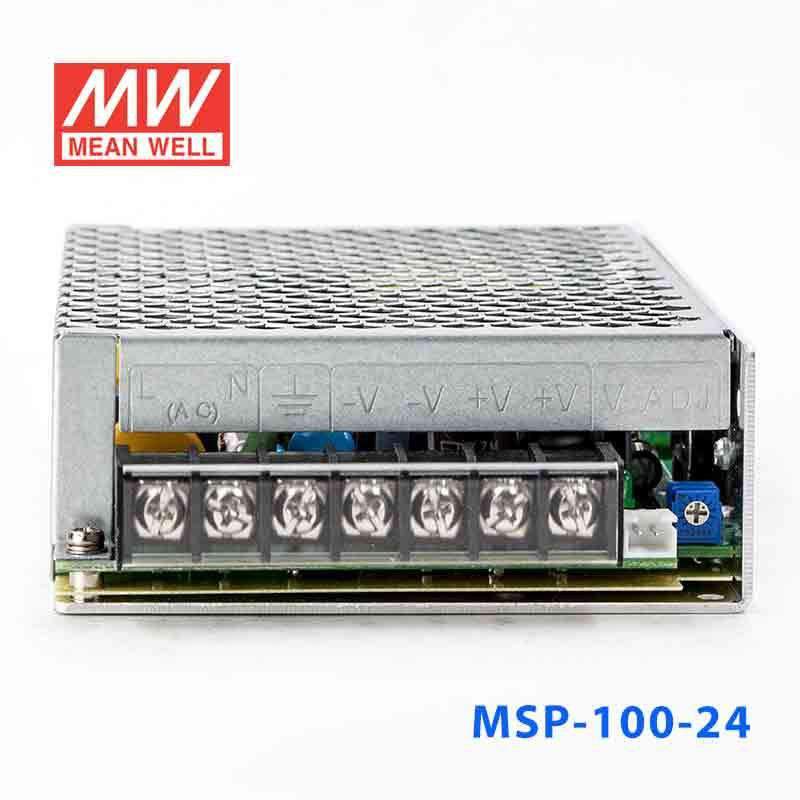

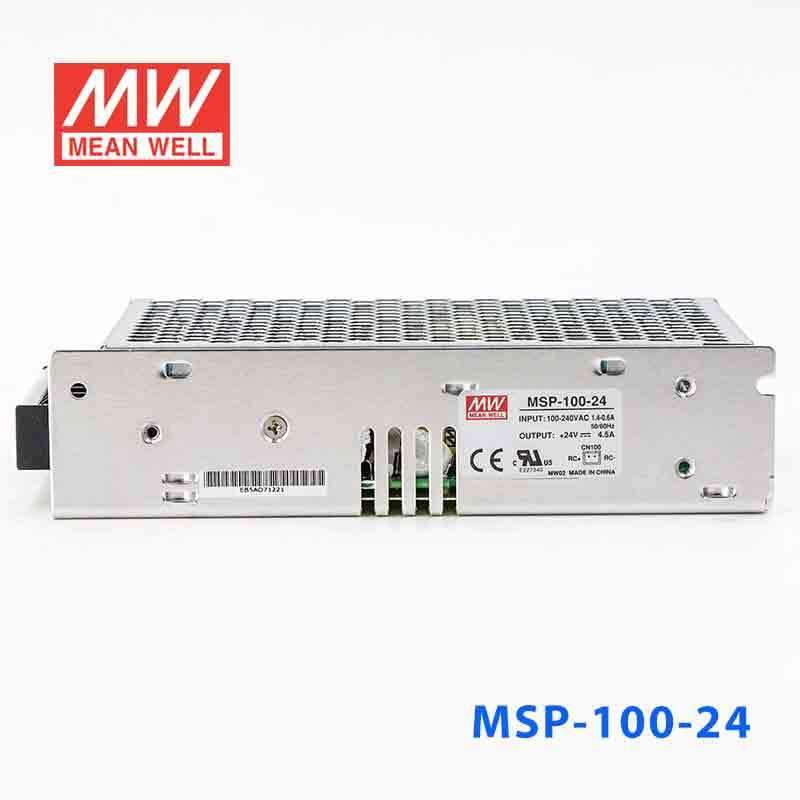

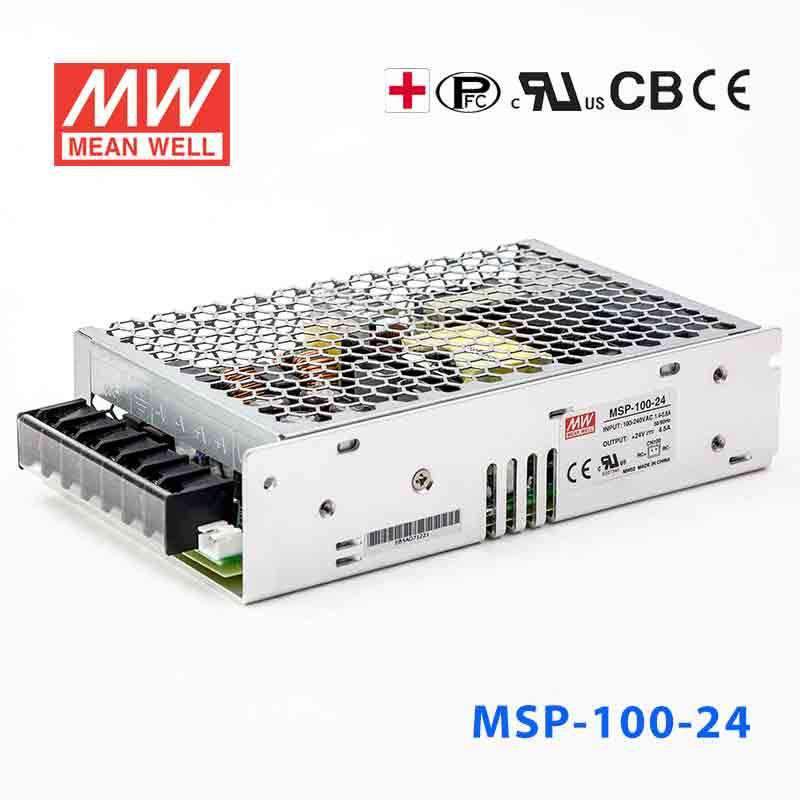

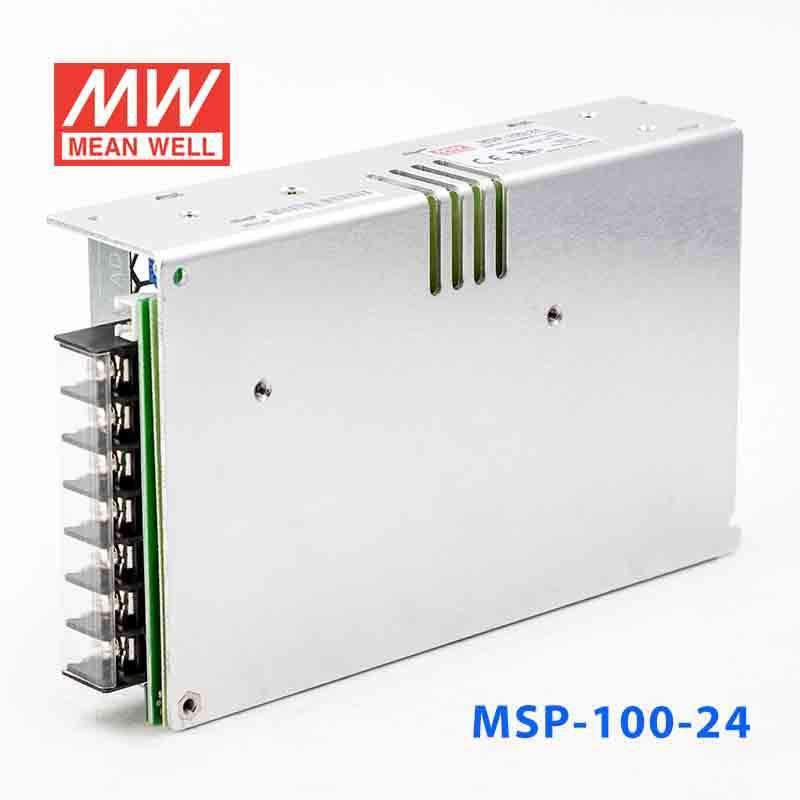

Mean Well MSP-100-24 Power Supply 108W 24V

Q: Can I use the MSP-100-24 for 24V PLC or industrial automation equipment?

Yes, if the equipment needs constant 24V DC and the total load stays within 4.5A. This unit is rated for 108W, which makes it suitable for 24V PLC-related loads, automation controls, or industrial electronics that match those output limits.

Q: Is the MSP-100-24 a fit for 24V sensors, relays, or control modules?

It can be used for 24V control modules, relay assemblies, or sensor-powered systems when the combined demand does not exceed 108W. The output is fixed at 24V constant voltage with a maximum current of 4.5A.

Q: Can this power supply support 24V embedded or IT equipment with global AC input requirements?

It is designed for 85-264VAC input, so it supports a wide AC input range for installations that need that flexibility. The DC output remains 24V constant voltage up to 4.5A, with 108W available to the connected load.

Q: Can the MSP-100-24 be used in harsh indoor environments or exposed outdoor locations?

The specified operating temperature is -40°C to +60°C, which covers a broad environmental range for indoor equipment. No IP rating is listed in the provided specs, so exposed outdoor use is not established by this data alone.

Q: What are the voltage and current differences across the MSP-100 family?

The MSP-100-24 version provides 24V, 4.5A, and 108W. The other MSP-100 models are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 36V 2.9A 104.4W, and 48V 2.2A 105.6W.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-100-24

Model

100W 24V

SKU: MSP-100-24

1000W 24V

SKU: MSP-1000-24

200W 24V

SKU: MSP-200-24

300W 24V

SKU: MSP-300-24

450W 24V

SKU: MSP-450-24

600W 24V

SKU: MSP-600-24

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The MSP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).

Key Features

✓ 159mm width — DIN rail TS-35 compatible
✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

108 Watt
Output Voltage

24 Volt
Rated Current

4.5 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~60°C
Warranty

5 Year
Length

15.9 cm
Width

9.7 cm
Height

3.8 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-100-24 for 24V PLC or industrial automation equipment?

Yes, if the equipment needs constant 24V DC and the total load stays within 4.5A. This unit is rated for 108W, which makes it suitable for 24V PLC-related loads, automation controls, or industrial electronics that match those output limits.

Is the MSP-100-24 a fit for 24V sensors, relays, or control modules?

It can be used for 24V control modules, relay assemblies, or sensor-powered systems when the combined demand does not exceed 108W. The output is fixed at 24V constant voltage with a maximum current of 4.5A.

Can this power supply support 24V embedded or IT equipment with global AC input requirements?

It is designed for 85-264VAC input, so it supports a wide AC input range for installations that need that flexibility. The DC output remains 24V constant voltage up to 4.5A, with 108W available to the connected load.

Can the MSP-100-24 be used in harsh indoor environments or exposed outdoor locations?

The specified operating temperature is -40°C to +60°C, which covers a broad environmental range for indoor equipment. No IP rating is listed in the provided specs, so exposed outdoor use is not established by this data alone.

What are the voltage and current differences across the MSP-100 family?

The MSP-100-24 version provides 24V, 4.5A, and 108W. The other MSP-100 models are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 36V 2.9A 104.4W, and 48V 2.2A 105.6W.

Model	Power	Voltage	Current
Mean Well MSP-100-7.5 Power Supply 101.3W 7.5V	101.3W	7.5V	13.5A	View
Mean Well MSP-100-5 Power Supply 85W 5V	85W	5V	17A	View
Mean Well MSP-100-48 Power Supply 105.6W 48V	105.6W	48V	2.2A	View
Mean Well MSP-100-36 Power Supply 104.4W 36V	104.4W	36V	2.9A	View
Mean Well MSP-100-3.3 Power Supply 66W 3.3V	66W	3.3V	20A	View
Mean Well MSP-100-15 Power Supply 105W 15V	105W	15V	7A	View
Mean Well MSP-100-12 Power Supply 102W 12V	102W	12V	8.5A	View
