Mean Well

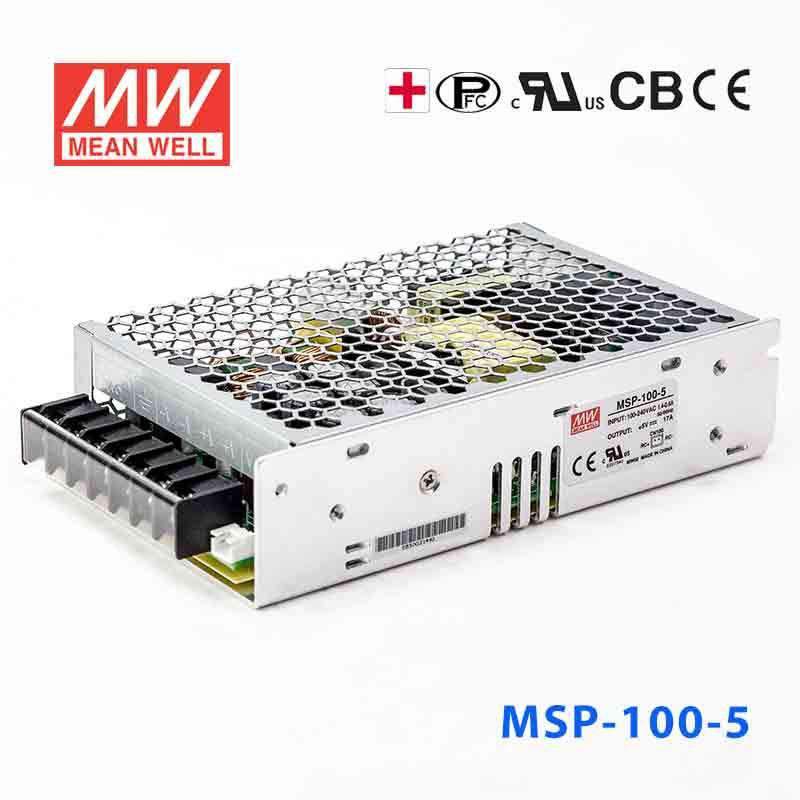

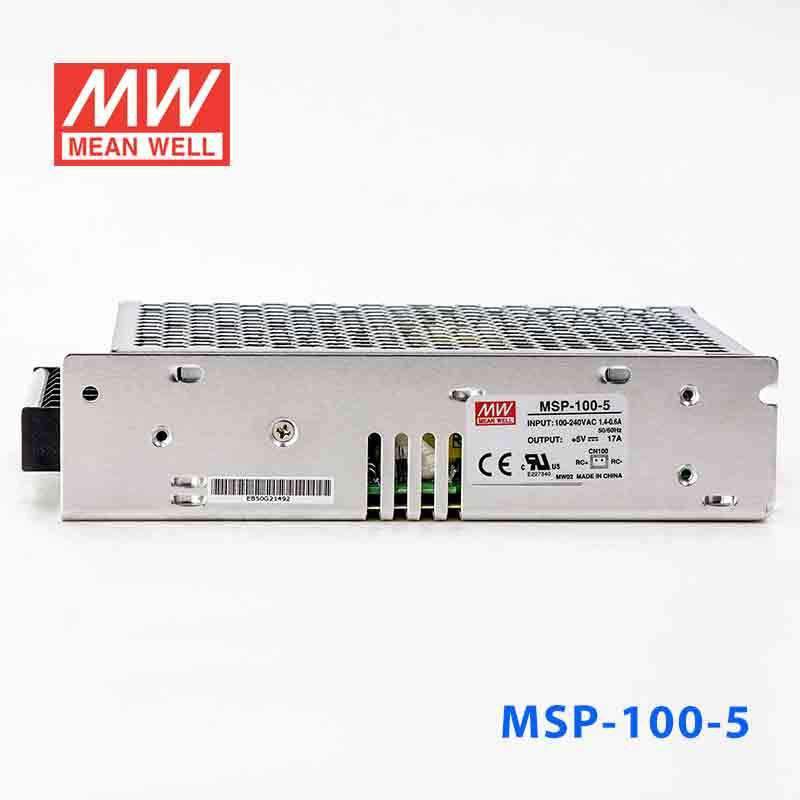

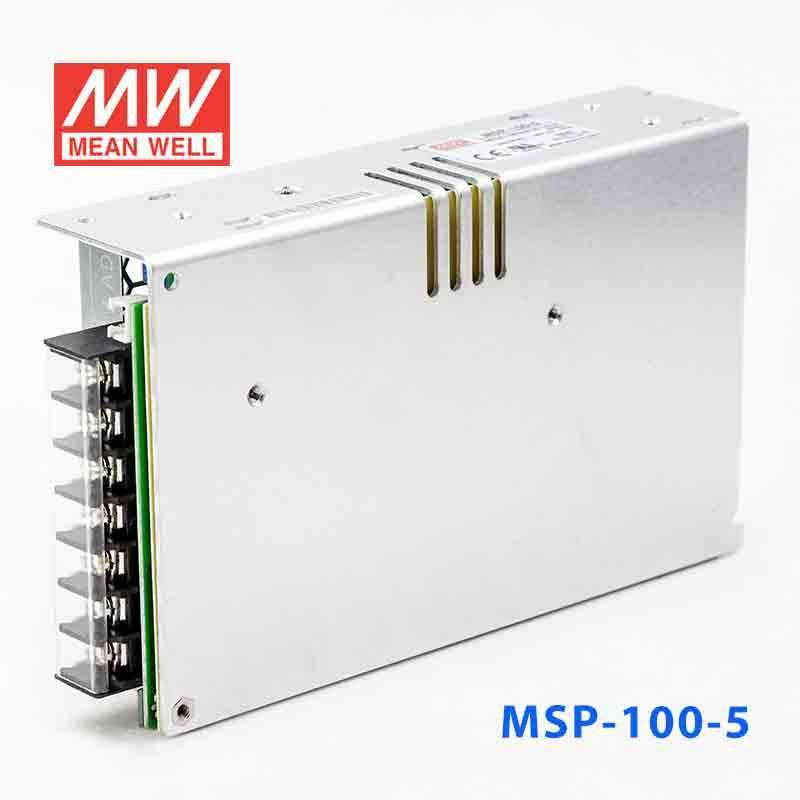

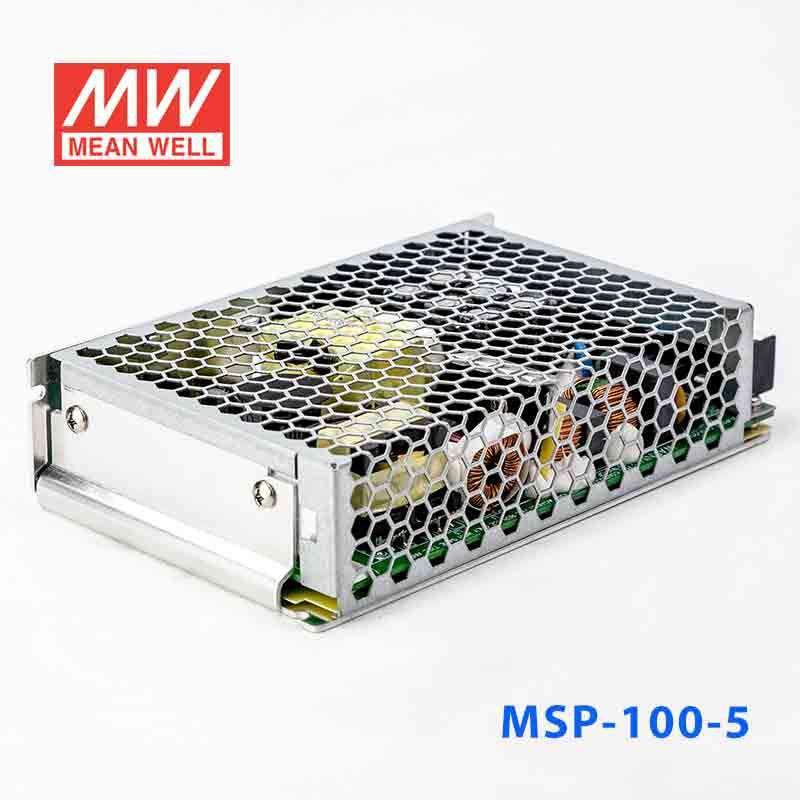

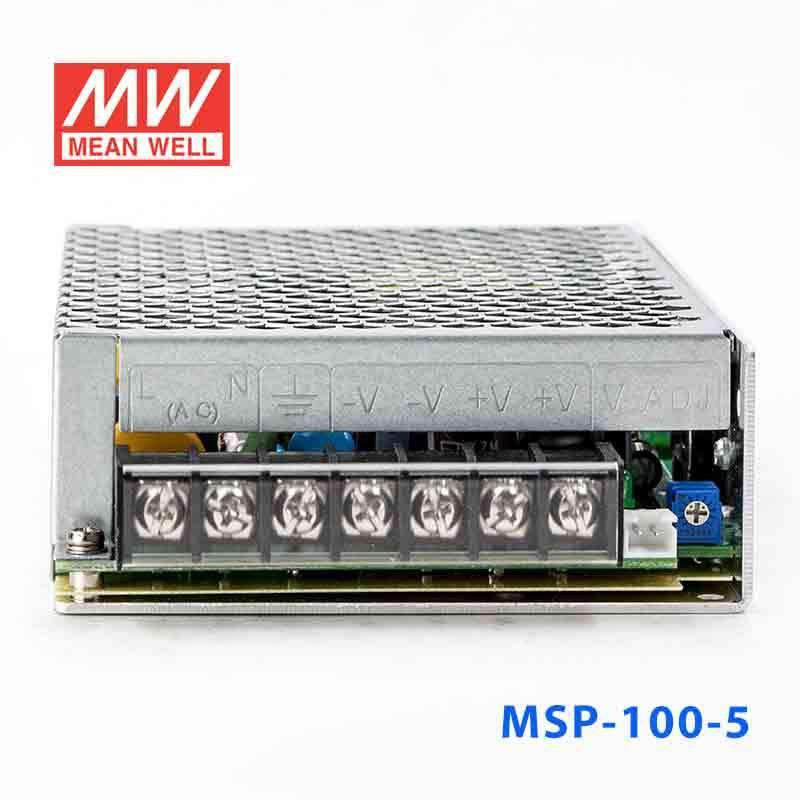

Mean Well MSP-100-5 Power Supply 85W 5V 17A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W
SKU MSP-100-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

MSP-100-5
Available to order
|

Overview

MSP-100-5 is the 5V output model of this series: rated current 17A, rated power 85W, typical efficiency 83%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Protections: Over temperature (optional)
  • Cooling by free air convection
  • 1U low profile 38mm
  • Medical safety approved (MOOP level)
  • Built-in remote ON-OFF control
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • 5 years warranty

Specifications

MSP-100-5Specifications from the official datasheet (2025-03-17 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
17A
CURRENT RANGE
0 ~ 17A
RATED POWER
85W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.8V
VOLTAGE TOLERANCENote.3
+2.5,-3.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
83%
AC CURRENT (Typ.)
1.2A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 65A/230VAC
LEAKAGE CURRENTNote.6
Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE
6 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL
RC+/RC- : 0 ~ 0.8V= power on ; 4 ~ 10V = power off

ENVIRONMENT

WORKING TEMP.
-40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.4
IEC 60601-1:2005+A1+A2, ANSI/AAMI ES 60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF
2272.8K hrs min. Telcordia SR-332 (Bellcore) ; 352.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
159*97*38mm (L*W*H)
PACKING
0.55Kg; 24pcs/ 14.3Kg/0.9CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. Touch current was measured from primary input to DC output.
  7. 7. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-100-5 Mechanical Specification
Mechanical Specification
MSP-100-5 Block Diagram
Block Diagram
MSP-100-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MSP-100-5 for a 5V industrial controller or embedded computer system?

Yes, this model is a constant voltage 5V supply rated for 17A and 85W, which fits 5V industrial controllers, embedded computers, and other 5V DC loads that stay within that output range. It also has a wide 85-264VAC input, which helps when the AC source varies across sites or regions.

Is the MSP-100-5 suitable for powering multiple 5V automation devices from one supply?

It can be used for multiple 5V automation loads as long as the combined demand does not exceed 17A or 85W. Because it is a constant voltage unit, it is intended for equipment designed to run from a regulated 5V DC source.

Can this 5V power supply be used in medical or lab equipment?

It can be considered for 5V medical or lab equipment because the unit is medical safety approved (MOOP level) to IEC 60601-1, ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 60601-1 and EAC TP TC 004. The output is 5V at up to 17A, so the connected equipment needs to match that voltage and stay within the 85W rating.

Would the MSP-100-5 work for 5V test benches or electronics manufacturing fixtures?

It can fit 5V bench fixtures and production test stations that need a constant 5V output up to 17A. Its no load power consumption is listed as less than 0.5W, which may be useful in stations that spend time in standby.

Is the MSP-100-5 meant for outdoor or harsh-environment use?

The operating temperature range is -40°C to +60°C, so it is specified for a wide temperature span. No IP rating is listed in these specs, so outdoor or washdown suitability should not be assumed from this data alone.
