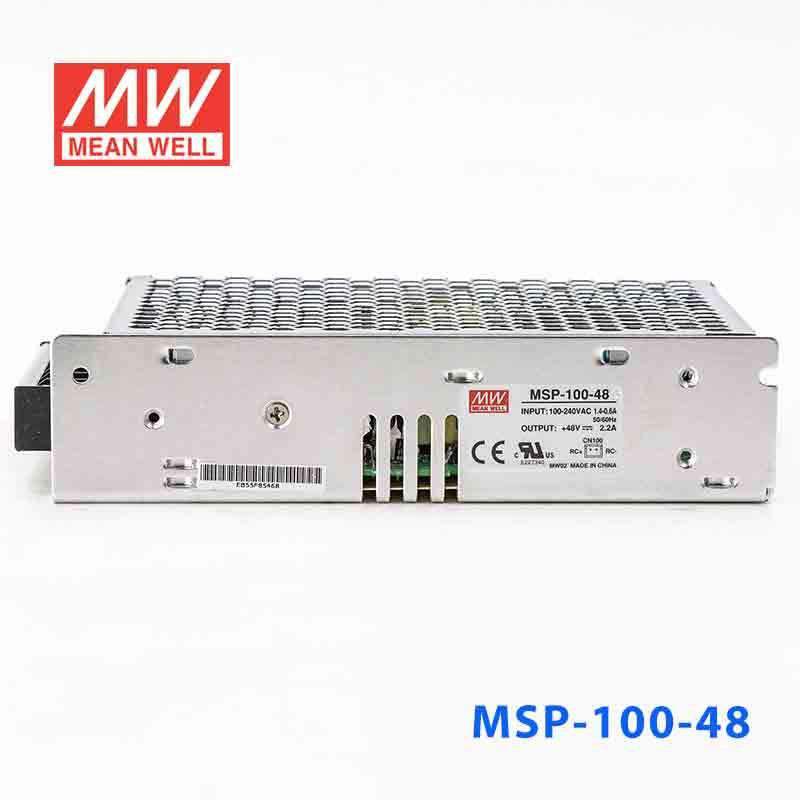

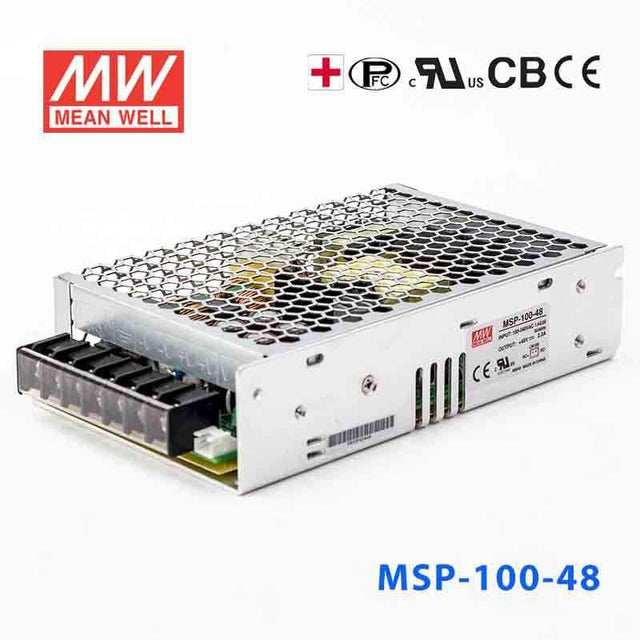

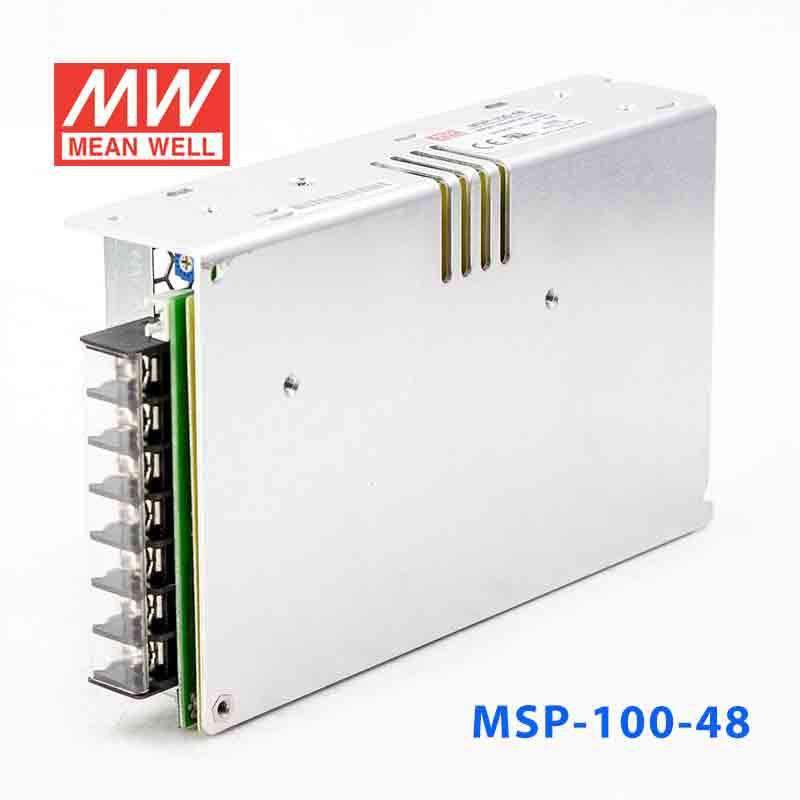

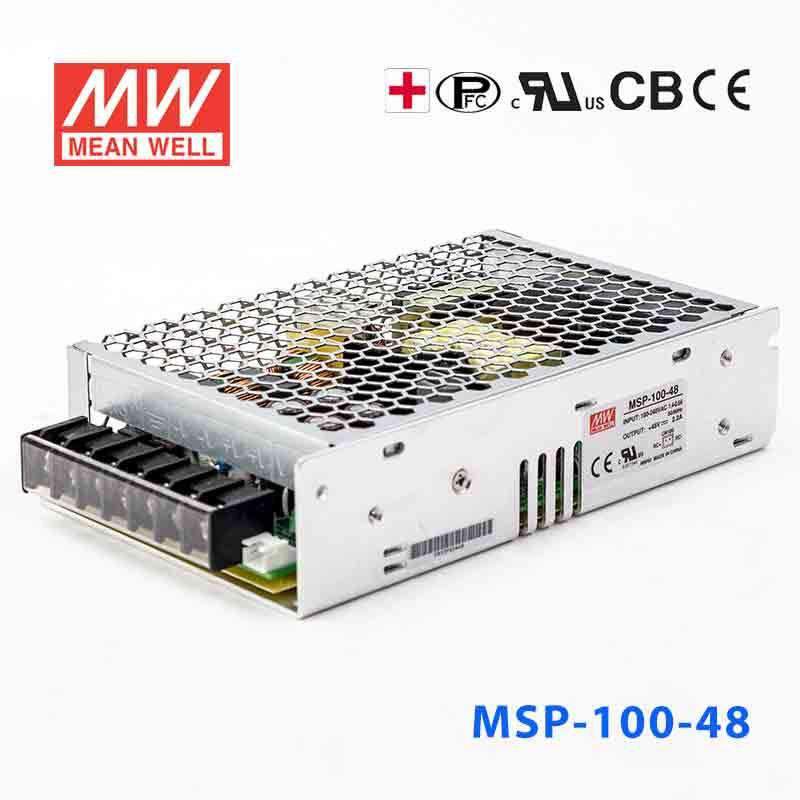

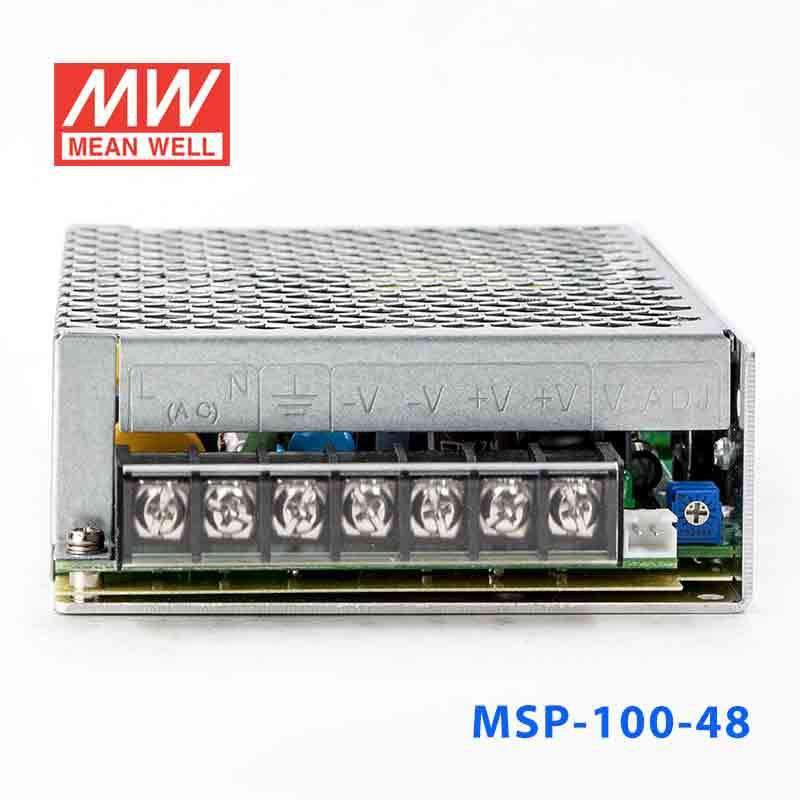

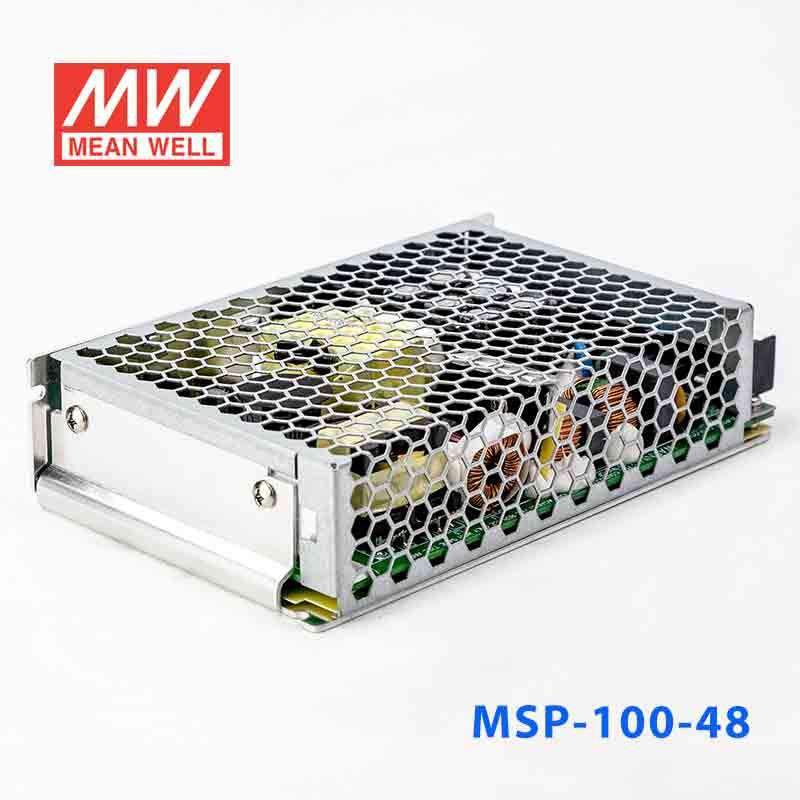

Mean Well MSP-100-48 Power Supply 105.6W 48V

Q: Can I use the MSP-100-48 for 48V telecom or network power applications?

Yes, if the equipment requires constant 48V DC and the total load does not exceed 2.2A. This model provides 105.6W, which fits lower-power 48V telecom, network, or IT hardware that matches those electrical limits.

Q: Is the MSP-100-48 suitable for 48V industrial automation or control equipment?

It can be used for 48V automation or control devices that need a constant-voltage supply and remain within 105.6W. The maximum output is 48V at 2.2A, so the load has to fit that rating.

Q: Can this model power 48V embedded or communications hardware in mixed AC environments?

Yes, the input range is 85-264VAC, which supports use where AC supply conditions vary. The DC output is fixed at 48V constant voltage with up to 2.2A available.

Q: Is the MSP-100-48 rated for outdoor environments?

The unit is specified for operation from -40°C to +60°C, so the temperature range is broad. However, no IP rating is listed in the supplied specs, so outdoor suitability is not confirmed from this product data.

Q: How does the MSP-100-48 compare to the other MSP-100 output options?

The MSP-100-48 is the highest-voltage MSP-100 version at 48V, 2.2A, and 105.6W. Other MSP-100 models are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 24V 4.5A 108W, and 36V 2.9A 104.4W.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-100-48

Model

100W 48V

SKU: MSP-100-48

1000W 48V

SKU: MSP-1000-48

200W 48V

SKU: MSP-200-48

300W 48V

SKU: MSP-300-48

450W 48V

SKU: MSP-450-48

600W 48V

SKU: MSP-600-48

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The MSP-100 is a 100W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).

Key Features

✓ 159mm width — DIN rail TS-35 compatible
✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

105.6 Watt
Output Voltage

48 Volt
Rated Current

2.2 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~60°C
Warranty

5 Year
Length

15.9 cm
Width

9.7 cm
Height

3.8 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-100-48 for 48V telecom or network power applications?

Yes, if the equipment requires constant 48V DC and the total load does not exceed 2.2A. This model provides 105.6W, which fits lower-power 48V telecom, network, or IT hardware that matches those electrical limits.

Is the MSP-100-48 suitable for 48V industrial automation or control equipment?

It can be used for 48V automation or control devices that need a constant-voltage supply and remain within 105.6W. The maximum output is 48V at 2.2A, so the load has to fit that rating.

Can this model power 48V embedded or communications hardware in mixed AC environments?

Yes, the input range is 85-264VAC, which supports use where AC supply conditions vary. The DC output is fixed at 48V constant voltage with up to 2.2A available.

Is the MSP-100-48 rated for outdoor environments?

The unit is specified for operation from -40°C to +60°C, so the temperature range is broad. However, no IP rating is listed in the supplied specs, so outdoor suitability is not confirmed from this product data.

How does the MSP-100-48 compare to the other MSP-100 output options?

The MSP-100-48 is the highest-voltage MSP-100 version at 48V, 2.2A, and 105.6W. Other MSP-100 models are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 24V 4.5A 108W, and 36V 2.9A 104.4W.

Model	Power	Voltage	Current
Mean Well MSP-100-7.5 Power Supply 101.3W 7.5V	101.3W	7.5V	13.5A	View
Mean Well MSP-100-5 Power Supply 85W 5V	85W	5V	17A	View
Mean Well MSP-100-36 Power Supply 104.4W 36V	104.4W	36V	2.9A	View
Mean Well MSP-100-3.3 Power Supply 66W 3.3V	66W	3.3V	20A	View
Mean Well MSP-100-24 Power Supply 108W 24V	108W	24V	4.5A	View
Mean Well MSP-100-15 Power Supply 105W 15V	105W	15V	7A	View
Mean Well MSP-100-12 Power Supply 102W 12V	102W	12V	8.5A	View
