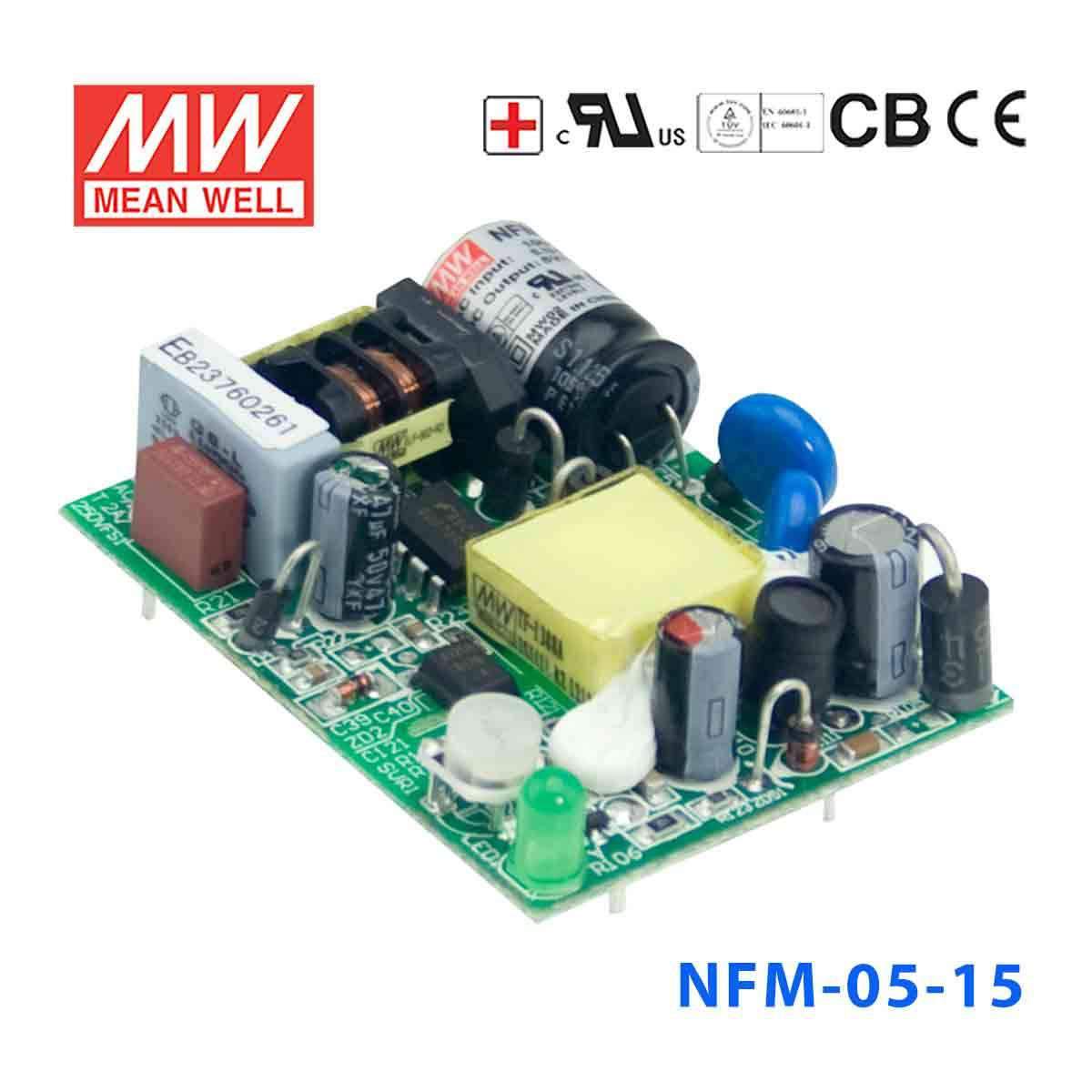

Mean Well NFM-05-15 Power Supply 5W 15V 330mA

SKU NFM-05-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by MFM-05-15
Available to order
|

Overview

NFM-05-15 is the 15V output model of this series: rated current 0.33A, rated power 4.95W, typical efficiency 74%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation classⅡ
  • Medical safety approved (2 x MOPP between primary to secondary)
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • Suitable for BF application with appropriate system consideration
  • 3 years warranty

Specifications

NFM-05-15Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
0.33A
CURRENT RANGE
0 ~ 0.33A
RATED POWER
4.95W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
74%
AC CURRENT (Typ.)
0.12A/115VAC 0.08A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENTNote.6
Touch current < 80μA/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURENote.5
Tj 145℃ typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF
738.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
58*45*19.1mm (L*W*H)
PACKING
0.03Kg; 120pcs/5.0Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
  6. 6. Touch current was measured from primary input to DC output.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NFM-05-15 Mechanical Specification
Mechanical Specification
NFM-05-15 Block Diagram
Block Diagram
NFM-05-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NFM-05-15 for a small 15V analog or control circuit?

Yes, if the circuit requires a regulated 15V input and stays within 0.33A and 4.95W. That makes it a fit for low-power analog boards, signal conditioning circuits, or compact control electronics designed around 15V DC.

Is the NFM-05-15 a good choice for 15V industrial sensors or transmitter electronics?

It can work for low-power 15V sensing or transmitter electronics when the total load is no more than 0.33A or 4.95W. Its constant voltage output is intended for equipment that expects a fixed 15V supply rather than a wide output range.

Can this power supply run a compact embedded system or instrument module that needs 15V DC?

It is suitable for compact 15V embedded or instrument modules with modest power demand, up to 0.33A and 4.95W. If the module has a heavier steady load, the higher-wattage 15V options in the same family are a better match.

What is the difference between the NFM-05-15 and the other NFM series models?

In the 5W group, the listed options are NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; and NFM-05-24 at 5.52W, 24V, 0.23A. The same family also includes higher-output versions such as NFM-10-15 at 10.05W and 0.67A, NFM-15-15 at 15W and 1A, and NFM-20-15 listed at 14.85W.

Can the NFM-05-15 be used in harsh indoor conditions or outdoor installations?

Its specified operating range is -20°C to +70°C, which supports use in equipment exposed to a wide temperature span. However, no IP rating is listed, so the published specs do not confirm suitability for direct outdoor exposure, moisture, or dust-heavy environments.
