Mean Well

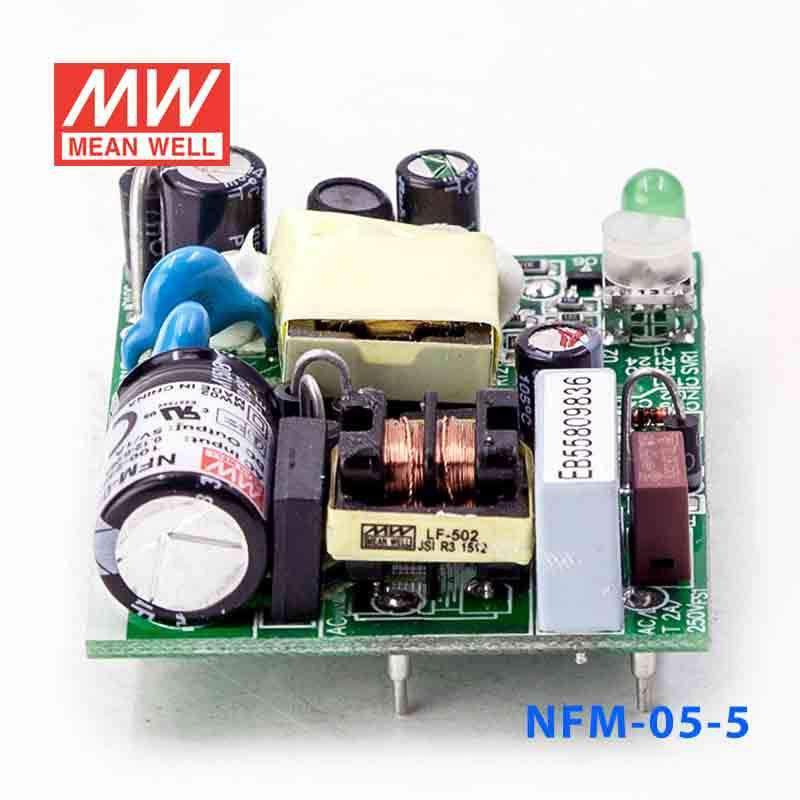

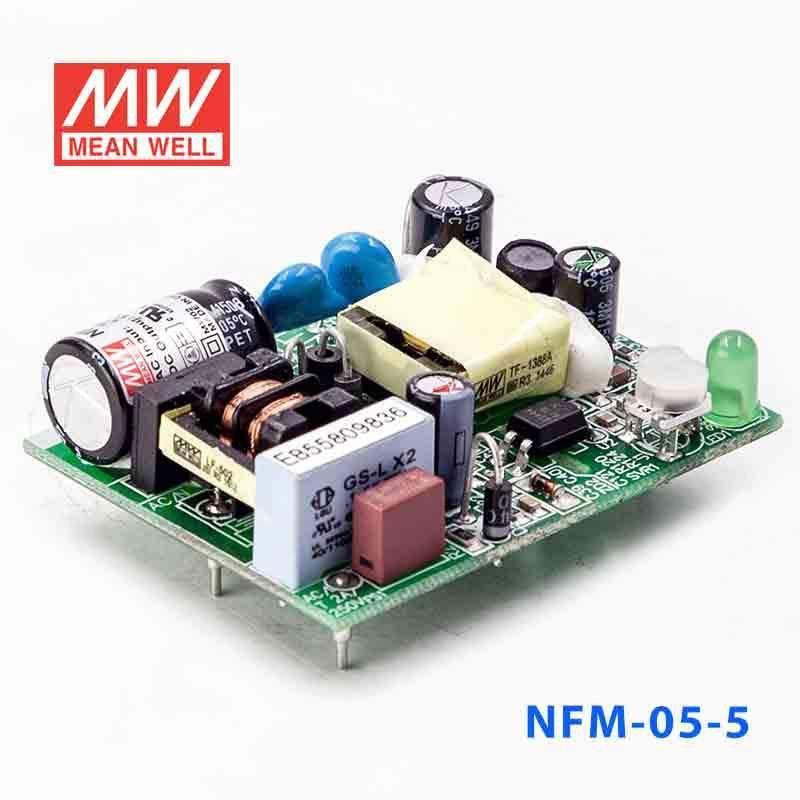

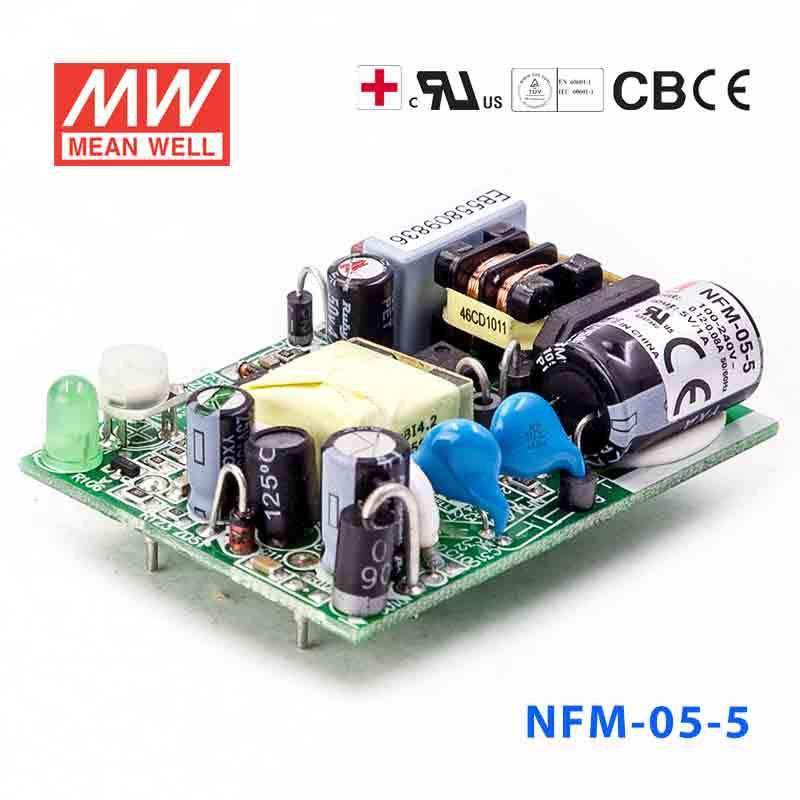

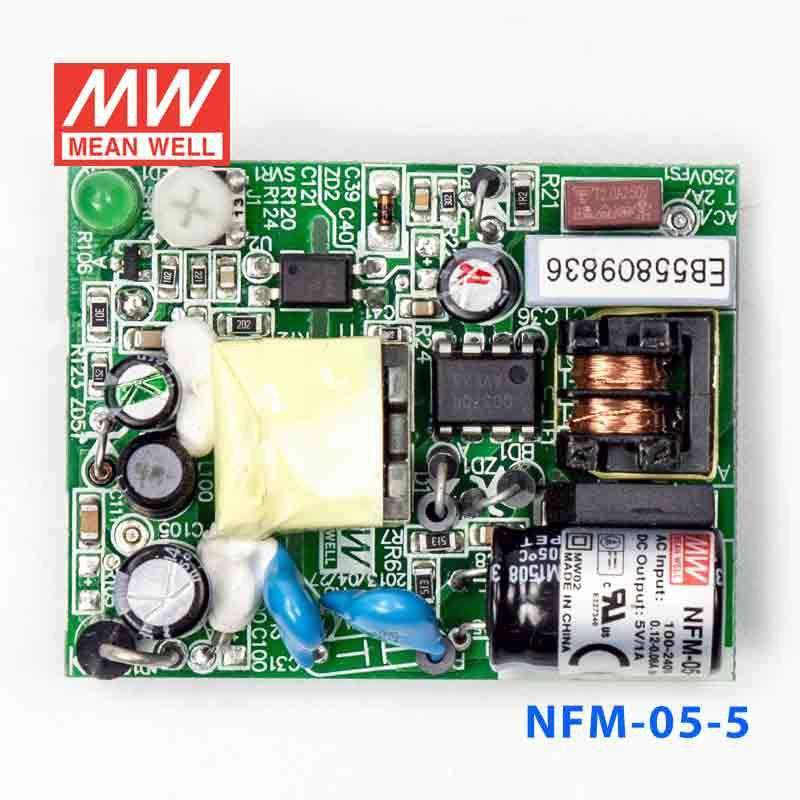

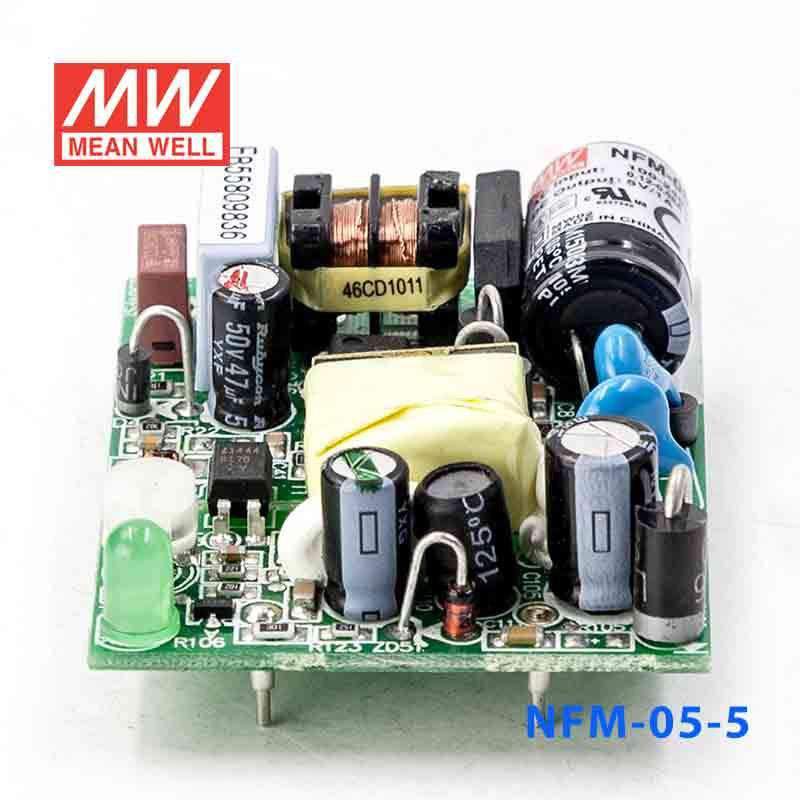

Mean Well NFM-05-5 Power Supply 5W 5V 1A

SKU NFM-05-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by MFM-05-5
Available to order
|

Overview

NFM-05-5 is the 5V output model of this series: rated current 1A, rated power 5W, typical efficiency 71%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation classⅡ
  • Medical safety approved (2 x MOPP between primary to secondary)
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • Suitable for BF application with appropriate system consideration
  • 3 years warranty

Specifications

NFM-05-5Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
1A
CURRENT RANGE
0 ~ 1A
RATED POWER
5W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
71%
AC CURRENT (Typ.)
0.12A/115VAC 0.08A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENTNote.6
Touch current < 80μA/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURENote.5
Tj 145℃ typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF
738.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
58*45*19.1mm (L*W*H)
PACKING
0.03Kg; 120pcs/5.0Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
  6. 6. Touch current was measured from primary input to DC output.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NFM-05-5 Mechanical Specification
Mechanical Specification
NFM-05-5 Block Diagram
Block Diagram
NFM-05-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NFM-05-5 for a 5V microcontroller or embedded system?

This unit outputs 5V constant voltage at up to 1A, with 5W total power. That makes it a fit for low-power 5V embedded systems, controller boards, and logic hardware that stay within those limits.

Is the NFM-05-5 suitable for a small USB-class 5V electronics load?

It is suitable for 5V electronics when the load does not exceed 1A or 5W. The fixed 5V constant-voltage output is appropriate for devices designed for a regulated 5V supply rail.

Would this 5V model work for compact industrial interface electronics?

Yes, for compact 5V interface, indicator, or communication electronics that fit within the 1A output limit. The 58.0 x 45.0 x 19.1 mm dimensions also make it practical where internal mounting space is tight.

Can the NFM-05-5 be used in equipment shipped to regions with different AC mains?

The input is rated at 85-264VAC, which covers a broad AC input range. That is useful for 5V equipment intended for deployment across sites with different mains voltages.

What are the main differences between the NFM-05-5 and other NFM models?

At the lower end of the range, the series includes NFM-05-3.3 at 4.125W, 3.3V, 1.25A; this NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; and NFM-05-24 at 5.52W, 24V, 0.23A. Mid-range models include NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. Higher-output options include NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; and NFM-15-24 at 15.12W, 24V, 0.63A. The top group includes NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W; and NFM-20-24 at 22.08W, 24V, 0.92A.

Is the NFM-05-5 intended for outdoor exposure?

Its operating temperature is specified from -20°C to +70°C, so temperature performance is defined within that range. The provided data does not list an IP rating, so outdoor dust and water protection are not established by these specs.
