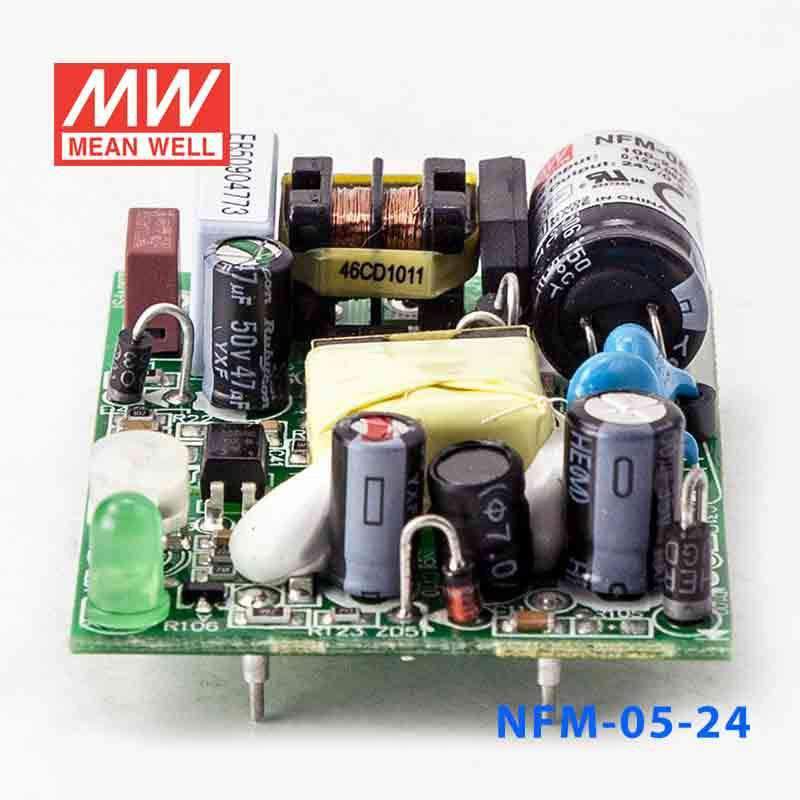

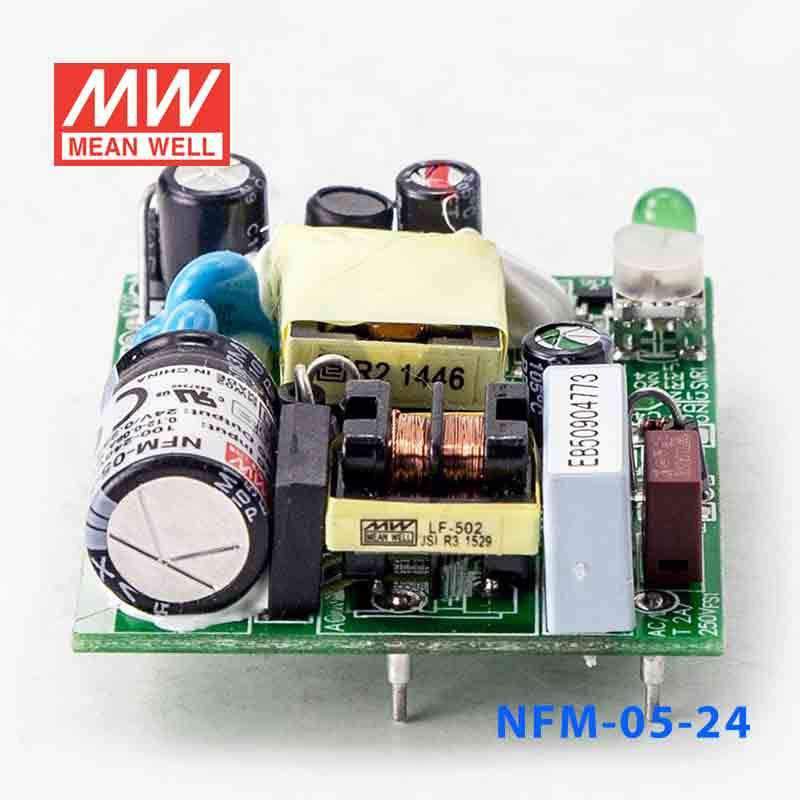

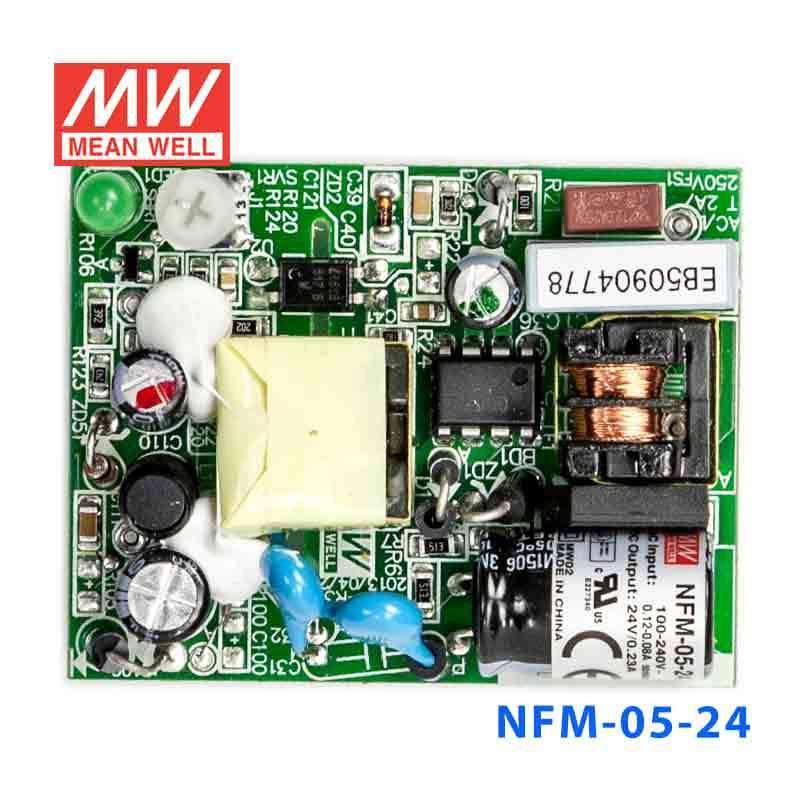

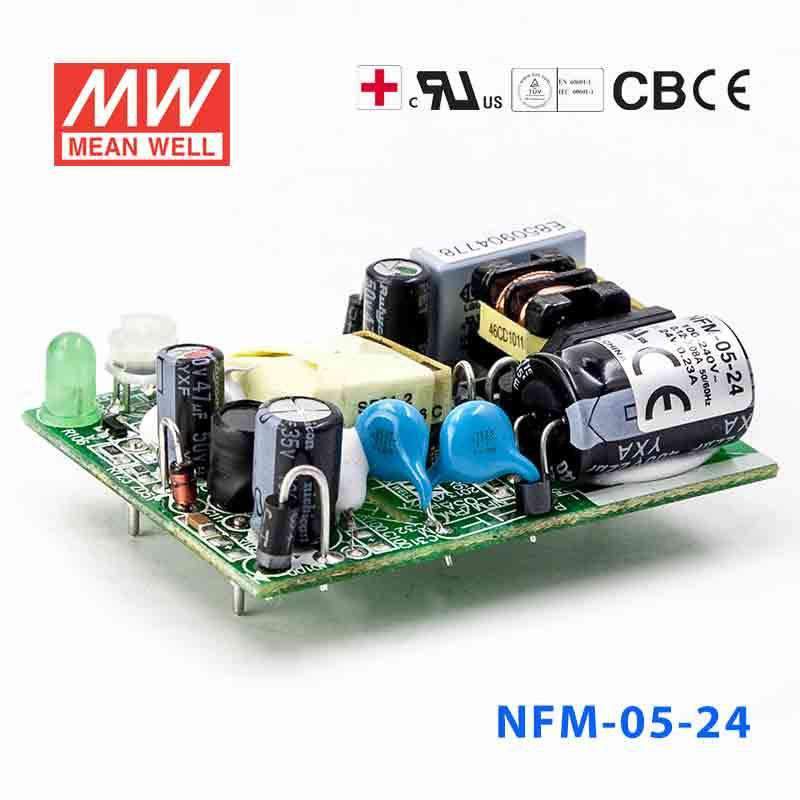

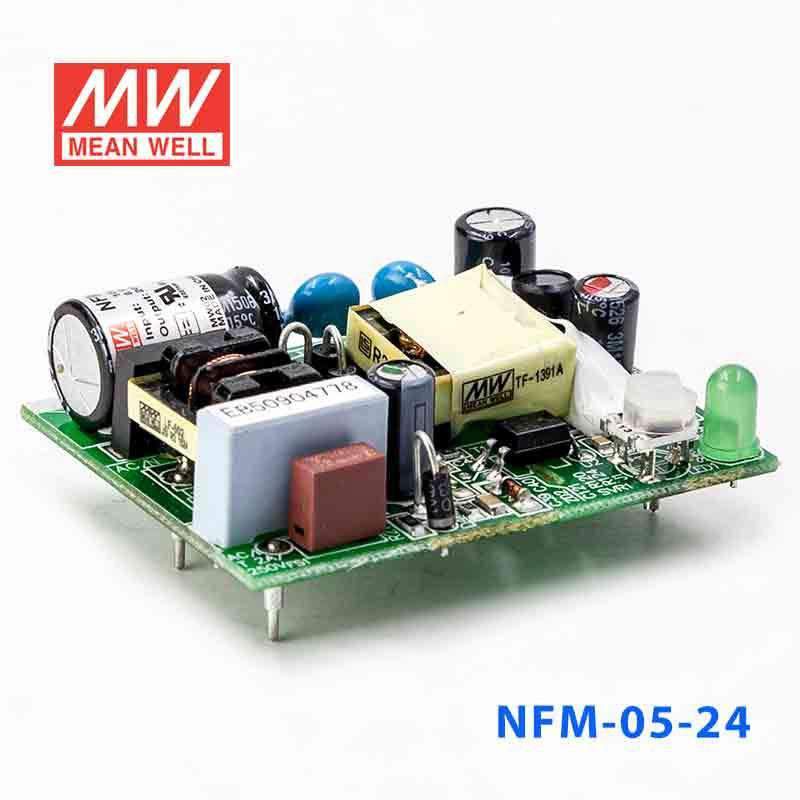

Mean Well NFM-05-24 Power Supply 5W 24V 230mA
Log in to see priceOverview
NFM-05-24 is the 24V output model of this series: rated current 0.23A, rated power 5.52W, typical efficiency 76%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Ultra-miniature size, light weight
- Cooling by free air convection
- Isolation classⅡ
- Medical safety approved (2 x MOPP between primary to secondary)
- No load power consumption<0.5W
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- High reliability
- Suitable for BF application with appropriate system consideration
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.23A
- CURRENT RANGE
- 0 ~ 0.23A
- RATED POWER
- 5.52W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ADJ. RANGE
- 21.6 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 100ms/230VAC 24ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 76%
- AC CURRENT (Typ.)
- 0.12A/115VAC 0.08A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 45A/230VAC
- LEAKAGE CURRENTNote.6
- Touch current < 80μA/264VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURENote.5
- Tj 145℃ typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020
OTHERS
- MTBF
- 738.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 58*45*19.1mm (L*W*H)
- PACKING
- 0.03Kg; 120pcs/5.0Kg/0.94CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
- 6. Touch current was measured from primary input to DC output.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the NFM-05-24 for a small 24V PLC or sensor circuit?
This model provides 24V constant voltage with up to 0.23A output and 5.52W total power. That makes it suitable for small 24V industrial control, sensor, or interface loads that stay within those electrical limits.
Is the NFM-05-24 a good fit for low-power 24V automation hardware?
It is intended for low-power 24V devices because its output is fixed at 24V and its capacity is 0.23A. For compact automation assemblies, the 58.0 x 45.0 x 19.1 mm size can also help where board or enclosure space is limited.
Can this 24V power supply be used for a small embedded or industrial interface board?
Yes, if the board requires 24V constant voltage and draws no more than 0.23A or 5.52W. The wide 85-264VAC input range also suits equipment that may be deployed across different AC input standards.
Would the NFM-05-24 work for a compact 24V relay or signal module?
It can work for a compact 24V relay, signal, or interface module when the load remains within 24V, 0.23A, and 5.52W. This is a small-output model, so it fits light-duty 24V applications rather than higher-current 24V hardware.
How does the NFM-05-24 compare with other NFM series models?
Within the series, nearby 5W-class options are NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; and this NFM-05-24 at 5.52W, 24V, 0.23A. Higher-capacity models include NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. The 15W group includes NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; and NFM-15-24 at 15.12W, 24V, 0.63A. The 20W group includes NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W; and NFM-20-24 at 22.08W, 24V, 0.92A.
Is the NFM-05-24 suitable for outdoor or harsh locations?
The listed operating temperature range is -20°C to +70°C, so temperature capability is specified across that range. The provided specs do not include an IP rating, so dust and water ingress protection are not defined here.
