Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

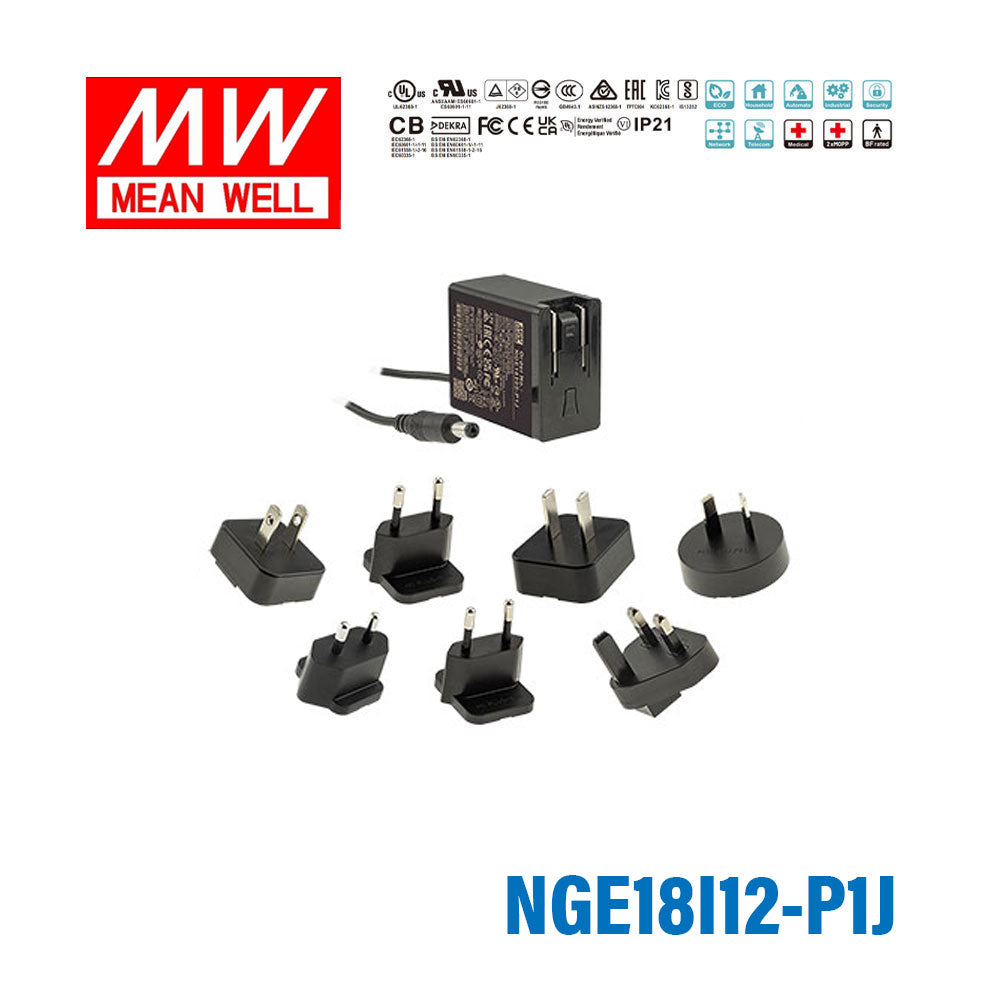

Mean Well NGE18I12-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE18I12 is a 18W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating18 Watt
-
Output Voltage12 Volt
-
Rated Current1.5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.8 cm
-
Width2.8 cm
-
Height5.5 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE18I12-P1J?
This model is a 18W AC-DC wall-mounted adaptor with a regulated 12V DC output. It is rated for up to 1.5A current, which makes it suitable for equipment that requires a 12V supply within that power range.
What makes the NGE18I12-P1J different from a standard fixed-plug wall adaptor?
The NGE18I12-P1J uses an interchangeable plug design rather than a fixed regional plug format. It is also built with very low no-load power consumption under 0.075W, Energy Efficiency Level VI performance, and a slim 28mm profile.
Is this power adaptor suitable for international or multi-region use?
Yes, this model supports universal AC input from 80 to 264VAC, which makes it appropriate for use across many regional power systems. Its interchangeable AC plug format also helps buyers standardize one adaptor platform for different markets.
What types of equipment is the NGE18I12-P1J commonly used with?
It is typically used for devices that need a 12V DC wall adaptor up to 1.5A. Typical B2B use cases include commercial, industrial, household, medical, and ITE equipment where buyers need a compact external power supply with broad certification coverage.
Can this adaptor be used in demanding temperature conditions?
Yes, the NGE18I12-P1J is rated for operation from -30°C to +70°C. That wide working range makes it a stronger fit for equipment used in colder or warmer environments than many basic indoor-only adaptors.
What protection and safety features are included in this model?
This adaptor includes short circuit, overload, and over-voltage protection. It is a Class II power unit with no earth pin, passes LPS, and is listed with multiple safety standards including IEC 62368-1, IEC 60601-1, IEC 60335-1, and IEC 61558-1/-2-16.
How do I know if the NGE18I12-P1J is compatible with my device?
The key compatibility checks are whether your equipment requires 12V DC and draws no more than 1.5A. Buyers should also confirm that the required plug format and any DC plug adapter accessory match their device requirements, since this series supports interchangeable AC plugs and optional DC plug quick adapters.
