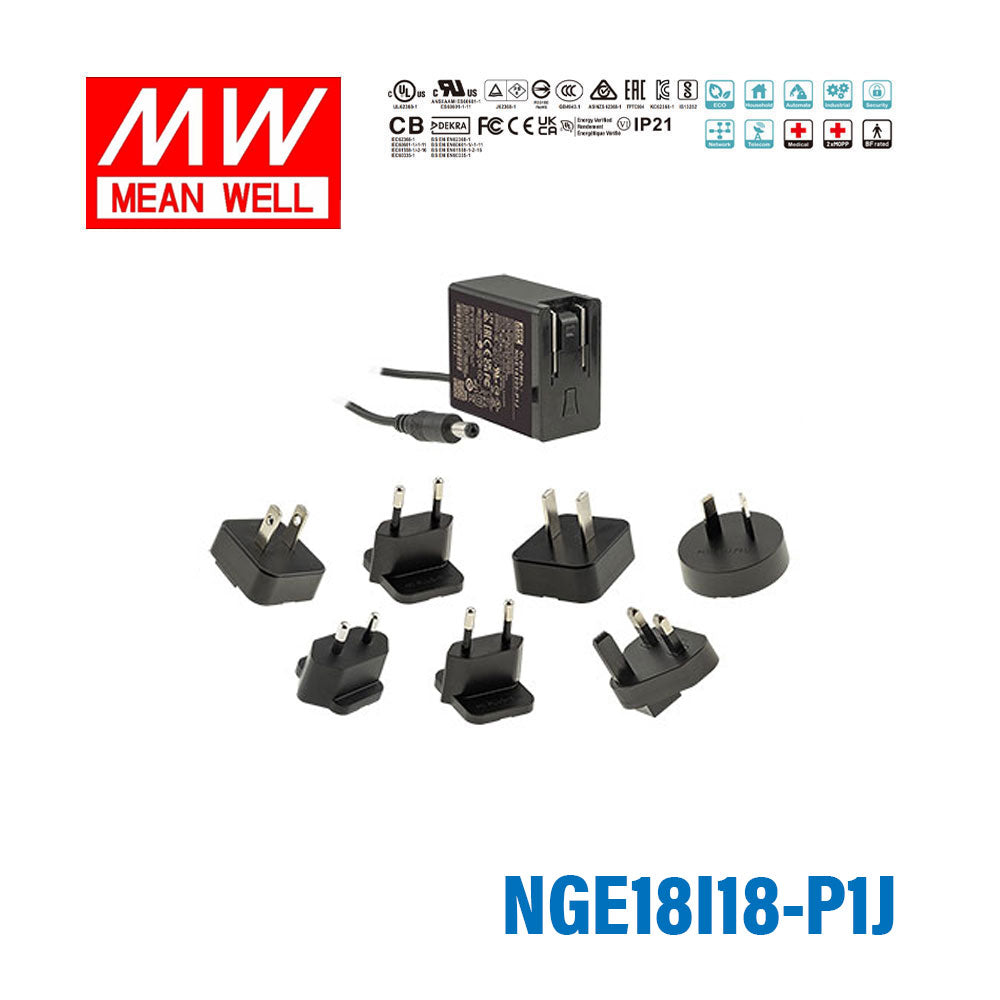

Mean Well NGE18I18-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE18I18 is a 18W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating18 Watt
-
Output Voltage18 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.8 cm
-
Width2.8 cm
-
Height5.5 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE18I18-P1J provide?
This model is a single-output 18W AC-DC wall adaptor rated for 18V DC at 1A. It is intended for equipment that matches that voltage and current requirement. The product name and specifications identify it as an 18V, 1A unit.
What kinds of equipment is the NGE18I18-P1J typically used for?
This adaptor is generally suited to devices that need a compact external 18V DC power supply up to 18W. Typical B2B use starts with checking the device's required DC voltage and current rather than choosing by wattage alone. For this model, the key match is 18V output with up to 1A available current.
Does this adaptor include protection features for commercial equipment?
Yes. The NGE18I18-P1J includes short circuit, overload, and over voltage protection according to the listed product features. The overload mode recovers automatically after the fault condition is removed.
Is the NGE18I18-P1J suitable for use across different regions or input voltages?
Yes. It has a universal input range of 80 to 264VAC, or 113 to 370VDC, which supports broad mains compatibility. It also features interchangeable AC plugs, making it better suited to multi-region deployment than a fixed-plug adaptor.
How energy efficient is this power adaptor?
This model is rated to Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a strong fit for applications where standby power and operating efficiency matter. Those specs are specifically listed for the NGE18I18-P1J series.
Can this adaptor be used in demanding temperature conditions?
The specified working temperature range is -30C to +70C, which is wider than many basic desktop or consumer adaptors. That makes it suitable for harsher operating environments when the rest of the equipment is also rated for those conditions. Mean Well also lists extremely low leakage current and Class II construction for this model.
What certifications or compliance coverage does the NGE18I18-P1J have?
Mean Well lists this adaptor with approvals spanning ITE, medical, household, and industrial safety standards, including IEC 62368-1, IEC 60601-1, IEC 60335-1, and IEC 61558-1/-2-16. The specification table also lists regional approvals such as UL, CSA, PSE, BSMI, RCM, EAC, and CCC. Buyers should still confirm the end equipment's own compliance requirements separately.
